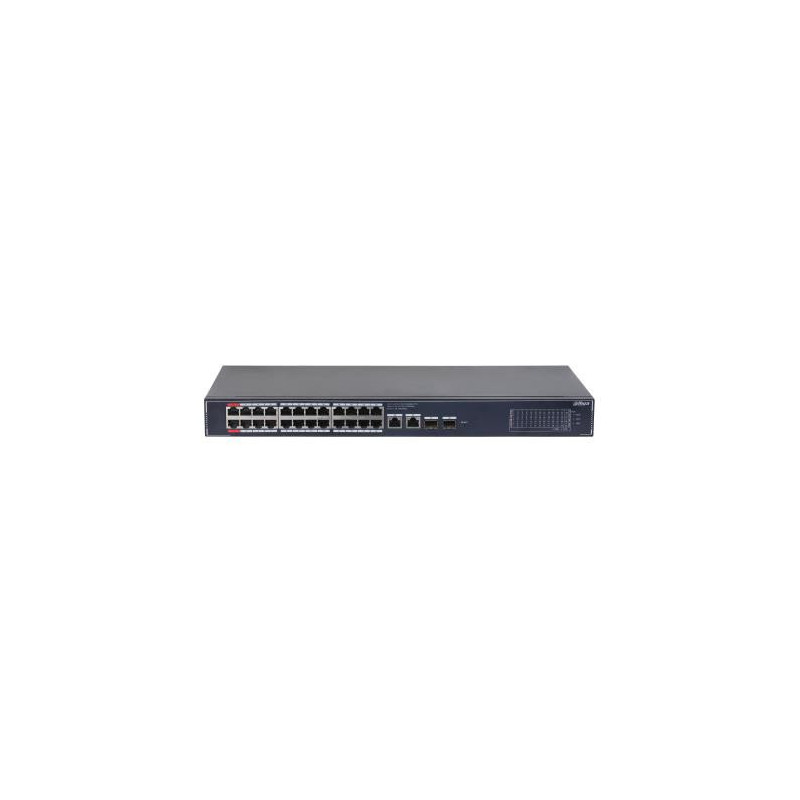

Switch, DAHUA, DH-SG4028LP, 26xGigabit Ethernet (copper) ports quantity, 2xSFP module slots quantity, 4xPower over Ether
Product reference:
2-6939554904714
Switch, DAHUA, DH-SG4028LP, 26xGigabit Ethernet (copper) ports quantity, 2xSFP module slots quantity, 4xPower over Ether
Product reference:
2-6939554904714
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
36 month
Delivery from Lithuania in
3 - 5
business days
SG4028LP
28-Port Cloud Managed Desktop Gigabit Switch with 24-Port PoE
| AC input frequency | 47/63 Hz |
| AC input voltage | 100 - 240 V |
| Basic switching RJ-45 Ethernet ports quantity | 2 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Broadcast storm control | Yes |
| Cables included | DC |
| Cloud-managed | Yes |
| Compliance certificates | CE |
| Depth | 220 mm |
| DHCP features | DHCP client |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Flow control support | Yes |
| Forwarding rate | 41.66 Mpps |
| Height | 44 mm |
| Housing material | Metal |
| Input current | 5 A |
| Installed SFP modules quantity | 2 |
| IP-MAC-Port binding | Yes |
| Jumbo frames | 15 |
| Jumbo frames support | Yes |
| Link aggregation | Yes |
| Loop protection | Yes |
| MAC address table | 8000 entries |
| Mean time between failures (MTBF) | 594334.8 h |
| Model name | DH-SG4028LP |
| Networking standards | IEEE 802.3/IEEE 802.3ab/IEEE 802.3ad/IEEE 802.3af/IEEE 802.3at/IEEE 802.3az/IEEE 802.3bt/IEEE 802.3u/IEEE 802.3x/IEEE 802.3z |
| Number of VLANs | 32 |
| Operating relative humidity (H-H) | 5 - 95 % |
| Operating temperature (T-T) | -10 - 55 °C |
| Package depth | 342 mm |
| Package height | 90 mm |
| Package weight | 3020 g |
| Package width | 540 mm |
| Packet buffer memory | 4 MB |
| Power consumption (max) | 265 W |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 24 |
| Power over Ethernet (PoE) power per port | 30 W |
| Power protection features | Over current/Over voltage |
| Power source | AC |
| Power supply included | Yes |
| Product colour | Black |
| Quick start guide | Yes |
| Storage relative humidity (H-H) | 5 - 95 % |
| Storage temperature (T-T) | -40 - 70 °C |
| Summary | Dahua Technology . Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 2, Installed SFP modules quantity: 2. MAC address table: 8000 entries, Switching capacity: 56 Gbit/s. Networking standards: IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, IEEE.... Power over Ethernet (PoE) |
| Switch layer | L2 |
| Switch type | Managed |
| Switching capacity | 56 Gbit/s |
| Total Power over Ethernet (PoE) budget | 240 W |
| Unit Box Height | 0.09 |
| Unit Box Length | 0.54 |
| Unit Box Width | 0.34 |
| Unit Calculated Volume | 0.01652 cubm |
| Unit Calculated Weight | 3.36 kg |
| Units per Shipping Box | 1 |
| Vendor Homepage | https://www.dahuasecurity.com/fr/products/All-Products/Transmission/IT-Channel-Products/PoE-Switch/SG4028LP |
| Virtual LAN features | Port-based VLAN |
| VLAN support | Yes |
| Web-based management | Yes |
| Weight | 2370 g |
| Width | 440 mm |
