Switch, DAHUA, DH-SG4010P, Switch layer L2, 10xRJ-45 ports, RJ-45 Ports Type Gigabit Ethernet (10 / 100 / 1000), 8xPower
Product reference:
2-6939554904509
Switch, DAHUA, DH-SG4010P, Switch layer L2, 10xRJ-45 ports, RJ-45 Ports Type Gigabit Ethernet (10 / 100 / 1000), 8xPower
Product reference:
2-6939554904509
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
36 month
Delivery from Lithuania in
3 - 5
business days
SG4010P

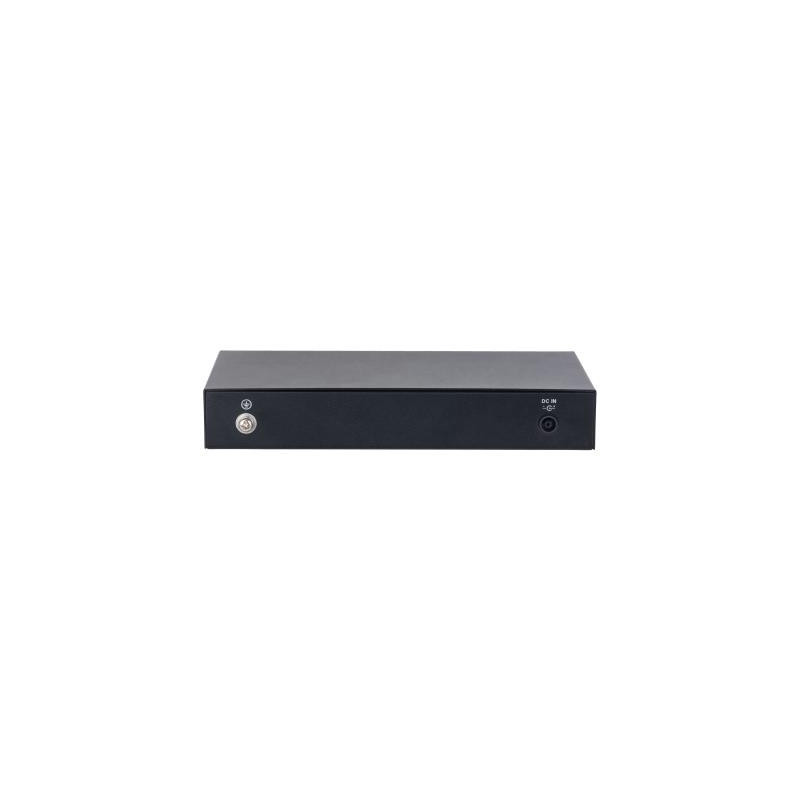

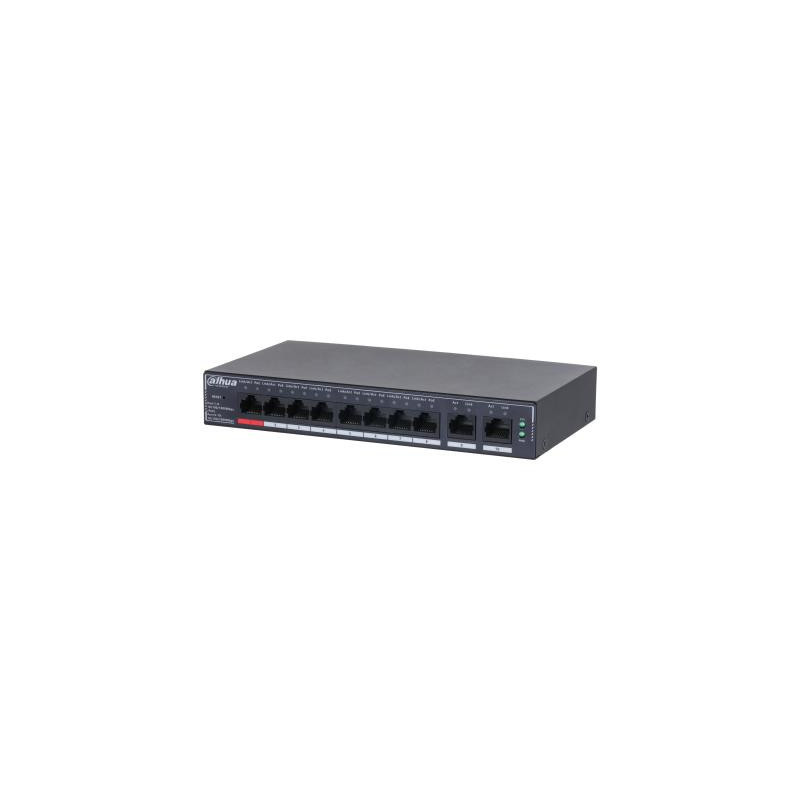

10-Port Cloud Managed Desktop Gigabit Switch with 8-Port PoE
| Basic switching RJ-45 Ethernet ports quantity | 2 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Broadcast storm control | Yes |
| Cables included | DC |
| Cloud-managed | Yes |
| Compliance certificates | CE |
| DC input voltage | 54 V |
| Depth | 106 mm |
| DHCP features | DHCP client |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Flow control support | Yes |
| Forwarding rate | 14.88 Mpps |
| Height | 30 mm |
| Housing material | Metal |
| Input current | 2.22 A |
| IP-MAC-Port binding | Yes |
| Jumbo frames | 15 |
| Jumbo frames support | Yes |
| Link aggregation | Yes |
| Loop protection | Yes |
| MAC address table | 8000 entries |
| Mean time between failures (MTBF) | 1115911.8 h |
| Model name | DH-SG4010P |
| Networking standards | IEEE 802.3/IEEE 802.3ab/IEEE 802.3ad/IEEE 802.3af/IEEE 802.3at/IEEE 802.3az/IEEE 802.3bt/IEEE 802.3u/IEEE 802.3x/IEEE 802.3z |
| Number of VLANs | 32 |
| Operating relative humidity (H-H) | 5 - 95 % |
| Operating temperature (T-T) | -10 - 55 °C |
| Package depth | 244 mm |
| Package height | 87 mm |
| Package weight | 1300 g |
| Package width | 256 mm |
| Packet buffer memory | 4 MB |
| Power consumption (max) | 110 W |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 8 |
| Power over Ethernet (PoE) power per port | 30 W |
| Power protection features | Over current/Over voltage |
| Power source | DC |
| Power supply included | Yes |
| Product colour | Black |
| Product Net Weight | 0.55 kg |
| Quick start guide | Yes |
| Shipping Box Depth | 53 cm |
| Shipping Box Height | 47 cm |
| Shipping Box Weight | 14.3999996185303 kg |
| Shipping Box Width | 26 cm |
| Storage relative humidity (H-H) | 5 - 95 % |
| Storage temperature (T-T) | -40 - 70 °C |
| Summary | Dahua Technology SG4010P. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 2. MAC address table: 8000 entries, Switching capacity: 20 Gbit/s. Networking standards: IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, IEEE.... DC input voltage: 54 V. Power over Ethernet (PoE) |
| Switch layer | L2 |
| Switch type | Managed |
| Switching capacity | 20 Gbit/s |
| Total Power over Ethernet (PoE) budget | 110 W |
| Unit Box Height | 0.09 |
| Unit Box Length | 0.26 |
| Unit Box Width | 0.245 |
| Unit Calculated Volume | 0.006477 cubm |
| Unit Calculated Weight | 1.44 kg |
| Units per Shipping Box | 10 |
| Vendor Homepage | https://transmission.dahuasecurity.com/fr/product-list/Business/Switches/PoESwitchesForIT/SG4010P |
| Virtual LAN features | Port-based VLAN |
| VLAN support | Yes |
| Web-based management | Yes |
| Weight | 550 g |
| Width | 190 mm |
