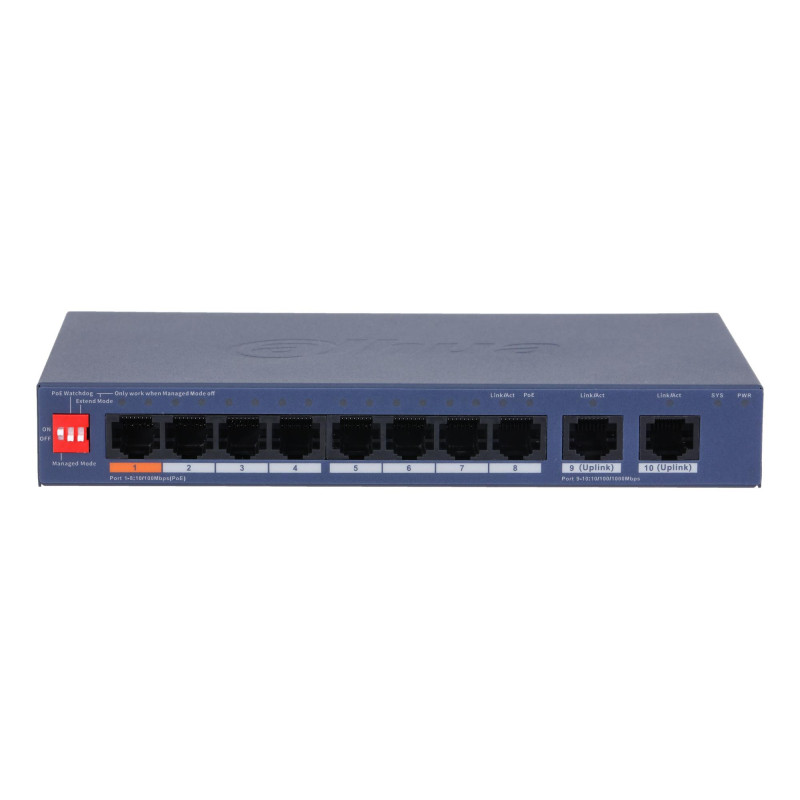

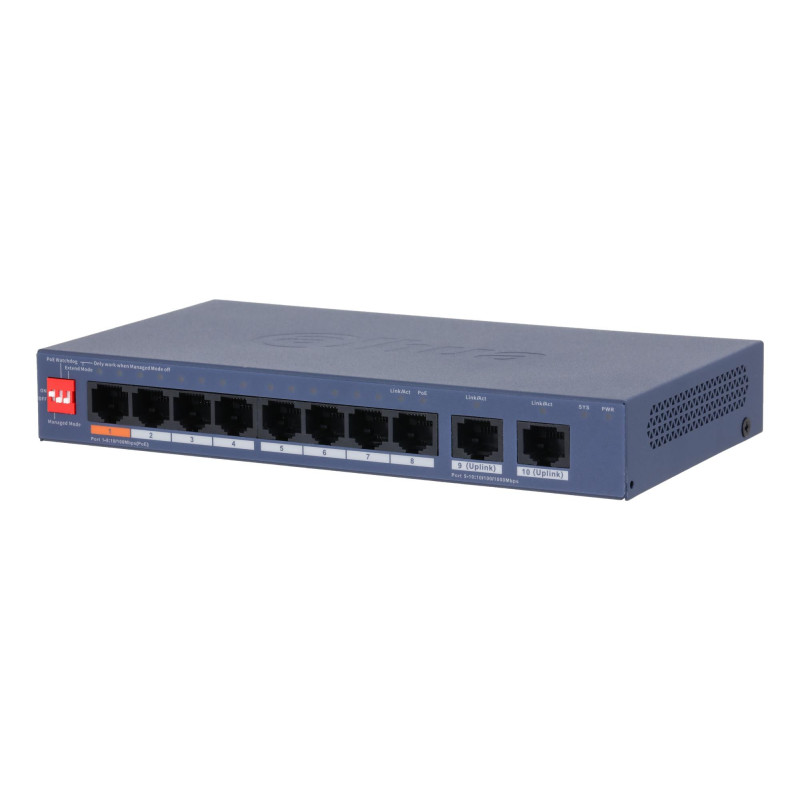

Switch, DAHUA, DH-CS4010-8ET2GT-60, Switch layer L2, 8xRJ-45 ports, RJ-45 Ports Type Fast Ethernet (10 / 100), 2xGigabit
Product reference:
2-6937552421417
Switch, DAHUA, DH-CS4010-8ET2GT-60, Switch layer L2, 8xRJ-45 ports, RJ-45 Ports Type Fast Ethernet (10 / 100), 2xGigabit
Product reference:
2-6937552421417
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
36 month
Delivery from Lithuania in
3 - 5
business days
- 8 × RJ-45 10/100 Mbps PoE ports, 2 x RJ-45 Gigabit ports
- 60 W total PoE budget, 802.3af/at on all PoE ports, additional Hi-PoE on orange port
- DIP switch to fast turn on/off working mode of Cloud-Managed, PoE Watchdog, Long Distance PoE
- Wide operating temperature ranging from -10 °C to 55 °C
- Supports VLAN and loop protection
- WEB-managed and centralized cloud management through the DoLynk App and performs real-time monitoring of the network
- Easy config to auto detect and set up network and security systems
| 10G support | No |
| Basic switching RJ-45 Ethernet ports quantity | 10 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Broadcast storm control | Yes |
| Cables included | AC |
| Cloud-managed | Yes |
| Compliance certificates | CE |
| DC input voltage | 53 V |
| Depth | 184.6 mm |
| DHCP features | DHCP client |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Fast Ethernet (copper) ports quantity | 8 |
| Flow control support | Yes |
| Forwarding rate | 4.17 Mpps |
| Gigabit Ethernet (copper) ports quantity | 2 |
| Height | 27 mm |
| Housing material | Metal |
| Input current | 1.22 A |
| IP-MAC-Port binding | Yes |
| Jumbo frames | 9216 |
| Jumbo frames support | Yes |
| LED indicators | Yes |
| Loop protection | Yes |
| MAC address table | 8000 entries |
| Manual | Yes |
| Mean time between failures (MTBF) | 2837361 h |
| Model name | CS4010-8ET2GT-60 |
| Multicast support | Yes |
| Networking standards | IEEE 802.1Q/IEEE 802.3/IEEE 802.3ab/IEEE 802.3af/IEEE 802.3at/IEEE 802.3az/IEEE 802.3u/IEEE 802.3x |
| Number of VLANs | 32 |
| Operating relative humidity (H-H) | 10 - 90 % |
| Operating temperature (T-T) | -10 - 55 °C |
| Package depth | 252 mm |
| Package height | 113 mm |
| Package weight | 920 g |
| Package width | 137 mm |
| Packet buffer memory | 4 MB |
| Port mirroring | Yes |
| Power connector | DC-in jack |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 8 |
| Power source | DC/PoE |
| Power supply included | Yes |
| Product colour | Blue |
| Product Net Weight | 0.36 kg |
| Rack mounting | No |
| Reset button | Yes |
| Shipping Box Depth | 71 cm |
| Shipping Box Height | 25 cm |
| Shipping Box Weight | 20 kg |
| Shipping Box Width | 52 cm |
| Storage relative humidity (H-H) | 5 - 95 % |
| Storage temperature (T-T) | -40 - 70 °C |
| Summary | Dahua Technology CS4010-8ET2GT-60. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 10. MAC address table: 8000 entries, Switching capacity: 5.6 Gbit/s. Networking standards: IEEE 802.3af, IEEE 802.3at, IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3az, IEEE.... DC input voltage: 53 V. Power connector: DC-in jack. Power over Ethernet (PoE). Wall mountable |
| Switch layer | L2 |
| Switch type | Managed |
| Switching capacity | 5.6 Gbit/s |
| Total Power over Ethernet (PoE) budget | 60 W |
| Unit Box Height | 0.11 |
| Unit Box Length | 0.25 |
| Unit Box Width | 0.135 |
| Unit Calculated Volume | 0.004615 cubm |
| Unit Calculated Weight | 1 kg |
| Units per Shipping Box | 20 |
| Vendor Homepage | https://transmission.dahuasecurity.com/en/product-list/business/cloudmanagementsolution/networkswitch/cs4010-8et2gt-60 |
| VLAN support | Yes |
| Wall mountable | Yes |
| Web-based management | Yes |
| Weight | 360 g |
| Width | 103.3 mm |
