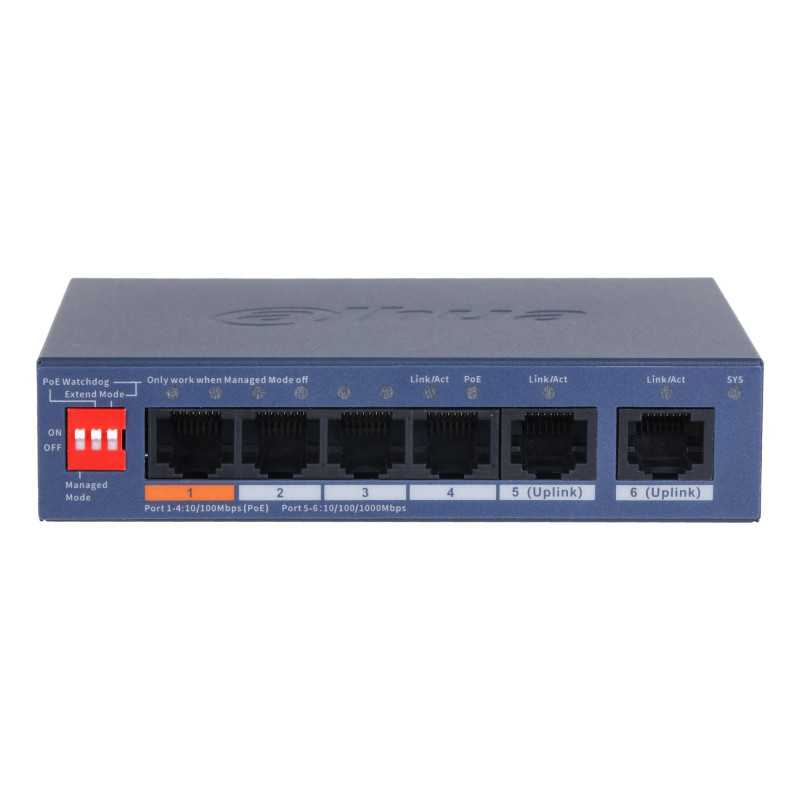

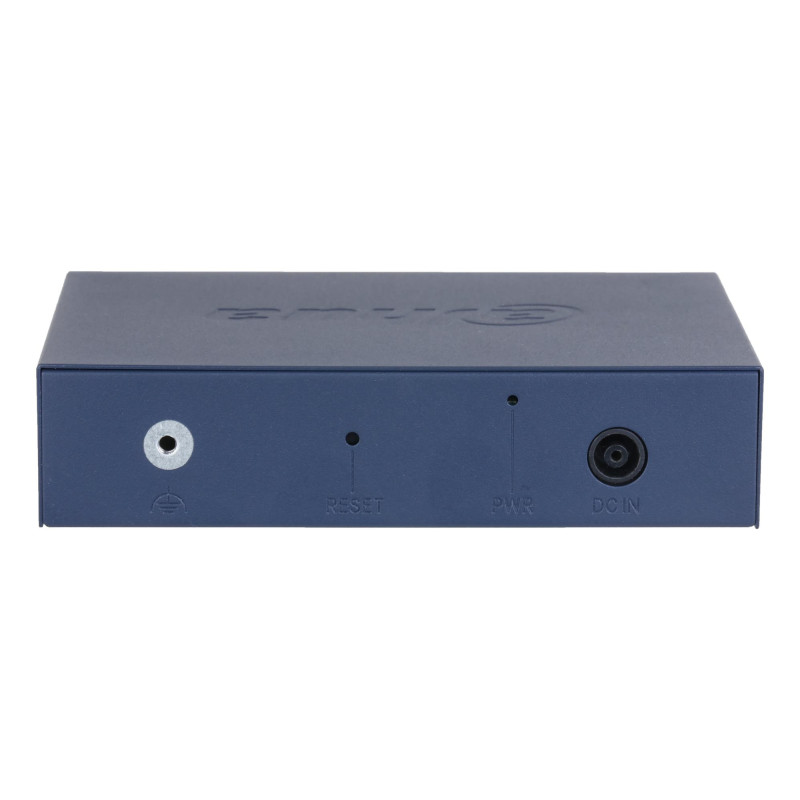

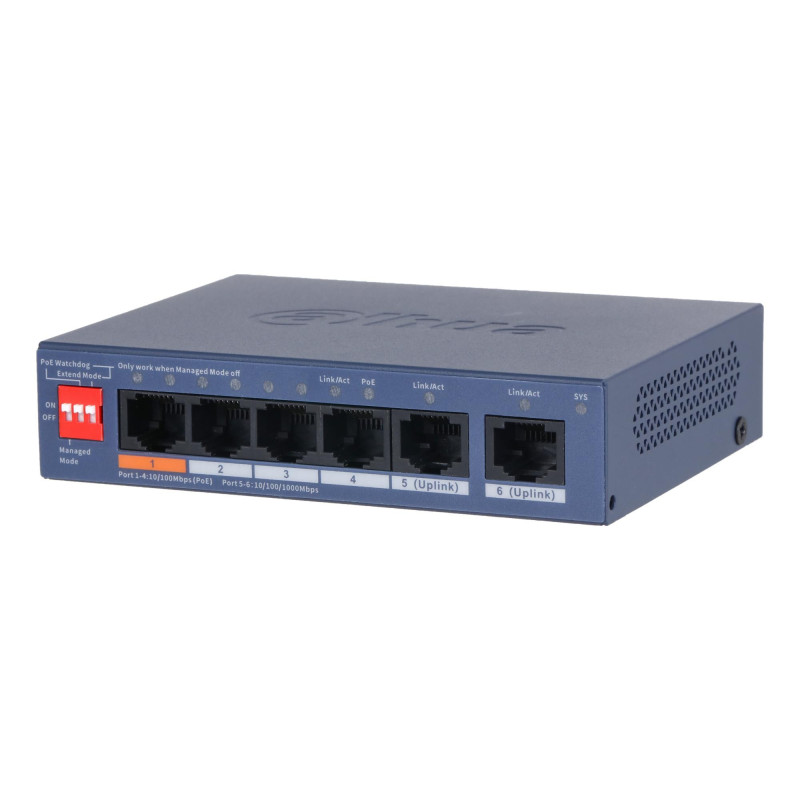

Switch, DAHUA, DH-CS4006-4ET2GT-60, Switch layer L2, 2xRJ-45 ports, RJ-45 Ports Type Fast Ethernet (10 / 100), 4xGigabit
Product reference:
2-6939554921773
Switch, DAHUA, DH-CS4006-4ET2GT-60, Switch layer L2, 2xRJ-45 ports, RJ-45 Ports Type Fast Ethernet (10 / 100), 4xGigabit
Product reference:
2-6939554921773
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
36 month
Delivery from Lithuania in
3 - 5
business days
Not available
- 4 × RJ45 10/100 Mbps PoE ports, 2 × RJ45 Gigabit ports
- 60 W total PoE budget, 802.3af/at on all PoE ports, additional Hi-PoE on orange port
- DIP switch to fast turn on/off working mode of Cloud-Managed, PoE Watchdog, Long Distance PoE
- Wide operating temperature ranging from -10 °C to 55 °C
- Supports VLAN and loop protection
- WEB-managed and centralized cloud management through the DoLynk App and performs real-time monitoring of the network
- Easy config to auto detect and set up network and security systems
| 10G support | No |
| Basic switching RJ-45 Ethernet ports quantity | 6 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Broadcast storm control | Yes |
| Cables included | AC |
| Cloud-managed | Yes |
| DC input voltage | 53 V |
| Depth | 115 mm |
| DHCP features | DHCP client |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Fast Ethernet (copper) ports quantity | 4 |
| Flow control support | Yes |
| Forwarding rate | 3.57 Mpps |
| Gigabit Ethernet (copper) ports quantity | 2 |
| Height | 27 mm |
| Housing material | Metal |
| Input current | 1.22 A |
| IP-MAC-Port binding | Yes |
| Jumbo frames | 9216 |
| Jumbo frames support | Yes |
| LED indicators | Yes |
| Loop protection | Yes |
| MAC address table | 2000 entries |
| Mean time between failures (MTBF) | 2037751.2 h |
| Model name | CS4006-4ET2GT-60 |
| Multicast support | Yes |
| Networking standards | IEEE 802.1Q/IEEE 802.3/IEEE 802.3ab/IEEE 802.3af/IEEE 802.3at/IEEE 802.3az/IEEE 802.3u/IEEE 802.3x |
| Number of VLANs | 32 |
| Operating relative humidity (H-H) | 10 - 90 % |
| Operating temperature (T-T) | -10 - 55 °C |
| Package depth | 195 mm |
| Package height | 83 mm |
| Package weight | 760 g |
| Package width | 114 mm |
| Packet buffer memory | 4 MB |
| Port mirroring | Yes |
| Power connector | DC-in jack |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 4 |
| Power source | DC/PoE |
| Power supply included | Yes |
| Product colour | Blue |
| Product Net Weight | 0.2 kg |
| Quick start guide | Yes |
| Rack mounting | No |
| Reset button | Yes |
| Shipping Box Depth | 40.5 cm |
| Shipping Box Height | 29 cm |
| Shipping Box Weight | 9.3999996185 kg |
| Shipping Box Width | 26 cm |
| Storage relative humidity (H-H) | 5 - 95 % |
| Storage temperature (T-T) | -40 - 70 °C |
| Summary | Dahua Technology CS4006-4ET2GT-60. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 6. MAC address table: 2000 entries, Switching capacity: 4.8 Gbit/s. Networking standards: IEEE 802.3af, IEEE 802.3at, IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3az, IEEE.... DC input voltage: 53 V. Power connector: DC-in jack. Power over Ethernet (PoE). Wall mountable |
| Switch layer | L2 |
| Switch type | Managed |
| Switching capacity | 4.8 Gbit/s |
| Total Power over Ethernet (PoE) budget | 60 W |
| Unit Box Height | 0.08 |
| Unit Box Length | 0.195 |
| Unit Box Width | 0.115 |
| Unit Calculated Volume | 0.002545 cubm |
| Unit Calculated Weight | 0.783 kg |
| Units per Shipping Box | 12 |
| Vendor Homepage | https://transmission.dahuasecurity.com/en/product-list/business/cloudmanagementsolution/networkswitch/cs4006-4et2gt-60 |
| VLAN support | Yes |
| Wall mountable | Yes |
| Web-based management | Yes |
| Weight | 200 g |
| Width | 84 mm |
