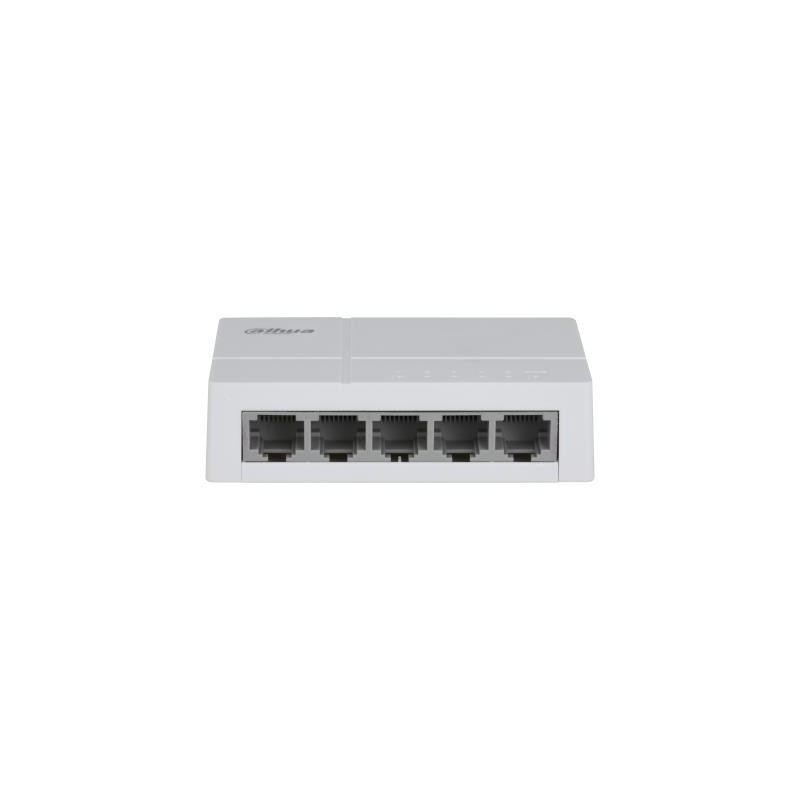

Switch, DAHUA, Desktop / pedestal, SF1005L
Product reference:
2-6923172590404
Switch, DAHUA, Desktop / pedestal, SF1005L
Product reference:
2-6923172590404
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
36 month
Delivery from Lithuania in
3 - 5
business days
Not available
The Device is a layer-2 commercial switch. It has a high-performance switching engine and a large buffer memory to ensure smooth video stream transmission. With a plastic and fanless design, the device provides a more cost-effective option for customers. The Device is an unmanaged switch, so it does not need to be configured through web interface, which simplifies installation.
Robust Design
Built to last, the architecture of the switch makes it highly reliable, operating with high-efficiency non-stop.
Plug and Play
Hassle-free, it does not require any configuration. Simply use after it is powered on.
Optimized Performance
All ports can transmit streams at high speeds without delay.
Easy Installation
Both desktop and wall mount installation are supported, making it suitable for a wide variety of scenarios.
- > Supports five 10/100 Mbps adaptive ports
- > Small and light, it is easy to carry and has multiple chips embedded in it
- > Easy to operate
| 10G support | No |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Cable types supported | Cat5e/Cat6 |
| Copper ethernet cabling technology | 10BASE-T |
| DC input voltage | 5 V |
| Depth | 52 mm |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Fast Ethernet (copper) ports quantity | 5 |
| Flow control support | Yes |
| Form factor | Desktop |
| Forwarding rate | 0.744 Mpps |
| Height | 23 mm |
| Input current | 1 A |
| LED indicators | Yes |
| MAC address table | 2000 entries |
| Mean time between failures (MTBF) | 952.5 h |
| Model | SF1005L |
| Model name | DH-SF1005L |
| Operating relative humidity (H-H) | 5 - 95 % |
| Operating temperature (T-T) | 0 - 45 °C |
| Package depth | 93 mm |
| Package height | 65 mm |
| Package weight | 230 g |
| Package width | 110 mm |
| Packet buffer memory | 0.768 MB |
| Power consumption (max) | 0.5 W |
| Power consumption (typical) | 0.1 W |
| Power over Ethernet (PoE) | Yes |
| Power source | DC/PoE |
| Product colour | Light grey |
| Product Net Weight | 0.12 kg |
| Rack mounting | No |
| Shipping Box Depth | 30 cm |
| Shipping Box Height | 36 cm |
| Shipping Box Weight | 5.59999990463257 kg |
| Shipping Box Width | 24 cm |
| Storage relative humidity (H-H) | 5 - 95 % |
| Storage temperature (T-T) | -40 - 70 °C |
| Summary | Dahua Technology PoE DH-SF1005L. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 5. MAC address table: 2000 entries, Switching capacity: 1 Gbit/s. DC input voltage: 5 V. Power over Ethernet (PoE). Form factor: Desktop |
| Switch type | Unmanaged |
| Switching capacity | 1 Gbit/s |
| Unit Box Height | 0.067 |
| Unit Box Length | 0.115 |
| Unit Box Width | 0.095 |
| Unit Calculated Volume | 0.000864 cubm |
| Unit Calculated Weight | 0.187 kg |
| Units per Shipping Box | 30 |
| Uplink ports quantity | 1 |
| Vendor Homepage | https://transmission.dahuasecurity.com/en/product-list/Home/SOHOSwitches/PlasticSwitch/SF1005L |
| Weight | 120 g |
| Width | 86.4 mm |
