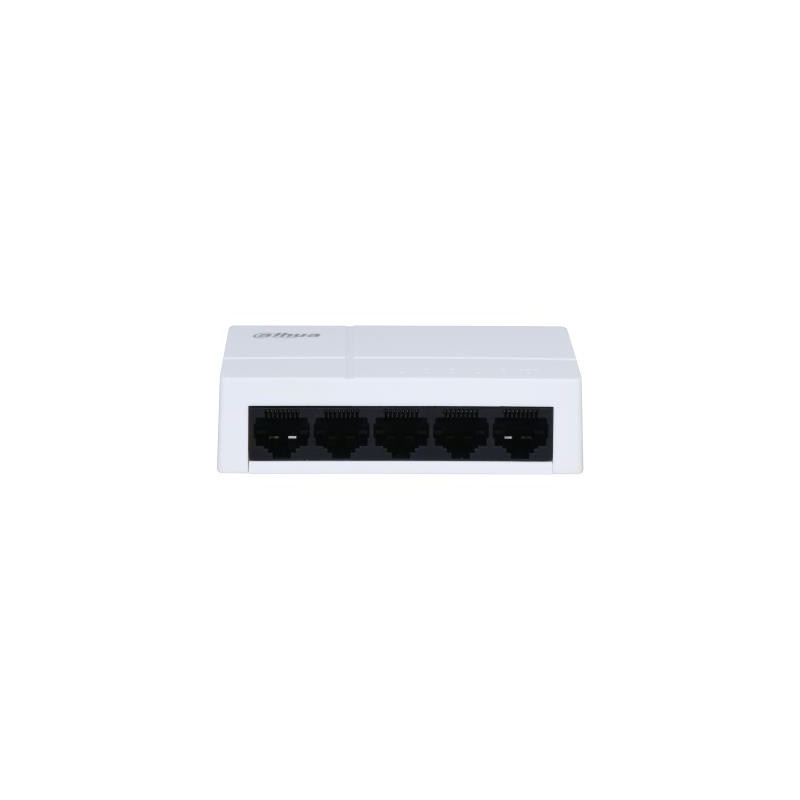

Switch, DAHUA, 5xRJ-45 ports, SG1005L-EUR
Product reference: 2-6923172583543
Switch, DAHUA, 5xRJ-45 ports, SG1005L-EUR
Switch, DAHUA, 5xRJ-45 ports, SG1005L-EUR
Switch, DAHUA, 5xRJ-45 ports, SG1005L-EUR
Switch, DAHUA, 5xRJ-45 ports, SG1005L-EUR

Switch, DAHUA, 5xRJ-45 ports, SG1005L-EUR

Product reference: 2-6923172583543
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
10,19 €
Product in warehouse

Guarantee
36 month

Delivery from Lithuania in
3 - 5
business days

Your message has been successfully sent!
Fill in the required fields*
Not available

The Device is a layer-2 commercial switch. It has a high-performance switching engine and a large buffer memory to ensure smooth video stream transmission. With a plastic and fanless design, the device provides a more cost-effective option for customers. The Device is an unmanaged switch, so it does not need to be configured through web interface, which simplifies installation.

Robust Design
Built to last, the architecture of the switch makes it highly reliable, operating with high-efficiency non-stop.

Plug and Play
Hassle-free, it does not require any configuration. Simply use after it is powered on.

Optimized Performance
All ports can transmit streams at high speeds without delay.

Easy Installation
Both desktop and wall mount installation are supported, making it suitable for a wide variety of scenarios.


10G support No
Basic switching RJ-45 Ethernet ports quantity 5
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Compliance certificates CE
Copper ethernet cabling technology 1000BASE-T/100BASE-T/10BASE-T
DC input voltage 5 V
Depth 52 mm
Forwarding rate 7.44 Mpps
Gigabit Ethernet (copper) ports quantity 5
Height 23 mm
Housing material Plastic
Input current 1 A
MAC address table 2000 entries
Model SG1005L-EUR
Operating relative humidity (H-H) 5 - 95 %
Operating temperature (T-T) 0 - 45 °C
Package depth 94 mm
Package height 67 mm
Package weight 230 g
Package width 111 mm
Packet buffer memory 1 MB
Power consumption (max) 1.5 W
Power over Ethernet (PoE) No
Power source DC
Power supply included Yes
Product colour White
Storage relative humidity (H-H) 5 - 95 %
Storage temperature (T-T) -40 - 70 °C
Store-and-forward Yes
Summary Dahua Technology SG1005L-EUR. Switch type: Unmanaged, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 5. MAC address table: 2000 entries, Switching capacity: 10 Gbit/s. DC input voltage: 5 V
Switch layer L2
Switch type Unmanaged
Switching capacity 10 Gbit/s
Unit Box Height 0.065
Unit Box Length 0.115
Unit Box Width 0.095
Unit Calculated Volume 0.000852 cubm
Unit Calculated Weight 0.2 kg
Units per Shipping Box 30
Vendor Homepage https://www.dahuasecurity.com/products/All-Products/Dedicated-Products/Project-Exclusive/Transmission/SG1005L
Weight 120 g
Width 86.4 mm
