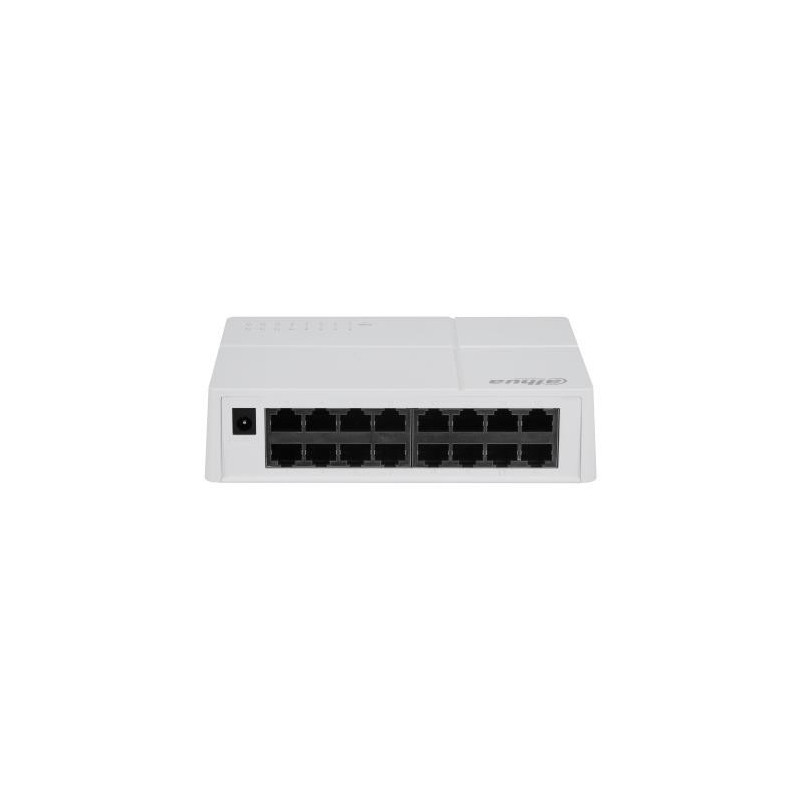

Switch, DAHUA, 16xRJ-45 ports, SF1016L
Product reference: 2-6923172568601
Switch, DAHUA, 16xRJ-45 ports, SF1016L
Switch, DAHUA, 16xRJ-45 ports, SF1016L
Switch, DAHUA, 16xRJ-45 ports, SF1016L

Switch, DAHUA, 16xRJ-45 ports, SF1016L

Product reference: 2-6923172568601
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
23,89 €
Product in warehouse

Guarantee
36 month

Delivery from Lithuania in
3 - 5
business days

Your message has been successfully sent!
Fill in the required fields*
Not available

The Device is a layer-2 commercial switch. It has a high-performance switching engine and a large buffer memory to ensure smooth video stream transmission. With a plastic and fanless design, the device provides a more cost-effective option for customers. The Device is an unmanaged switch, so it does not need to be configured through web interface, which simplifies installation.

  • 16 × RJ-45 10/100 Mbps ports
  • Wide operating temperature ranging from -10 °C to +55 °C
  • Easy to install, and is plug and play
  • Supports wall mount and desktop mount

10G support No
Basic switching RJ-45 Ethernet ports quantity 16
Basic switching RJ-45 Ethernet ports type Fast Ethernet (10/100)
DC input voltage 12 V
Depth 120 mm
Ethernet LAN data rates 10,100 Mbit/s
Form factor Desktop/Wall-Mounting
Forwarding rate 2.38 Mpps
Height 42 mm
Input current 0.5 A
Jumbo frames 1520
Jumbo frames support Yes
MAC address table 8 entries
Model SF1016L
Networking standards IEEE 802.3/IEEE 802.3u/IEEE 802.3x
Package depth 180 mm
Package height 92 mm
Package weight 600 g
Package width 207 mm
Power consumption (typical) 1.5 W
Power source DC
Product colour Grey
Product Net Weight 0.5 kg
Shipping Box Depth 56 cm
Shipping Box Height 23 cm
Shipping Box Weight 8.10000038146973 kg
Shipping Box Width 43 cm
Storage relative humidity (H-H) 10 - 90 %
Storage temperature (T-T) -40 - 60 °C
Summary Dahua Technology SF1016L. Switch type: Unmanaged, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 16. MAC address table: 8 entries, Switching capacity: 3.2 Gbit/s. Networking standards: IEEE 802.3u, IEEE 802.3x, IEEE 802.3. DC input voltage: 12 V. Form factor: Desktop/Wall-Mounting
Switch layer L2
Switch type Unmanaged
Switching capacity 3.2 Gbit/s
Unit Box Height 0.175
Unit Box Length 0.205
Unit Box Width 0.09
Unit Calculated Volume 0.004615 cubm
Unit Calculated Weight 0.675 kg
Units per Shipping Box 12
Vendor Homepage https://transmission.dahuasecurity.com/en/product-list/Home/SOHOSwitches/PlasticSwitch/SF1016L
Weight 300 g
Width 160 mm
