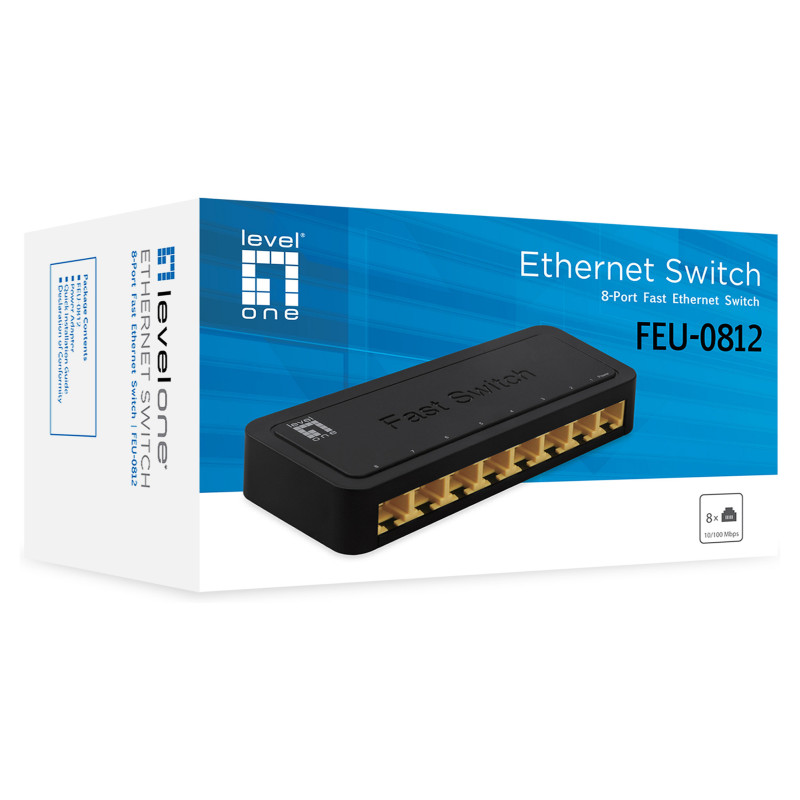

LevelOne FEU-0812 network switch
Product reference: 29-4015867226667

LevelOne FEU-0812, Unmanaged, Fast Ethernet (10/100), Full duplex

LevelOne FEU-0812 network switch

Product reference: 29-4015867226667

LevelOne FEU-0812, Unmanaged, Fast Ethernet (10/100), Full duplex

You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
98,33 €
132,88 €
Product in warehouse

Guarantee
24 month

Delivery from Europe in
5 - 10
business days

Your message has been successfully sent!
Fill in the required fields*

LevelOne FEU-0812. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 8. Full duplex. MAC address table: 1000 entries. Networking standards: IEEE 802.3, IEEE 802.3az, IEEE 802.3u, IEEE 802.3z. DC input voltage: 5 V. Power connector: DC-in jack

The LevelOne FEU-0812 is a wire-speed, non-blocking networking device that provides 8 ports 10/100 Mbps Ethernet connections. All ports support auto-negotiation and auto-MDI/MDIX sensing, eliminating the need for crossover cables or Uplink Ports. Each port can be used as general network port or as connecting port into a router, server, hub or another network switch.


Management features

Switch type: Unmanaged

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 8
Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100)
Power connector: DC-in jack

Network

Networking standards: IEEE 802.3, IEEE 802.3az, IEEE 802.3u, IEEE 802.3z
Copper ethernet cabling technology: 10BASE-T, 100BASE-T
Feature: Full duplex
Feature: Half duplex
Feature: Auto MDI/MDI-X
Feature: Auto-negotiation

Data transmission

MAC address table: 1000 entries
Packet buffer memory: 1.19 MB

Design

Product colour: Black
LED indicators: Activity, Link, Power

Performance

Feature: Plug and Play
Feature: Fanless

Power

Power source: DC
Feature: Power supply included
DC input voltage: 5 V
Input current: 0.55 A
Power consumption (typical): 1.7 W

Operational conditions

Operating temperature (T-T): 0 - 45 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 90%

Weight & dimensions

Width: 130.7 mm
Depth: 52.3 mm
Height: 20 mm
Weight: 110 g

Packaging data

Feature: AC adapter included
Package type: Box
Package width: 145 mm
Package depth: 80 mm
Package height: 80 mm
Package weight: 214 g

Certificates

Certification: CERoHS

Logistics data

Country of origin: China
Harmonized System (HS) code: 85176990


Gamintojo kodas FEU-0812
Weight 0 kg
