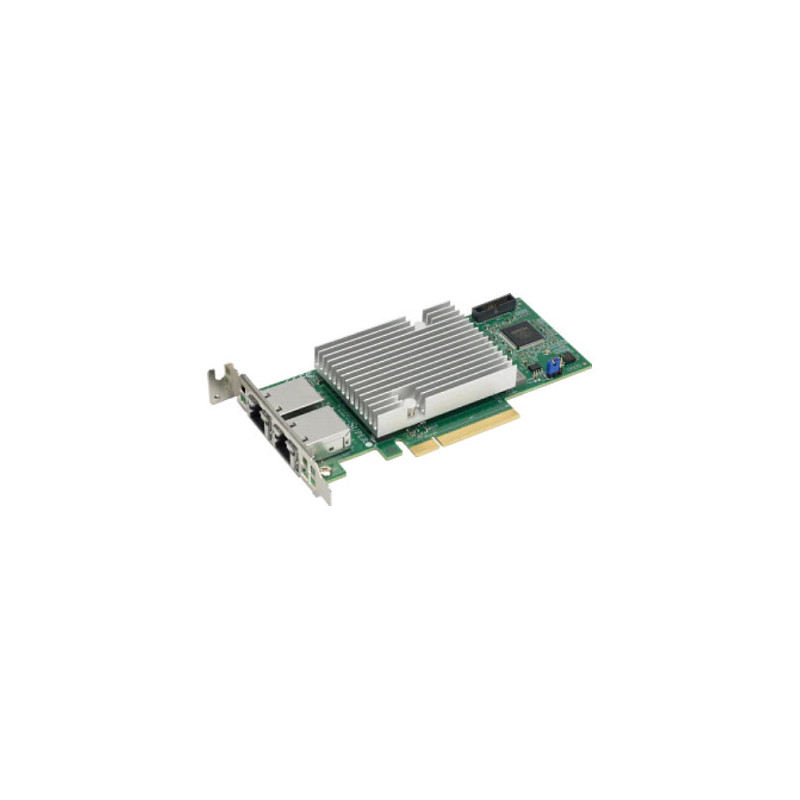

Supermicro AOC-STG-B2T network card

Supermicro AOC-STG-B2T. Internal. Connectivity technology: Wired, Host interface: PCI Express, Interface: Ethernet. Maximum data transfer rate: 10000 Mbit/s

Supermicro AOC-STG-b2T features the latest Broadcom NetXtreme BCM57416 Ethernet controller that is designed for today's rapid growing datacenter and cloud-scale applications. The auto-negotiation feature offers users backwards compatibility between 1GbE and 10GbE. The AOC-STG-b2T also features VXLAN, NVGRE and Geneve along with Broadcom TruFlow technology that enables users to reduce the CPU load and increase the VM density. In addition, NPAR (NIC Partitioning) technology provides flexible connectivity for different networking requirements. The Supermicro AOC-STG-b2T is a truly exceptional 10GbE Ethernet Adapter for your continuously growing cloud applications and datacenters.

Ports & interfaces

Connectivity technology: Wired
Host interface: PCI Express
Interface: Ethernet
Ethernet LAN (RJ-45) ports: 2
PCI version: 3.0

Network

Maximum data transfer rate: 10000 Mbit/s
Networking standards: IEEE 802.1Q
Feature: Ethernet LAN
Ethernet interface type: 10 Gigabit Ethernet
Ethernet LAN data rates: 10,100,1000,10000 Mbit/s
Feature: Jumbo frames support
Jumbo frames: 9600

Design

Component for: Server/workstation
Feature: Internal

Power

Power consumption (typical): 13.1 W

Operational conditions

Operating temperature (T-T): 0 - 55 °C
Storage temperature (T-T): -40 - 70 °C
Storage relative humidity (H-H): 0 - 90%

Weight & dimensions

Width: 68.9 mm
Depth: 142.2 mm
Height: 120 mm

Logistics data

Harmonized System (HS) code: 85176990
