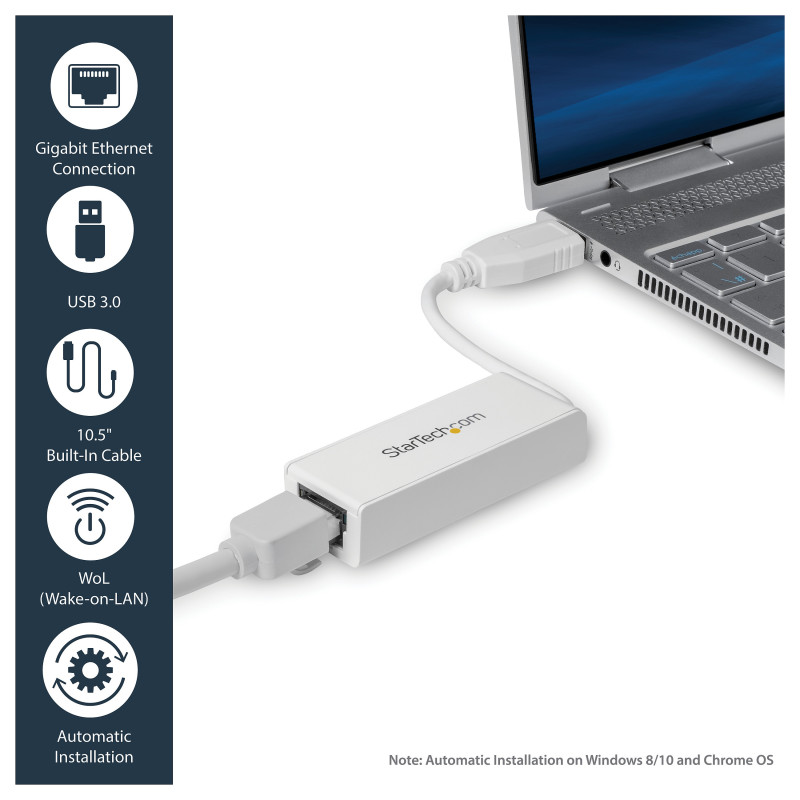

StarTech.com USB31000SW network card

StarTech.com USB 3.0 to Gigabit Ethernet Network Adapter, 10/100/1000 Mbps, USB to RJ45, USB 3.0 to LAN Adapter, USB 3.0 Ethernet Adapter (GbE), TAA Compliant. Connectivity technology: Wired, Host interface: USB, Interface: Ethernet. Maximum data transfer rate: 5000 Mbit/s. Product colour: White

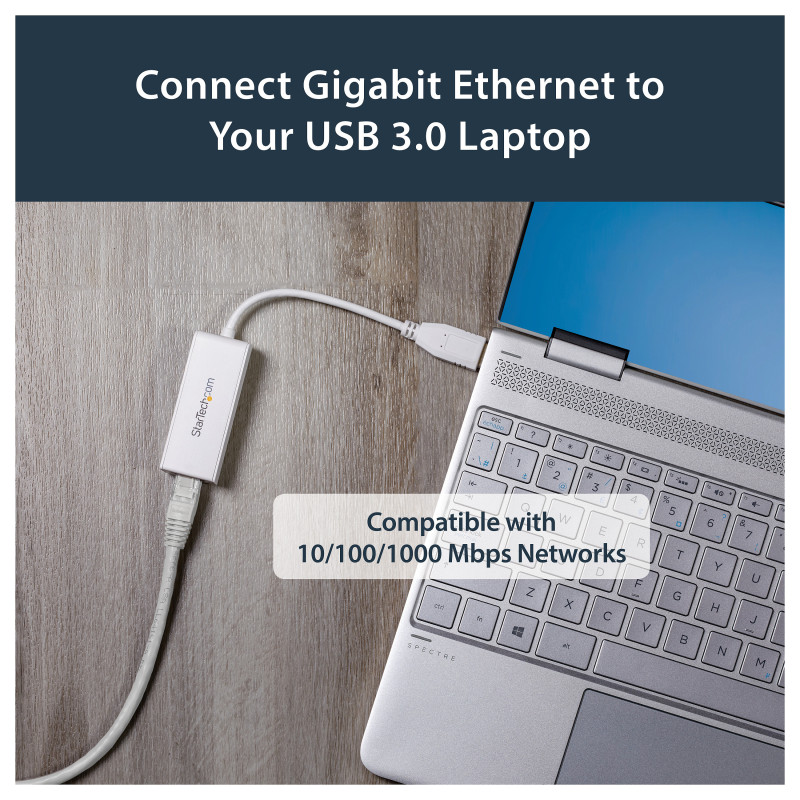

Add Gigabit Ethernet network connectivity to a Laptop or Desktop through a USB 3.0 port

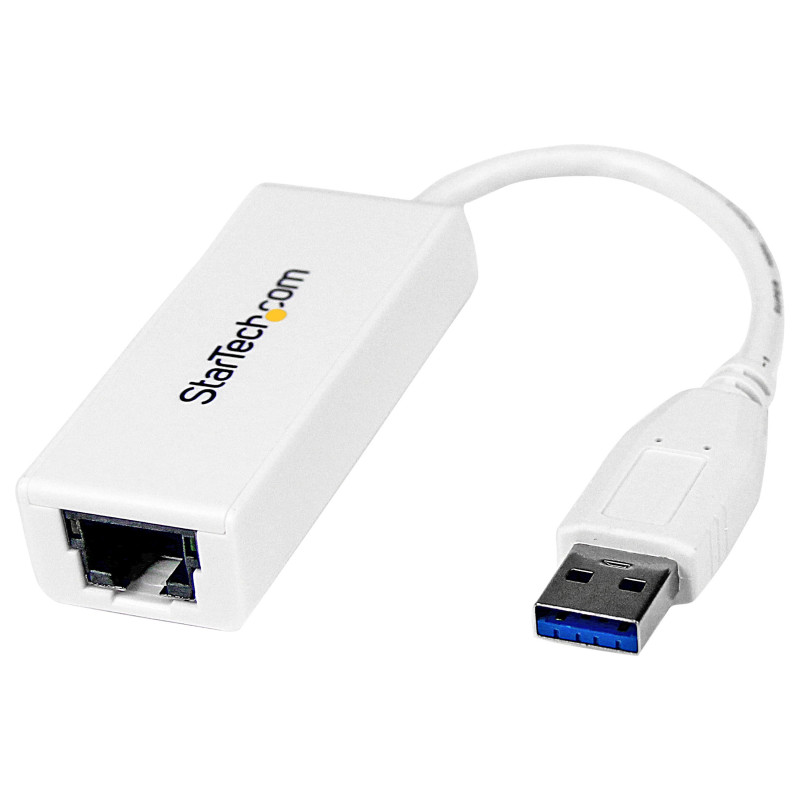

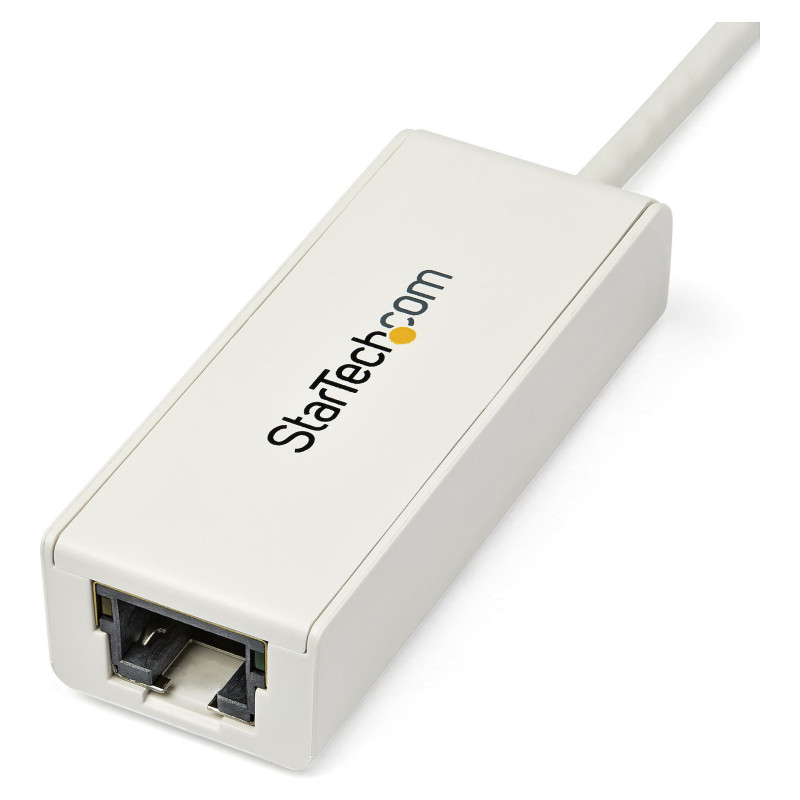

The USB31000SW USB 3.0 to Gigabit Ethernet Adapter adds a single RJ45 Ethernet port to a USB-enabled computer system, with support for Gigabit network connections at full bandwidth when used with a USB 3.0 host connection, unlike USB 2.0 adapters.

This compact USB 3.0 network adapter is backward compatible with older USB 2.0/1.x computer systems (speed limited by USB bus), making it the ideal portable replacement network adapter or laptop accessory. Plus, with support for features such as Jumbo Frames, VLAN tagging and Wake on LAN (WOL), the adapter offers versatile Gigabit network performance for home and business users alike.

Enhance Productivity and Device Management with the StarTech Connectivity Tools Application

Developed to improve performance and security, StarTech Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:

• MAC Address Pass-Through Utility : To improve network security.

• Wi-Fi Auto Switch Utility : Enabling users to quickly access faster network speeds via wired LAN.

Visit www.StarTech.com/Connectivity-Tools for more information and to download the StarTech Connectivity Tools.

Ports & interfaces

Connectivity technology: Wired

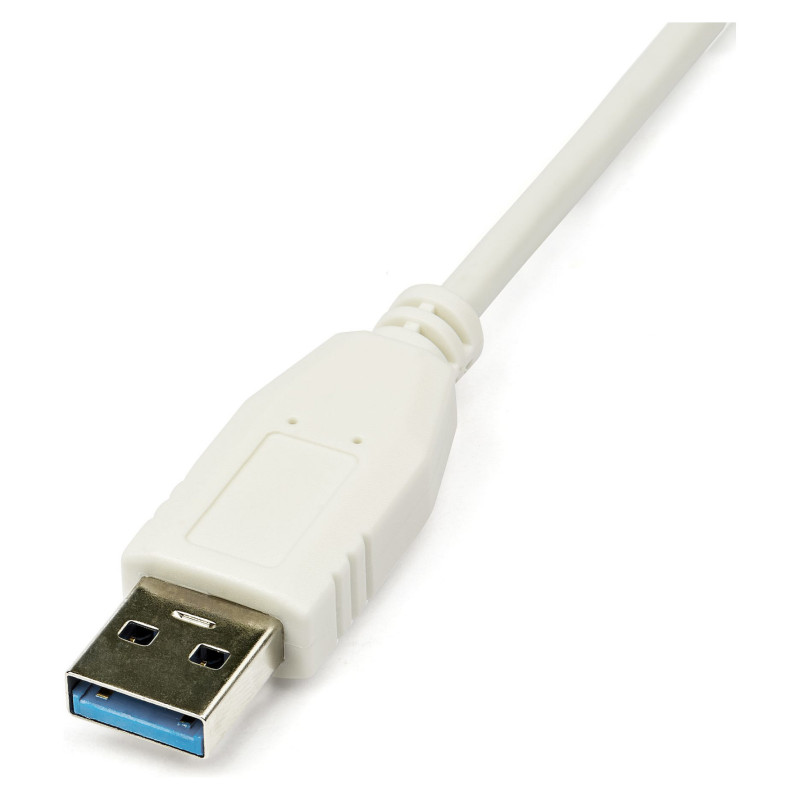

Host interface: USB
Interface: Ethernet

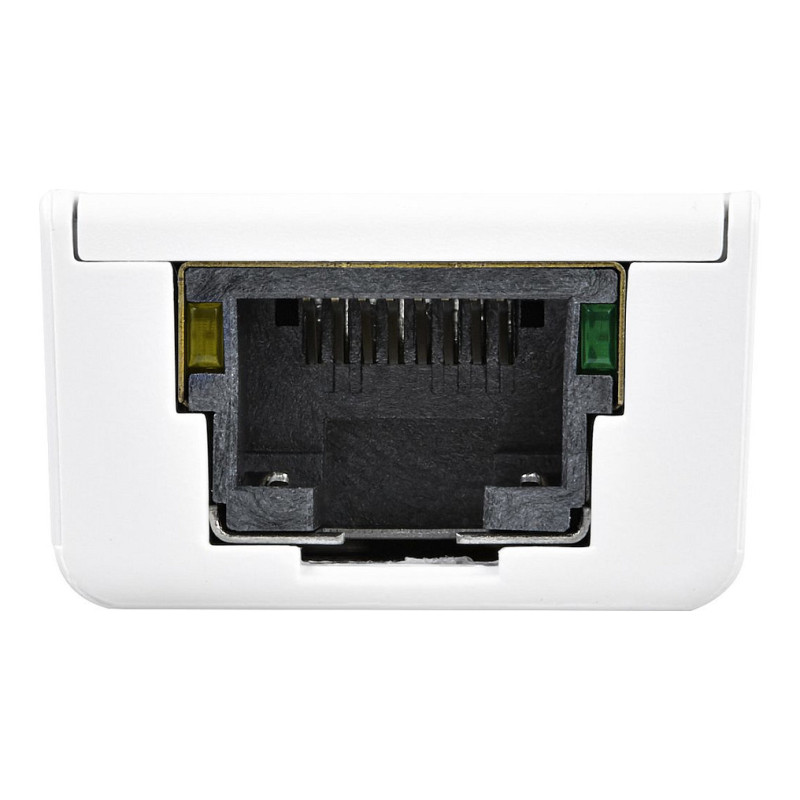

Ethernet LAN (RJ-45) ports: 1
USB version: 3.2 Gen 1 (3.1 Gen 1)

Network

Maximum data transfer rate: 5000 Mbit/s
Networking standards: IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u
Feature: Ethernet LAN
Ethernet interface type: Gigabit Ethernet
Ethernet LAN data rates: 10,100,1000 Mbit/s
Cabling technology: 10/100/1000BaseT(X)
Feature: Full duplex
Feature: Jumbo frames support
Jumbo frames: 4000
Feature: VLAN tagging
Maximum operating distance: 100 m

Design

Component for: PC/Laptop
Product colour: White
Chipset: ASIX - AX88179
LED indicators: Yes

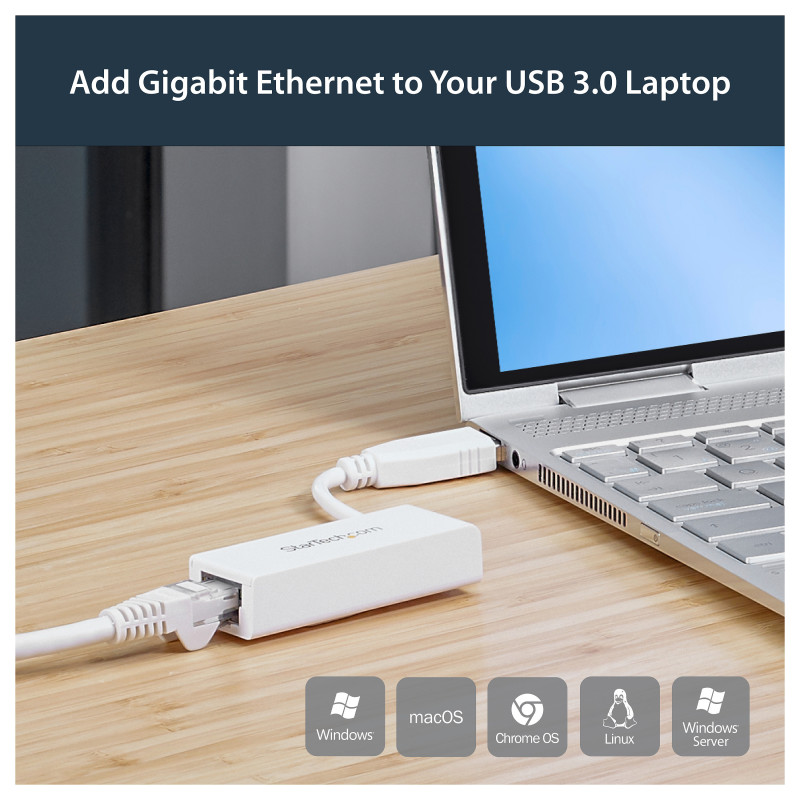

System requirements

Compatible operating systems: Windows XP(32/64-bit)/ Server 2003(32/64-bit)/ Server 2008 R2/ Vista(32/64-bit)/ 7(32/64-bit)/ 8(32/64-bit) Mac OS 10.6/ 10.7/ 10.8
Linux operating systems supported: Yes
Server operating systems supported: Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -20 - 60 °C
Operating relative humidity (H-H): 0 - 80%

Sustainability

Feature: Sustainability compliance

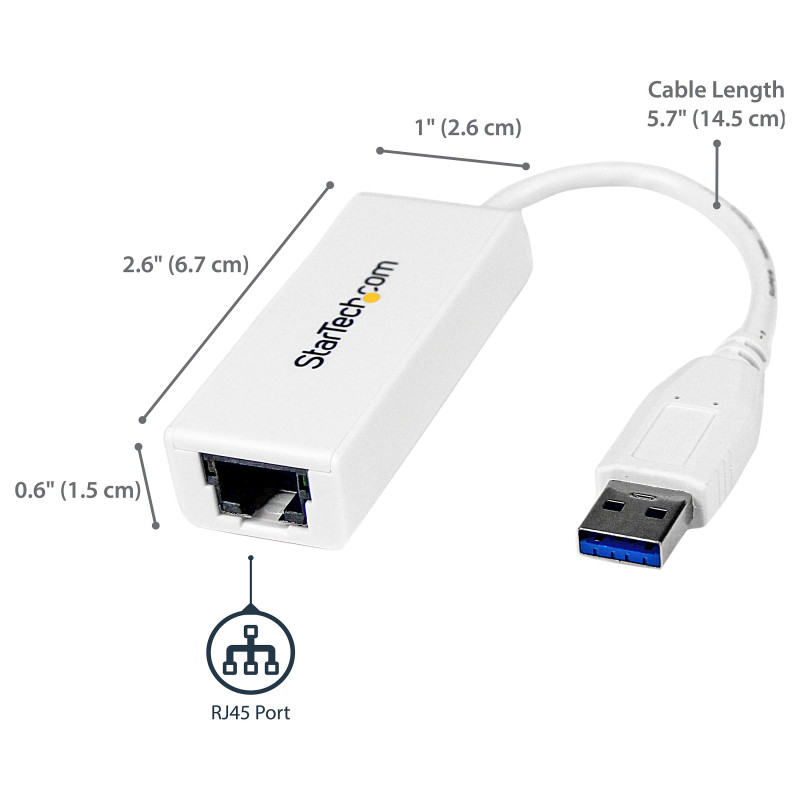

Weight & dimensions

Width: 26 mm
Depth: 210 mm
Height: 16 mm
Weight: 27 g

Packaging data

Feature: Drivers included
Package width: 162 mm
Package depth: 131 mm
Package height: 42 mm
Package weight: 119 g

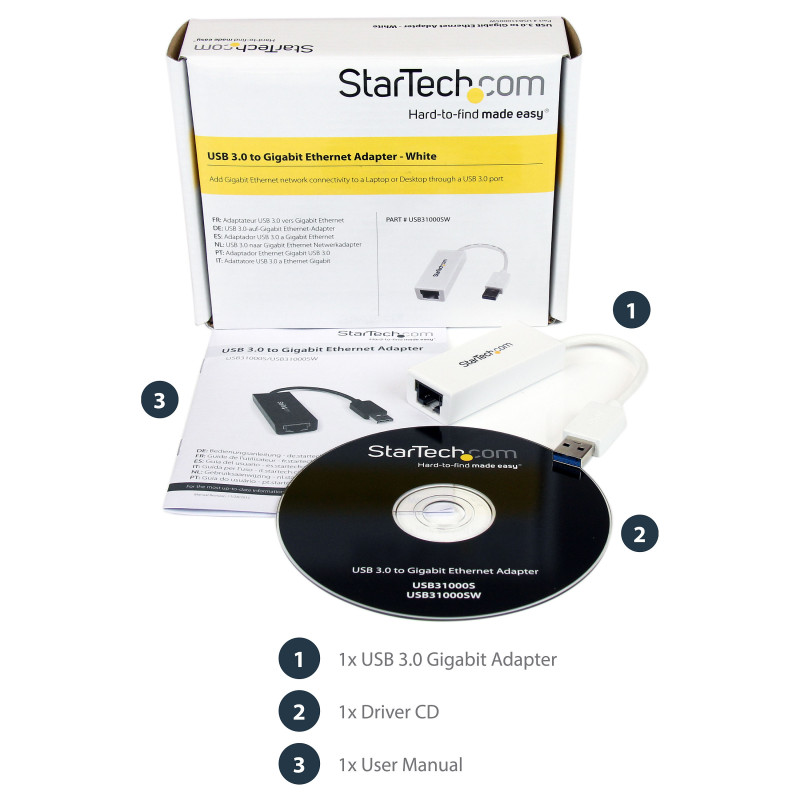

Packaging content

Feature: Manual

Technical details

Compliance certificates: CE, RoHS

Logistics data

Harmonized System (HS) code: 85176990
Master (outer) case width: 443 mm
Master (outer) case length: 346 mm
Master (outer) case height: 174 mm
Products per master (outer) case: 100 pc(s)

Other features

Housing material: Plastic
