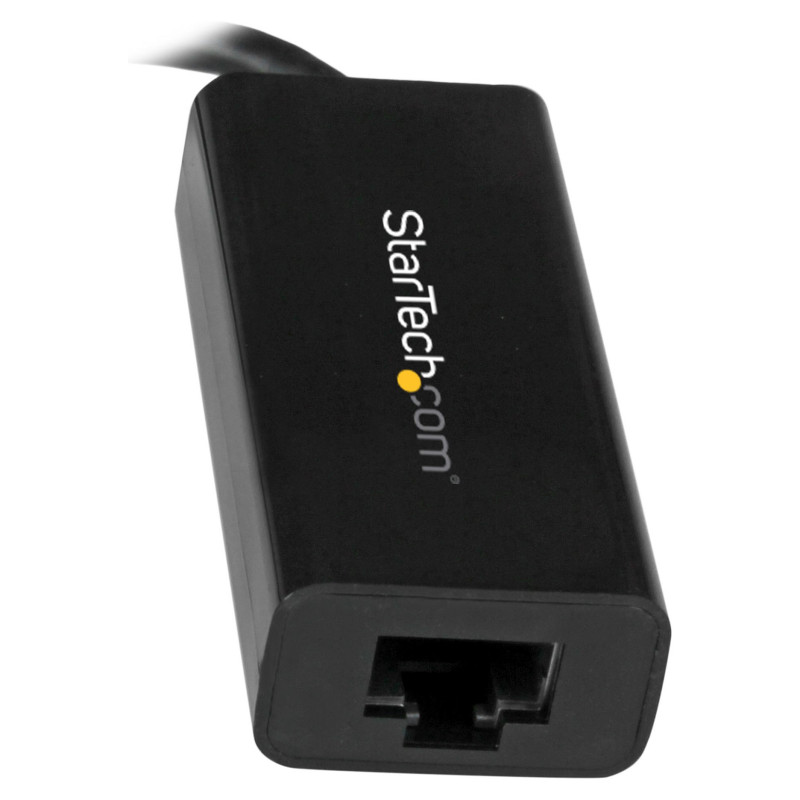

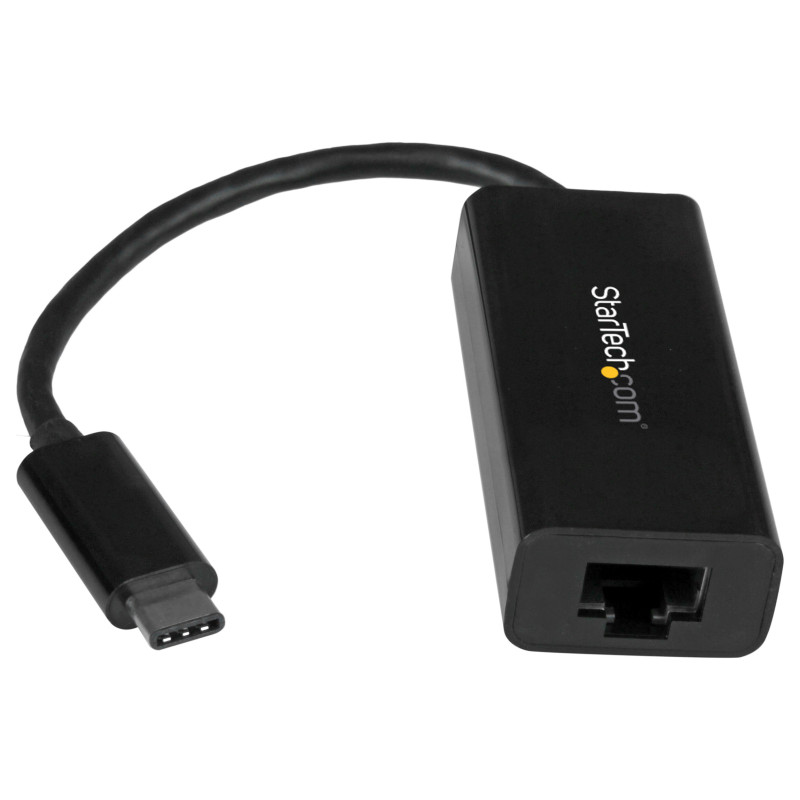

StarTech.com US1GC30B network card

StarTech.com USB-C to Gigabit Ethernet Adapter, Black, Thunderbolt 3 / 4 Compatible, Windows & Mac, RJ45 LAN Network Converter. Connectivity technology: Wired, Host interface: USB, Interface: Ethernet. Maximum data transfer rate: 5000 Mbit/s. USB powered. Product colour: Black

USB-C Network Adapter | 10/100/1000Mbps | Thunderbolt™ 3 Compatible | RJ45

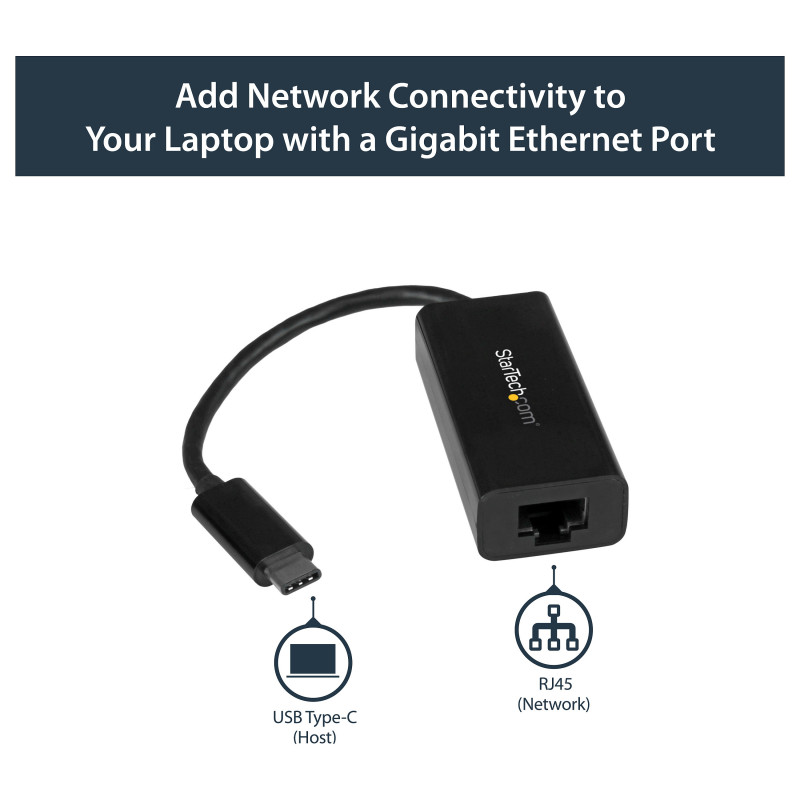

Instantly add a Gigabit Ethernet network connection to your computer with a USB-C to Gigabit Ethernet adapter, using either the USB Type-C™ or Thunderbolt™ 3 port on your computer.

Powerful Gigabit Network Connections

The USB-C to LAN adapter supports full Gigabit bandwidth by harnessing the performance of USB 3.2 Gen 1 (5Gbps). You can access very large files over the network at 10/100/1000Mbps network speeds with checksum offload (IPv4, IPv6, TCP, UDP) and large-send offload support.

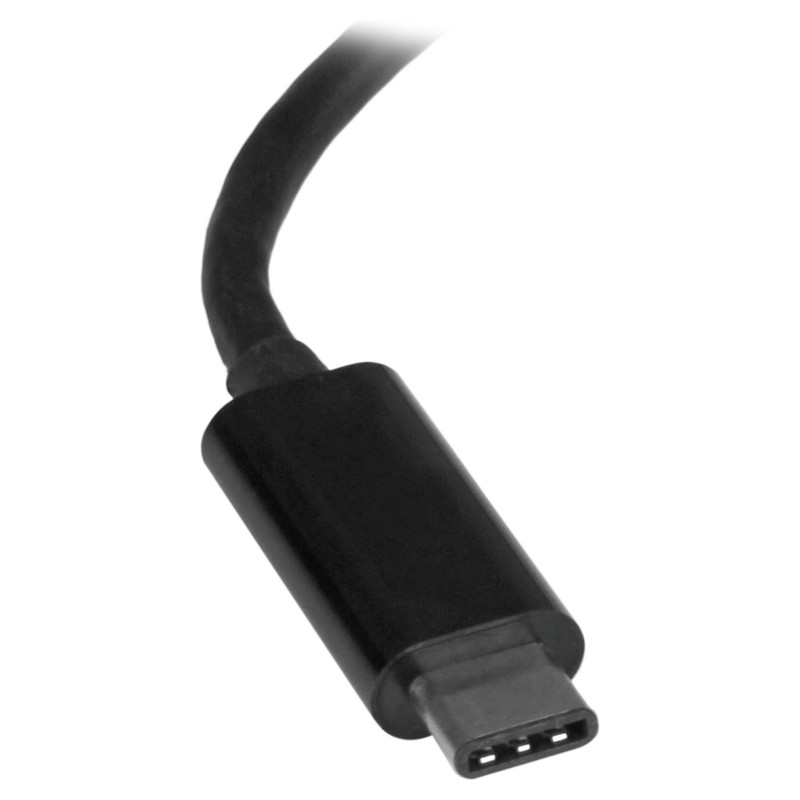

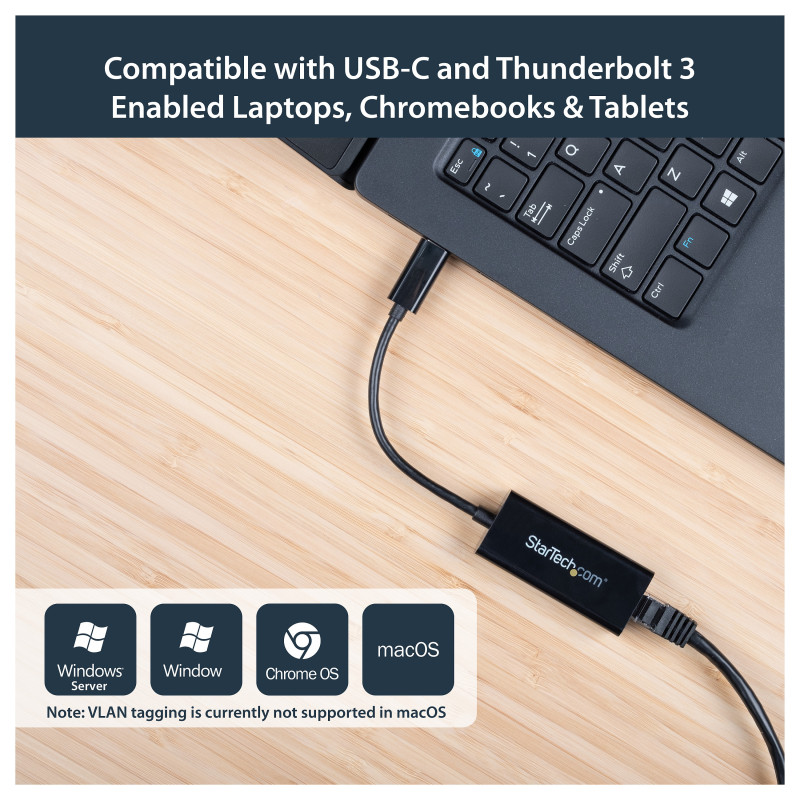

Uses USB Type-C and Thunderbolt 3

Instantly delivers Gigabit speeds using the USB-C or Thunderbolt 3 port on your device without requiring an internal Ethernet card in your device.

Native Driver Support

Simply plug the network adapter into the USB-C port on your laptop and connect to your network. The adapter's Realtek® RTL8153 chipset provides native driver support in Chrome OS™; macOS and Windows®.

Compact and Lightweight Design

This portable USB Gigabit network adapter is the ideal desktop network adapter or laptop accessory for those who require more portability. It's powered directly from the USB port making it easy to connect when you're on the go.

Our USB network adapters make it easy to add a wired network connection to your laptop, desktop or tablet. If your device has a USB port available, then our compact USB network adapters can help you connect.

Enhance Productivity and Device Management with the StarTech Connectivity Tools Application

Developed to improve performance and security, StarTech Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:

• MAC Address Pass-Through Utility : To improve network security.

• Wi-Fi Auto Switch Utility : Enabling users to quickly access faster network speeds via wired LAN.

Visit www.StarTech.com/Connectivity-Tools for more information and to download the StarTech Connectivity Tools.

Ports & interfaces

Connectivity technology: Wired
Host interface: USB
Interface: Ethernet
Ethernet LAN (RJ-45) ports: 1
USB version: 3.2 Gen 1 (3.1 Gen 1)

Network

Maximum data transfer rate: 5000 Mbit/s
Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Feature: Ethernet LAN
Ethernet interface type: Gigabit Ethernet
Ethernet LAN data rates: 10,100,1000 Mbit/s
Cabling technology: 10/100/1000BaseT(X)
Feature: Wake-on-LAN ready
Feature: Auto MDIX IEEE
Feature: Full duplex
Feature: Jumbo frames support
Jumbo frames: 9000
Feature: VLAN tagging

Design

Product colour: Black
Chipset: Realtek - RTL8153
Certification: CE, FCC, REACH

Power

Feature: USB powered

System requirements

Linux operating systems supported: Yes
Server operating systems supported: Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2016, Windows Server 2019

Operational conditions

Operating temperature (T-T): 0 - 70 °C
Storage temperature (T-T): -10 - 80 °C
Operating relative humidity (H-H): 5 - 90%

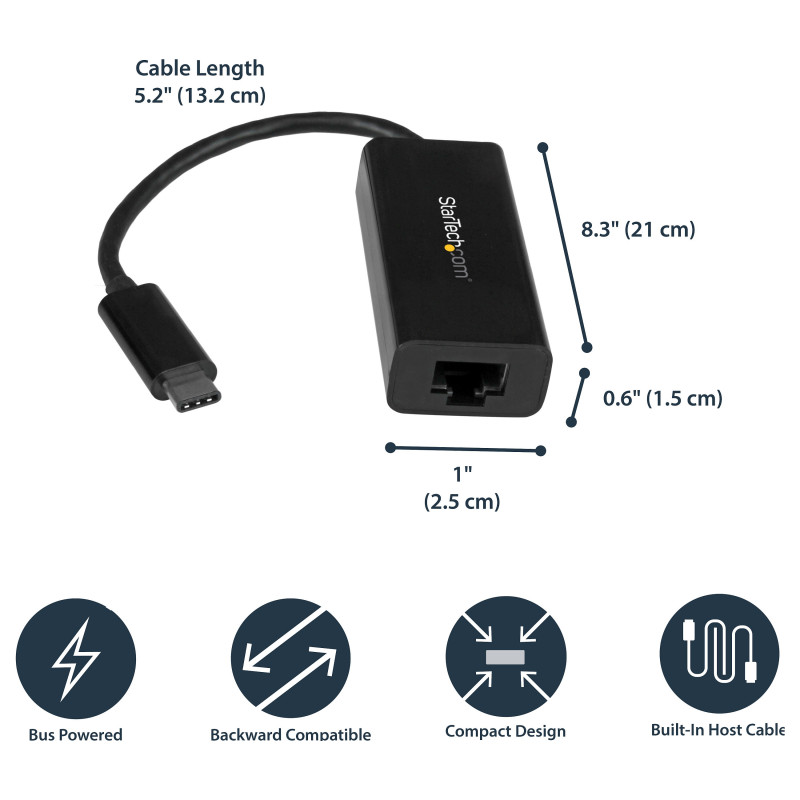

Weight & dimensions

Width: 25 mm
Depth: 210 mm
Height: 15 mm
Weight: 22 g

Packaging data

Package width: 200 mm
Package depth: 126 mm
Package height: 18 mm
Package weight: 100 g

Technical details

Compliance certificates: RoHS

Logistics data

Harmonized System (HS) code: 85176990
Master (outer) case width: 512 mm
Master (outer) case length: 332 mm
Master (outer) case height: 224 mm
Products per master (outer) case: 250 pc(s)

Other features

Housing material: Plastic
