StarTech.com U2M2E125 interface cards / adapter

StarTech.com M.2 to U.2 Adapter - For M.2 PCIe NVMe SSDs - PCIe M.2 Drive to 2.5" U.2 (SFF-8639) Host Adapter - M2 SSD Converter, Red - TAA. Host interface: U.2, Output interface: M.2. Product colour: Red, Certification: CE, FCC, TAA, REACH. Width: 70 mm, Depth: 100 mm, Height: 7 mm. Package width: 143 mm, Package depth: 175 mm, Package height: 33 mm. Products per master (outer) case: 60 pc(s), Master (outer) case width: 501 mm, Master (outer) case length: 385 mm

Add the fast performance of an M.2 NVMe SSD to your desktop computer or server by converting the drive through a U.2 (SFF-8639) compatible interface on your motherboard

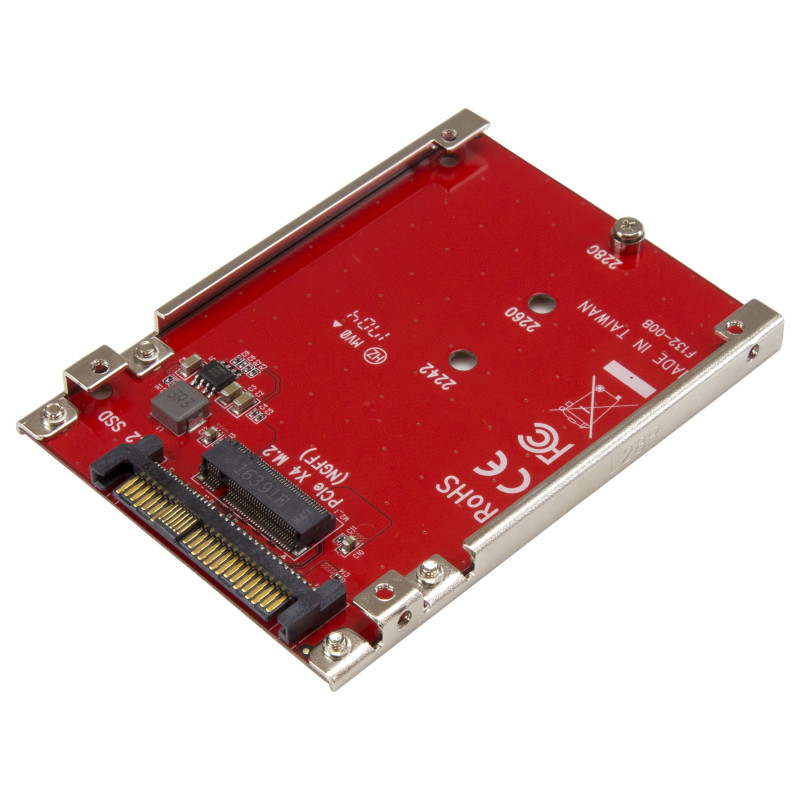

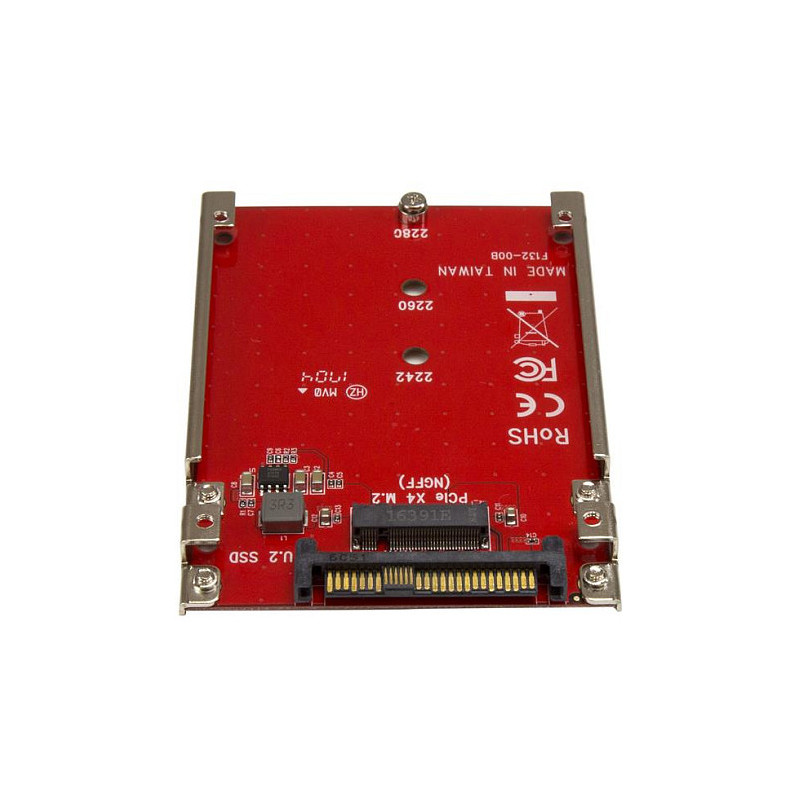

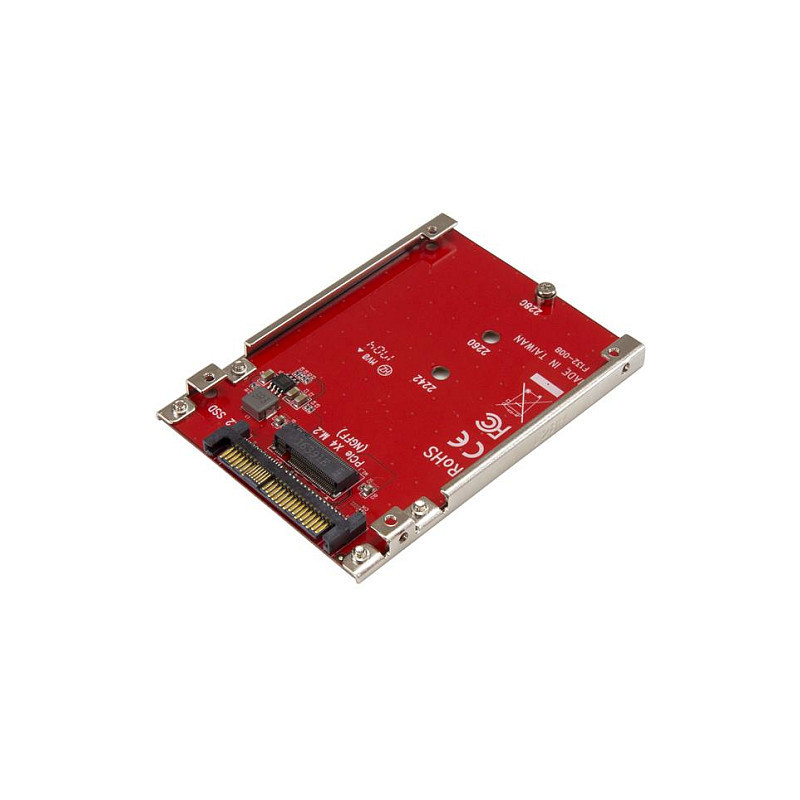

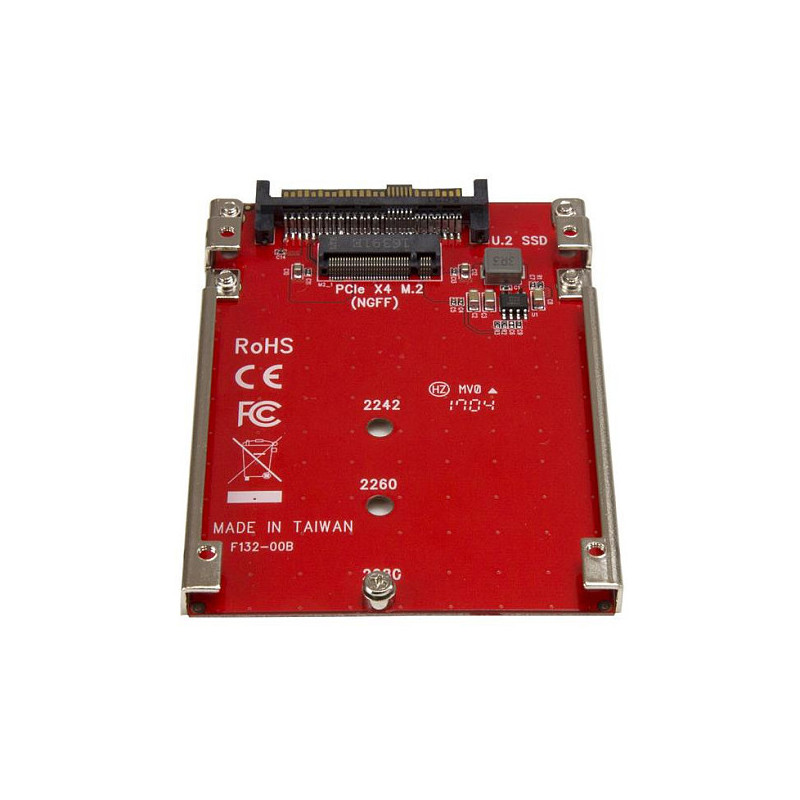

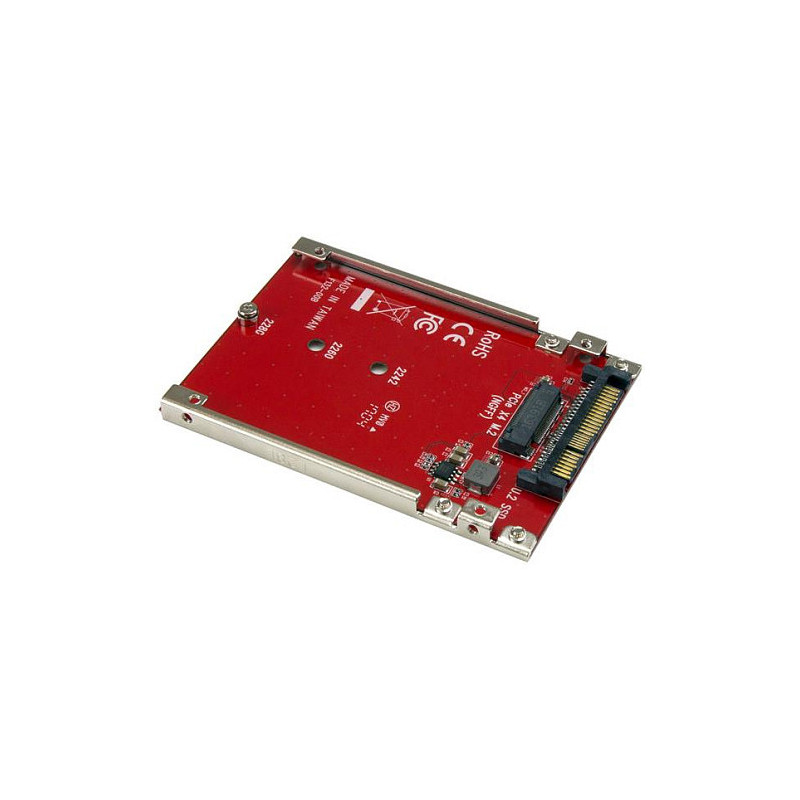

This PCI Express M.2 to U.2 adapter makes it easy to install an M.2 PCIe NVMe SSD into your desktop PC or server, and connect to the drive through an available U.2 (SFF-8639) compatible interface on your motherboard.

Upgrade your system cost-effectively

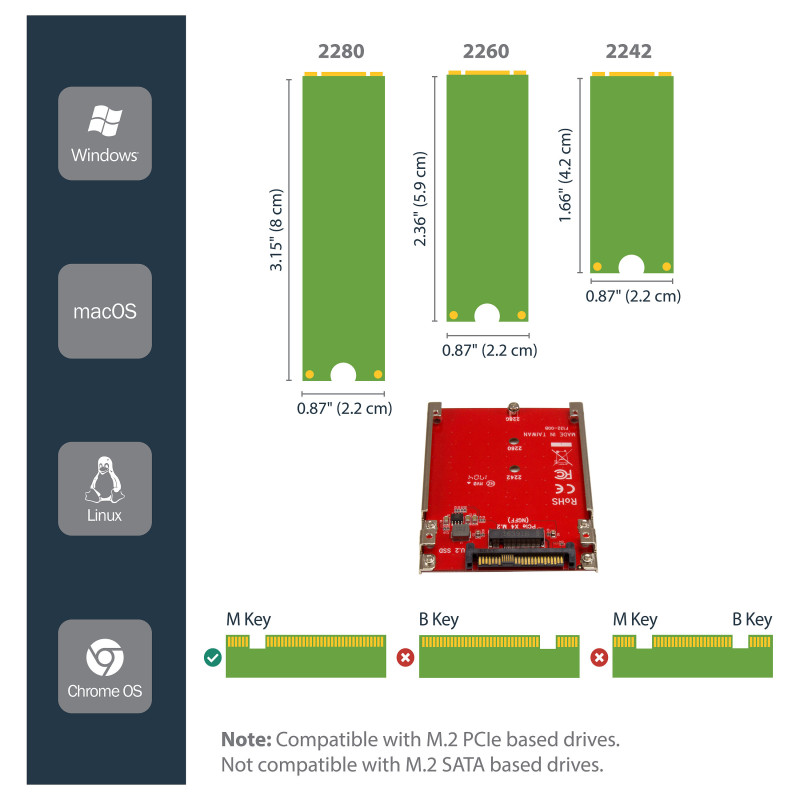

The M.2 to U.2 adapter is ideal for IT professionals, system integrators and installers, and enthusiasts who are building or upgrading a server or desktop computer. It supports one M.2 PCIe NVMe SSD (M-Key), providing a cost-effective way to add M.2 NVMe performance to your computer or server through an available U.2 (SFF-8639) compatible interface on your motherboard.

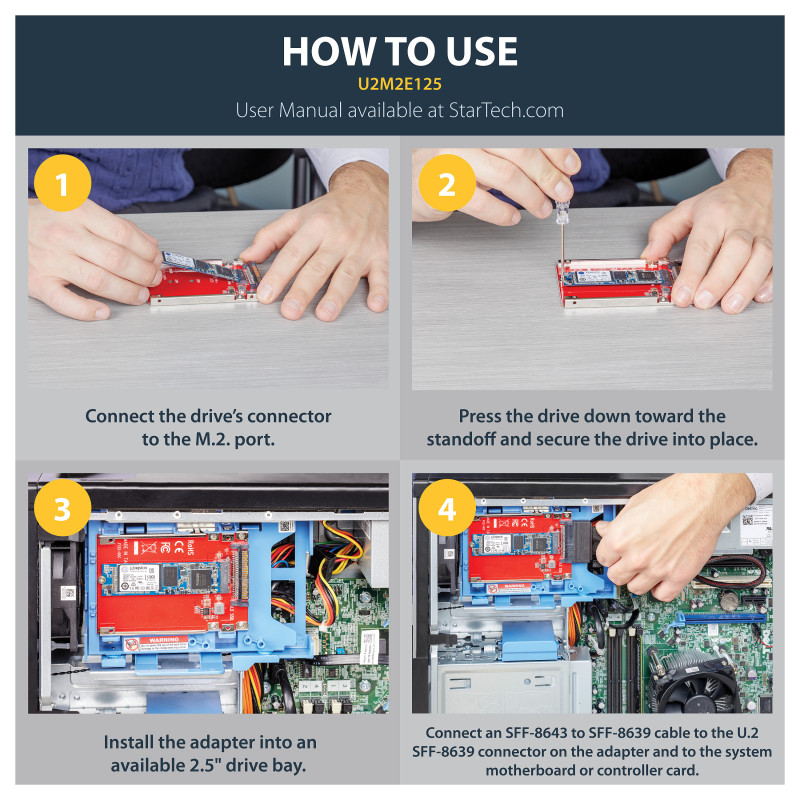

Easy installation

The M.2 to U.2 adapter works with all desktop PCs and servers that have an available drive bay or a U.2 (SFF-8639) compatible host interface. The adapter card is OS independent, so there are no drivers or software required for installation.

The U2M2E125 is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Ports & interfaces

Host interface: U.2
Output interface: M.2

Design

Feature: Internal
Product colour: Red
Certification: CE, FCC, TAA, REACH

Features

Feature: Plug and Play

Operational conditions

Operating temperature (T-T): 5 - 50 °C
Storage temperature (T-T): -25 - 70 °C
Operating relative humidity (H-H): 15 - 90%

Technical details

Compliance certificates: RoHS

Weight & dimensions

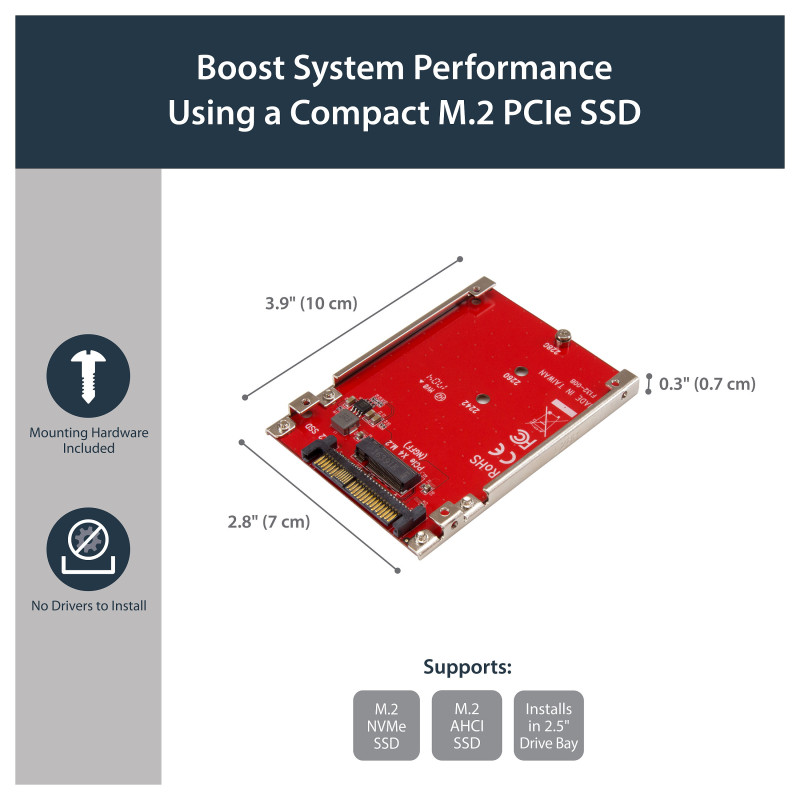

Width: 70 mm
Depth: 100 mm
Height: 7 mm
Weight: 36 g

Packaging data

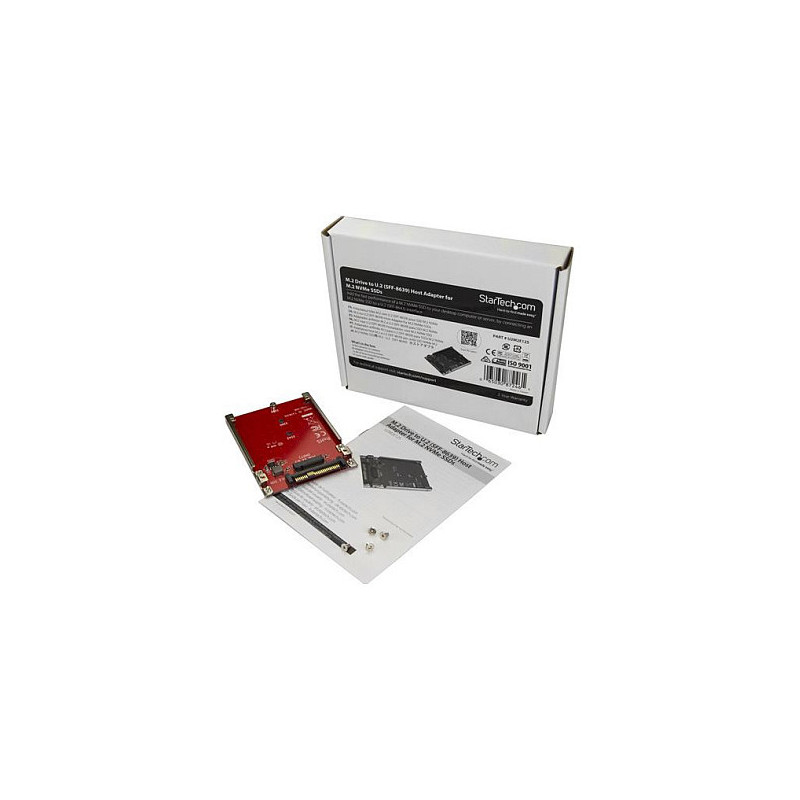

Feature: Screws included
Feature: Quick installation guide
Package width: 143 mm
Package depth: 175 mm
Package height: 33 mm
Package weight: 102 g

Logistics data

Harmonized System (HS) code: 84733020
Products per master (outer) case: 60 pc(s)
Master (outer) case width: 501 mm
Master (outer) case length: 385 mm
Master (outer) case height: 324 mm
