StarTech.com ST2000SPEXI network card

StarTech.com Dual Port PCI Express (PCIe x4) Gigabit Ethernet Server Adapter Network Card - Intel i350 NIC. Internal. Connectivity technology: Wired, Host interface: PCI Express, Interface: Ethernet. Maximum data transfer rate: 2000 Mbit/s. Product colour: Aluminium, Black
Add dual Gigabit Ethernet ports to a client, server or workstation through a PCI Express slot
The ST2000SPEXI PCI Express Dual Port Gigabit Network Card lets you add two gigabit Ethernet ports to a desktop computer through a single, four-lane (x4 or higher)PCI Express slot.Each port is fully compatible with IEEE 802.3/u/ab standards, for 10/100/1000 Mbps auto-negotiation.
This 2-port GbE network card is based on the high-performance Intel® I350 chipset, which offers several advanced driver options including IEEE 802.3ad link aggregation / teaming support, enabling you to add additional bandwidth to your system. Support for Jumbo Frames, full-duplex operation and 802.1q VLAN tagging also aid in creating an efficient network configuration.
Also useful for virtualization applications (check your VM software for chipset compatibility) or setting up a dual-homed host configuration, this dual-port network card lets you accommodate several complex network scenarios, to meet your business needs. For added versatility, the controller card is equipped with a standard profile bracket and includes a low-profile/half-height bracket for installation in small form-factor computers.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.

Ports interfaces

Connectivity technology: Wired
Host interface: PCI Express
Interface: Ethernet
Ethernet LAN (RJ-45) ports: 2
PCI version: 2.1

Network

Maximum data transfer rate: 2000 Mbit/s
Networking standards: IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3u
Feature: Ethernet LAN
Ethernet LAN data rates: 10,100,1000 Mbit/s
Cabling technology: 10/100/1000BaseT(X)
Feature: Wake-on-LAN ready
Feature: Auto MDIX IEEE
Feature: Full duplex
Feature: Jumbo frames support
Jumbo frames: 9000
Feature: VLAN tagging
LAN controller: Intel® I350-AM2

Design

Component for: Server
Product colour: Aluminium, Black
Feature: Internal
Chipset: Intel - I350-AM2
LED indicators: Activity, Link
Mean time between failures (MTBF): 432400 h
Certification: CE, FCC, REACH

System requirements

Linux operating systems supported: Yes
Server operating systems supported: Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019

Operational conditions

Operating temperature (T-T): 0 - 50 °C
Storage temperature (T-T): -20 - 60 °C
Operating relative humidity (H-H): 5 - 85%

Weight dimensions

Width: 19 mm
Depth: 67 mm
Height: 121 mm
Weight: 80 g

Packaging data

Feature: Drivers included
Feature: Low-profile bracket
Package width: 142 mm
Package depth: 170 mm
Package height: 32 mm
Package weight: 165 g

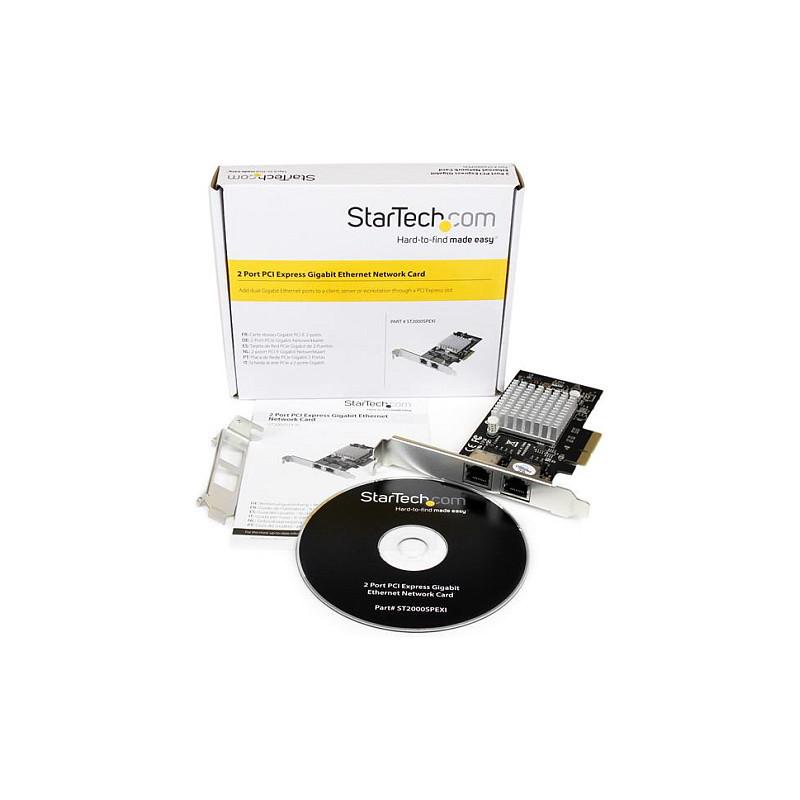

Packaging content

Feature: Manual

Technical details

Compliance certificates: RoHS

Logistics data

Harmonized System (HS) code: 85176990
Master (outer) case width: 318 mm
Master (outer) case length: 590 mm
Master (outer) case height: 364 mm
Products per master (outer) case: 80 pc(s)

Other features

Feature: Power LED
Feature: Link/Act LED
