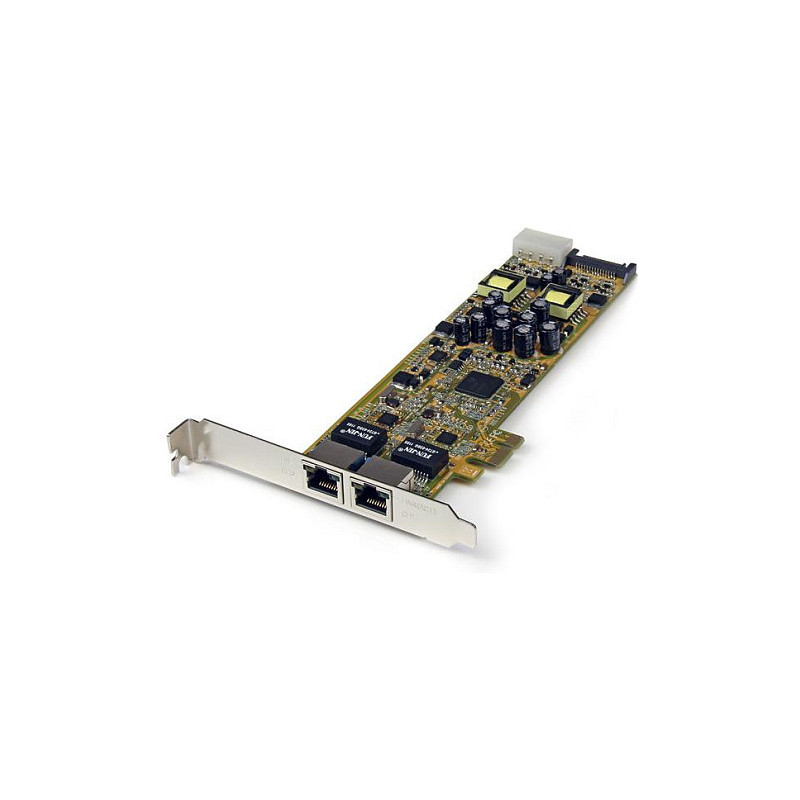

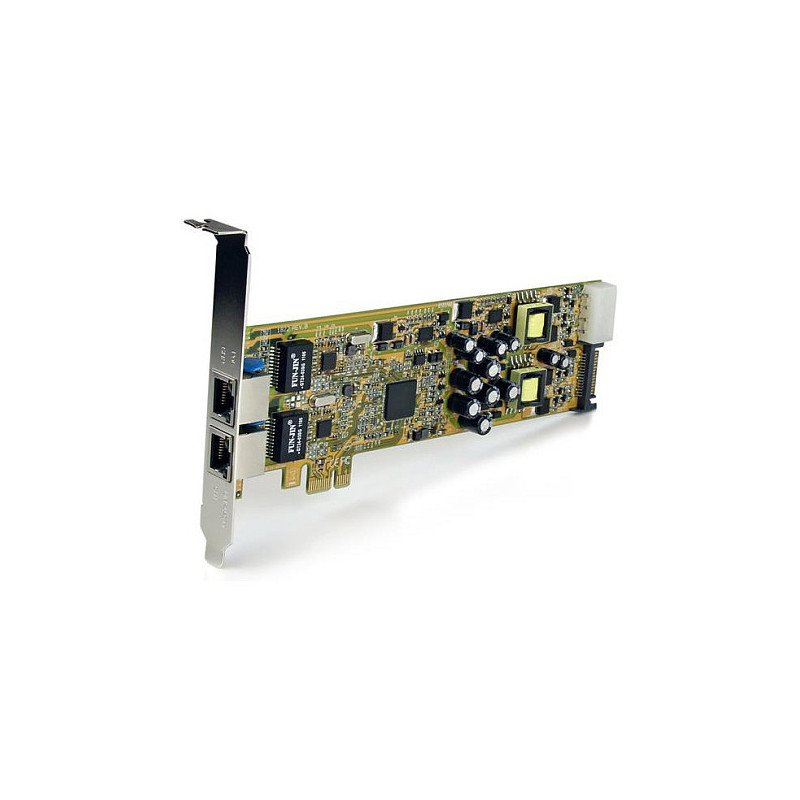

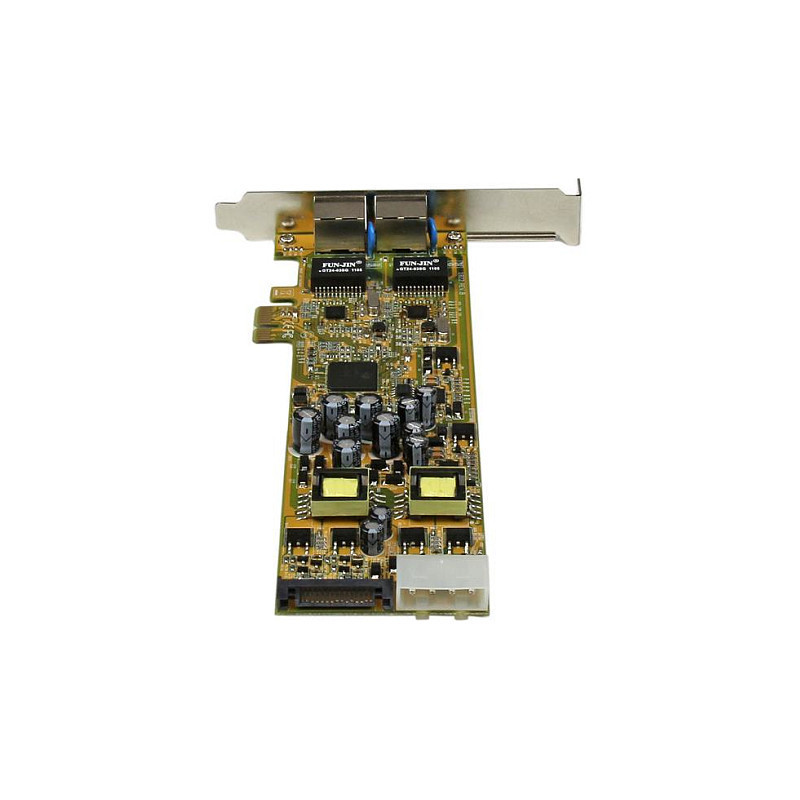

StarTech.com ST2000PEXPSE network card

StarTech.com Dual Port PCI Express Gigabit Ethernet PCIe Network Card Adapter - PoE/PSE - TAA. Internal. Connectivity technology: Wired, Host interface: PCI Express, Interface: Ethernet. Maximum data transfer rate: 2000 Mbit/s

Add two Power-over-Ethernet Gigabit Ports to a PCI Express-enabled Computer

The ST2000PEXPSE Dual Port PoE NIC provides two 10/100/1000 Mbps PoE RJ45 ports that can provide up to 25.5W of power each, combining a network data connection and power on a single cable, for less clutter and convenient installations in remote locations.
This full/low profile Gigabit server adapter supports the IEEE 802.3at (Type 1 and 2) standard for a Power Sourcing Equipment (PSE) device, and can deliver 48V DC power to compliant Powered Devices (PD). This eliminates the need for a separate power source and cable for remote networked devices such as IP cameras, IP phones and wireless access points.
Suitable for any PCI Express-enabled client, server or workstation, this versatile PoE network adapter supports features such as Jumbo Frames, VLAN tagging and Wake on LAN (WOL).
The ST2000PEXPSE PoE NIC is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Ports & interfaces

Connectivity technology: Wired
Host interface: PCI Express
Interface: Ethernet
Ethernet LAN (RJ-45) ports: 2
Power over Ethernet (PoE) ports quantity: 2

Network

Maximum data transfer rate: 2000 Mbit/s
Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
Feature: Ethernet LAN
Ethernet LAN data rates: 10,100,1000 Mbit/s
Cabling technology: 10/100/1000BaseT(X)
Feature: Auto MDIX IEEE
Feature: Full duplex
Feature: Jumbo frames support
Feature: VLAN tagging
LAN controller: Realtek RTL8111E

Design

Component for: PC
Feature: Internal
Chipset: Realtek - RTL8111E

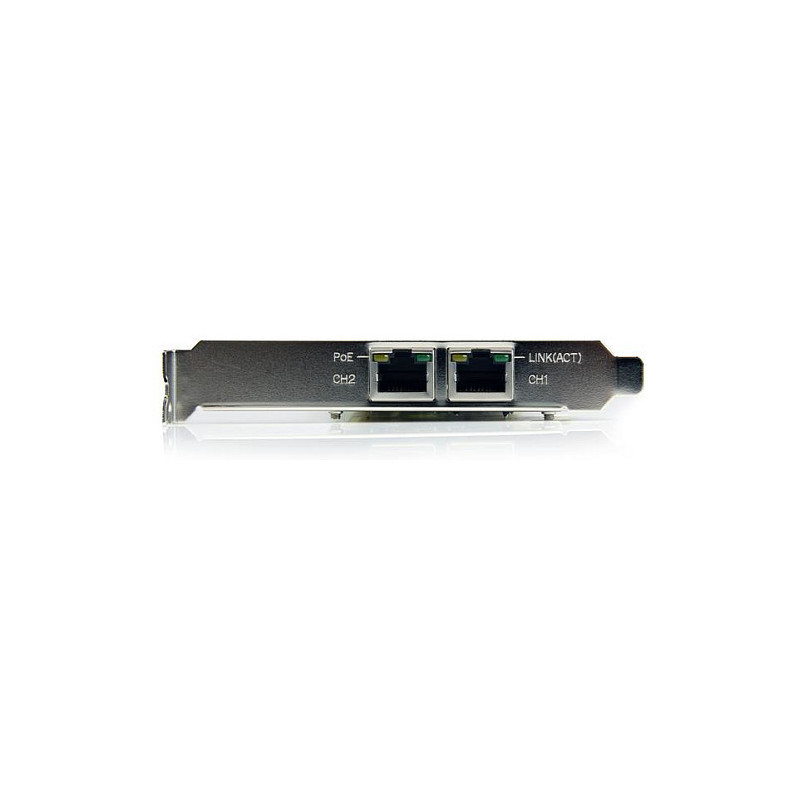

LED indicators: Activity, Link, PoE
Mean time between failures (MTBF): 140981 h
Certification: CE, FCC, REACH

Power

Output voltage: 48 V

System requirements

Mac operating systems supported: Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Linux operating systems supported: Yes
Server operating systems supported: Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019

Operational conditions

Operating temperature (T-T): 0 - 55 °C
Storage temperature (T-T): -20 - 85 °C
Operating relative humidity (H-H): 5 - 95%

Weight & dimensions

Width: 19 mm
Depth: 195 mm
Height: 68 mm
Weight: 104 g

Packaging data

Feature: Drivers included
Feature: Low-profile bracket
Package width: 164 mm
Package depth: 229 mm
Package height: 44 mm
Package weight: 246 g

Packaging content

Feature: Manual

Technical details

Compliance certificates: RoHS

Logistics data

Harmonized System (HS) code: 85176990
Master (outer) case width: 444 mm
Master (outer) case length: 522 mm
Master (outer) case height: 344 mm
Products per master (outer) case: 40 pc(s)

Other features

Buffer size: 48 KB
Feature: Flow control support
