StarTech.com ST10GSPEXNDP2 network card

StarTech.com 2-Port 10GbE PCIe Network Adapter Card, Network Card for PCs/Servers, Six-Speed PCIe Ethernet Card with Jumbo Frame Support, NIC/LAN Interface Card, 10GBASE-T and NBASE-T. Internal. Connectivity technology: Wired, Host interface: PCI Express, Interface: Ethernet. Maximum data transfer rate: 10000 Mbit/s. Product colour: Black

PXE Boot | PCIe 3.0 x4 | Marvell AQC113CS

Install this 2-port 10GbE PCI Express (PCIe) Network Interface Card (NIC) with independent controllers into a server or computer to enable fast network speeds and enhanced network functionality by providing failover and redundancy protection to mission-critical servers/applications.

This Card supports six speeds: 10/5/2.5/1Gbps and 100/10Mbps with auto-negotiation for instant compatibility with new and legacy hardware. In addition, 10GBASE-T and NBASE-T (2.5GBASE-T/5GBASE-T) capabilities ensure compatibility with the latest network switches and access points manufactured by Cisco®; HPE®; and Aruba Networks®.

10GbE Network Speeds

This PCIe Network Card enables access to two high-bandwidth ethernet connections. As a result, it reduces network degradation when running data-intensive applications/processes such as FTPs, online storage/backup, and streaming online content. The Ethernet Network Card supports 10GBASE-T using existing Cat6 (or better) cable infrastructure.

Enhance Existing Hardware

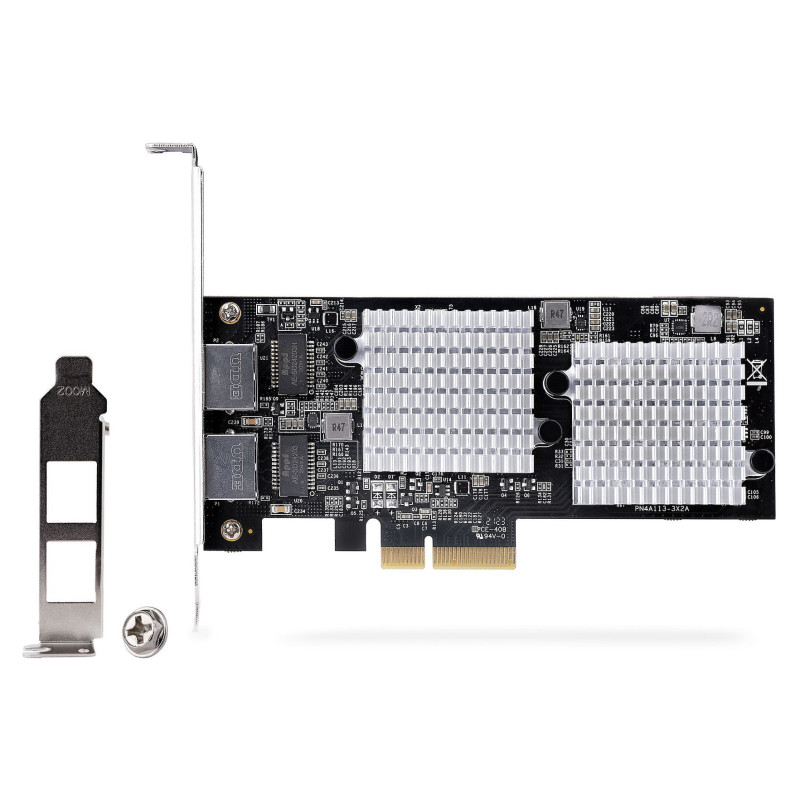

NBASE-T technology maximizes the capability of Cat5e copper infrastructure over distances of up to 100 meters. The Network Interface Card connects to a PCIe x4 3.0/4.0 (or higher) slot and comes with a full-height bracket preinstalled, and a low-profile bracket is included. This Card is compatible with Windows, Windows Server, and Linux operating systems.

Take advantage of advanced features such as load balancing in server or network equipment, bridging two different networks on one system, Audio Video Bridging (AVB), VLAN tagging (802.1Q), 16K-byte Jumbo Frames, full-duplex (FDX), UEFI Secure Boot (SB), and Preboot eXecution Environment (PXE).

Ports & interfaces

Connectivity technology: Wired
Host interface: PCI Express
Interface: Ethernet
Ethernet LAN (RJ-45) ports: 2
PCI version: 3.0
PCI Card form factor: Full-height (low-profile)

Network

Maximum data transfer rate: 10000 Mbit/s
Networking standards: IEEE 802.3, IEEE 802.3an, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u
Feature: Ethernet LAN
Ethernet interface type: 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
Ethernet LAN data rates: 10,100,1000,2500,5000,10000 Mbit/s
Cabling technology: 10GBase-T
Feature: Wake-on-LAN ready
Feature: Auto MDIX IEEE
Feature: Full duplex
Feature: Jumbo frames support
Jumbo frames: 16000
Feature: VLAN tagging
Maximum operating distance: 100 m

Design

Component for: PC/Server
Product colour: Black
Feature: Internal
Chipset: Marvell AQC113CS
LED indicators: Activity, Link, Status

System requirements

Linux operating systems supported: Yes
Server operating systems supported: Windows Server 2012 R2, Windows Server 2016, Windows Server 2019

Operational conditions

Operating temperature (T-T): 5 - 50 °C
Storage temperature (T-T): -10 - 60 °C
Operating relative humidity (H-H): 20 - 80%

Sustainability

Feature: Sustainability compliance

Weight & dimensions

Width: 20 mm
Depth: 145 mm
Height: 65 mm
Weight: 116 g

Packaging data

Package width: 148 mm
Package depth: 215 mm
Package height: 36 mm
Package weight: 208 g

Packaging content

Feature: Mounting brackets included
Feature: Quick installation guide

Technical details

Compliance certificates: CE

Logistics data

Master (outer) case width: 440 mm
Master (outer) case length: 370 mm
Master (outer) case height: 315 mm
Products per master (outer) case: 40 pc(s)
