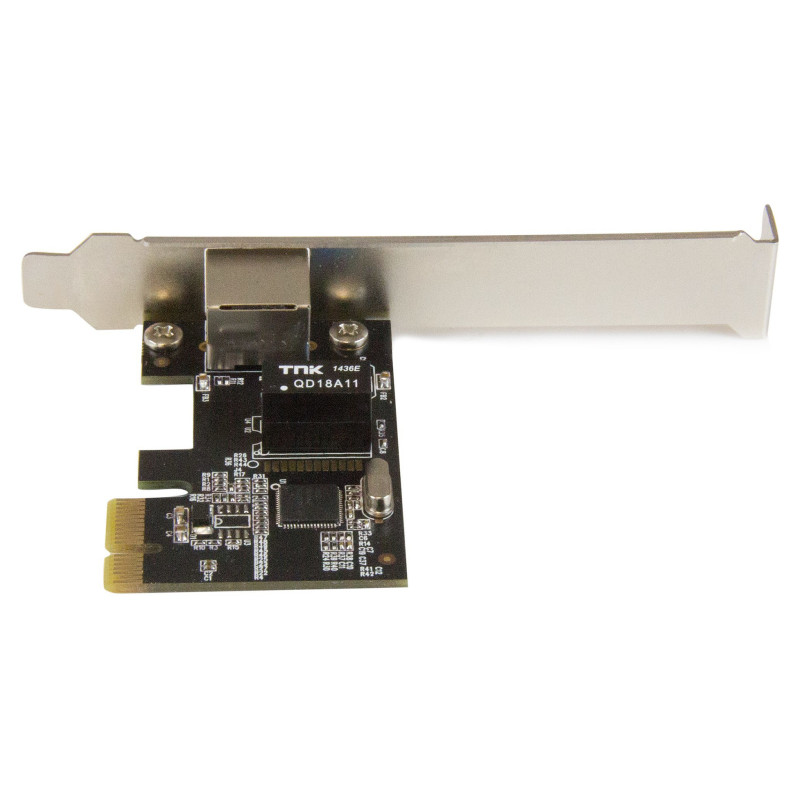

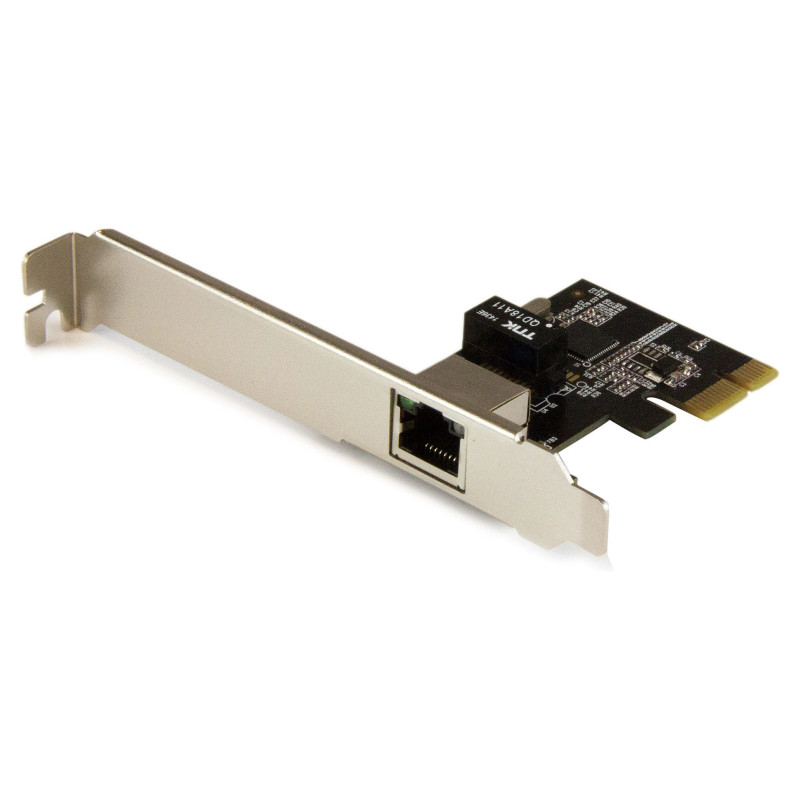

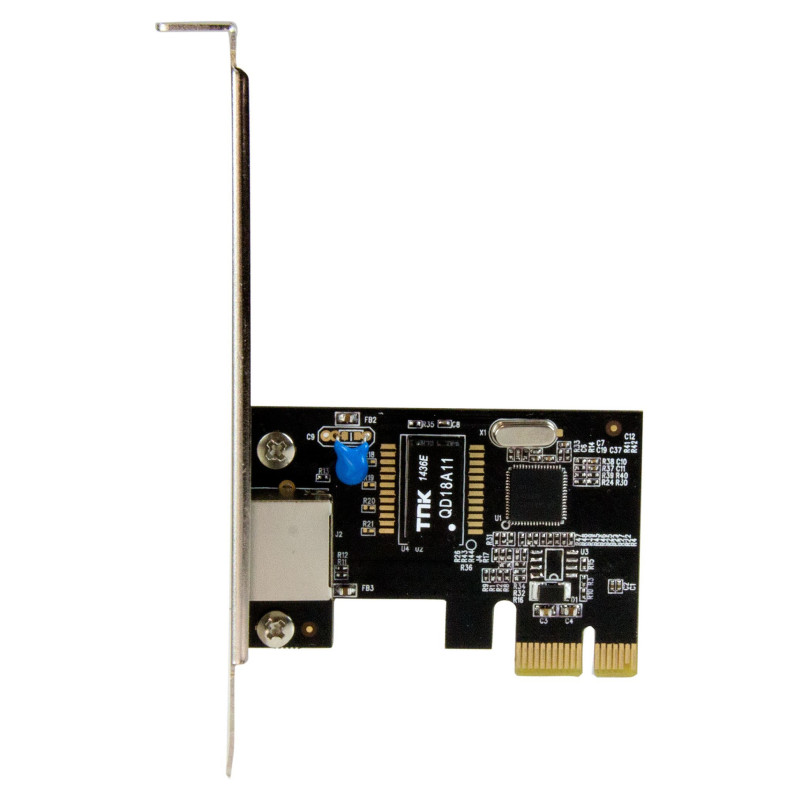

StarTech.com ST1000SPEXI network card

StarTech.com 1-Port Gigabit Ethernet Network Card - PCI Express, Intel I210 NIC. Internal. Connectivity technology: Wired, Host interface: PCI Express, Interface: Ethernet. Maximum data transfer rate: 2000 Mbit/s. Product colour: Black, Metallic

Add Gigabit Ethernet to a client, server or workstation through a PCI Express slot

Boost the performance and capabilities of your server or desktop computer by adding a Gigabit Ethernet port through a PCI Express slot. This GbE (Gigabit Ethernet) network card makes it easy to create a high-performance, cost-effective networking solution.

The performance and reliability you demand in network connectivity

This PCI Express Gigabit Ethernet card utilizes the Intel® I210-AT chipset, delivering the power, performance and enhanced capabilities you need for dependable network connections to your server or computer. Compliant with IEEE 802.3/u/ab standards, the GbE network card provides an effective upgrade or replacement network port, with a maximum throughput of up to 1000Mbps in each direction (2000 Mbps total) - up to ten times faster than 10/100 Ethernet.

The I210 chipset provides many advanced features to support load-balancing the flow of network traffic, to enhance throughput and provide greater data reliability. It also supports Audio-Video Bridging (AVB) to enable tightly controlled media stream synchronization, buffering and resource reservation.

A versatile and cost-effective solution

Compatible with a broad range of operating systems, this versatile PCIe Gigabit NIC is ideal for many business applications requiring servers or workstation upgrades. It's a cost-effective way to upgrade your server or computer from a 10/100 Ethernet port to a Gigabit Ethernet port, or add an Ethernet port to take advantage of advanced features such as VLAN tagging, Jumbo Frames, Wake-On-LAN and Auto MDIX.

Easy installation

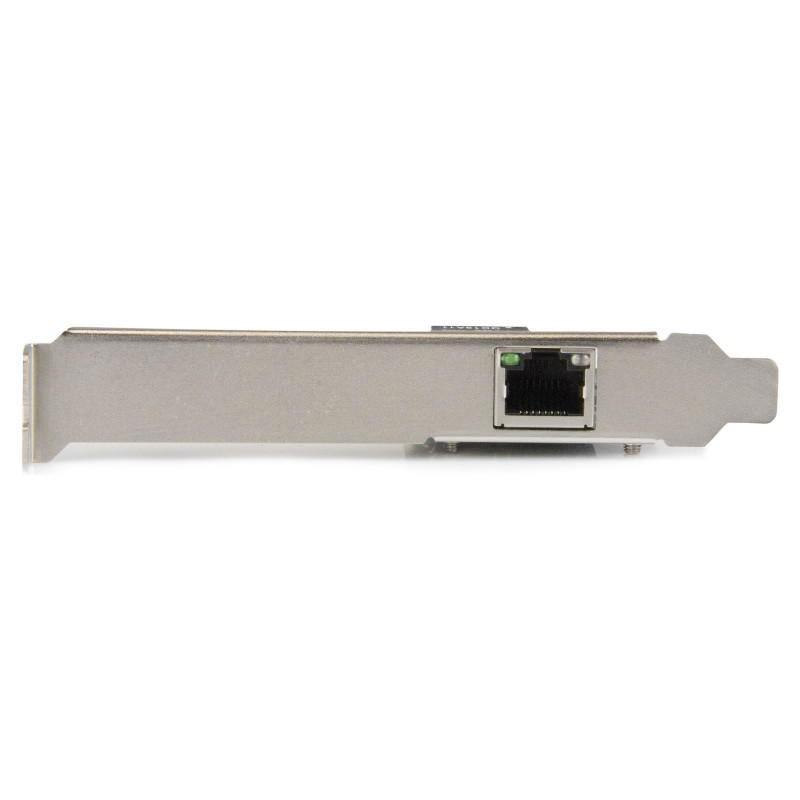

With a dual-profile design, the PCI Express network card installs easily into a wide range of computer/server chassis, regardless of form factor. The card comes equipped with a full-sized bracket, and includes a low-profile/half-height installation bracket that you can use as needed.

Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application

Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:

• Mac Address Pass-Through Utility : To improve network security.

• Wi-Fi Auto Switch Utility : Enabling users to quickly access faster network speeds via wired LAN.

For more information and to download the StarTech.com Connectivity Tools application, please visit: www.StarTech.com/Connectivity-Tools

The ST1000SPEXI is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Ports & interfaces

Connectivity technology: Wired
Host interface: PCI Express
Interface: Ethernet
Ethernet LAN (RJ-45) ports: 1

Network

Maximum data transfer rate: 2000 Mbit/s
Networking standards: IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
Feature: Ethernet LAN
Ethernet LAN data rates: 10,100,1000 Mbit/s
Cabling technology: 10/100/1000BaseT(X)
Feature: Wake-on-LAN ready
Feature: Auto MDIX IEEE
Feature: Full duplex
Feature: Jumbo frames support
Feature: Auto-negotiation
Feature: VLAN tagging

Design

Component for: PC/Server
Product colour: Black, Metallic
Feature: Internal
Chipset: Intel® I210-AT
LED indicators: Activity

System requirements

Linux operating systems supported: Yes
Server operating systems supported: Windows Server 2008 R2, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019

Operational conditions

Operating temperature (T-T): 5 - 50 °C
Storage temperature (T-T): -20 - 60 °C
Operating relative humidity (H-H): 20 - 80%

Sustainability

Feature: Sustainability compliance

Weight & dimensions

Width: 66 mm
Depth: 120 mm
Height: 18 mm
Weight: 38 g

Packaging data

Package width: 143 mm
Package depth: 172 mm
Package height: 30 mm
Package weight: 100 g

Packaging content

Feature: Mounting brackets included
Feature: Manual

Technical details

Compliance certificates: CE, RoHS

Logistics data

Harmonized System (HS) code: 85176990
Master (outer) case width: 306 mm
Master (outer) case length: 592 mm
Master (outer) case height: 368 mm
Products per master (outer) case: 80 pc(s)
