StarTech.com ST1000SPEX2L network card

StarTech.com 1 Port PCI Express PCIe Gigabit NIC Server Adapter Network Card - Low Profile. Internal. Connectivity technology: Wired, Host interface: PCI Express, Interface: Ethernet. Maximum data transfer rate: 1000 Mbit/s

Add a 10/100/1000Mbps Ethernet port to any PC through a PCI Express slot

The ST1000SPEX2L Low-Profile PCIe Gigabit Network Card adds a 10/100/1000 Mbps compatible RJ45 Ethernet port to a PCI Express-enabled client, server or workstation, providing a convenient addition or replacement networking interface.

Compliant with IEEE 802.3/u/ab standards, and with support for 9K Jumbo Frames, VLAN tagging and Wake on LAN (WOL), this versatile Gigabit NIC/Server Adapter offers effective network performance.

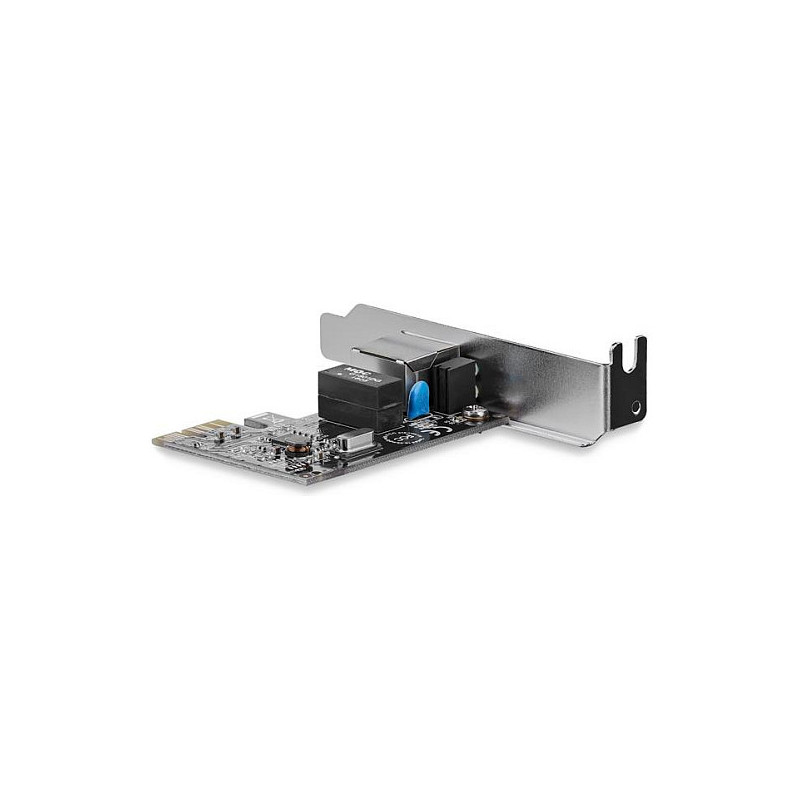

The card comes pre-configured with a low-profile/half-height installation bracket and includes a standard profile bracket for installation in a wide range of computer/server chassis, regardless of form factor.

Backed by a 2-year StarTech.com warranty and free lifetime technical support.

The StarTech.com Advantage

- Optimize network traffic with support for advanced features such as Jumbo Frames and VLAN tagging
- Saves the time of having to adjust the mounting bracket, with a pre-configured half-height/low-profile bracket

Ports & interfaces

Connectivity technology: Wired
Host interface: PCI Express
Interface: Ethernet

Network

Maximum data transfer rate: 1000 Mbit/s
Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
Feature: Ethernet LAN
Ethernet LAN data rates: 10,100,1000 Mbit/s
Cabling technology: 10/100/1000BaseT(X)
Feature: Auto MDIX IEEE
Feature: Full duplex
Feature: Jumbo frames support
Jumbo frames: 9000
Supported network protocols: CSMA/CD

Design

Feature: Internal
Chipset: Realtek - RTL8111H

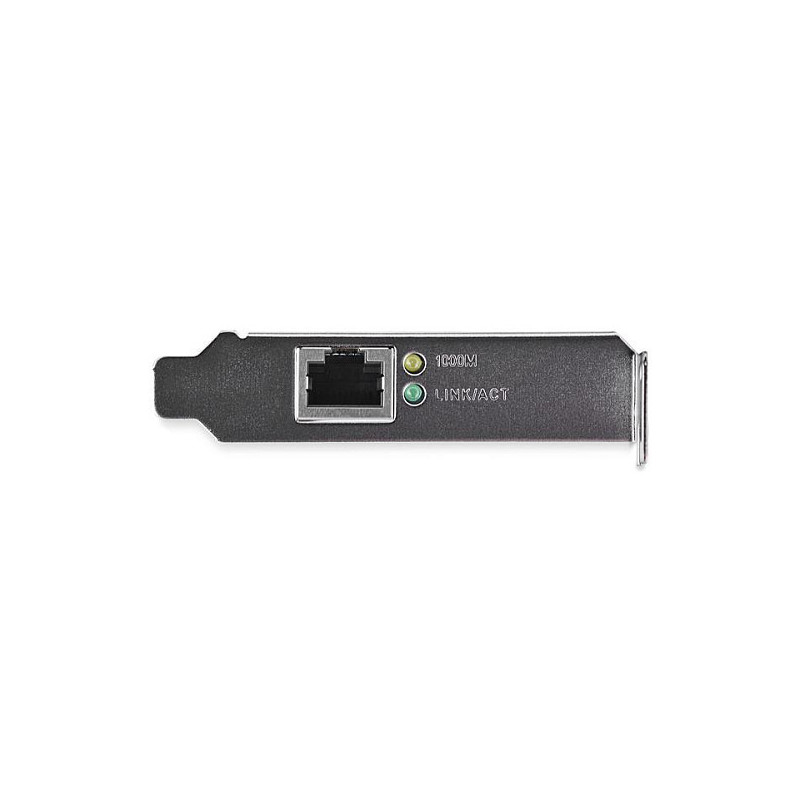

LED indicators: Activity, Link
Certification: CE, FCC, REACH

System requirements

Mac operating systems supported: Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Linux operating systems supported: Yes
Server operating systems supported: Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019

Operational conditions

Operating temperature (T-T): 0 - 70 °C
Storage temperature (T-T): 0 - 100 °C
Operating relative humidity (H-H): 10 - 90%

Weight & dimensions

Width: 18 mm
Depth: 70 mm
Height: 49 mm
Weight: 27 g

Packaging data

Package width: 173 mm
Package depth: 144 mm
Package height: 31 mm
Package weight: 125 g

Packaging content

Feature: Manual

Technical details

Compliance certificates: RoHS

Logistics data

Harmonized System (HS) code: 85176990

Other features

Feature: Power LED
Feature: Link/Act LED
