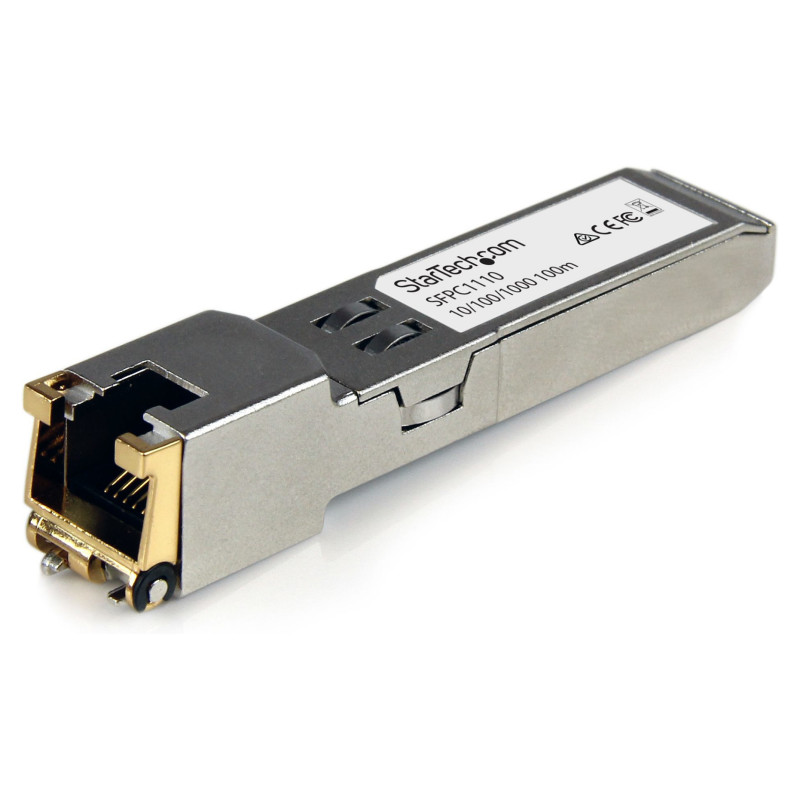

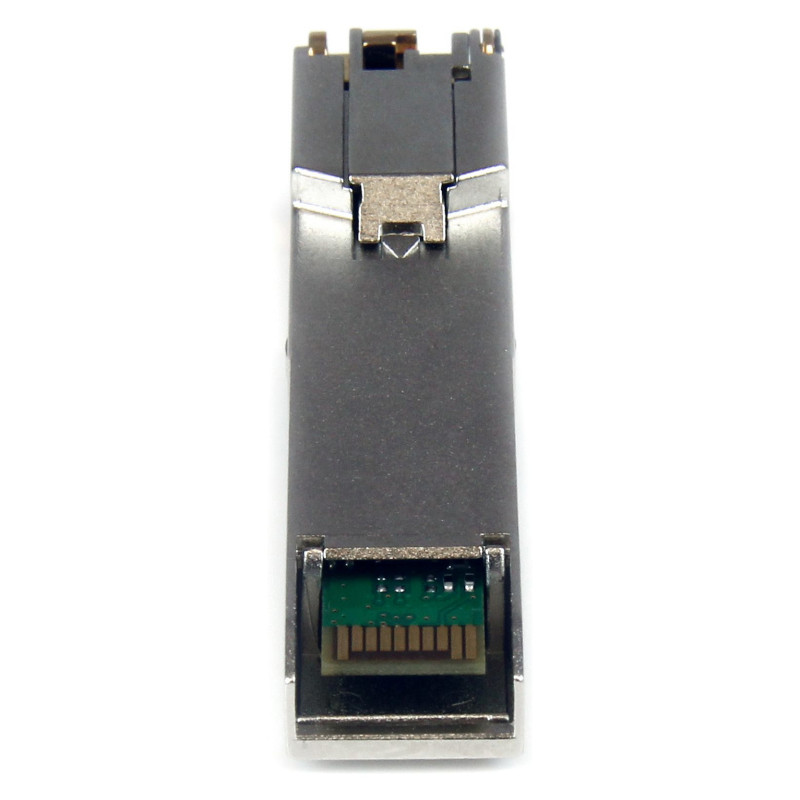

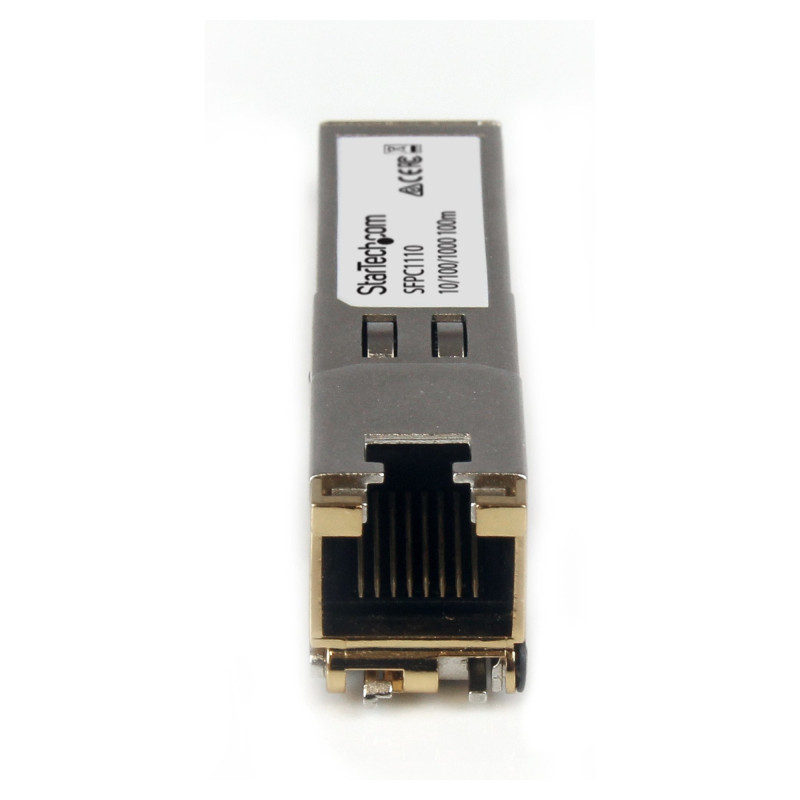

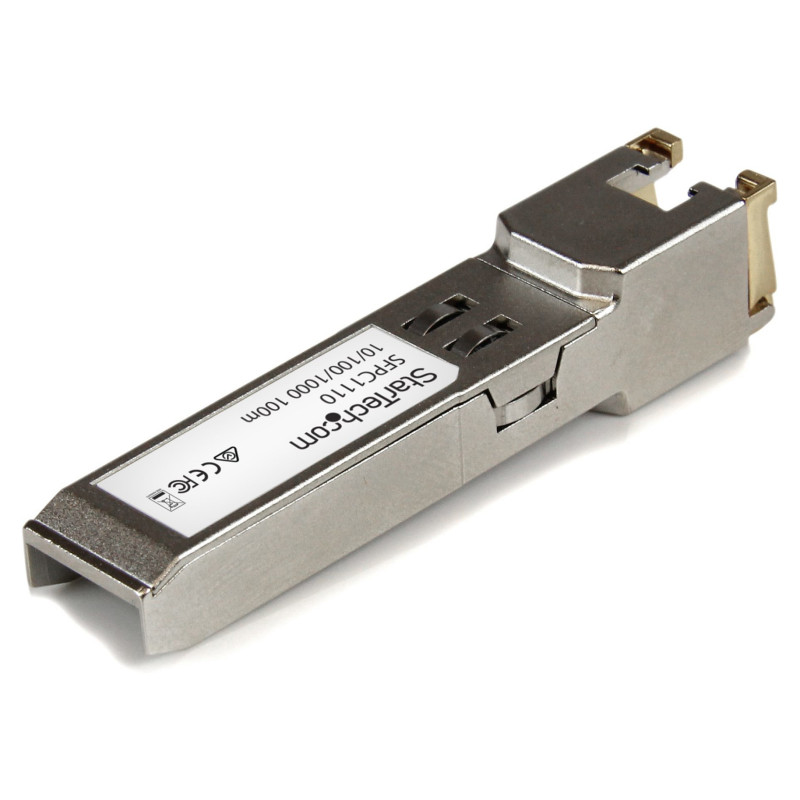

StarTech.com SFPC1110 network transceiver module

StarTech.com Cisco SFP-GE-T Compatible SFP Module - 1000BASE-T - SFP to RJ45 Cat6/Cat5e - 10/100/1000 Mbps - RJ-45 100m - Cisco IE3400, IE3300, IE3200. SFP transceiver type: Copper, Maximum data transfer rate: 1250 Mbit/s, Interface type: SFP. Product colour: Silver, Mean time between failures (MTBF): 4655371 h. Power consumption (typical): 1.3 W. Compliance certificates: RoHS, Certification: CE, FCC, UL, REACH. Width: 13 mm, Depth: 70 mm, Height: 13 mm

10/100/1000 Mbps | Copper | RJ45 | 100 m (328 ft) | Lifetime Warranty

The SFPC1110 is a Cisco SFP-GE-T compatible copper transceiver module that has been designed, programmed and tested to work with Cisco® brand switches and routers. It delivers dependable 1GbE (1000 Mbps) connectivity over copper cable, for 1000BASE-T compliant networks, with a maximum distance of up to 100 m (328 ft).

Technical Specifications:

• Maximum Data Transfer Rate: 1.25 Gbps
• Type: Copper
• Connection Type: RJ45 Connector
• Maximum Transfer Distance: 100 m (328 ft)
• MTBF: 4,655,371 hours
• Power Consumption: Less than 1.3 Watts
• Digital Diagnostics Monitoring (DDM): No

This SFP copper module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.

StarTech.com SFPs

All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.

Performance

SFP transceiver type: Copper
Maximum data transfer rate: 1250 Mbit/s
Interface type: SFP
Fiber optic connector: SFP
Maximum transfer distance: 100 m
Networking standards: IEEE 802.3ab
Cabling technology: 1000BASE-T
Ethernet LAN (RJ-45) ports: 1
Feature: Auto MDI/MDI-X
Feature: Auto-negotiation
Feature: Digital Diagnostics Monitoring (DDM)

Features

Product colour: Silver
Feature: Hot-swap
Mean time between failures (MTBF): 4655371 h

Power

Power consumption (typical): 1.3 W

Certificates

Compliance certificates: RoHS
Certification: CE, FCC, UL, REACH

Operational conditions

Operating temperature (T-T): 0 - 70 °C
Storage temperature (T-T): -40 - 85 °C
Operating relative humidity (H-H): 30 - 70%

Weight & dimensions

Width: 13 mm
Depth: 70 mm
Height: 13 mm
Weight: 46 g

Packaging content

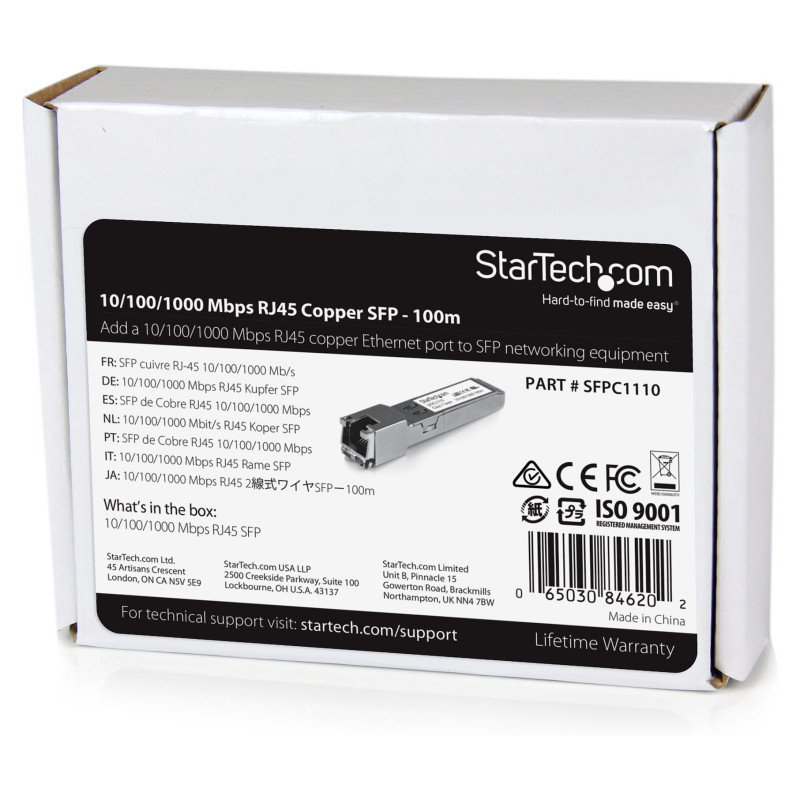

Quantity per pack: 1 pc(s)

Packaging data

Package width: 91 mm
Package depth: 113 mm
Package height: 33 mm
Package weight: 55 g

Logistics data

Master (outer) case width: 206 mm
Master (outer) case length: 298 mm
Harmonized System (HS) code: 85369010
Master (outer) case height: 248 mm
Products per master (outer) case: 36 pc(s)
