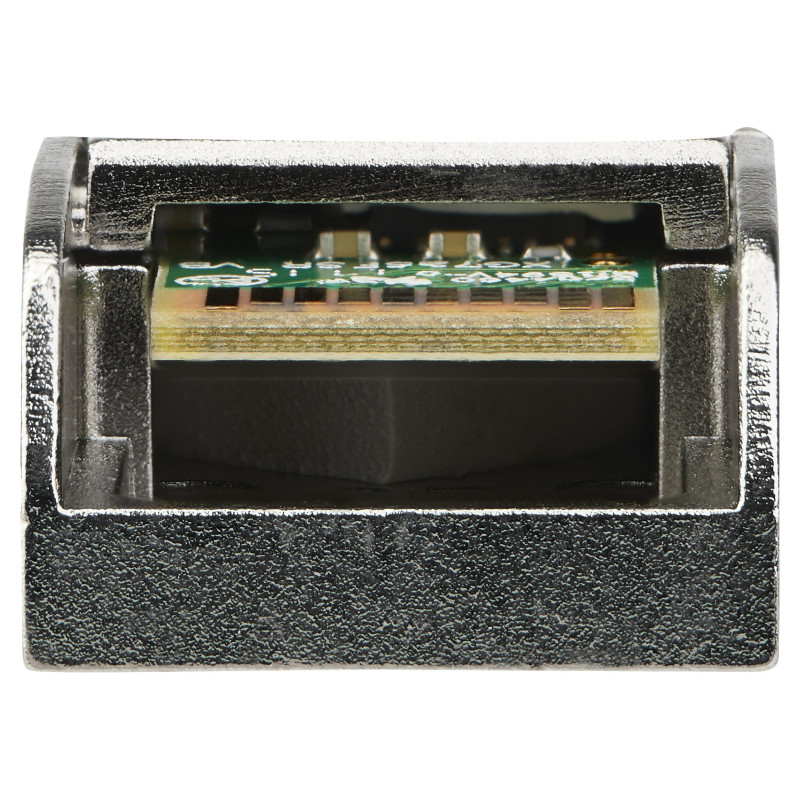

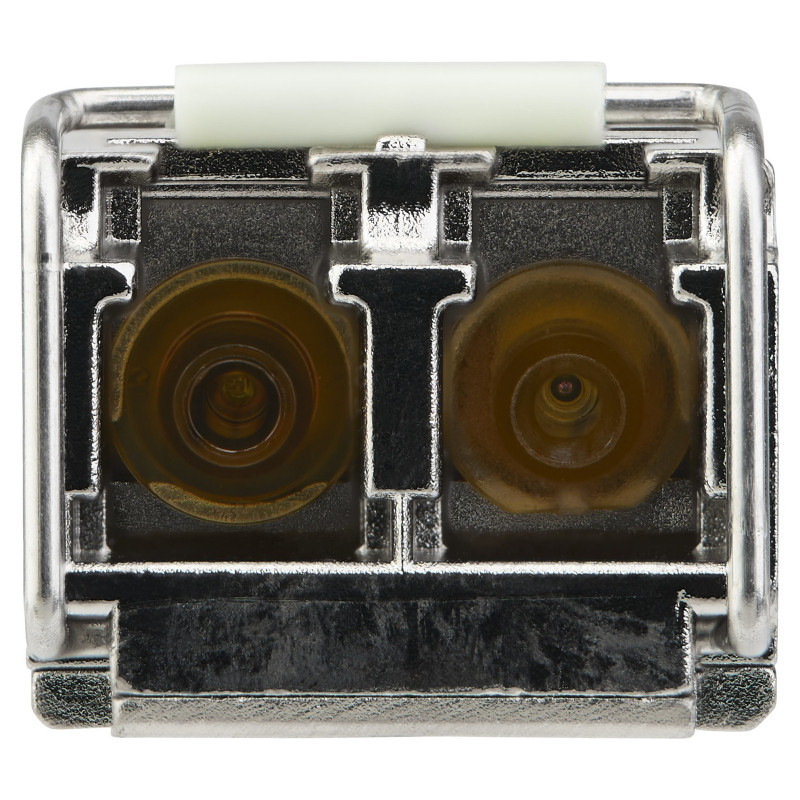

StarTech.com SFP10GLREMST network transceiver module

StarTech.com Dell EMC SFP-10G-LR Compatible SFP+ Module - 10GBASE-LR - 10GbE Single Mode Fiber SMF Optic Transceiver - 10GE Gigabit Ethernet SFP+ - LC 10km - 1310nm - DDM. SFP transceiver type: Fiber optic, Maximum data transfer rate: 10000 Mbit/s, Interface type: SFP+. Product colour: Silver, Mean time between failures (MTBF): 38631862 h, Brand compatibility: Dell. Power consumption (typical): 1.3 W. Compliance certificates: RoHS, Certification: CE, FCC, UL, REACH. Width: 58.4 mm, Depth: 13.9 mm, Height: 12.6 mm

10 Gbps | Single Mode Fiber | LC | 10 km (6.2 mi) | Lifetime Warranty

The SFP10GLREMST is a Dell EMC SFP-10G-LR compatible fiber transceiver module that has been designed, programmed and tested to work with Dell EMC brand switches and routers. It delivers dependable 10 GbE connectivity over fiber cable, for 1000BASE-LR compliant networks, with a maximum distance of up to 10 km (6.2 mi).

Technical Specifications:

• Wavelength: 1310nm
• Maximum Data Transfer Rate: 10 Gbps
• Type: Single Mode Fiber
• Connection Type: LC Connector
• Maximum Transfer Distance: 10 km (6.2 mi)
• MTBF: 38,631,862 hours
• Power Consumption:
• Digital Diagnostics Monitoring (DDM): Yes

This SFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.

StarTech.com SFPs

All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.

Performance

SFP transceiver type: Fiber optic
Maximum data transfer rate: 10000 Mbit/s
Interface type: SFP+
Feature: Single-mode fiber (SMF) supported
Fiber optic connector: LC
SFP transceiver standard: LR
Maximum transfer distance: 10000 m
Wavelength: 1310 nm
Fiber ethernet cabling technology: 10GBASE
Feature: Digital Diagnostics Monitoring (DDM)

Features

Product colour: Silver
Feature: Hot-swap
Mean time between failures (MTBF): 38631862 h
Brand compatibility: Dell
Compatible products: SFP-10G-LR

Power

Power consumption (typical): 1.3 W

Certificates

Compliance certificates: RoHS
Certification: CE, FCC, UL, REACH

Weight & dimensions

Width: 58.4 mm
Depth: 13.9 mm
Height: 12.6 mm
Weight: 30 g

Packaging content

Quantity per pack: 1 pc(s)

Packaging data

Package width: 92 mm
Package depth: 114 mm
Package height: 33 mm
Package weight: 50 g

Logistics data

Master (outer) case width: 92 mm
Master (outer) case length: 115 mm
Harmonized System (HS) code: 85369010
Master (outer) case height: 33 mm
Products per master (outer) case: 1 pc(s)
