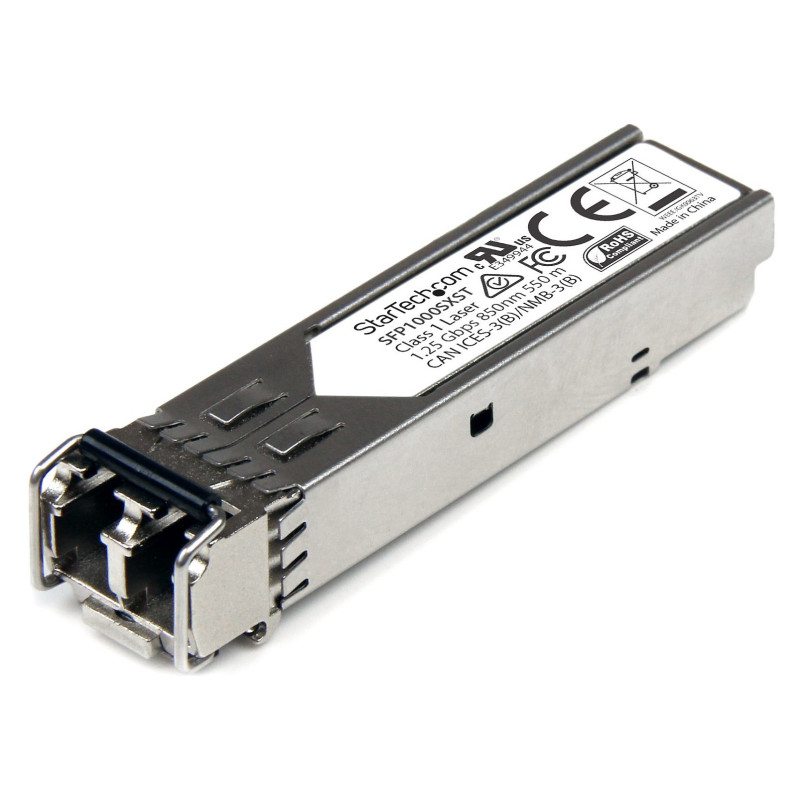

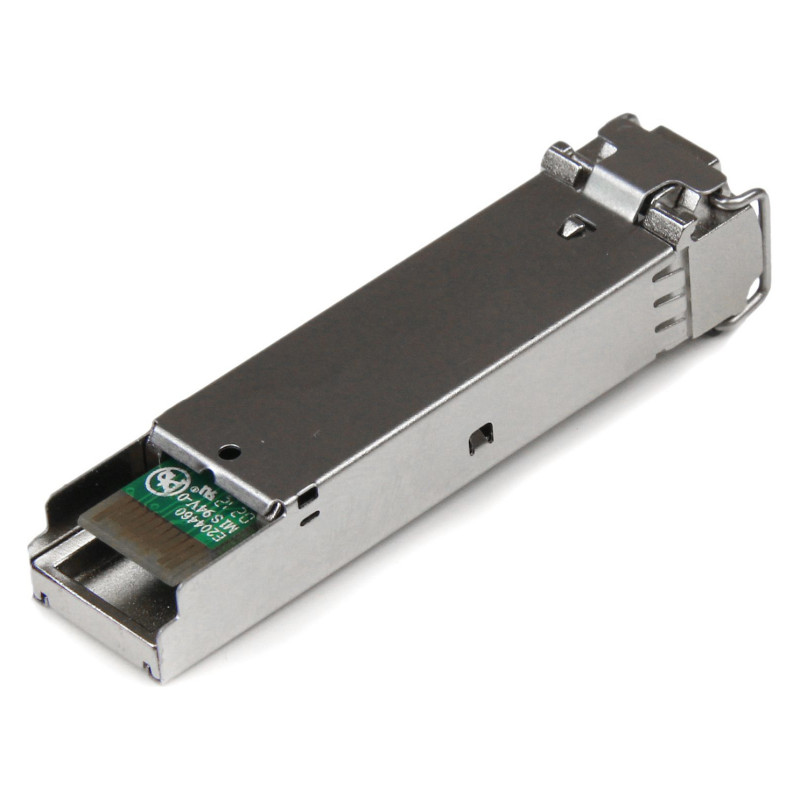

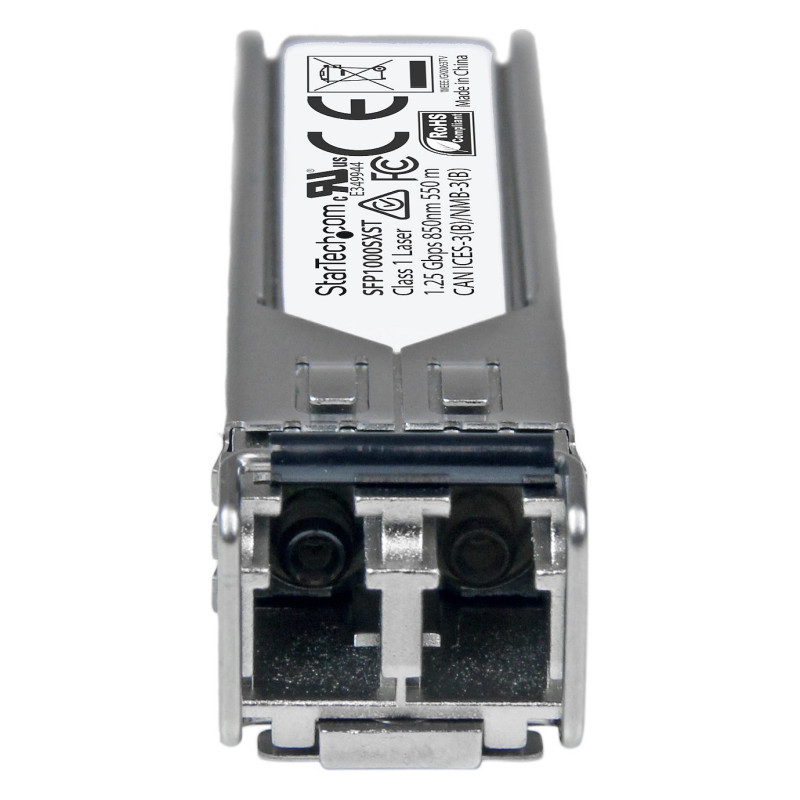

StarTech.com SFP1000SXST network transceiver module

StarTech.com MSA Uncoded SFP Module - 1000BASE-SX - 1GbE Multi Mode Fiber (MMF) Optic Transceiver - 1GE Gigabit Ethernet SFP - LC 550m - 850nm - DDM. SFP transceiver type: Fiber optic, Maximum data transfer rate: 1250 Mbit/s, Interface type: SFP. Product colour: Silver, Housing material: Aluminium. Power consumption (typical): 1 W. Compliance certificates: RoHS, Certification: CE, FCC, UR. Width: 13.9 mm, Depth: 58.4 mm, Height: 12.6 mm
1000 Mbps (1 Gbps) | Multi Mode Fiber | LC | 550 m (1804 ft) | Lifetime Warranty
The SFP1000SXST is an MSA compliant fiber SFP transceiver that's designed, programmed and tested to work with 1000BASE-SX compatible MSA switches and routers. The SFP transceiver module supports a maximum distance of up to 550 m (1804 ft) and delivers dependable 1 GbE connectivity over fiber cabling.
Technical Specifications:
• Wavelength: 850nm
• Maximum Data Transfer Rate: 1.25 Gbps
• Type: Multi Mode Fiber
• Connection Type: LC Connector
• Maximum Transfer Distance: 550 m (1804 ft)
• Power Consumption: Less than 1 Watt
• DDM: Yes
This SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP Cables, providing the convenience and reliability you need to ensure dependable network performance.

Performance

SFP transceiver type: Fiber optic
Maximum data transfer rate: 1250 Mbit/s
Interface type: SFP
Multi-mode fiber (MMF) supported: Yes
Fiber optic connector: LC
SFP transceiver standard: SX
Maximum transfer distance: 550 m
Wavelength: 850 nm
Networking standards: IEEE 802.3z
Duplex system: Full
Digital Diagnostics Monitoring (DDM): Yes
Wavelength-division multiplexing (WDM): No

Features

Product colour: Silver
Housing material: Aluminium
Hot-Plug support: Yes

Power

Power consumption (typical): 1 W

Certificates

Compliance certificates: RoHS
Certification: CE, FCC, UR

Operational conditions

Operating temperature (T-T): 0 - 70 °C
Storage temperature (T-T): -40 - 85 °C
Operating relative humidity (H-H): 5 - 95%

Weight dimensions

Width: 13.9 mm
Depth: 58.4 mm
Height: 12.6 mm
Weight: 23 g

Packaging content

Quantity per pack: 1 pc(s)

Packaging data

Package width: 92 mm
Package depth: 114 mm
Package height: 33 mm
Package weight: 53 g

Logistics data

Master (outer) case width: 338 mm
Master (outer) case length: 426 mm
Harmonized System (HS) code: 85369010
Master (outer) case height: 358 mm
Products per master (outer) case: 120 pc(s)
Country of origin: China
