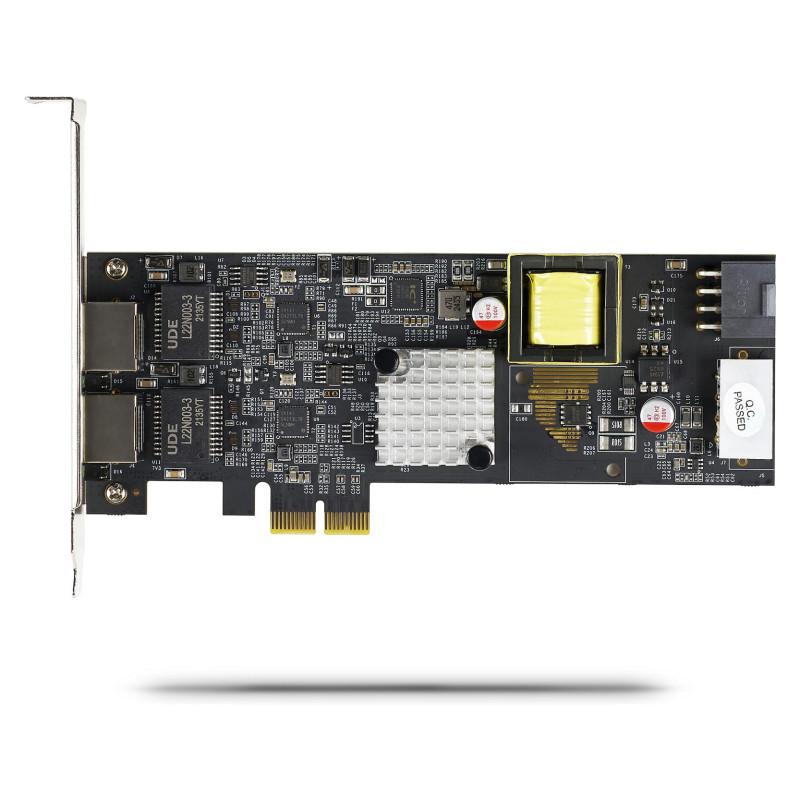

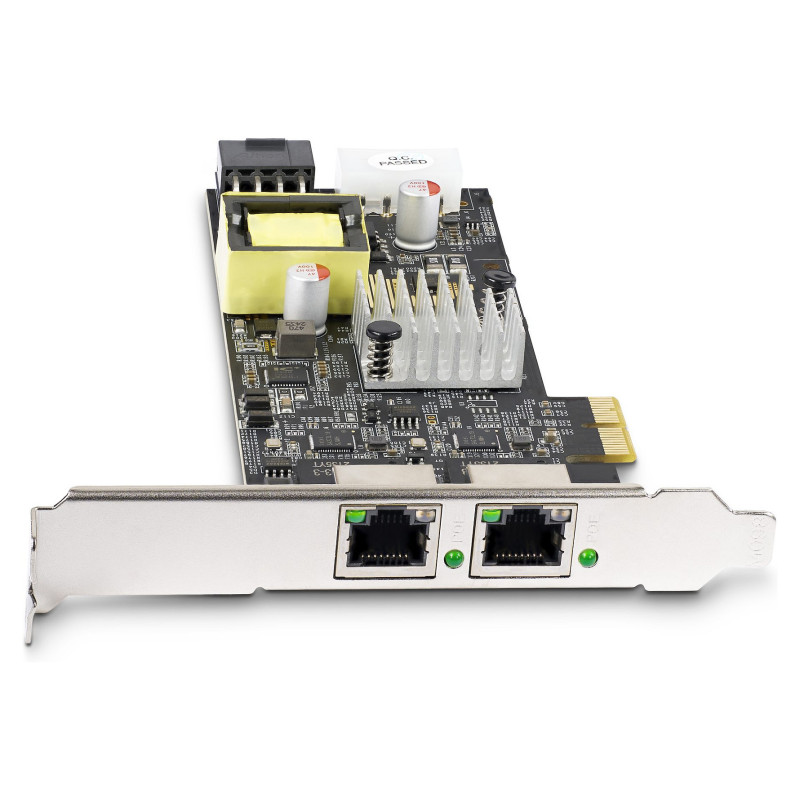

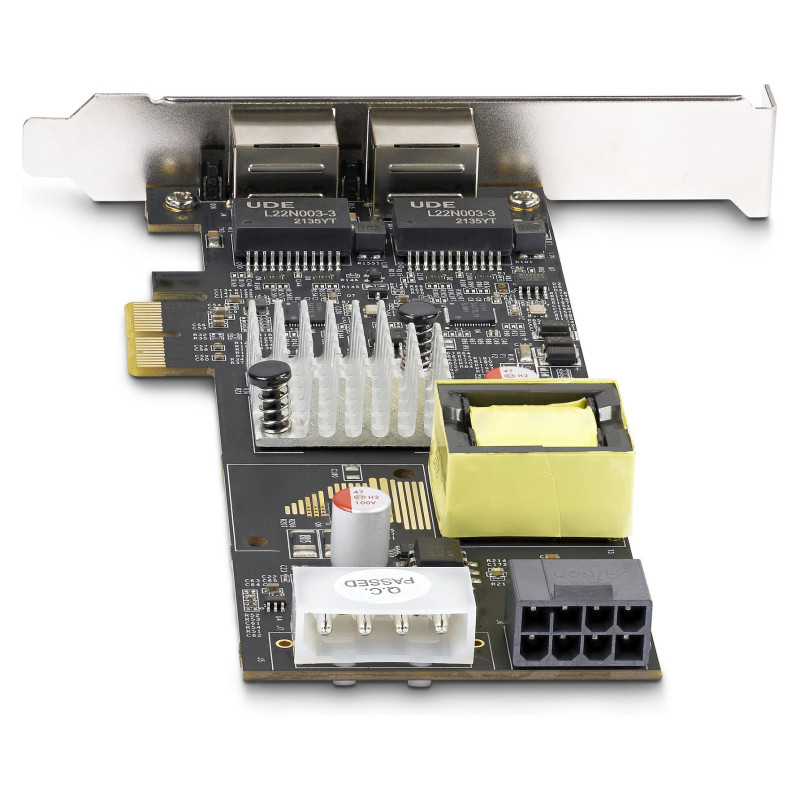

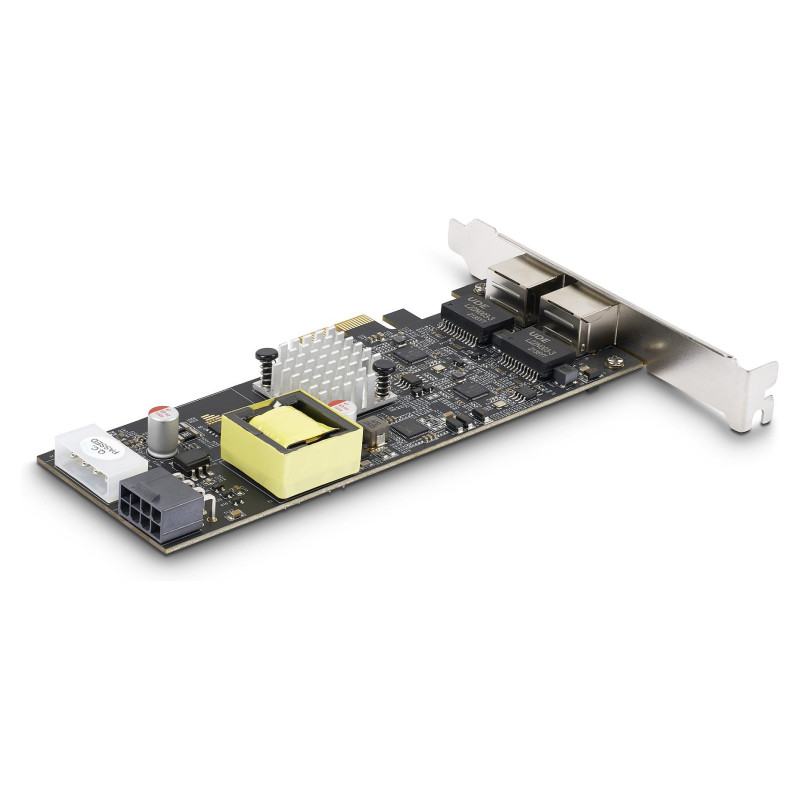

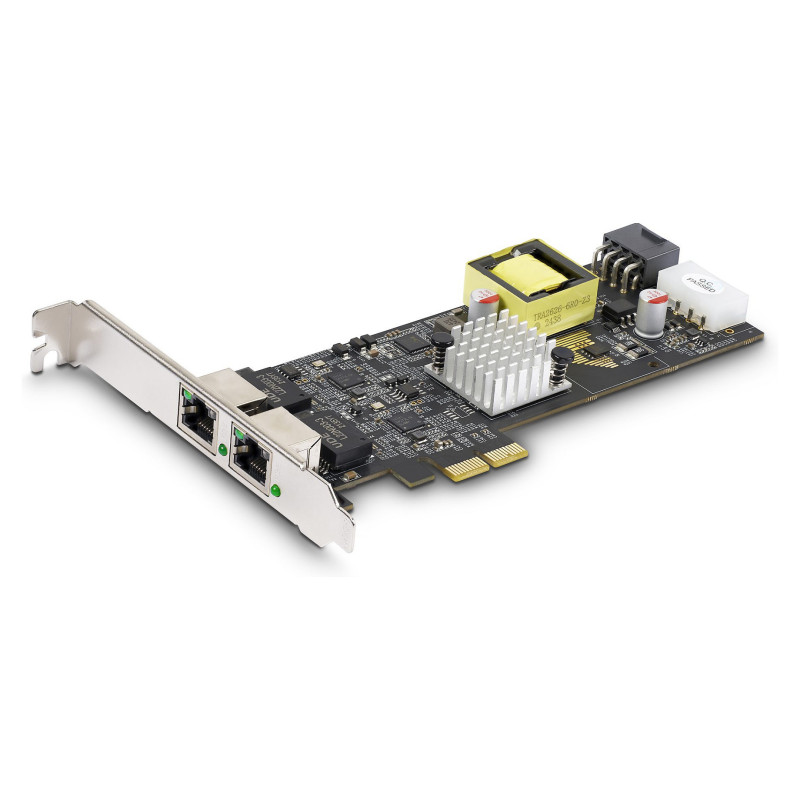

StarTech.com PR22GIP-NETWORK-CARD network card

StarTech.com 2-Port 2.5Gbps NBASE-T PoE Network Card, Dual Intel I225-V, 802.3af/at PoE+ Multi-Gigabit NIC, PCI Express Server LAN Card, LP4/8-Pin PCIe-Powered. Internal. Connectivity technology: Wired, Host interface: PCI Express. Maximum data transfer rate: 2500 Mbit/s

Add a Power-over-Ethernet (PoE) 2.5Gbps Port to a PCI Express-enabled Computer

This 2.5 GbE network interface card (NIC) features dual Intel I225-V chipsets with Intel vPro technology to enhance performance and data integrity. The variable multispeed options (2.5/1Gbps and 100/10Mbps) enable support for both new and legacy network hardware. Utilize existing CAT5e or CAT6 cabling infrastructure while adding NBASE-T (802.3bz) compatibility for seamless integration.

Power Over Ethernet

The PCIe Ethernet card supports the IEEE 802.3af and IEEE 802.3at (Type 1 and Type 2) standards for Power Sourcing Equipment (PSE) and can deliver up to 48V DC and 25.5W of power per port to compliant Powered Devices (PD). This flexibility eliminates the need for a separate power supplies or PoE injectors for remote networked devices such as IP cameras, access control devices, remote kiosks, and wireless access points.

Increased Network Speed

The PCIe network card leverages Intel vPro technology for remote management and troubleshooting capabilities. Improve bandwidth for data-intensive applications, network sharing, FTPs, online or local storage/backup, and the streaming of online content - while reducing network slowdowns. Access up to 2.5GBASE-T speeds using Cat5e (or better) cabling, to maximize existing networks and equipment.

Enhance Existing Hardware

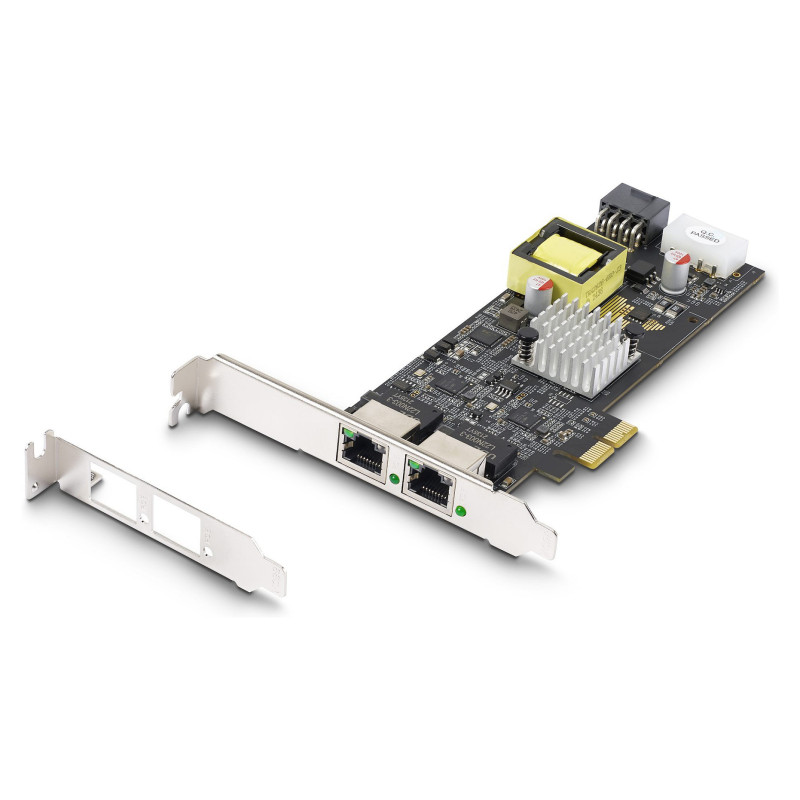

The network interface card connects through an available PCI Express x2 2.0 (or higher) expansion slot. The card ships with a standard-profile bracket pre-installed and includes a low-profile bracket for installation into small form factor systems and servers. This ethernet NIC card is compatible with Windows, Windows Server, VMware, and Linux.

This card supports the following advanced features: PXE Boot, WoL, VLAN tagging, 9K jumbo frame, full-duplex, and Intel vPro technology.

Ports & interfaces

Connectivity technology: Wired
Host interface: PCI Express
Ethernet LAN (RJ-45) ports: 2
Power over Ethernet (PoE) ports quantity: 2
PCI version: 2.0

Network

Maximum data transfer rate: 2500 Mbit/s
Feature: Ethernet LAN
Ethernet interface type: 2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
Ethernet LAN data rates: 10,100,1000,2500 Mbit/s
Feature: Wake-on-LAN ready
Feature: Auto MDIX IEEE
Feature: Full duplex
Feature: Jumbo frames support
Jumbo frames: 9000
Feature: Quality of Service (QoS) support
Feature: VLAN support

Design

Component for: PC/Server
Feature: Internal
Chipset: Intel I225-V
LED indicators: Yes

Power

Output voltage: 48 V

System requirements

Linux operating systems supported: Yes
Server operating systems supported: Windows Server 2019, Windows Server 2022

Operational conditions

Operating temperature (T-T): 0 - 55 °C
Storage temperature (T-T): -10 - 70 °C
Operating relative humidity (H-H): 5 - 90%

Weight & dimensions

Width: 121 mm
Depth: 180 mm
Height: 22 mm
Weight: 111 g

Packaging data

Package width: 207 mm
Package depth: 144 mm
Package height: 38 mm
Package weight: 106 g

Packaging content

Feature: Mounting brackets included
Feature: Quick installation guide

Technical details

Compliance certificates: RoHS

Logistics data

Master (outer) case width: 440 mm
Master (outer) case length: 420 mm
Master (outer) case height: 320 mm
Products per master (outer) case: 40 pc(s)
