StarTech.com PR22GI-NETWORK-CARD network card

StarTech.com 2-Port 2.5Gbps NBASE-T PCIe Network Card, Intel I225-V, Dual-Port Computer Network Card, Multi-Gigabit NIC, PCI Express Server LAN Card, Desktop Ethernet Interface. Internal. Connectivity technology: Wired, Host interface: PCI Express, Interface: Ethernet. Maximum data transfer rate: 2500 Mbit/s. Product colour: Black

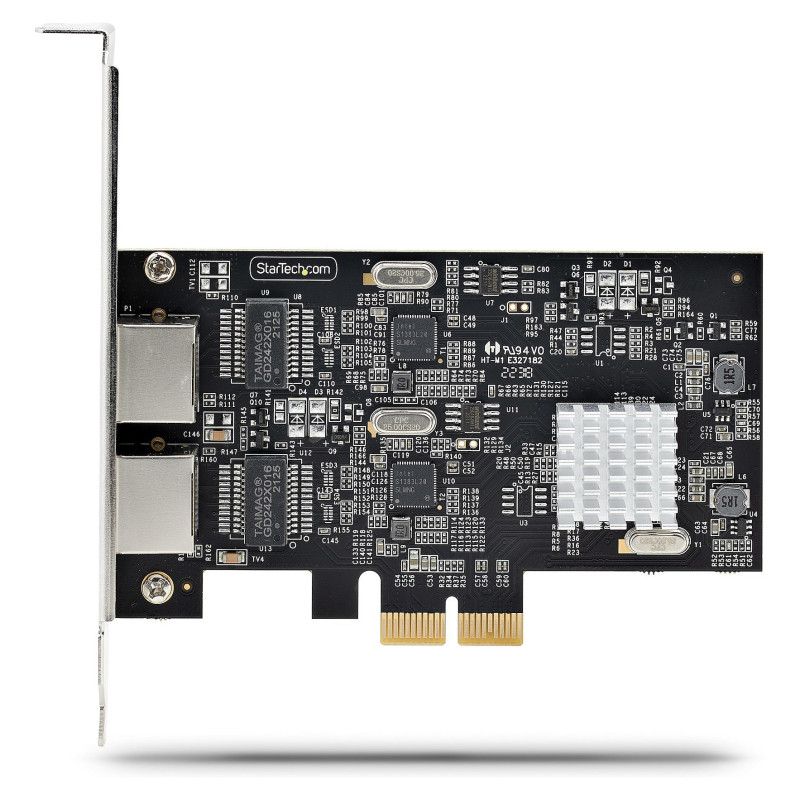

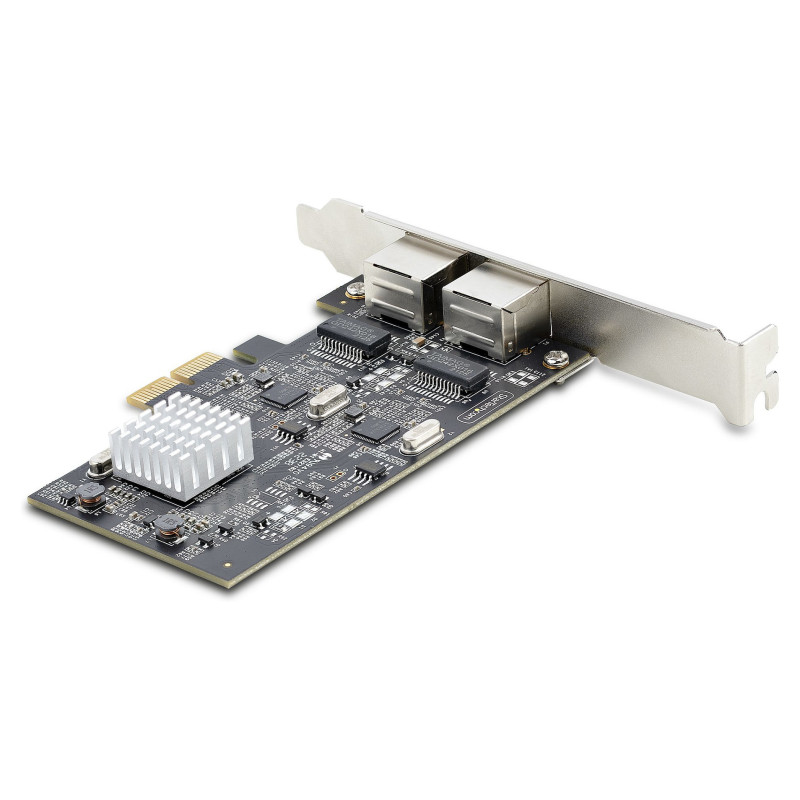

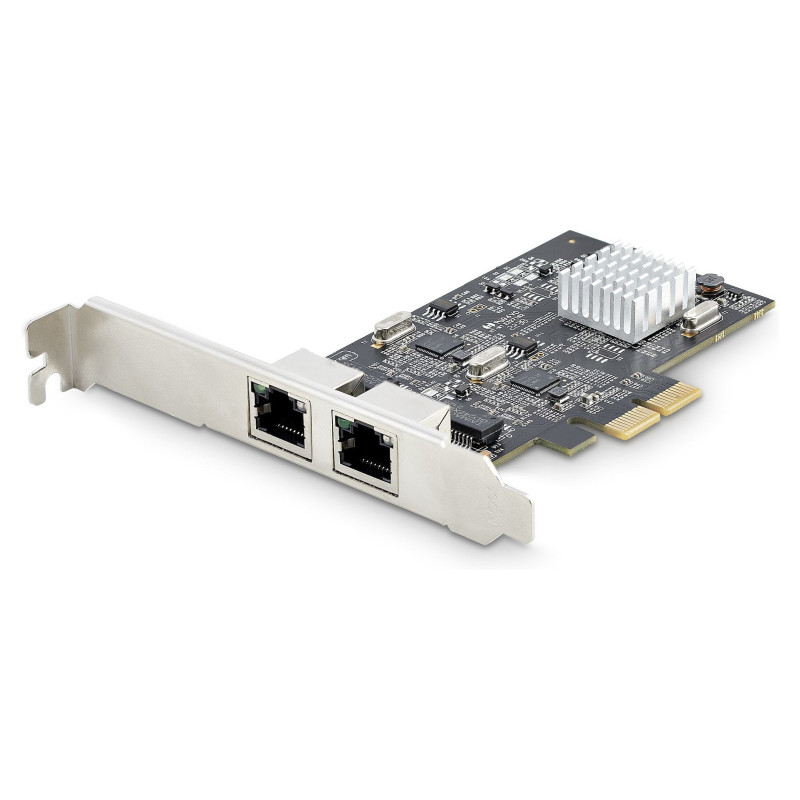

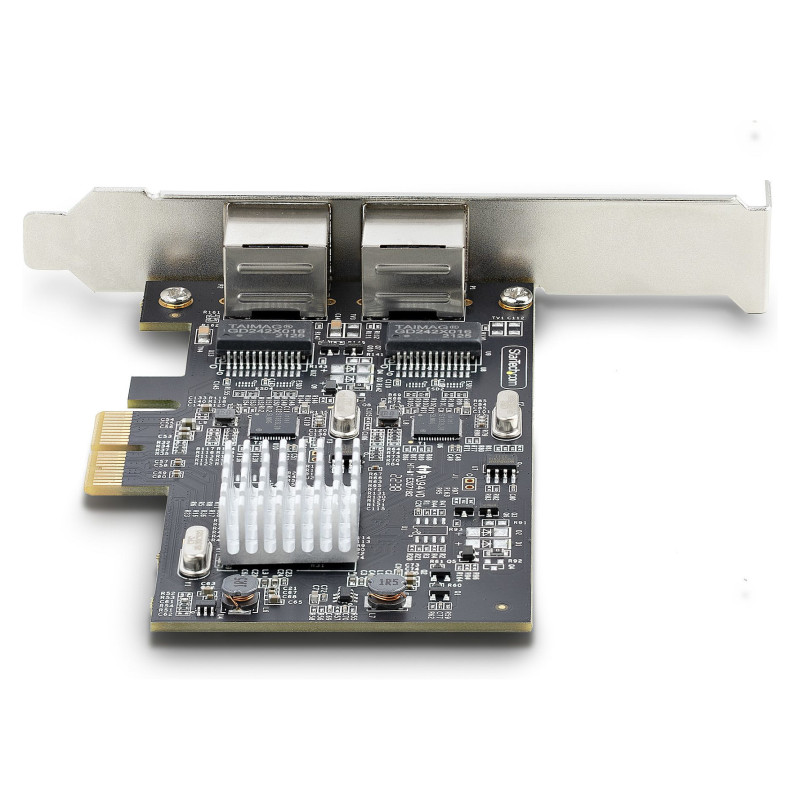

Dual-port PCIe network card with Intel® I225-V chip features multi-Gigabit speeds with NBASE-T support

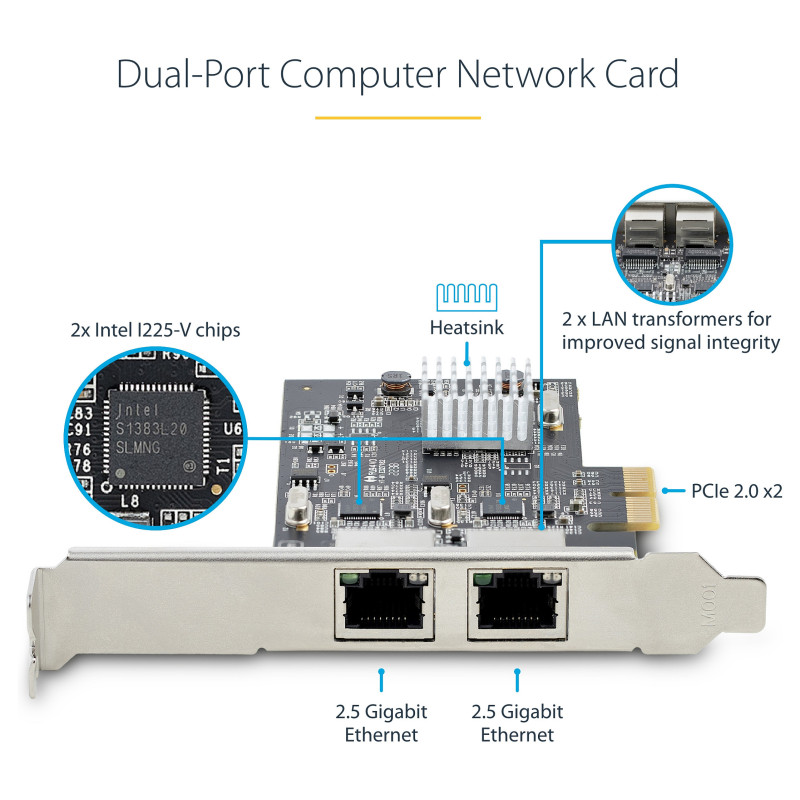

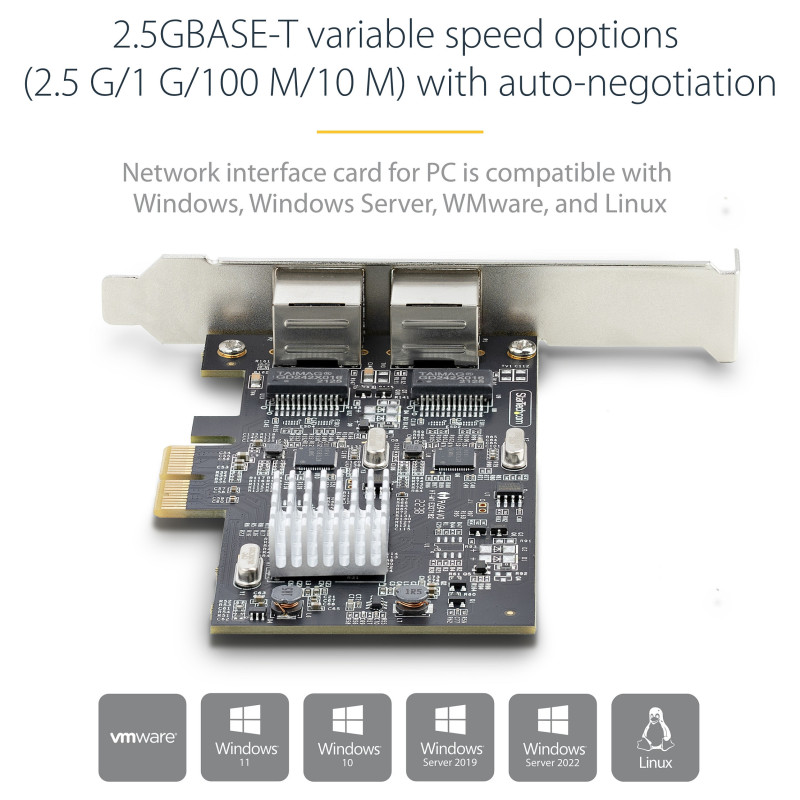

This dual-port 2.5GbE network interface card (NIC) features independent Intel I225-V chipsets for each port with Intel vPro technology, to enhance performance and data integrity across two 2.5G ethernet connections. The variable multispeed options (2.5/1Gbps and 100/10Mbps) enable support for both new and legacy network hardware. Utilize existing Cat5e or CAT6 cabling infrastructure while adding NBASE-T (802.3bz) compatibility for seamless integration.

Increased Network Speed

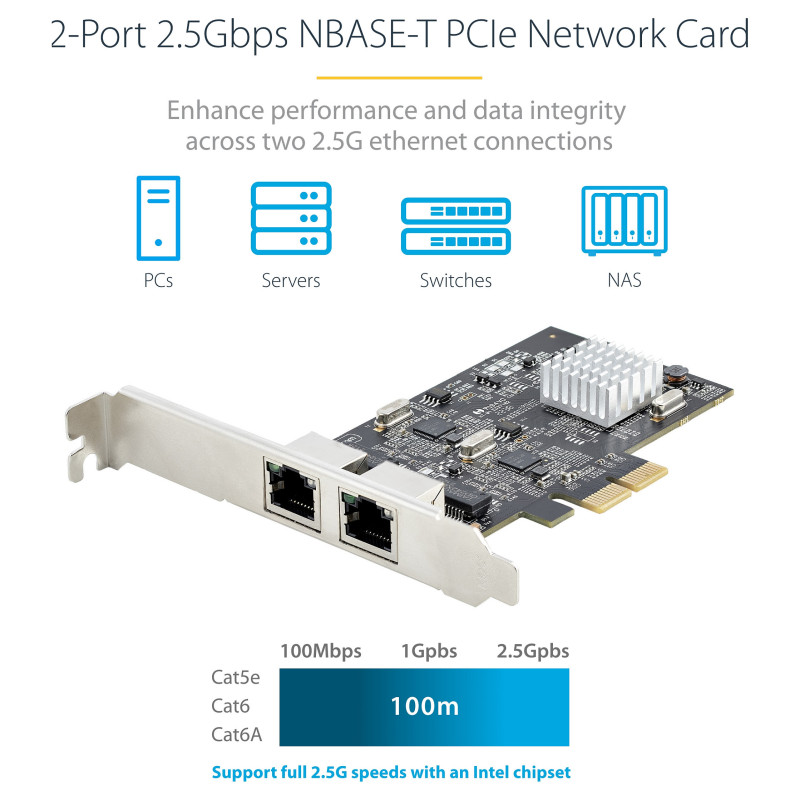

The PCIe network card leverages Intel vPro technology for remote management and troubleshooting capabilities. Improve bandwidth for data-intensive applications, network sharing, FTPs, online or local storage/backup, and the streaming of online content - while reducing network slowdowns. Access up to 2.5GBASE-T speeds using Cat5e (or better) cabling, to maximize existing networks and equipment. To ensure reliable performance, two Intel I225-V chipsets are used, providing independent Ethernet controllers to each port.

Enhance Existing Hardware

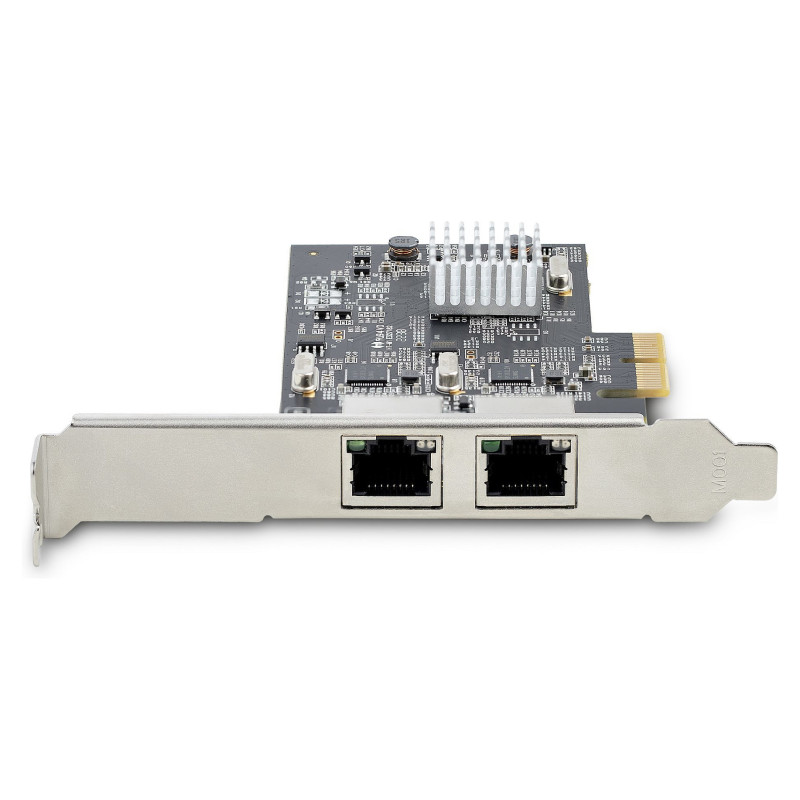

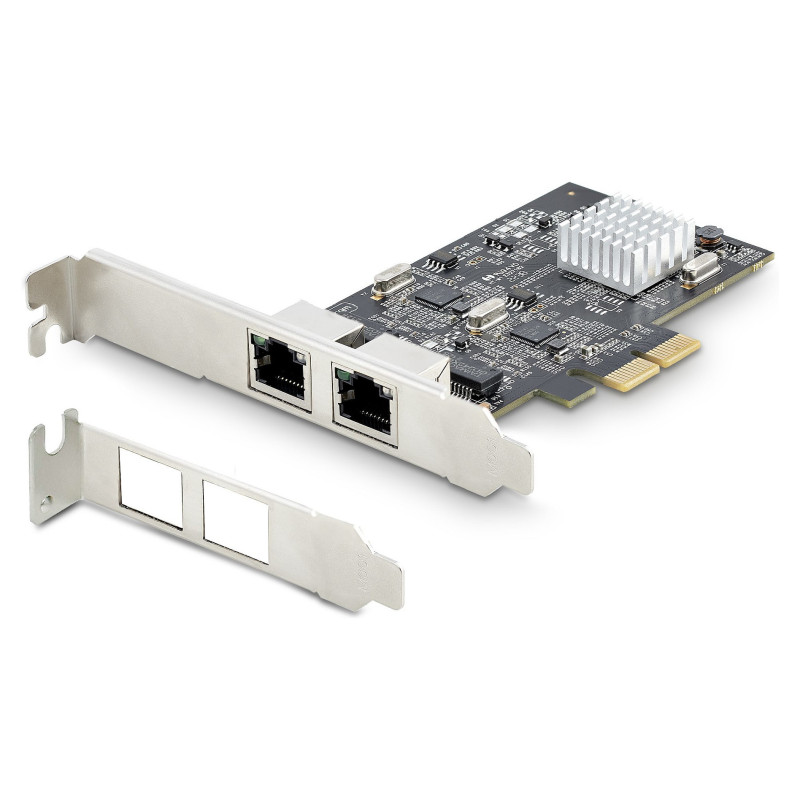

The network interface card connects via an available x2 PCI Express 2.0 (or higher) expansion slot. The card ships in a standard-profile bracket and includes a low-profile bracket for installation into small form factor systems and servers. This ethernet NIC card is compatible with Windows and Linux.

This card supports the following advanced features: PXE Boot, WoL, VLAN tagging, 9 K jumbo frame, full-duplex, and Intel vPro technology.

Ports & interfaces

Connectivity technology: Wired
Host interface: PCI Express
Interface: Ethernet
Ethernet LAN (RJ-45) ports: 2
PCI version: 2.0

Network

Maximum data transfer rate: 2500 Mbit/s
Networking standards: IEEE 1588, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3i, IEEE 802.1as, IEEE 802.1p, IEEE 802.3u, IEEE 802.1Q, IEEE 802.3az, IEEE 802.1x
Feature: Ethernet LAN
Ethernet interface type: Gigabit Ethernet, 2.5 Gigabit Ethernet, Fast Ethernet
Ethernet LAN data rates: 10,1000,2500,100,2000 Mbit/s
Copper ethernet cabling technology: 100BASE-TX, 10BASE-TX, 1000BASE-T, 2500BASE-T
Feature: Wake-on-LAN ready
Feature: Auto MDIX IEEE
Feature: Jumbo frames support
Jumbo frames: 9000
Feature: Quality of Service (QoS) support
Feature: VLAN tagging

Design

Component for: PC/Server
Product colour: Black
Feature: Internal
Chipset: Intel I225-V
LED indicators: Activity, Link

System requirements

Linux operating systems supported: Yes
Server operating systems supported: Windows Server 2019, Windows Server 2022

Operational conditions

Operating temperature (T-T): 0 - 55 °C
Storage temperature (T-T): -10 - 70 °C
Operating relative humidity (H-H): 5 - 90%

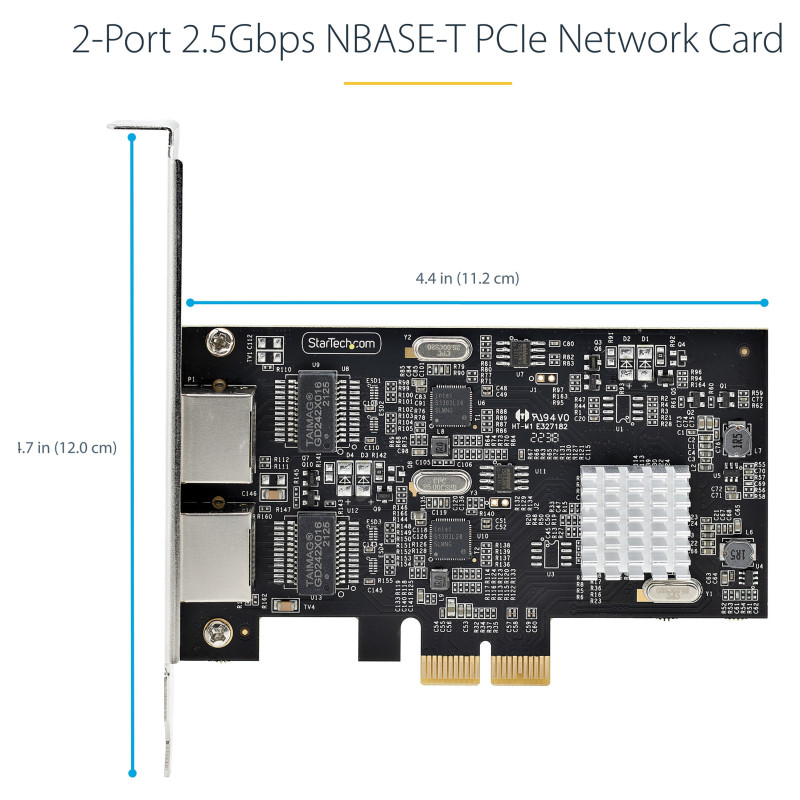

Weight & dimensions

Width: 112 mm
Depth: 120 mm
Height: 18 mm
Weight: 60 g

Packaging data

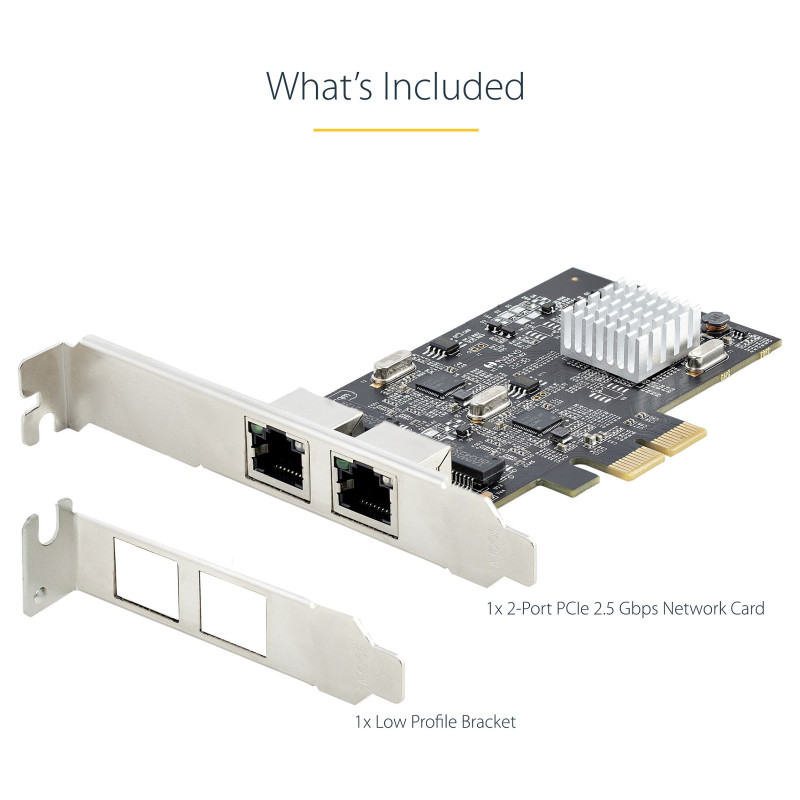

Feature: Low-profile bracket
Package width: 156 mm
Package depth: 218 mm
Package height: 38 mm
Package weight: 66 g

Packaging content

Feature: Quick installation guide

Logistics data

Master (outer) case width: 450 mm
Master (outer) case length: 380 mm
Master (outer) case height: 330 mm
Products per master (outer) case: 40 pc(s)
