StarTech.com PR210B-NETWORK-CARD network card

StarTech.com 2-Port PCIe 10Gb Ethernet Network Card, 10GbE Network Interface Card, Broadcom BCM57416 Chipset, Dual RJ45 10GBase-T/Gigabit, NIC Card, TAA. Internal. Connectivity technology: Wired, Host interface: PCI Express, Interface: Ethernet. Maximum data transfer rate: 20000 Mbit/s. Product colour: Black

Add two 10 Gigabit Ethernet ports to a PC via copper cable using an available PCIe slot.

This PCIe network card makes it easy to add two 10GBase-T ports to your server or workstation, providing an affordable solution for high-bandwidth applications. It supports 10GbE over Cat 6 cabling up to 55 meters and Cat 6A cabling up to 100 meters.

Versatile and Cost-Effective

Compatible with a broad range of operating systems, this versatile dual-port NIC reduces network slowdown/degradation when running data-intensive applications/processes such as FTPs and online storage/backup. It's a cost-effective way to enhance your server or computer capabilities by adding two powerful 10-Gigabit Ethernet ports, with support for advanced features such as VLAN tagging, jumbo frames, and Auto-MDIX.

High-Performance Connectivity

This 2-port PCI Express 10GBase-T network card features the Broadcom BCM57416 chipset, designed to deliver the power, performance and enhanced capabilities you need for reliable network connections to your server or computer.

Compliant with IEEE 802.1Q standards, this network card offers an efficient way to upgrade or replace your existing network ports with dual 1G/10G-compatible RJ45 ports, delivering up to 10Gbps of throughput per port in each direction (20Gbps total). It connects through a single, four-lane (x8 or higher) PCI Express slot.

Easy Installation

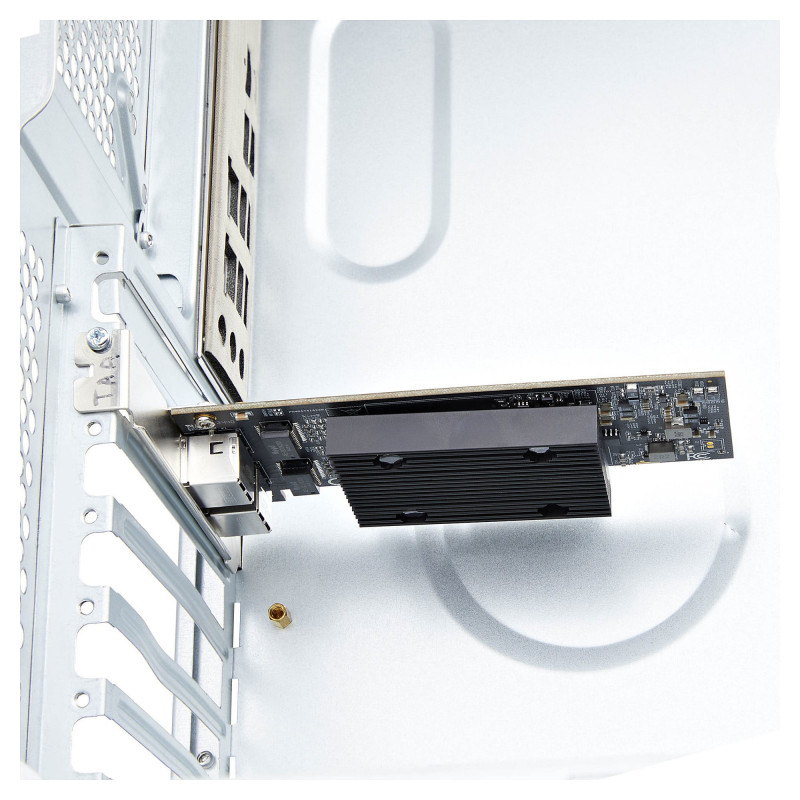

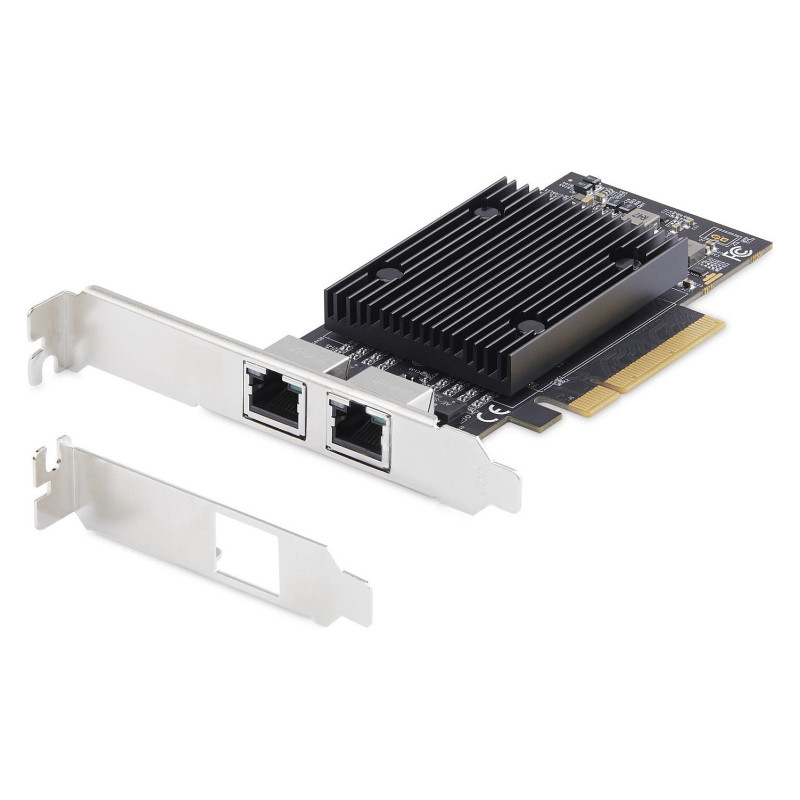

With a dual-profile design, the PCI Express network card installs easily into a wide range of computer/server chassis, regardless of form factor. The card comes equipped for installation in a full-sized chassis and includes a low-profile/half-height installation bracket that you can use as needed.

Ports & interfaces

Connectivity technology: Wired
Host interface: PCI Express
Interface: Ethernet
Ethernet LAN (RJ-45) ports: 2
PCI version: 2.0

Network

Maximum data transfer rate: 20000 Mbit/s
Networking standards: IEEE 802.1Q, IEEE 802.3ad
Feature: Ethernet LAN
Feature: Auto MDIX IEEE
Feature: Full duplex
Feature: Jumbo frames support
Feature: Auto-negotiation
Jumbo frames: 9000
Feature: VLAN tagging
Feature: Link aggregation

Design

Component for: PC
Product colour: Black
Feature: Internal
Chipset: Broadcom BCM57416
LED indicators: Activity, Status

System requirements

Linux operating systems supported: Yes
Server operating systems supported: Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019, Windows Server 2022

Operational conditions

Operating temperature (T-T): 0 - 55 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 5 - 90%

Weight & dimensions

Width: 121 mm
Depth: 146.5 mm
Height: 22 mm
Weight: 122 g

Packaging data

Package width: 170 mm
Package depth: 142 mm
Package height: 30 mm
Package weight: 130 g

Packaging content

Feature: Manual

Technical details

Compliance certificates: CE, Federal Communications Commission (FCC), RoHS, Trade Agreements Act (TAA)

Logistics data

Master (outer) case width: 605 mm
Master (outer) case length: 385 mm
Master (outer) case height: 325 mm
Products per master (outer) case: 40 pc(s)
