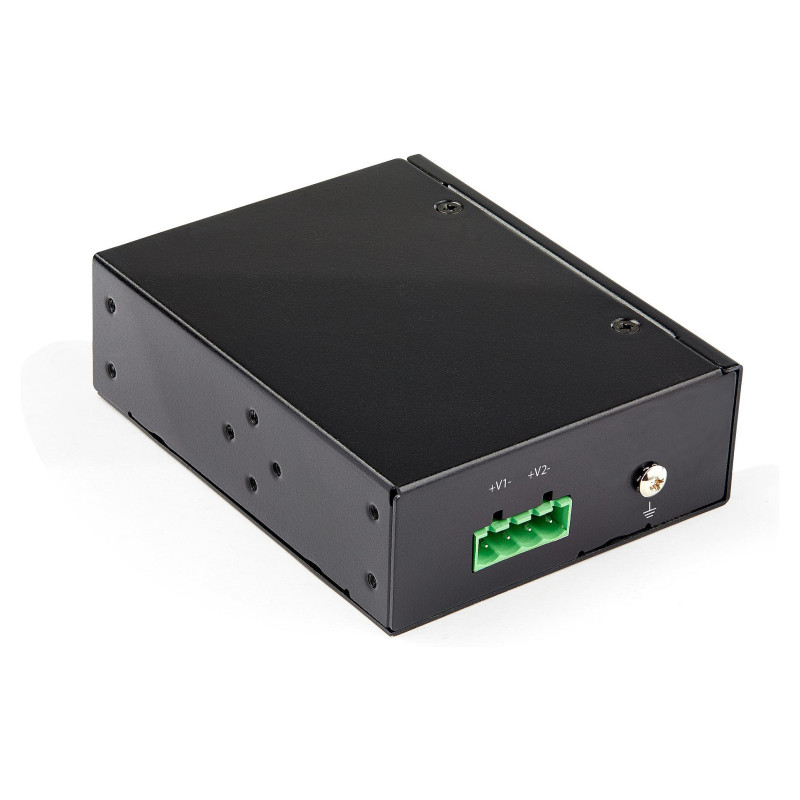

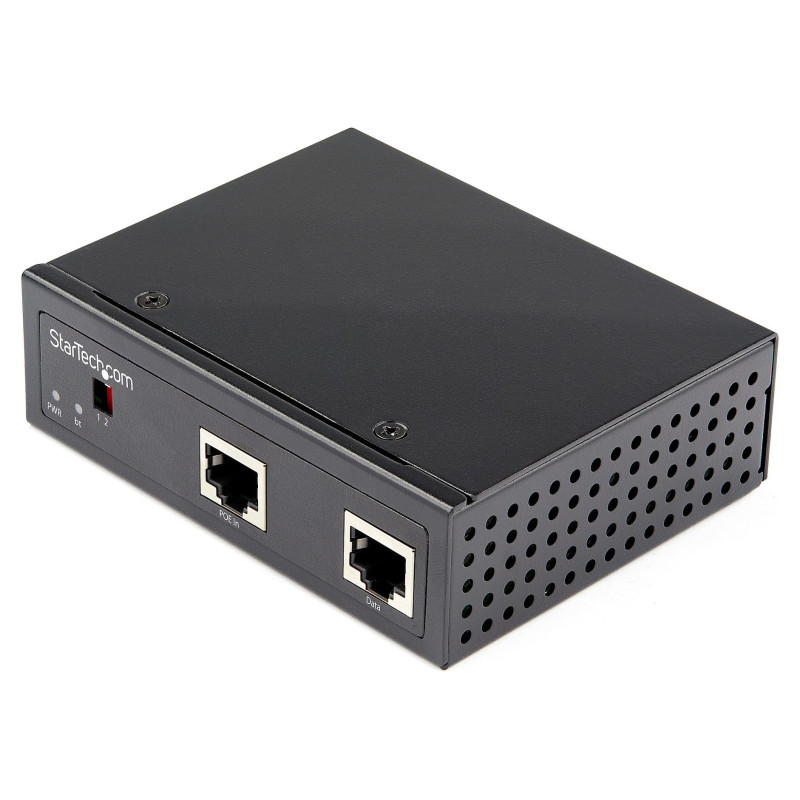

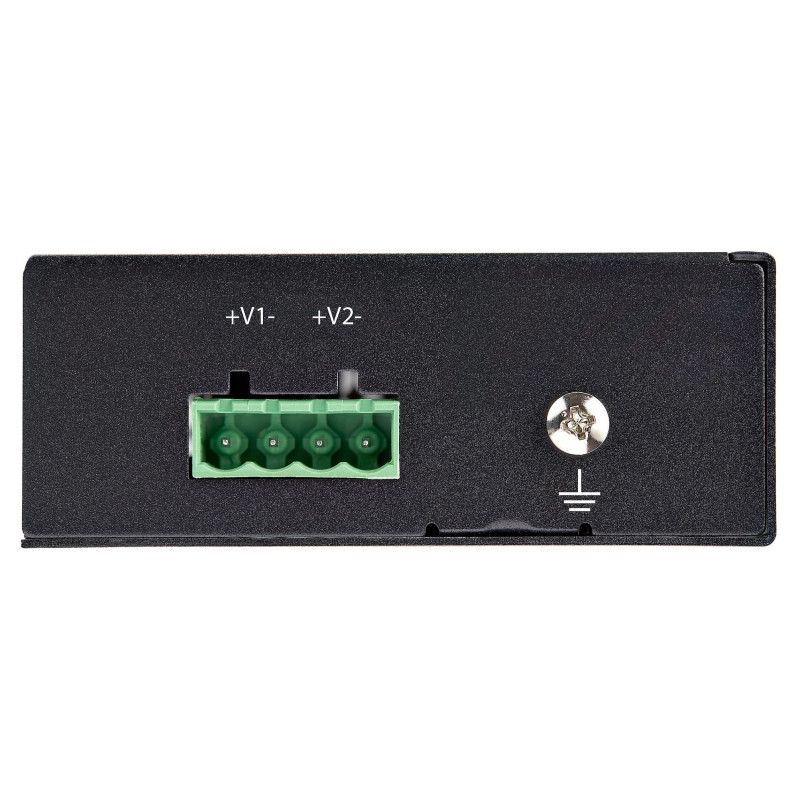

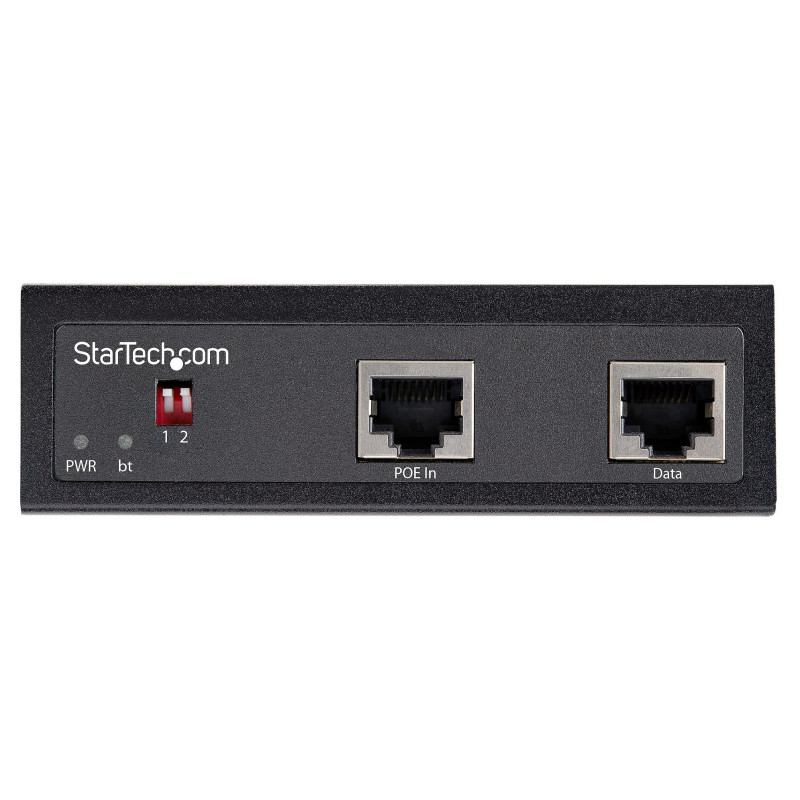

StarTech.com POESLT1G48V PoE adapter

StarTech.com Industrial Gigabit PoE Splitter - 90W High Speed Power over Ethernet PoE+++ Splitter - 12-48V DC Splitter 802.3bt - LAN/RJ45 Ultra PoE to DC Adapter - -40C to +75C - TAA. Ethernet interface type: Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s, Cabling technology: 10/100/1000Base-T(X). Product colour: Black, Maximum operating distance: 100 m. Output current: 1.5 A, Total Power over Ethernet (PoE) budget: 90 W. Compliance certificates: RoHS, Certification: CE, FCC, UL. Width: 81.5 mm, Depth: 104 mm, Height: 32 mm
Rugged PoE Splitter | 12-48V DC | IP-30 Aluminum Housing | 1.5A Power Output
Splits a PoE connection (max 90W) into separate data (RJ45) and DC power (terminal block) that can power any device that uses DC power between 12V-48VDC (1.5A). Power non-PoE devices using network infrastructure, where power is not available.
Power Non-PoE Devices
Perfect for using PoE to power older devices while also providing network access for monitoring and control applications. Applications include:
• Security (card swipe or proximity boxes)
• Environmental monitoring (temperature/moisture sensors)
• Telco (analog interface systems/conversion)
Straightforward Deployment
Supports IEEE 802.3af (PoE / Type 1), IEEE 802.3at (PoE+ / Type 2), and IEEE 802.3bt (PoE++ / Type 3) PoE inputs up to 90W and splits data and power. Power output via terminal block can be configured for 12/16/24/48V DC (1.5A).
The configuration is completed by DIP switches and the product can be wall or DIN rail mounted using the included hardware.
Designed for Harsh Environments
Industrial features include -40 C to 75 C operating temperature, IP-30 rated housing, vibration, shock, and free-fall standard testing.
Vibration: EN 60068-2-6
Shock: EN 60068-2-27
Free-Fall: EN 60068-2-32
600,000+ hours MTBF rating using Telcordia/Bellcore at 50 C for long-term reliability.
The POESLT1G48V is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Network

Ethernet interface type: Gigabit Ethernet
Ethernet LAN data rates: 10,100,1000 Mbit/s
Cabling technology: 10/100/1000Base-T(X)
Power over Ethernet (PoE): Yes
Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u
Auto MDI/MDI-X: Yes
Duplex system: Full
Supported network protocols: CSMA/CD

Features

Product colour: Black
Surge protection: Yes
Maximum operating distance: 100 m
LED indicators: Yes

Ports interfaces

RJ-45 input ports: 1
RJ-45 output ports: 1

Power

Output current: 1.5 A
Total Power over Ethernet (PoE) budget: 90 W

Certificates

Compliance certificates: RoHS
Certification: CE, FCC, UL

Operational conditions

Operating temperature (T-T): -40 - 75 °C
Operating relative humidity (H-H): 5 - 95%
Storage temperature (T-T): -40 - 85 °C

Weight dimensions

Width: 81.5 mm
Depth: 104 mm
Height: 32 mm
Weight: 150 g

Packaging content

Quick installation guide: Yes

Packaging data

Package length: 21.1 cm
Package width: 168 mm
Package depth: 214 mm
Package height: 66 mm
Package weight: 392 g

Logistics data

Harmonized System (HS) code: 85044095
Master (outer) case width: 360 mm
Master (outer) case length: 368 mm
Master (outer) case height: 248 mm
Products per master (outer) case: 10 pc(s)
