StarTech.com PEXUSB4DP interface cards / adapter

StarTech.com 4 Port PCI Express Low Profile High Speed USB Card. Host interface: PCIe, Output interface: USB 2.0. Product colour: Green, Certification: CE, FCC, REACH, TAA. Chipset: VIA/VLI - VT6212, Data transfer rate (max): 0.48 Gbit/s. Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10..., Mac operating systems supported: Mac OS X 10.10 Yosemite, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain..., Server operating systems supported: Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2016, Windows.... Width: 80 mm, Depth: 90 mm, Height: 20 mm
Add 4 USB 2.0 ports to your low profile/small form factor computer through a PCI Express expansion slot

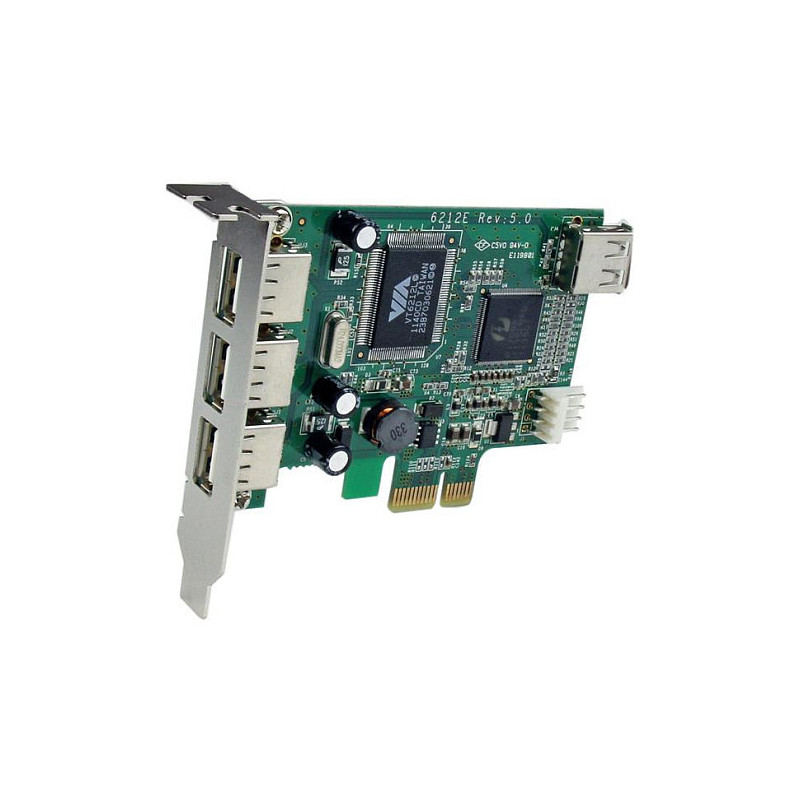

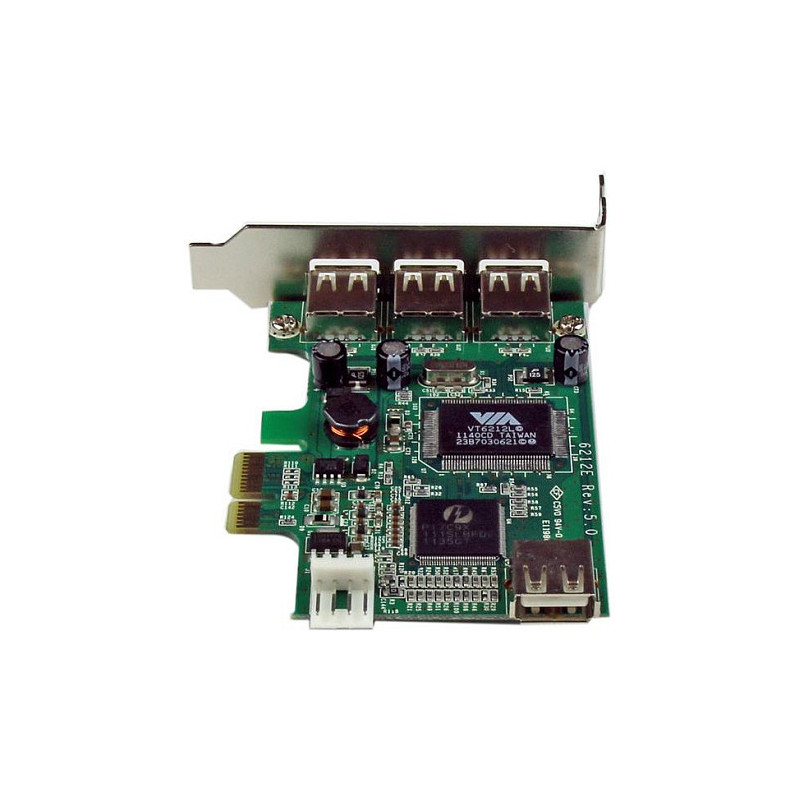

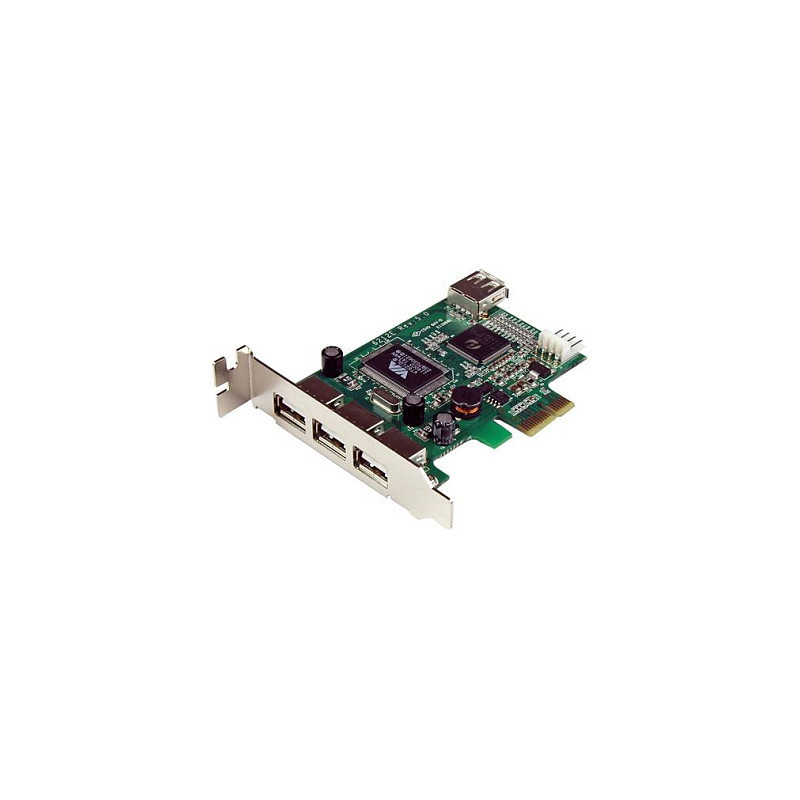

The PEXUSB4DP is a low profile 4 port USB card designed for versatility and performance. Providing simple system expansion for added peripheral connections, this PCI Express USB card adds 3 external USB 2.0 slots and 1 internal USB 2.0 slot, with support for high speed USB 2.0 data transfer rates of up to 480 Mbps, and includes WHQL certified drivers and easy plug and play installation. Capable of adapting to virtually any PC case form factor, the low profile USB card includes a standard profile bracket for installation in full form factor cases.
The StarTech.com Advantage
- Add 4 USB 2.0 ports to a low profile/small form factor (SFF) computer system, to conserve expansion port availability
- Dedicated power input ensures each port receives the full amount of power capable under USB 2.0 specification
- Backed by a StarTech.com 2-year warranty and free lifetime technical support

Ports interfaces

Host interface: PCIe
Output interface: USB 2.0
USB 2.0 ports quantity: 3
Internal USB 2.0 ports quantity: 1

Design

Feature: Internal
Product colour: Green
Certification: CE, FCC, REACH, TAA

Features

Chipset: VIA/VLI - VT6212
Data transfer rate (max): 0.48 Gbit/s

Operational conditions

Operating temperature (T-T): 0 - 75 °C
Storage temperature (T-T): -40 - 125 °C
Operating relative humidity (H-H): 0 - 80%

System requirements

Mac operating systems supported: Mac OS X 10.10 Yosemite, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Linux operating systems supported: Yes
Server operating systems supported: Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2016, Windows Server 2019

Technical details

Compliance certificates: RoHS

Weight dimensions

Width: 80 mm
Depth: 90 mm
Height: 20 mm
Weight: 46 g

Packaging data

Quantity: 1

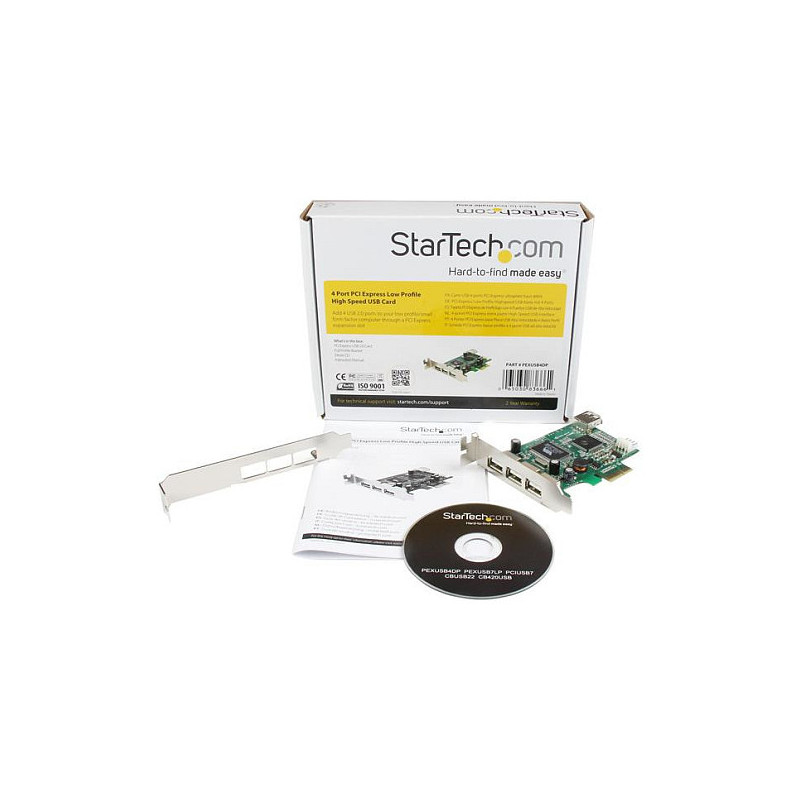

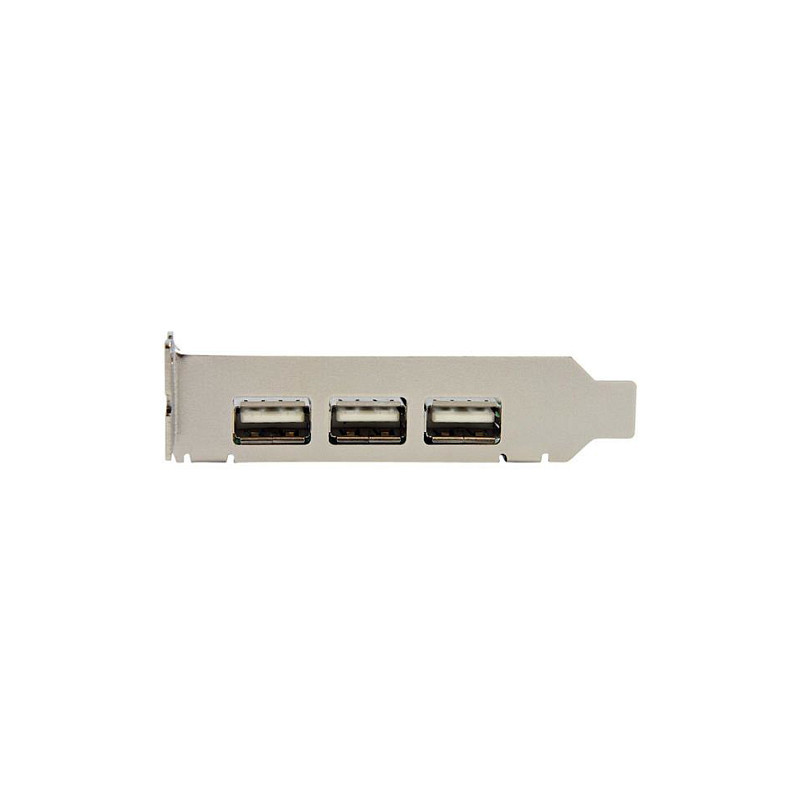

Feature: Mounting brackets included
Feature: Drivers included
Feature: Manual
Package width: 174 mm
Package depth: 144 mm
Package height: 32 mm
Package weight: 132 g

Logistics data

Harmonized System (HS) code: 84733020
