StarTech.com PEX8M2E2 interface cards / adapter

StarTech.com Dual M.2 PCIe SSD Adapter Card - x8 / x16 Dual NVMe or AHCI M.2 SSD to PCI Express 3.0 - M.2 NGFF PCIe (M-Key) Compatible - Supports 2242, 2260, 2280 - JBOD - Mac PC - TAA. Host interface: PCIe, Output interface: M.2, Expansion card standard: PCI 3.0. Product colour: Red, Mean time between failures (MTBF): 3336103 h, Certification: CE, FCC, TAA, REACH. Chipset: ASMedia - ASM2824, Data transfer rate (max): 8 Gbit/s. Supported storage drive heights: 22 mm. Width: 16 mm, Depth: 159 mm, Height: 69 mm
PCI Express 3.0 M.2 SSD Adapter Card | For PCIe NVMe and PCIe AHCI M.2 SSDs
Upgrade your system speed and performance with this Dual M.2 PCIe SSD Adapter. It lets you add two high performance, enterprise-class PCIe 3.0 M.2 SSDs (NVMe and AHCI) into the PCIe 8-lane or larger slot of your desktop workstation or server.
Boost System Performance
The expansion card lets you take full advantage of the fast performance and compact size of PCIe M.2 internal solid-state drives. With the M.2 PCIe based drives in place, the adapter increases your storage capacity and gives your computer a significant speed boost, enhancing data transfer rates.
Access two M.2 PCIe SSDs simultaneously

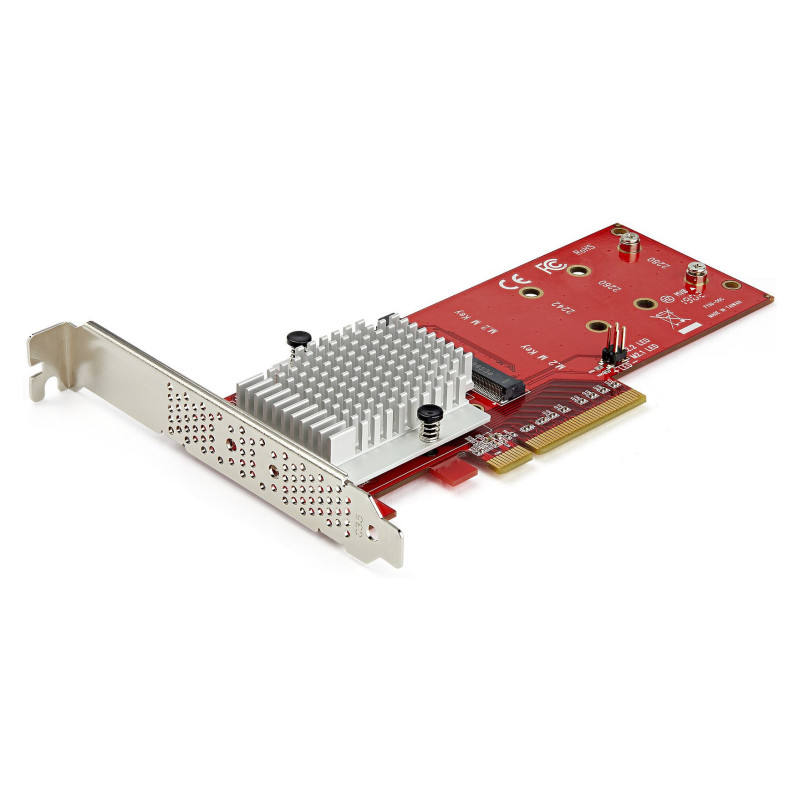

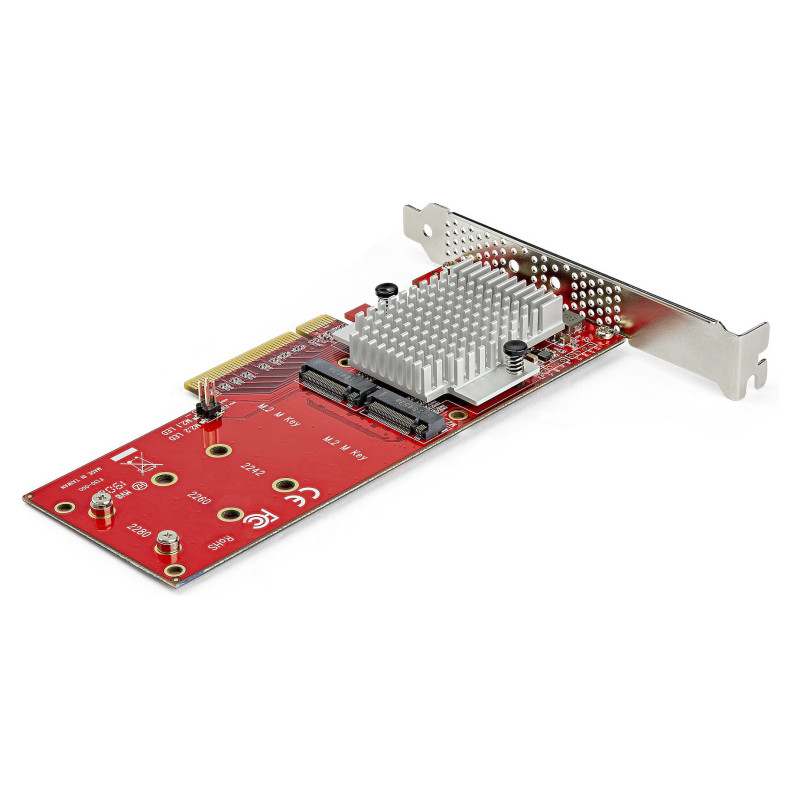

The dual M.2 to PCIe expansion card employs a high-speed ASM2824 switch, allowing you to access two drives at the same time. Since the adapter card does not rely on PCIe bifurcation, it can easily be integrated into all systems, new and legacy.
The M.2 PCI express adapter also gives you the flexibility to access your M.2 PCIe SSDs individually. Or, you can utilize software RAID to build a RAID array to add redundancy or enhance system performance.
Wide System Compatibility
The adapter connects directly to your computer motherboard to support two PCIe M.2 SSDs through a x8 PCIe expansion slot. The adapter is compatible with PCIe 3.0 motherboards and is backward compatible with PCIe 2.0 and PCIe 1.0.
Supports a Wide Range of PCIe M.2 SSDs

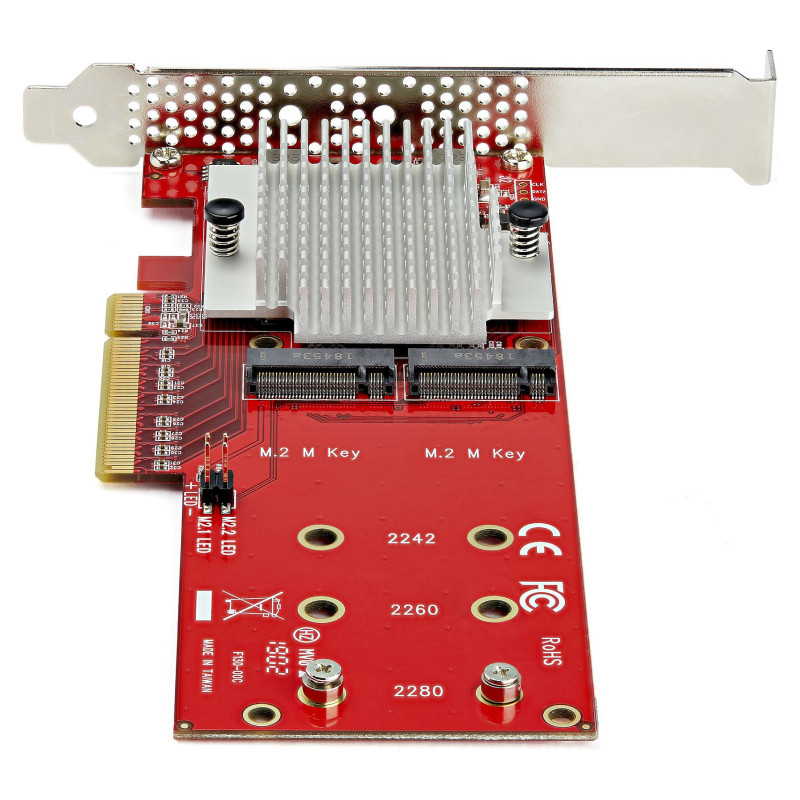

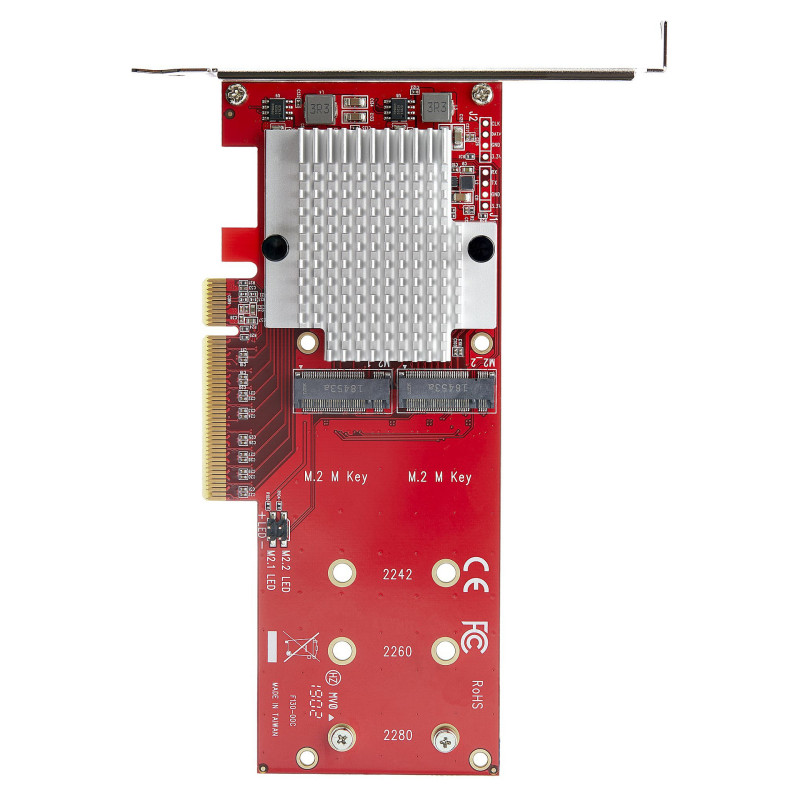

The PCIe M.2 NGFF (M Key) adapter supports PCIe 3.0 NVMe and PCIe-AHCI M.2 SSDs including 2242, 2260, and 2280 drives, supporting the most common drive sizes: 42, 60, and 80 mm lengths.
Easy to Install

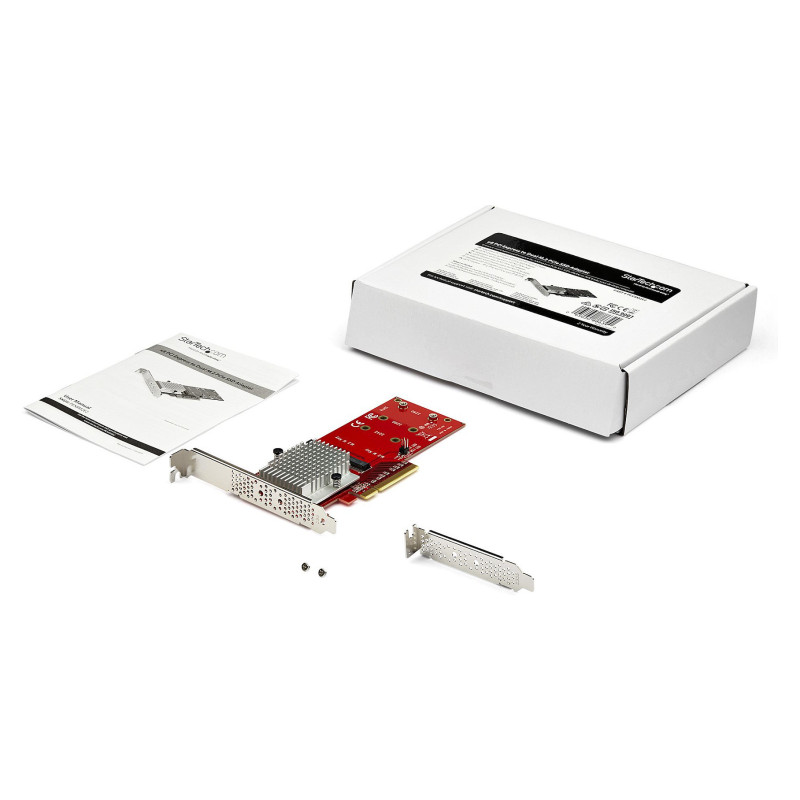

The expansion card comes with a full-profile bracket pre-installed, and includes a half-height / low-profile bracket, for installation in small form-factor computers.
Vented Brackets

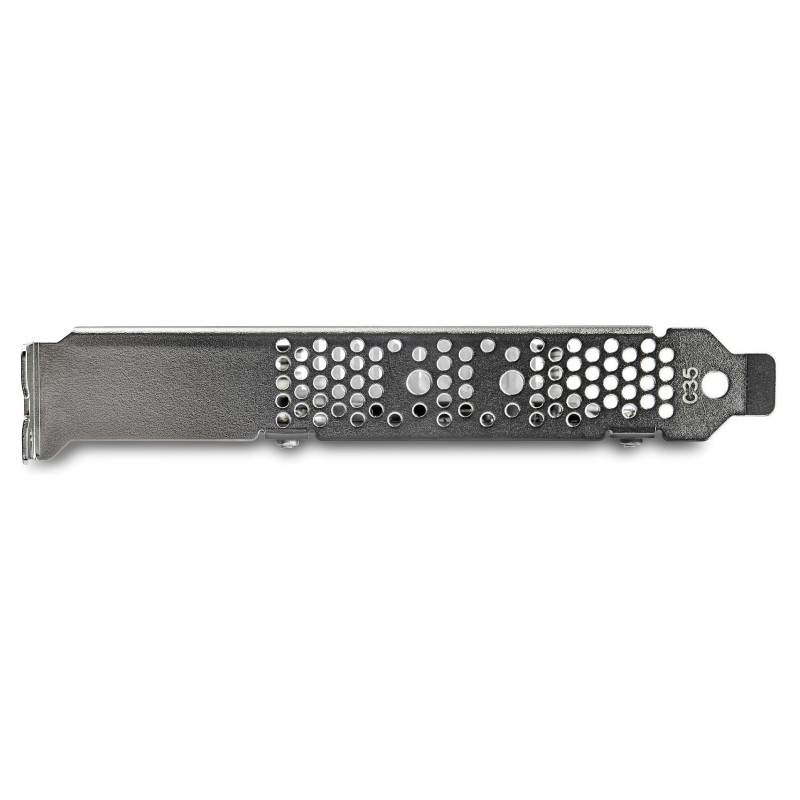

Vented brackets on the PCIe M.2 NGFF SSD adapter card increases air flow to assist in heat dissipation.
The TAA compliant PEX8M2E2 is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Ports interfaces

Host interface: PCIe
Output interface: M.2
Expansion card standard: PCI 3.0
Number of M.2 (M) slots: 2
SATA connector insertion cycles: 60

Design

Feature: Internal
Product colour: Red
Mean time between failures (MTBF): 3336103 h
Feature: Hot-swap
Certification: CE, FCC, TAA, REACH

Features

Chipset: ASMedia - ASM2824
Data transfer rate (max): 8 Gbit/s
Feature: Plug and Play

Operational conditions

Operating temperature (T-T): 0 - 70 °C
Storage temperature (T-T): -25 - 70 °C
Operating relative humidity (H-H): 15 - 90%

System requirements

Supported storage drive heights: 22 mm

Technical details

Compliance certificates: RoHS

Weight dimensions

Width: 16 mm
Depth: 159 mm
Height: 69 mm
Weight: 88 g

Packaging data

Quantity: 1
Feature: Mounting brackets included
Feature: Screws included
Feature: User guide
Package width: 158 mm
Package depth: 219 mm
Package height: 49 mm
Package weight: 157 g

Logistics data

Harmonized System (HS) code: 84733020
Products per master (outer) case: 40 pc(s)
Master (outer) case width: 342 mm
Master (outer) case length: 468 mm
Master (outer) case height: 498 mm
