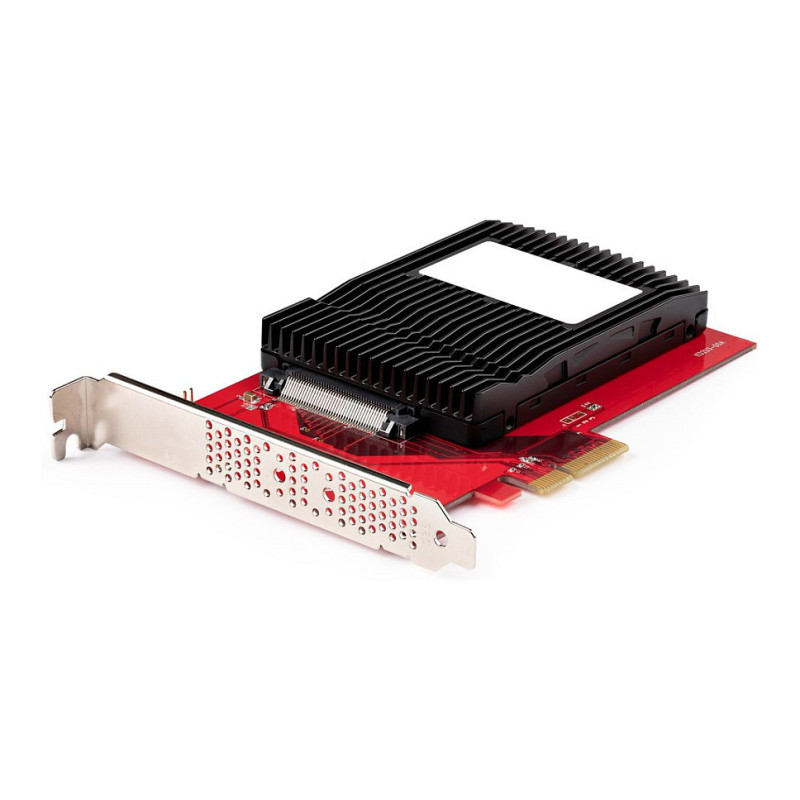

StarTech.com PEX4SFF8639U3 interface cards / adapter

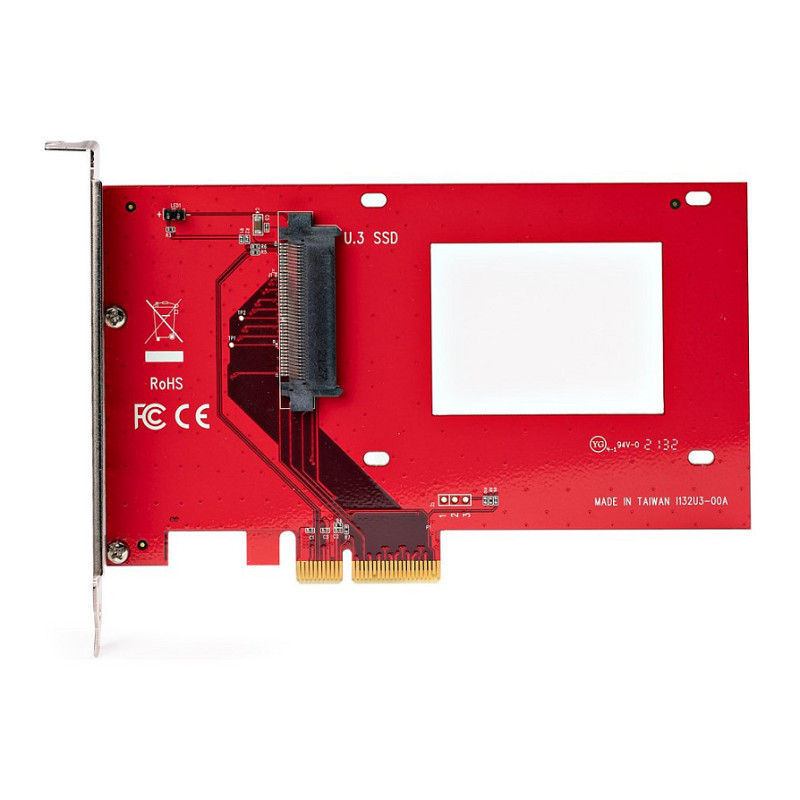

StarTech.com U.3 to PCIe Adapter Card, PCIe 4.0 x4 Adapter For 2.5" U.3 NVMe SSDs, SFF-TA-1001 PCI Express Add-in Card for Desktops/Servers, TAA Compliant - OS Independent. Host interface: PCIe, Output interface: U.3. Product colour: Red, LED indicators: Activity, Power, Mean time between failures (MTBF): 21693912 h. Supported storage drive heights: 5,7,9.5,12.5,15 mm. Width: 90 mm, Depth: 154 mm, Height: 1.5 mm. Package width: 220 mm, Package depth: 158 mm, Package height: 33 mm

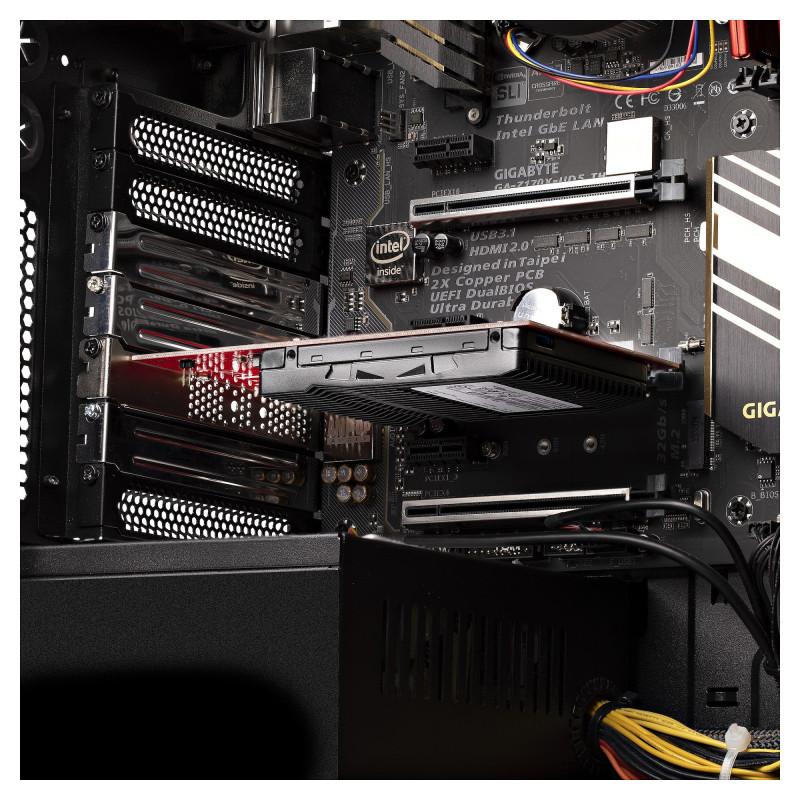

Mount a 2.5" U.3 NVMe SSD into a desktop computer or server, utilizing a PCIe x4 expansion slot

Add a 2.5 inch U.3 NVMe SSD into a PCIe 4.0 x4/x8/x16 slot in a desktop or server using the included screws, enabling ultra-fast data access.

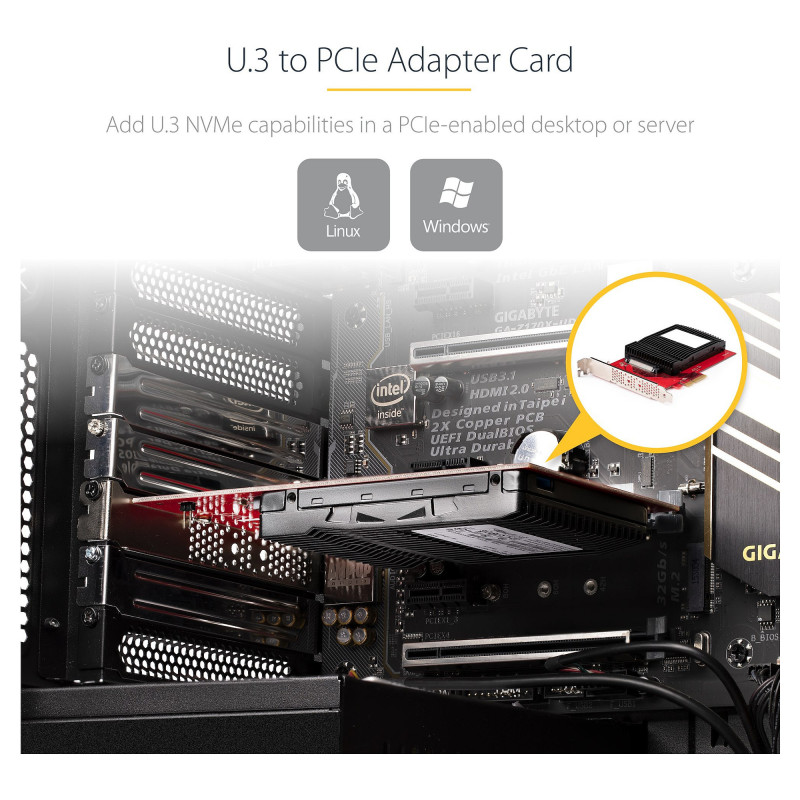

Add U.3 Capabilities to a Desktop or Server

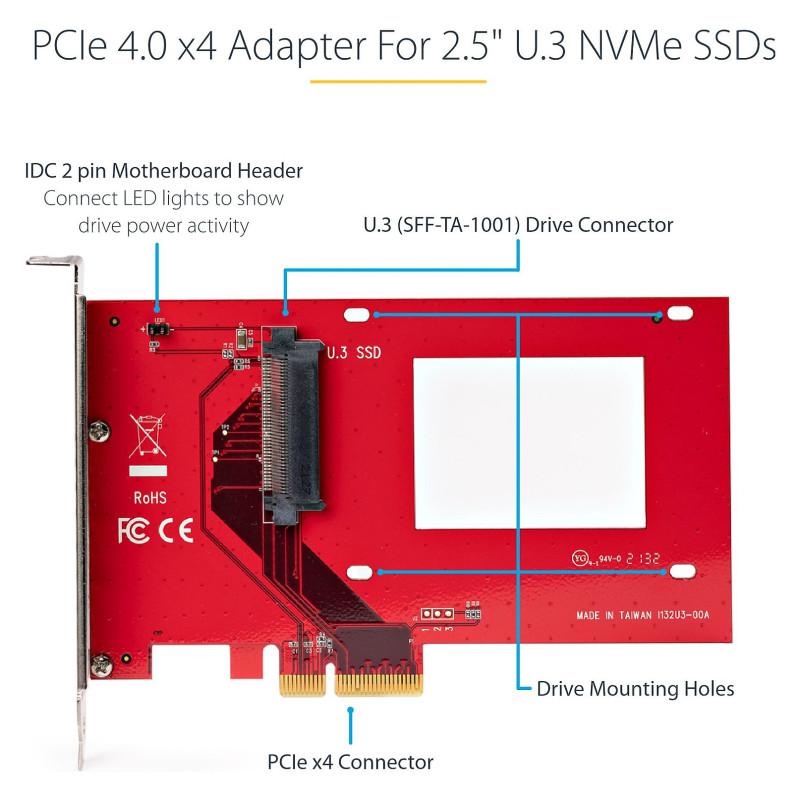

Install an SFF-TA-1001 SSD into a desktop or server using an available PCI Express 4.0 slot. The pre-installed full-profile bracket and included drive mounting screws enable the connection of a U.3 NVMe drive to a PCIe slot, avoiding the need for a drive backplane or additional cables. This adapter is not compatible with U.2 drives.

Universal Compatibility

The Adapter Card is backward compatible with motherboards that feature x4, x8, and/or x16 PCIe 3.0 slots. The U.3 Adapter requires no additional drivers or software and works with all workstation and server operating systems, such as Windows, Windows Server, and Linux.

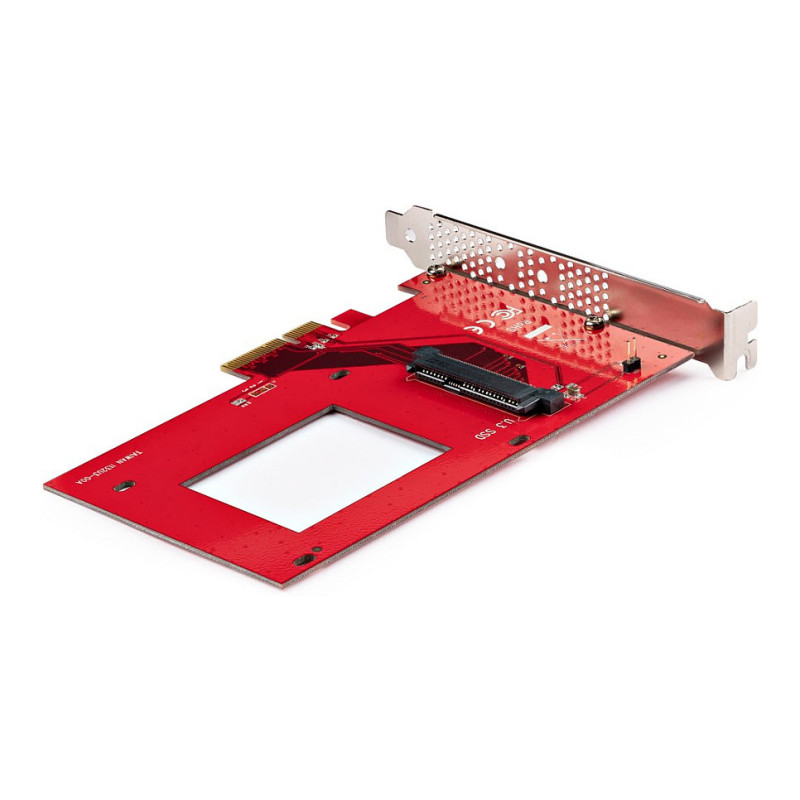

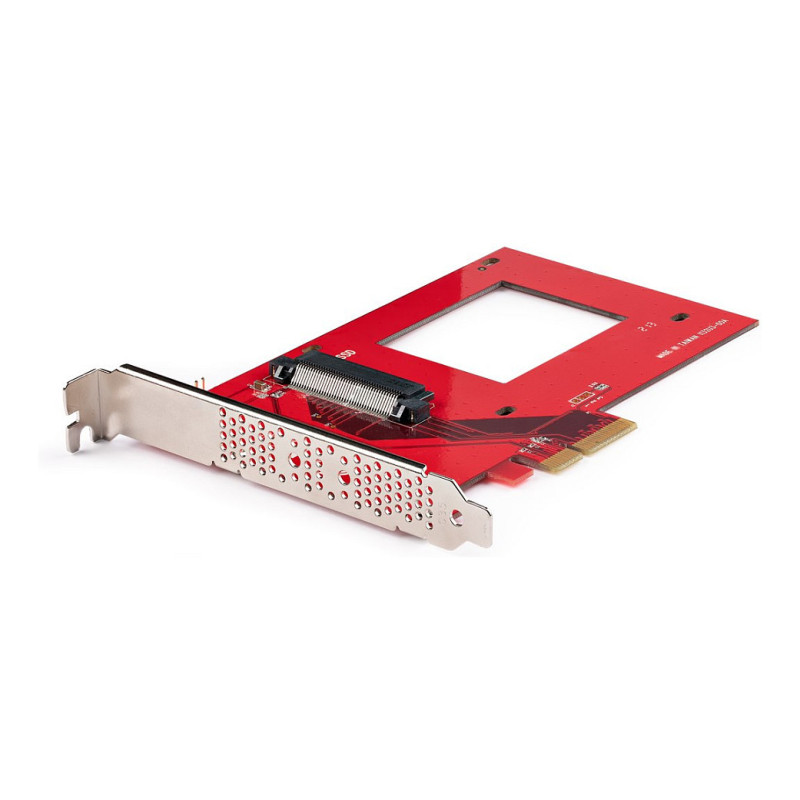

Optimal Airflow and Reliable Performance

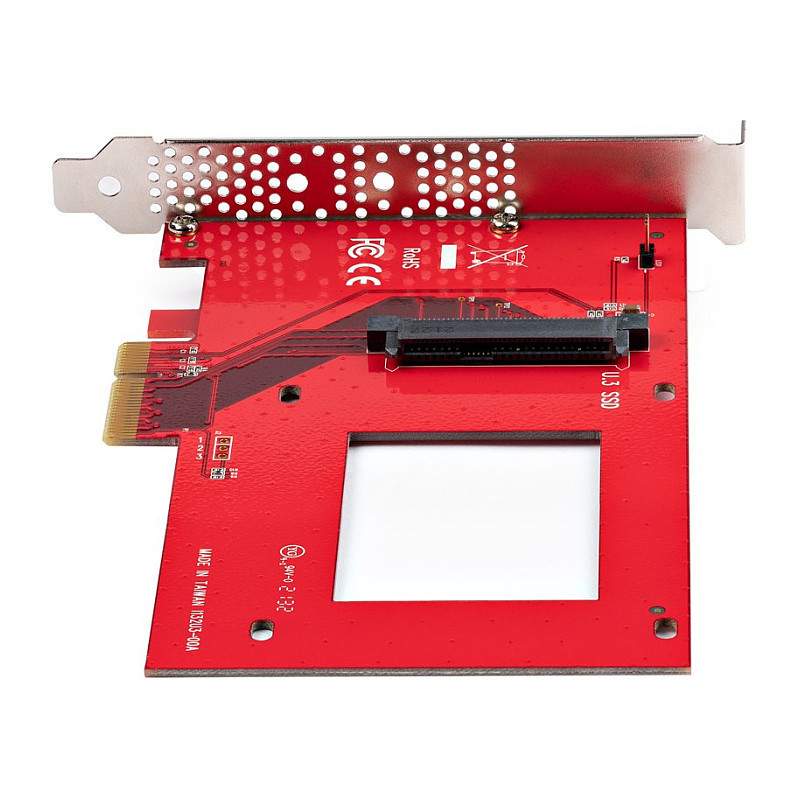

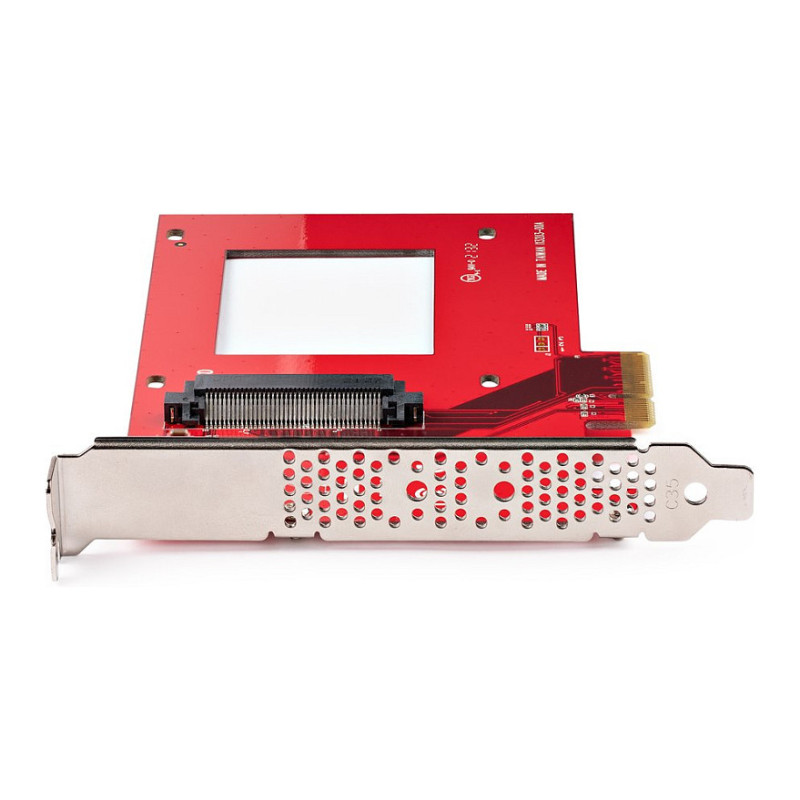

The vented full-profile bracket and a large cutout in the PCB allow for better airflow and heat dissipation, which helps maintain optimal and reliable performance while avoiding thermal throttling.

Ports & interfaces

Host interface: PCIe
Output interface: U.3

Design

Feature: Internal
Product colour: Red
LED indicators: Activity, Power
Mean time between failures (MTBF): 21693912 h

Features

Feature: Plug and Play

Operational conditions

Operating temperature (T-T): 0 - 60 °C
Storage temperature (T-T): -40 - 80 °C
Operating relative humidity (H-H): 20 - 80%

System requirements

Supported storage drive heights: 5,7,9.5,12.5,15 mm

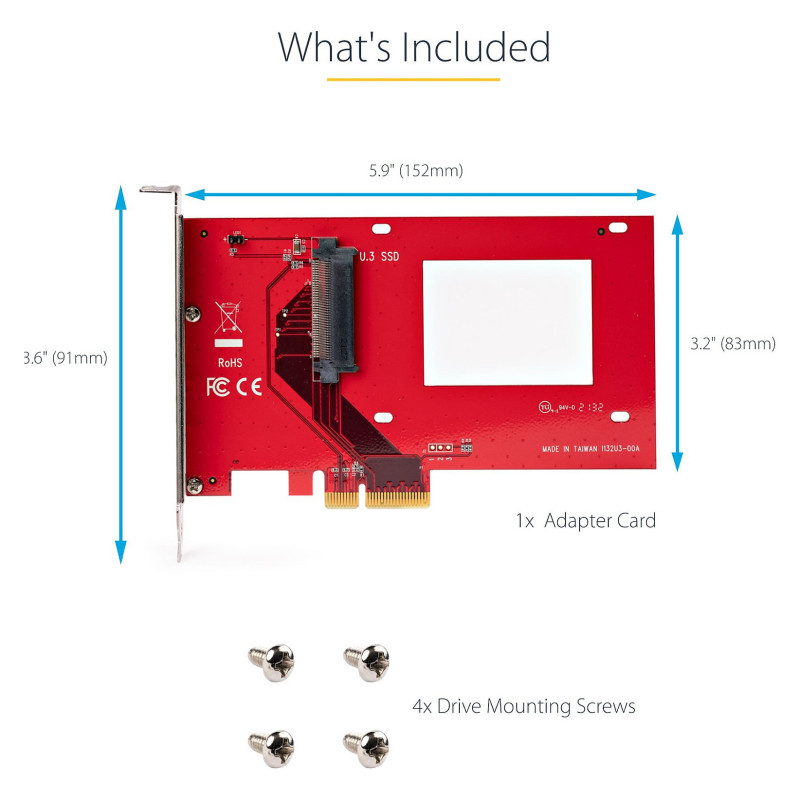

Weight & dimensions

Width: 90 mm
Depth: 154 mm
Height: 1.5 mm
Weight: 62 g

Packaging data

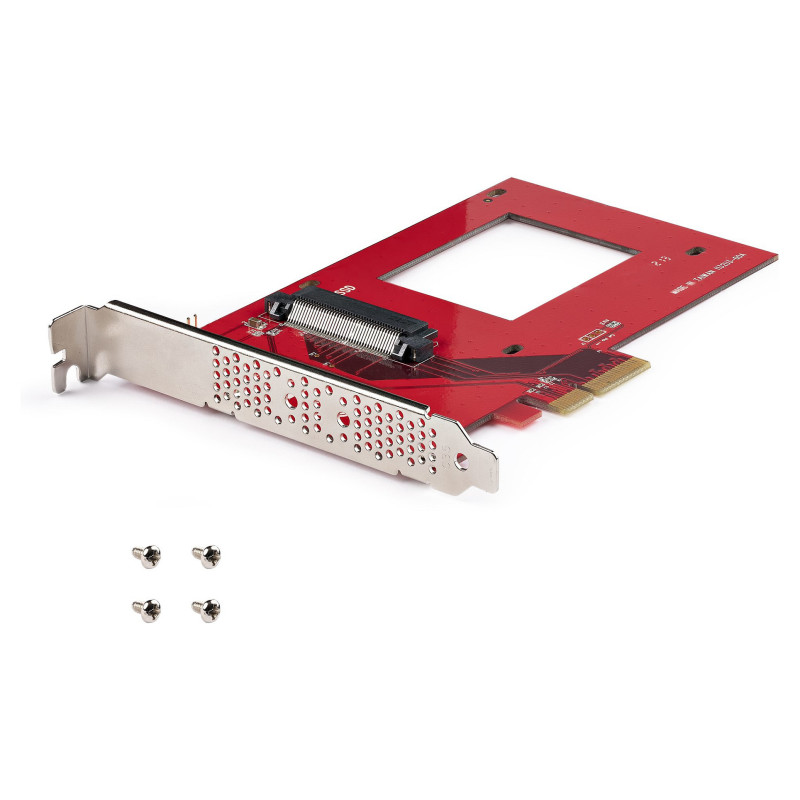

Feature: Screws included
Feature: Quick installation guide
Package width: 220 mm
Package depth: 158 mm
Package height: 33 mm
Package weight: 130 g

Logistics data

Products per master (outer) case: 60 pc(s)
Master (outer) case width: 455 mm
Master (outer) case length: 340 mm
Master (outer) case height: 495 mm
