StarTech.com PEX2S953LP interface cards / adapter

StarTech.com 2-port PCI Express RS232 Serial Adapter Card - PCIe RS232 Serial Host Controller Card - PCIe to Serial DB9 - 16950 UART - Low Profile Expansion Card - Windows & Linux - TAA. Host interface: Mini PCI Express, Output interface: Serial, Expansion card standard: PCIe 1.1. Mean time between failures (MTBF): 222366 h, Certification: CE, FCC. Chipset: Asix AX99100, Baud rate: 921.6 Kbit/s, FIFO (First In, First Out): 256 B. Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10..., Server operating systems supported: Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows.... Width: 67 mm, Depth: 98 mm, Height: 18 mm

PCI Express to Serial Adapter | 921.4Kbps | Windows® and Linux® Compatible

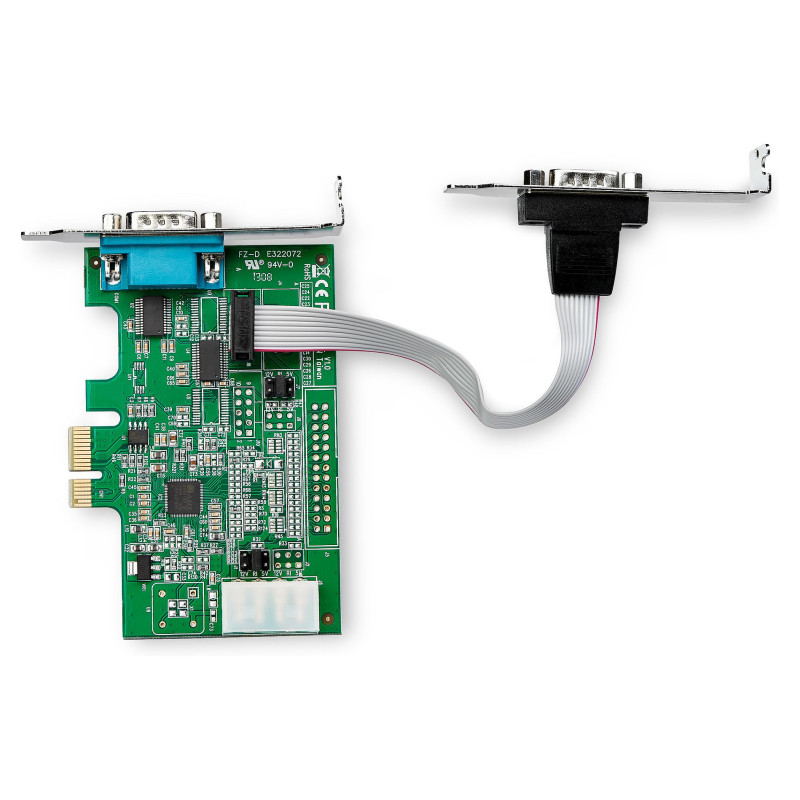

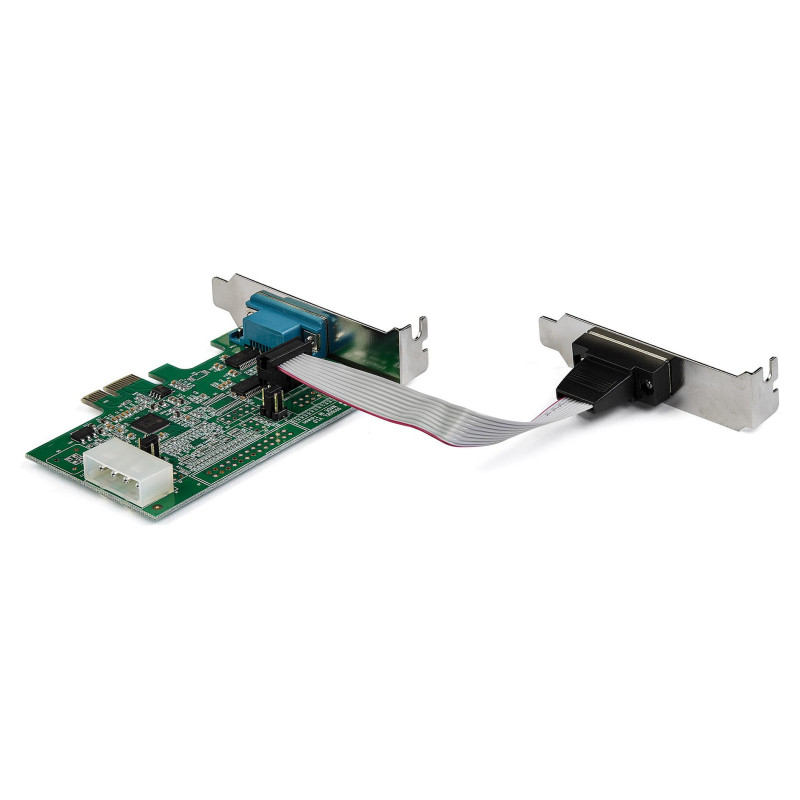

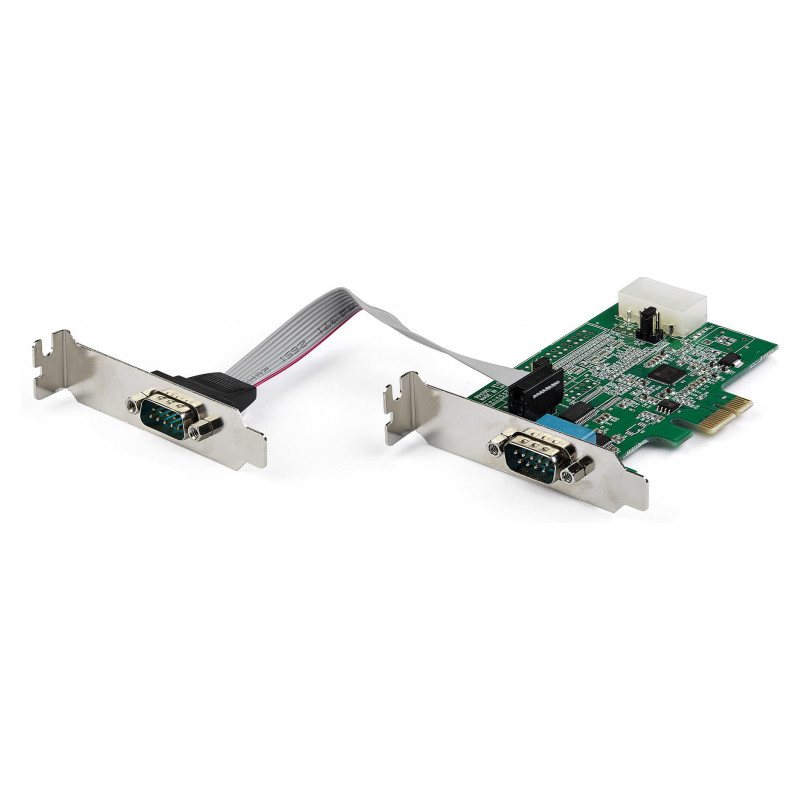

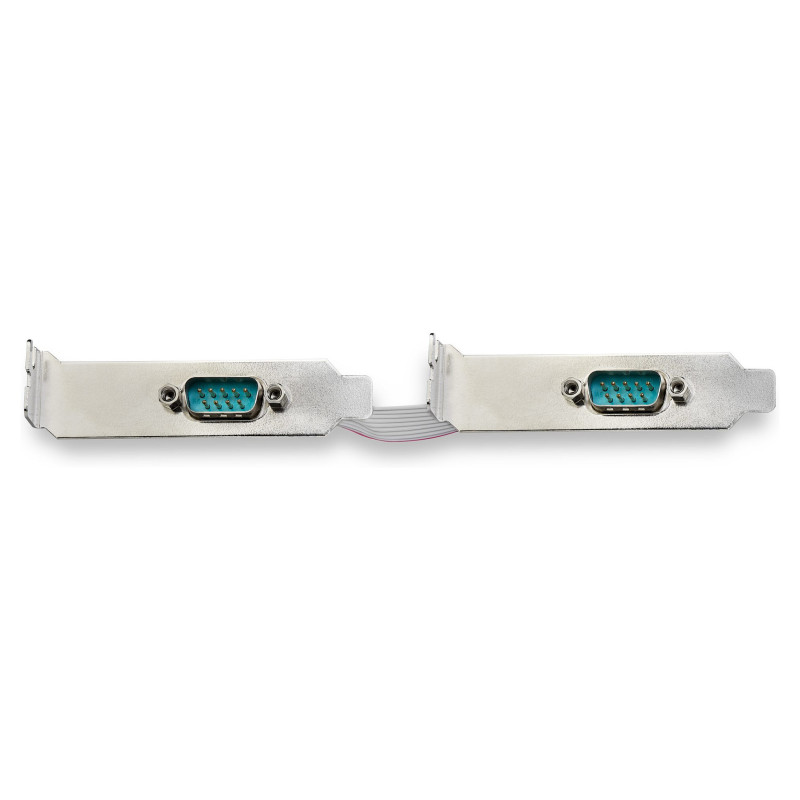

This RS232 Serial Adapter Card lets you add two RS232 (DB9) serial ports to your computer through a PCI Express (PCIe) slot. It enables you to interact with serial devices, such as card readers, printers, PIN pads, and modems, at speeds of up to 921.4Kbps.

Maximum Compatibility

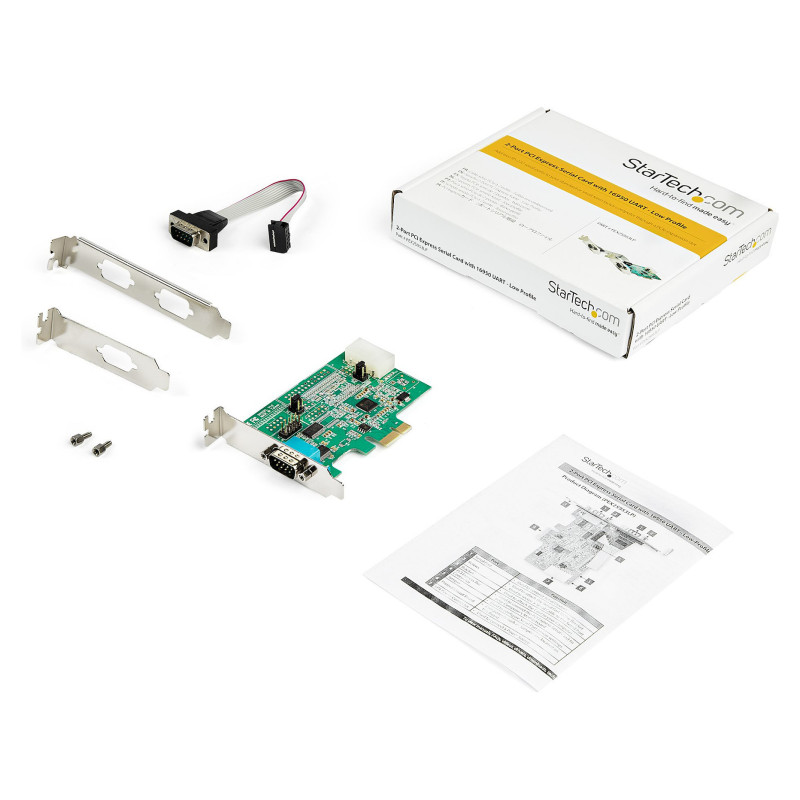

With broad OS support, including for Windows and Linux, this PCI Express card is easy to integrate into mixed environments. The card comes pre-configured with a low-profile bracket, and includes an optional full-profile bracket, so installation is easy regardless of the case form factor.

Experience Optimal Technology

This PCIe to serial adapter supports the following features:

• Compatible with industry standard 16950 UART
• Supports max baud rate of up-to 921.4Kbps
• Provides 5/12V power output on Pin 9 when external power is connected
• 256-byte depth FIFO per transmitter and receiver
• Supports 9, 8, 7, 6, 5 data bits
• Asix AX99100 chipset
• PCI Express 1.1 compliant

PEX2S953LP is backed by a StarTech.com lifetime warranty and free lifetime technical support.

Ports & interfaces

Host interface: Mini PCI Express
Output interface: Serial
Expansion card standard: PCIe 1.1
Serial ports quantity: 2
Serial interface type: RS-232

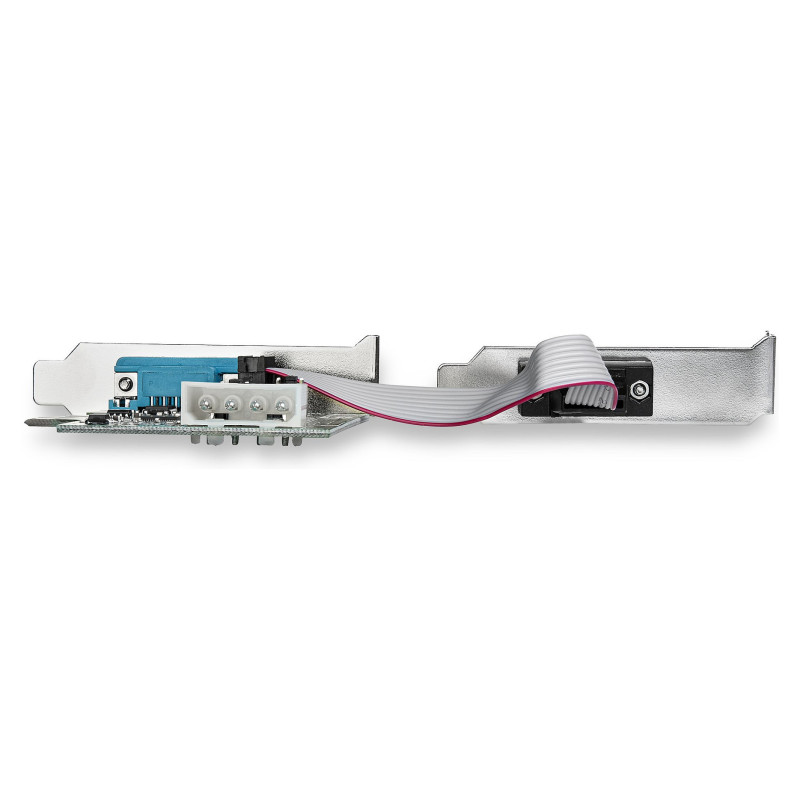

Peripheral (Molex) power connectors (4-pin): 1

Design

Feature: Internal
Mean time between failures (MTBF): 222366 h
Certification: CE, FCC

Features

Chipset: Asix AX99100
Baud rate: 921.6 Kbit/s
FIFO (First In, First Out): 256 B
Data bits: 5, 6, 7, 8, 9
Stop bits: 1, 1.5, 2
Parity bit: Even, Mark, No, Odd, Space
Flow Control type: No, RTS/CTS, XON/XOFF

Operational conditions

Operating temperature (T-T): -10 - 80 °C
Storage temperature (T-T): -20 - 100 °C
Operating relative humidity (H-H): 5 - 85%

System requirements

Linux operating systems supported: Yes
Server operating systems supported: Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016

Technical details

Compliance certificates: RoHS

Weight & dimensions

Width: 67 mm
Depth: 98 mm
Height: 18 mm
Weight: 55.6 g

Packaging data

Quantity: 1
Feature: Mounting brackets included
Feature: Manual
Package width: 144 mm
Package depth: 175 mm
Package height: 33 mm
Package weight: 146.4 g

Logistics data

Harmonized System (HS) code: 84733020
Products per master (outer) case: 75 pc(s)
Master (outer) case width: 693 mm
Master (outer) case length: 360 mm
Master (outer) case height: 338 mm
