StarTech.com PEX2S953 interface cards / adapter

StarTech.com 2-port PCI Express RS232 Serial Adapter Card - PCIe RS232 Serial Host Controller Card - PCIe to Dual Serial DB9 Card - 16950 UART - Expansion Card - Windows & Linux - TAA. Host interface: PCIe, Output interface: Serial, Expansion card standard: PCIe 1.1. Product colour: Green, Mean time between failures (MTBF): 222366 h. Chipset: Asix AX99100, Baud rate: 921.6 Kbit/s, FIFO (First In, First Out): 256 B. Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10..., Server operating systems supported: Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows.... Width: 63 mm, Depth: 75 mm, Height: 15 mm

PCI Express to Serial Adapter | 921.6Kbps | Windows® and Linux® Compatible

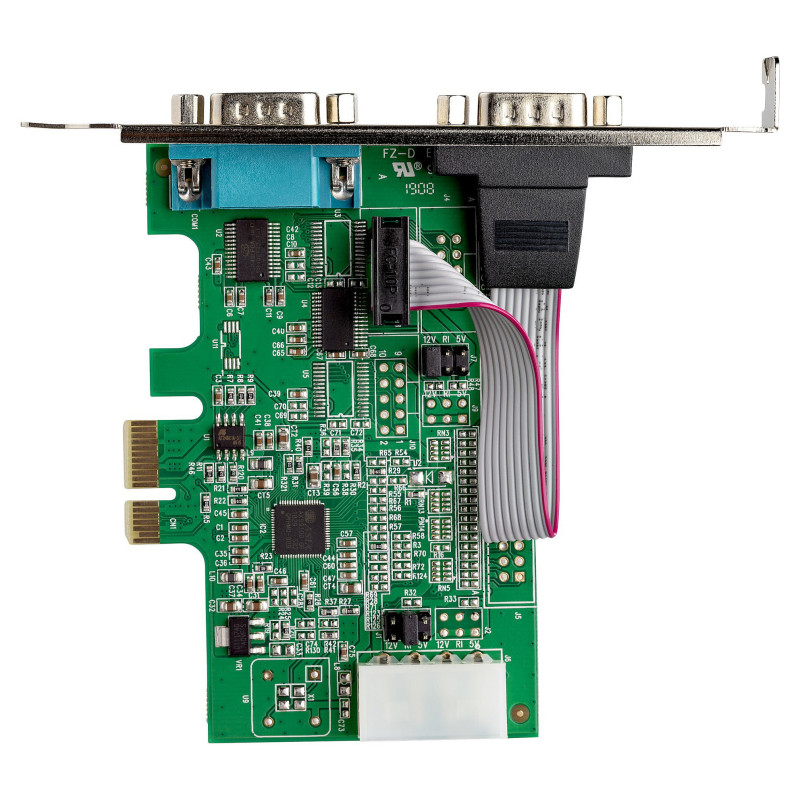

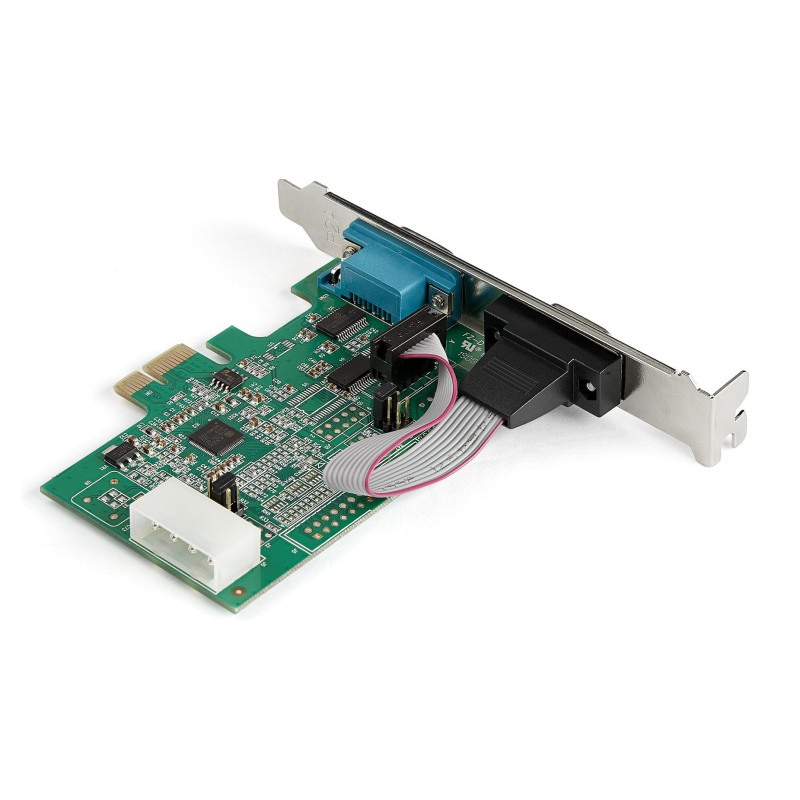

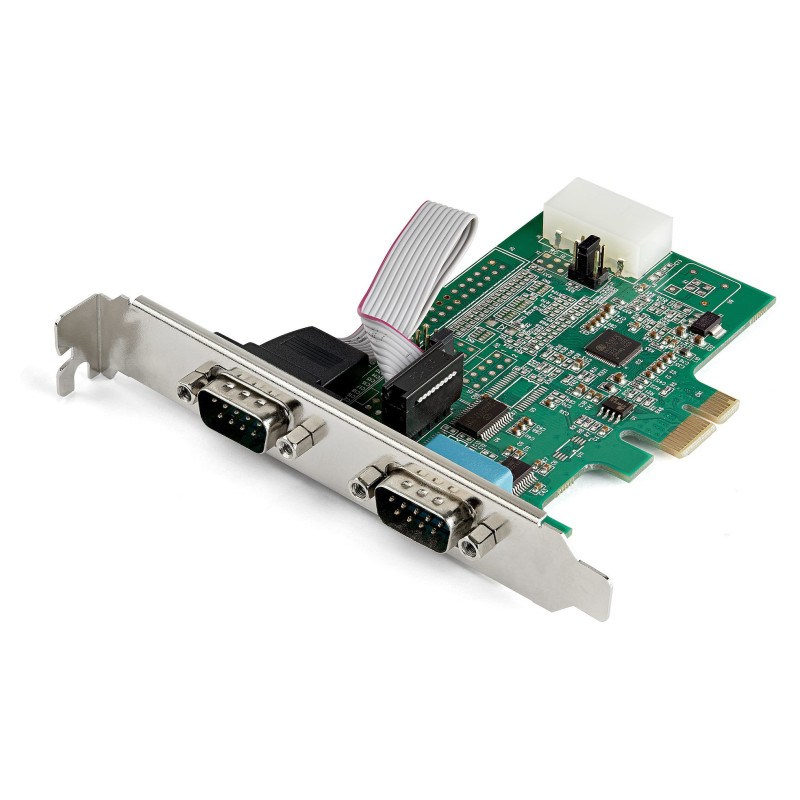

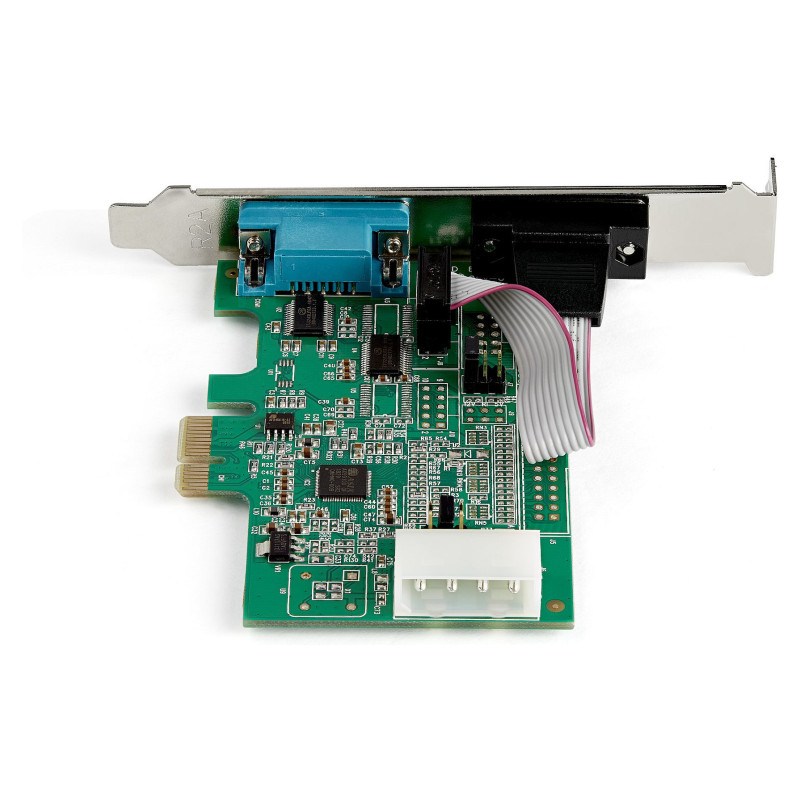

This multiport PCI Express RS232 serial adapter card lets you add two RS232 (DB9) serial ports to your computer through a PCI Express (PCIe) slot, as if they were native serial ports. The dual port PCIe serial card enables you to interact with serial devices, such as card readers, printers, PIN pads, and modems, at speeds of up to 921.6Kbps.

Maximum Compatibility

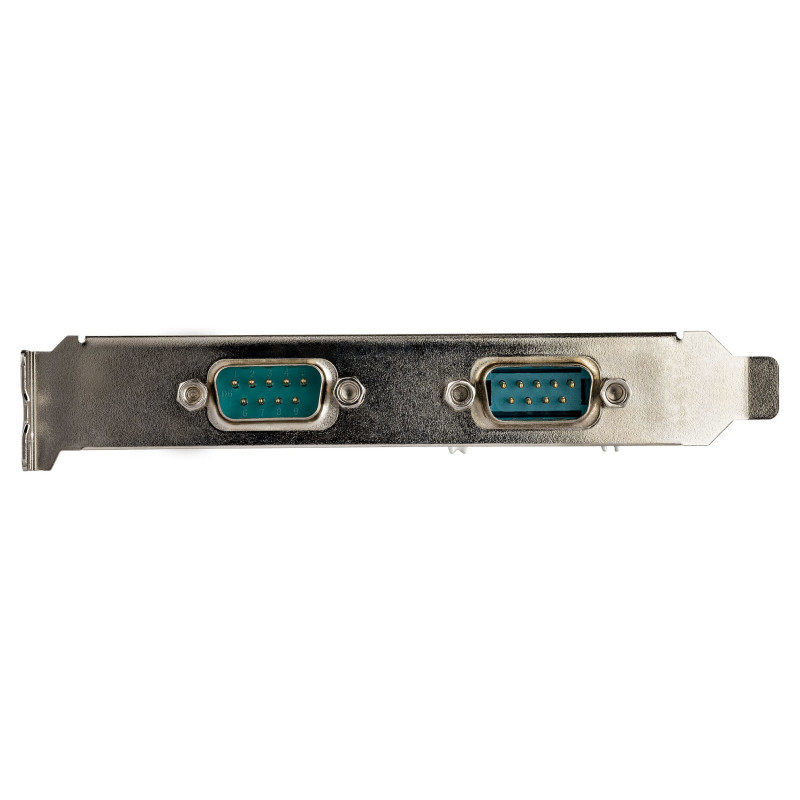

With broad OS support, including for Windows and Linux, this 2 port PCI E serial card is easy to integrate into mixed environments. The card comes pre-configured with a full-profile bracket, and includes optional low-profile brackets, so installation is easy regardless of the case form factor. This card is a direct replacement for PEX2S952 .

Experience Optimal Technology

This PCIe to serial adapter supports the following features:

• Industry standard 16950 UART compatible
• Supports max baud rate of up-to 921.6Kbps
• Provides 5/12V power output on Pin 9 when external power is connected
• 256-byte depth FIFO cache per transmitter and receiver
• Supports 9, 8, 7, 6, 5 data bits (one per port)
• Asix AX99100 chipset
• Base PCI Express 1.1 compliant

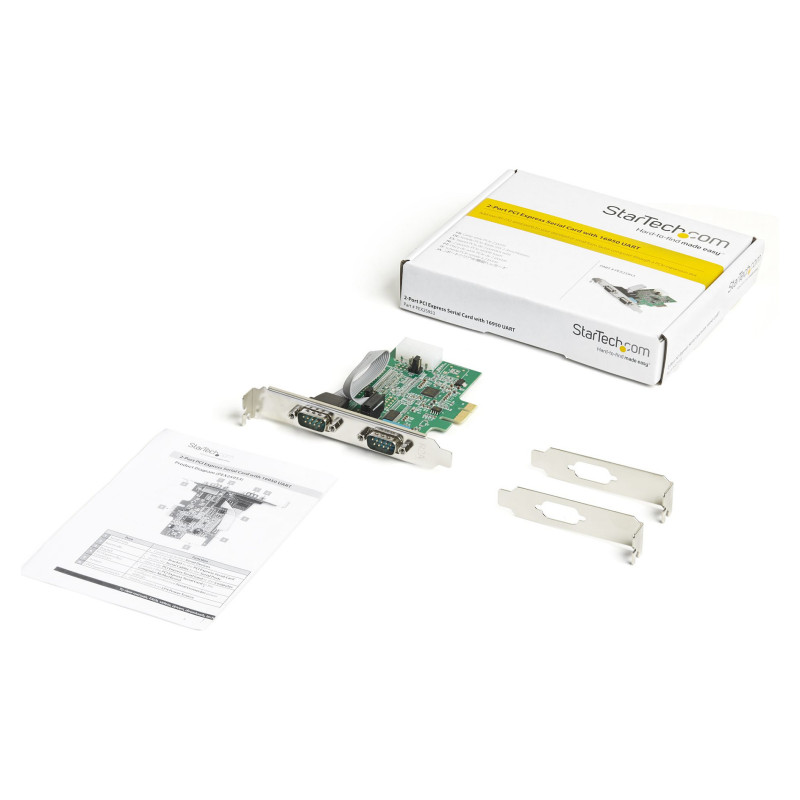

• Low and full-profile brackets included

The Choice of IT Pros Since 1985

StarTech.com conducts thorough compatibility and performance testing on all our products to ensure we are meeting or exceeding industry standards and providing high-quality products to IT Professionals. Our local StarTech.com Technical Advisors have broad product expertise and work directly with our StarTech.com Engineers to provide support for our customers both pre and post-sales.

PEX2S953 is backed by a StarTech.com lifetime warranty and free lifetime technical support.

Ports & interfaces

Host interface: PCIe
Output interface: Serial
Expansion card standard: PCIe 1.1
Serial ports quantity: 2
Serial interface type: RS-232

Design

Feature: Internal
Product colour: Green
Mean time between failures (MTBF): 222366 h

Features

Chipset: Asix AX99100
Baud rate: 921.6 Kbit/s
FIFO (First In, First Out): 256 B
Data bits: 5, 6, 7, 8, 9
Stop bits: 1, 1.5, 2
Parity bit: Even, Mark, No, Odd, Space
Flow Control type: No, RTS/CTS, XON/XOFF

Operational conditions

Operating temperature (T-T): -10 - 80 °C
Storage temperature (T-T): -20 - 100 °C
Operating relative humidity (H-H): 5 - 85%

System requirements

Linux operating systems supported: Yes
Server operating systems supported: Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016

Technical details

Feature: Sustainability compliance
Compliance certificates: CE, RoHS

Weight & dimensions

Width: 63 mm
Depth: 75 mm
Height: 15 mm
Weight: 56 g

Packaging data

Quantity: 1
Feature: Quick installation guide
Package width: 144 mm
Package depth: 170 mm
Package height: 30 mm
Package weight: 136 g

Logistics data

Harmonized System (HS) code: 84733020
Products per master (outer) case: 75 pc(s)
Master (outer) case width: 359 mm
Master (outer) case length: 690 mm
Master (outer) case height: 310 mm
