StarTech.com PEX2S1050 interface cards / adapter

StarTech.com 2-Port PCI Express Serial Card with 16C1050 UART - RS232 - TAA. Host interface: PCIe, Output interface: Serial, Expansion card form factor: Full-height / Low-profile. Certification: CE, FCC, Microsoft WHQL. Chipset: SystemBase - SB16C1052PCI, Baud rate: 460.8 Kbit/s, FIFO (First In, First Out): 256 B. Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10..., Server operating systems supported: Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows.... Width: 120 mm, Depth: 103 mm, Height: 20 mm

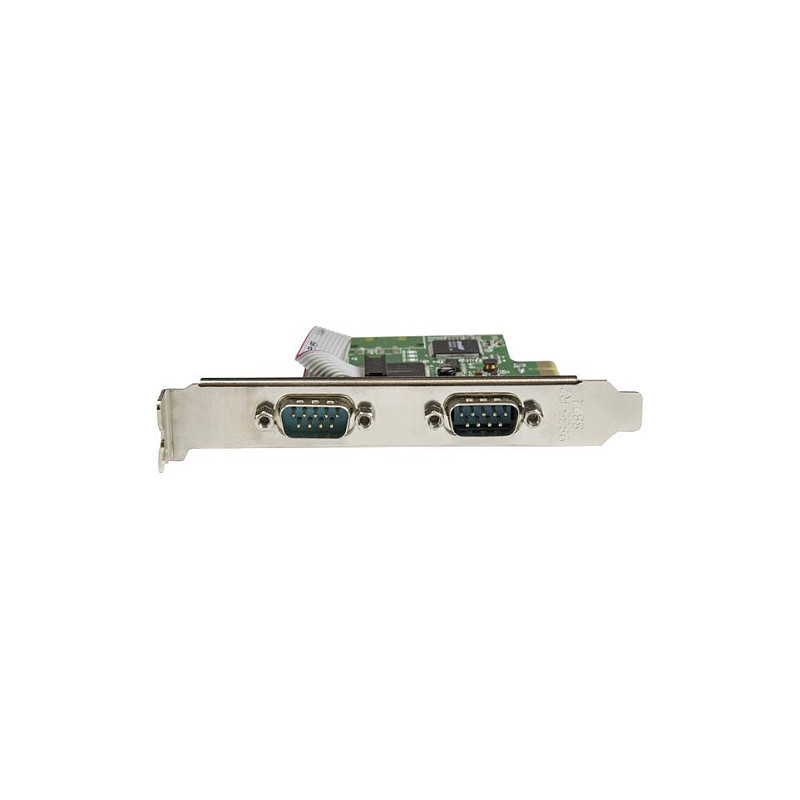

Add two high performance RS232 serial ports (DB9) to your low or full-profile computer, through a PCI Express slot

This PCI Express serial card adds two high-performance RS232 serial ports to your desktop computer or server, for connecting your serial-based devices and equipment.

Convenient system upgrades through PCIe

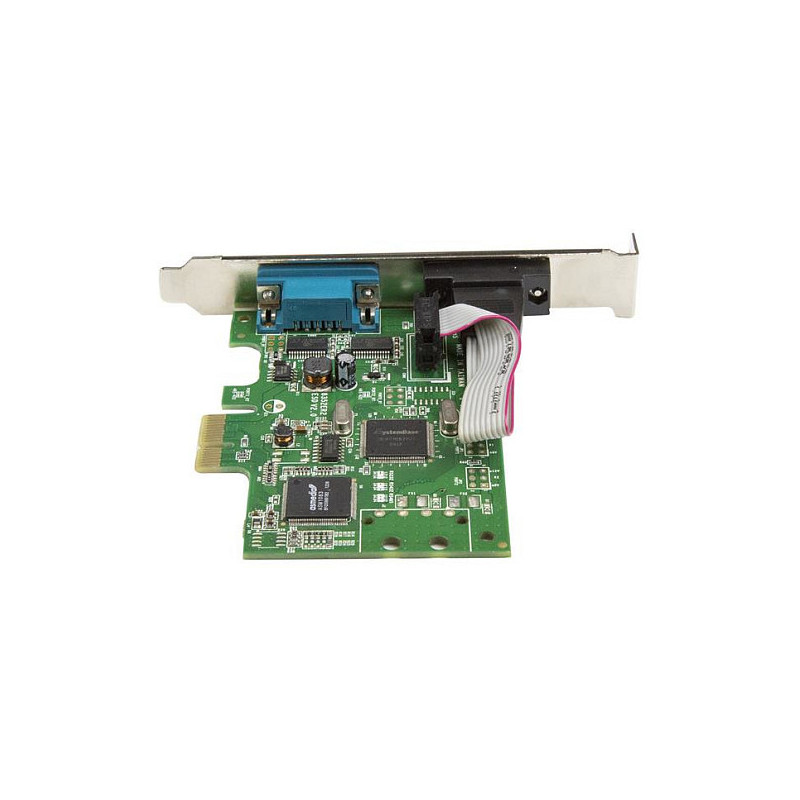

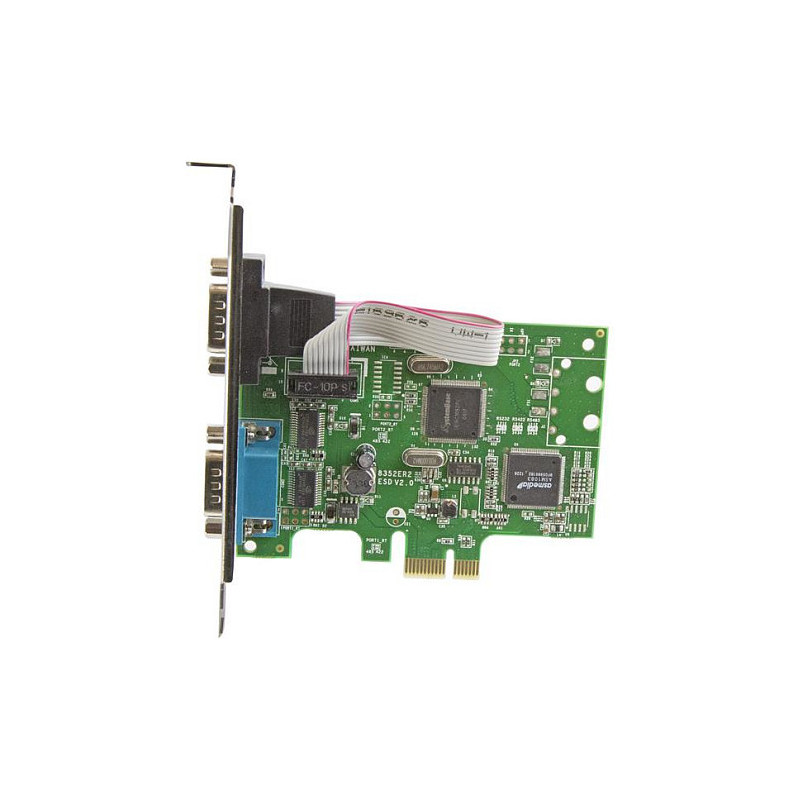

The PCIe serial card can be installed into an available PCI Express slot, to provide two high-performance 16C1050 RS232 serial UART channels/ports. It offers a convenient solution for connecting modern or legacy equipment to newer computer systems that don't have RS232 ports. The serial card is compliant with PCI Express 1.0a specification, and it's compatible with 1x, 2x, 4x, 8x and 16x PCI Express slots.

The 2-port PCIe serial card is ideal for system upgrades in a wide range of applications including manufacturing equipment, POS equipment, security devices such as surveillance cameras, card readers or access panels, and environment or building control systems.

High-performance serial communication

The PCIe serial card delivers high-performance serial communication, with support for data transfer rates of up to 460Kbps. The serial card provides CPU load decrease which helps ensure optimal system performance and prevent errors such as overruns by preserving resources. In addition, the dual-channel UART ensures smooth performance, even while both ports are in use.

Easy installation

The serial card is easy to install and configure, with support for a broad range of Windows® operating systems. Plus, the card features IRQ sharing and supports plug-and-play serial device connections, guaranteeing convenient, hassle-free installation. It comes with a standard-profile bracket installed, and also includes an optional low-profile bracket.

The PEX2S1050 is backed by a 2-year lifetime warranty and free lifetime technical support.

Ports & interfaces

Host interface: PCIe
Output interface: Serial
Expansion card form factor: Full-height / Low-profile
Serial ports quantity: 2
Serial interface type: RS-232

Design

Feature: Internal
Certification: CE, FCC, Microsoft WHQL

Features

Chipset: SystemBase - SB16C1052PCI
Baud rate: 460.8 Kbit/s
FIFO (First In, First Out): 256 B
Data bits: 5, 6, 7, 8
Feature: Full duplex
Feature: Flow control support

Operational conditions

Operating temperature (T-T): -10 - 80 °C
Storage temperature (T-T): -20 - 100 °C
Operating relative humidity (H-H): 5 - 85%

System requirements

Server operating systems supported: Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019

Technical details

Compliance certificates: RoHS

Weight & dimensions

Width: 120 mm
Depth: 103 mm
Height: 20 mm
Weight: 61 g

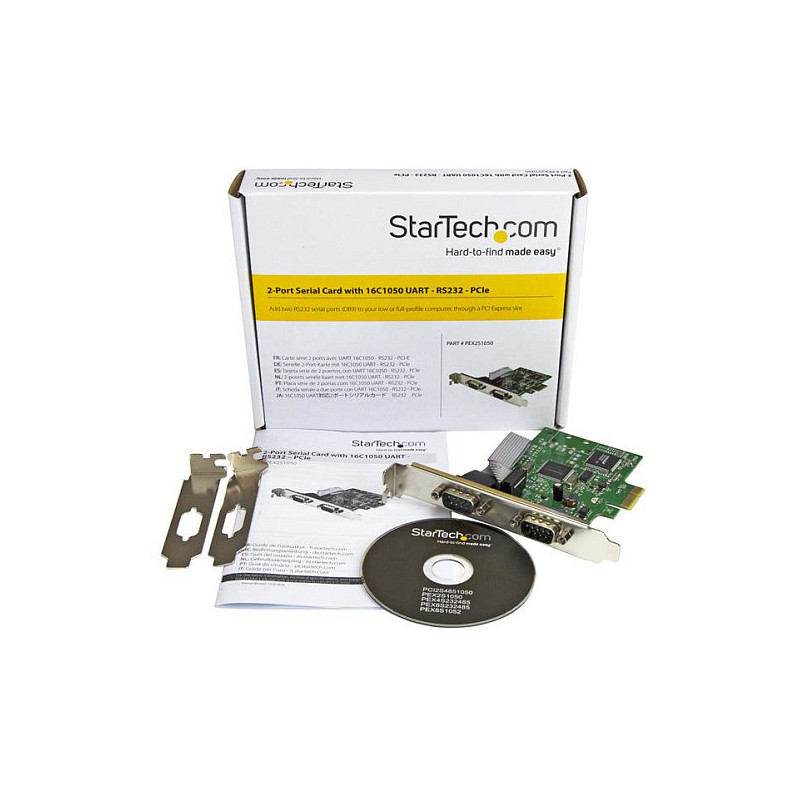

Packaging data

Feature: Mounting brackets included
Feature: Drivers included
Feature: Quick installation guide
Package width: 142 mm
Package depth: 170 mm
Package height: 30 mm
Package weight: 149 g

Logistics data

Harmonized System (HS) code: 84733020
Products per master (outer) case: 75 pc(s)
Master (outer) case width: 356 mm
Master (outer) case length: 682 mm
Master (outer) case height: 320 mm
