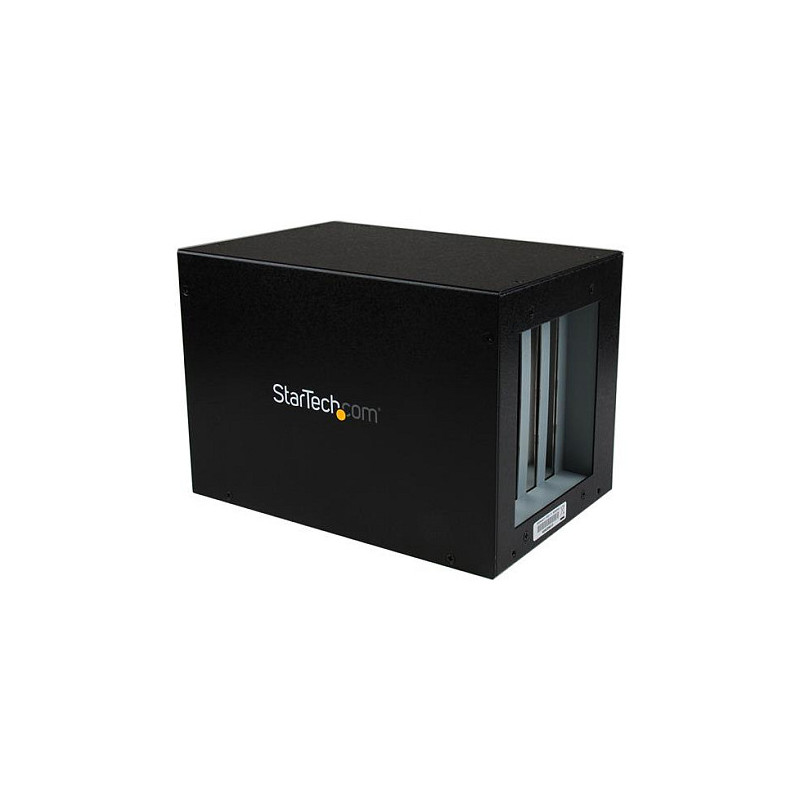

StarTech.com PEX2PCI4 interface cards / adapter

StarTech.com PCI Express to 4 Slot PCI Expansion System - TAA. Product colour: Black, Certification: CE, FCC, RoHS. Output voltage: 12 V, Output current: 3 A. Width: 137 mm, Depth: 204 mm, Height: 142 mm. Cables included: AC, DVI, Package width: 200 mm, Package depth: 250 mm. Products per master (outer) case: 4 pc(s), Master (outer) case width: 430 mm, Master (outer) case length: 520 mm

Add four external PCI expansion card slots to a desktop computer

StarTech.com's innovative PCI Express to PCI Expansion Chassis provides a quick and simple solution to I/O expandability on almost any PCI Express (PCIe) enabled system. Adding external PCI slots to a server/workstation or laptop, this cost-effective and time-saving method of simply adding additional PCI cards to a server/workstation or providing a platform to be able to swap PCI add-in cards between a mobile and desktop setup is the optimal method of maximizing the I/O capabilities of new or existing systems.

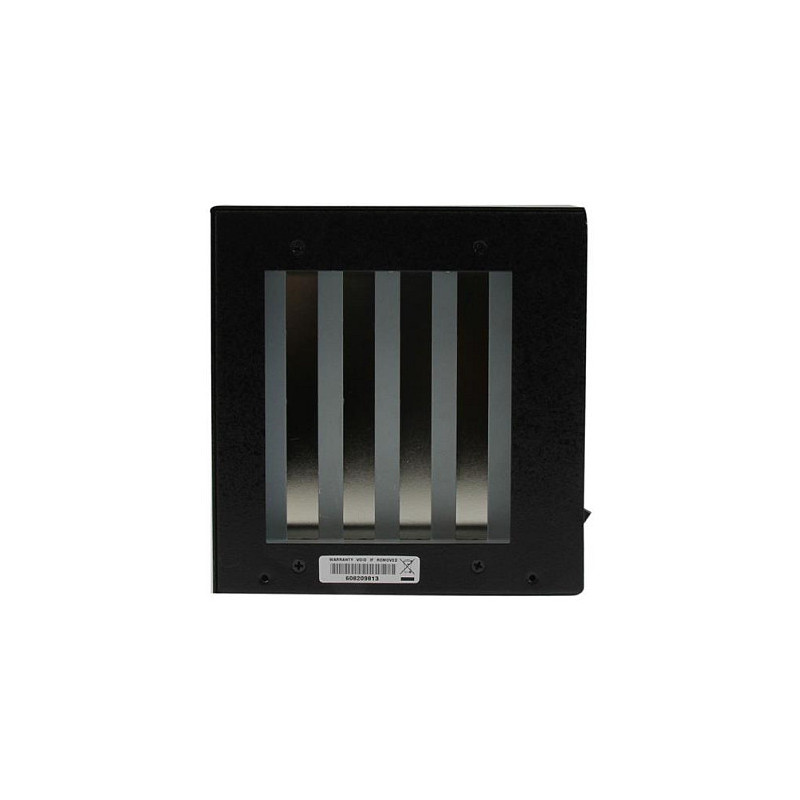

The external expansion chassis adds four PCI slots (32-bit/33MHz) to the host computer system, through a single PCI Express connection. Providing total bandwidth of up to 250MBps from the x1 PCIe host controller card, which allows the host computer to function as though the cards in the expansion chassis were connected directly to the motherboard. The PCIe controller card connects directly to the PCI Expansion box with an included DVI cable for a reliable, high quality connection.

A dependable I/O expansion solution, the Expansion Chassis is backed by StarTech.com's 2-year warranty and free lifetime technical support.

Design

Product colour: Black
Certification: CE, FCC, RoHS

Features

Feature: Plug and Play

Power

Output voltage: 12 V
Output current: 3 A

Operational conditions

Operating temperature (T-T): 0 - 55 °C
Storage temperature (T-T): -40 - 75 °C

Weight & dimensions

Width: 137 mm
Depth: 204 mm
Height: 142 mm
Weight: 2.4 kg

Packaging data

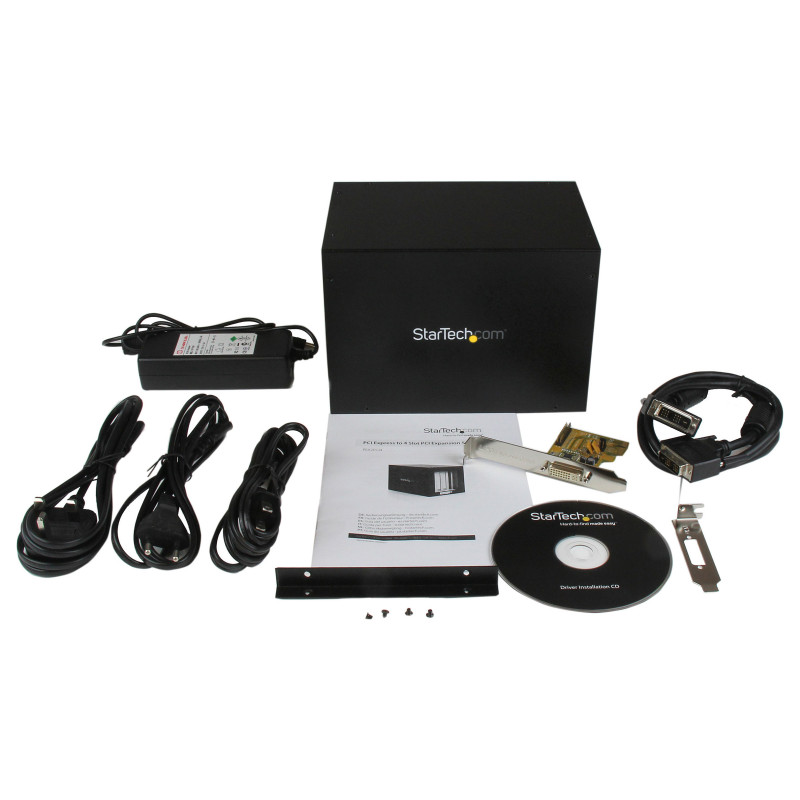

Cables included: AC, DVI
Feature: Manual
Package width: 200 mm
Package depth: 250 mm
Package height: 240 mm
Package weight: 2.4 kg

Logistics data

Harmonized System (HS) code: 84719000
Products per master (outer) case: 4 pc(s)
Master (outer) case width: 430 mm
Master (outer) case length: 520 mm
Master (outer) case height: 270 mm

Other features

Ports quantity: 4
