StarTech.com PEX1394B3 interface cards / adapter

StarTech.com 3 Port 2b 1a 1394 PCI Express FireWire Card Adapter. Host interface: PCIe, Output interface: Firewire 800 / 400, Expansion card standard: PCIe 1.1. Product colour: Green, Mean time between failures (MTBF): 149905 h. Chipset: Texas Instruments - XIO2213B, Data transfer rate (max): 0.8 Gbit/s. Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10..., Mac operating systems supported: Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High..., Server operating systems supported: Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2016, Windows.... Width: 18 mm, Depth: 85 mm, Height: 120 mm

Add 2 native FireWire 800 ports to your computer through a PCI Express expansion slot

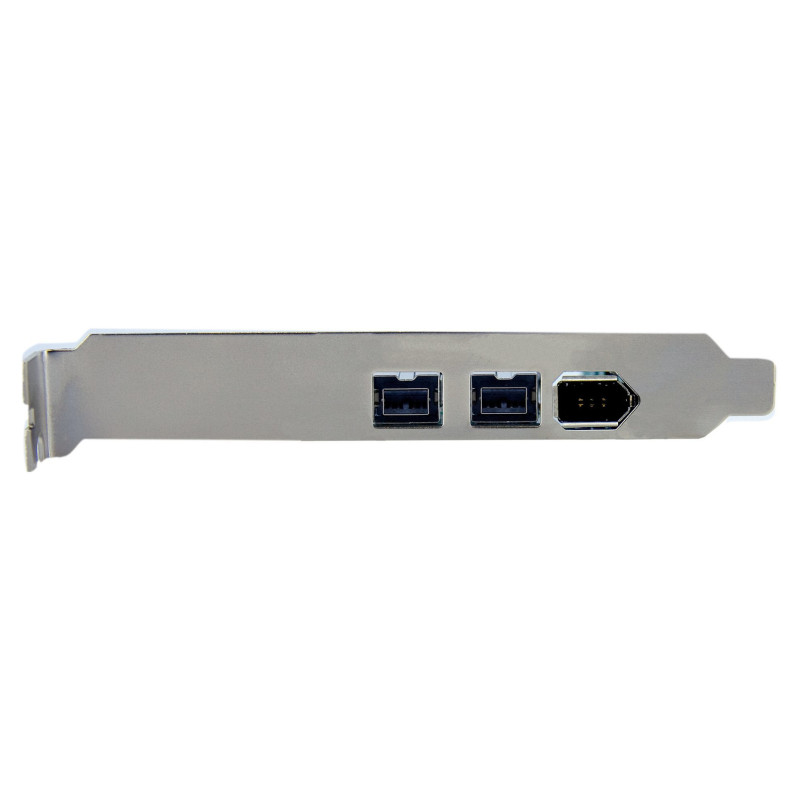

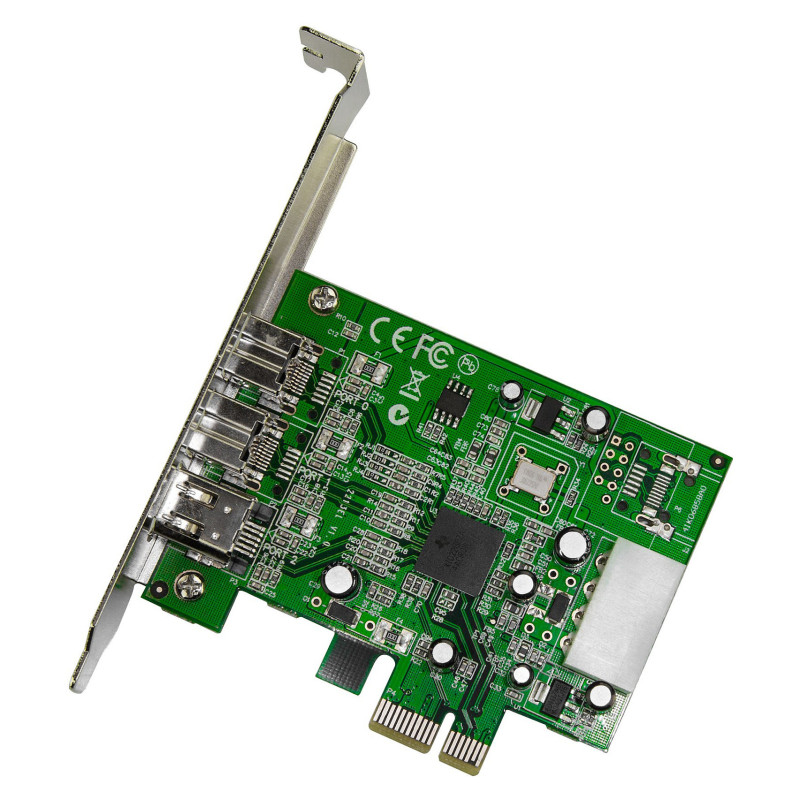

This 3 Port PCI Express FireWire adapter card can be installed in a PCI Express slot to add two IEEE1394b (FireWire 800 - 9 pin) ports and one IEEE1394a (FireWire 400 - 6 pin) port, providing broad compatibility with a wide range of FireWire devices (e.g. DV camcorders, external hard drives, digital cameras, etc.).

The 2b, 1a card features a native (single chip) PCI Express chipset - resulting in faster, more reliable and cost effective performance than expansion cards that utilize a "bridge" chip.

The StarTech.com Advantage

Ports & interfaces

Host interface: PCIe
Output interface: Firewire 800 / 400
Expansion card standard: PCIe 1.1
FireWire 400 ports quantity: 1
FireWire 800 ports quantity: 2

Design

Feature: Internal
Product colour: Green
Mean time between failures (MTBF): 149905 h

Features

Chipset: Texas Instruments - XIO2213B
Data transfer rate (max): 0.8 Gbit/s

System requirements

Linux operating systems supported: Yes
Server operating systems supported: Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2016, Windows Server 2019

Technical details

Feature: Sustainability compliance
Compliance certificates: CE, RoHS

Weight & dimensions

Width: 18 mm
Depth: 85 mm
Height: 120 mm
Weight: 48 g

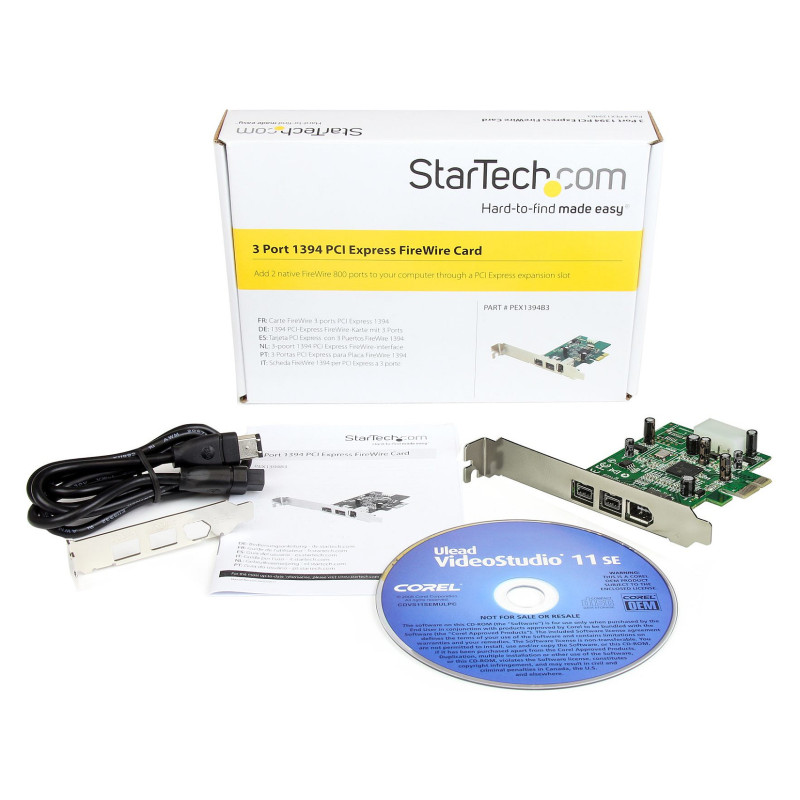

Packaging data

Cables included: FireWire
Feature: Mounting brackets included
Feature: Drivers included
Feature: Manual
Package width: 148 mm
Package depth: 213 mm
Package height: 41 mm
Package weight: 212 g

Logistics data

Harmonized System (HS) code: 84733020
Products per master (outer) case: 50 pc(s)
Master (outer) case width: 355 mm
Master (outer) case length: 681 mm
Master (outer) case height: 317 mm
