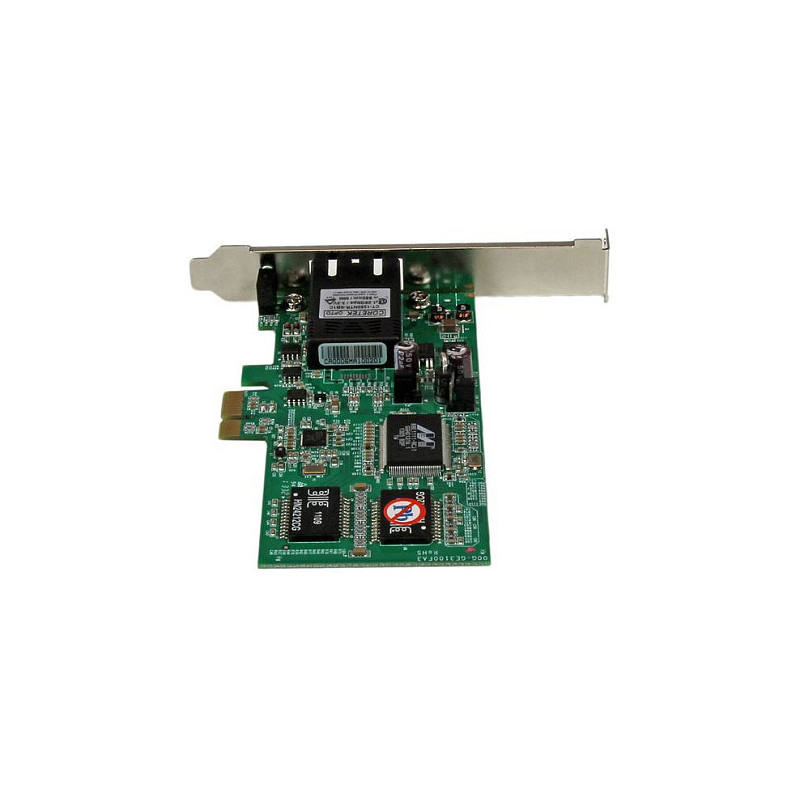

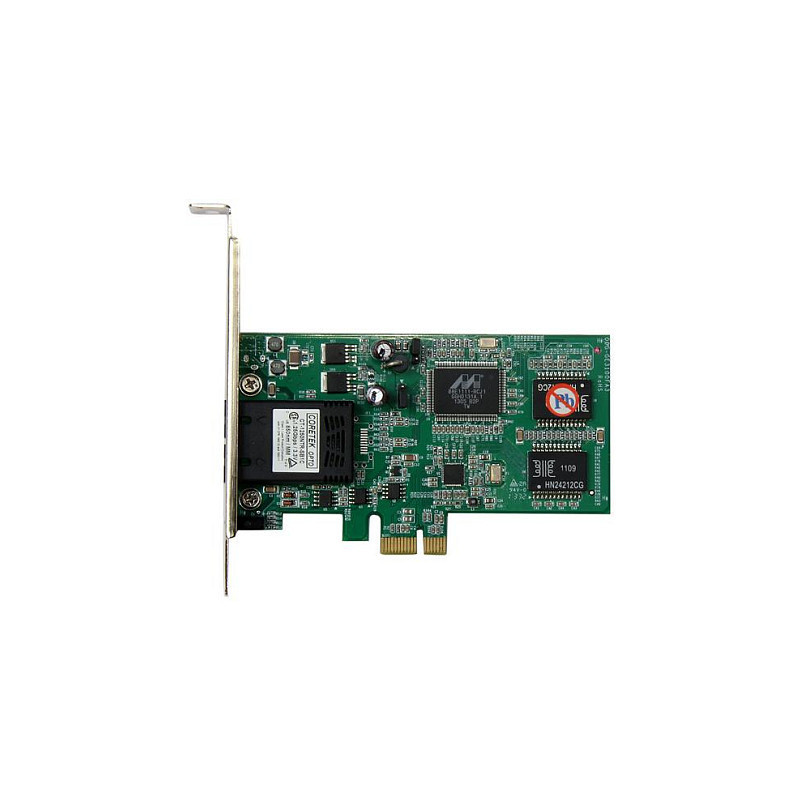

StarTech.com PEX1000MMSC2 network card

StarTech.com PCI Express (PCIe) Gigabit Ethernet Multimode SC Fiber Network Card Adapter NIC - 550m - TAA. Internal. Connectivity technology: Wired, Host interface: PCI Express, Interface: Ethernet / Fiber. Maximum data transfer rate: 2000 Mbit/s

Connect a PCI Express-based desktop or rackmount PC directly to a Gigabit multimode SC fiber optic network

The PEX1000MMSC2 PCIe Gigabit Fiber Network Card lets you connect a desktop PC directly to a fiber optic network, by adding a multimode SC fiber port to your computer or server through an available PCI Express slot.

Perfect for integrating into new or existing fiber infrastructure over great distances, this card delivers full Gigabit bandwidth to your computer up to 550 meters away from your network source, using multimode 50/125 micron duplex SC fiber cable. Plus, for a wider spectrum of compatibility, this versatile card offers fiber integration with a computer up to 220 meters away when deployed to network frameworks consisting of multimode 62.5/125 micron cabling.

With fiber connectivity, your network is not susceptible to electronic interference, which can be problematic with standard RJ45 copper networks, making this fiber card ideal for secure network setups.

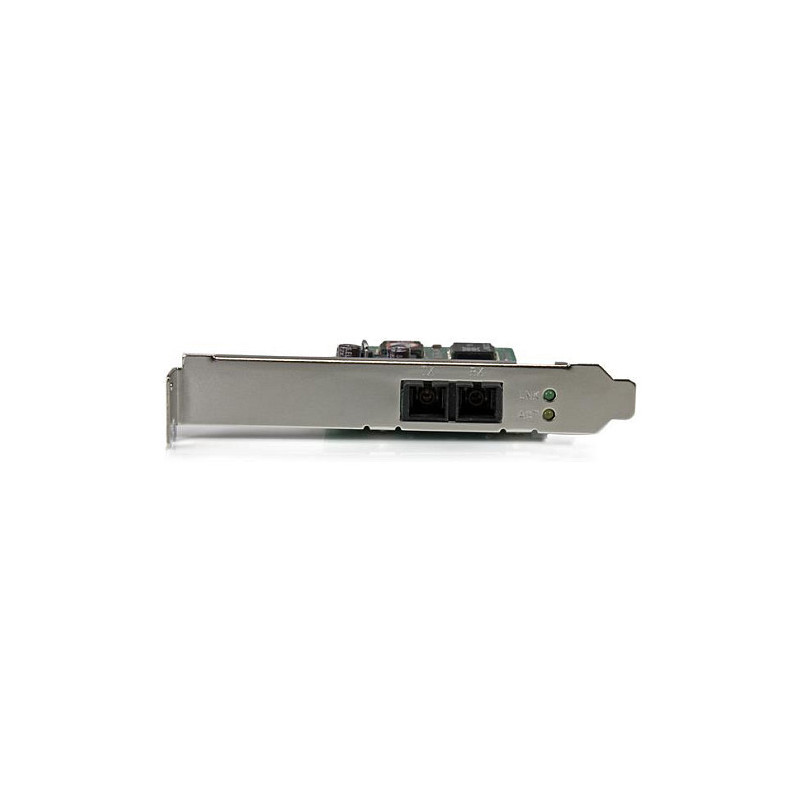

Plus, the card is equipped with a standard profile bracket and includes a low-profile/half-height bracket, making it easy to install in small form-factor computers or 1U server and rackmount applications.

Backed by a StarTech.com 2-year warranty and free lifetime technical support.

Ports & interfaces

Connectivity technology: Wired
Host interface: PCI Express
Interface: Ethernet / Fiber
Fiber optic connector: SC

Network

Maximum data transfer rate: 2000 Mbit/s
Networking standards: IEEE 802.1p, IEEE 802.1Q, IEEE 802.3x, IEEE 802.3z
Fiber ethernet cabling technology: 1000BASE‑SX
Feature: Wake-on-LAN ready
Feature: Full duplex
Feature: Jumbo frames support
Maximum operating distance: 550 m
LAN controller: Realtek RTL8168E

Design

Component for: PC
Feature: Internal
Chipset: RTL8168E
LED indicators: Activity, Link

System requirements

Mac operating systems supported: Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Linux operating systems supported: Yes
Server operating systems supported: Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016

Operational conditions

Operating temperature (T-T): 0 - 45 °C
Storage temperature (T-T): -20 - 70 °C
Operating relative humidity (H-H): 5 - 95%

Weight & dimensions

Width: 118 mm
Depth: 120 mm
Height: 18 mm
Weight: 66 g

Packaging data

Package width: 215 mm
Package depth: 175 mm
Package height: 51 mm
Package weight: 208 g

Packaging content

Feature: Manual

Technical details

Compliance certificates: RoHS

Logistics data

Harmonized System (HS) code: 85176990
Master (outer) case width: 550 mm
Master (outer) case length: 595 mm
Master (outer) case height: 367 mm
Products per master (outer) case: 50 pc(s)

Other features

Buffer size: 48 KB
Power supply: 3.2 W
