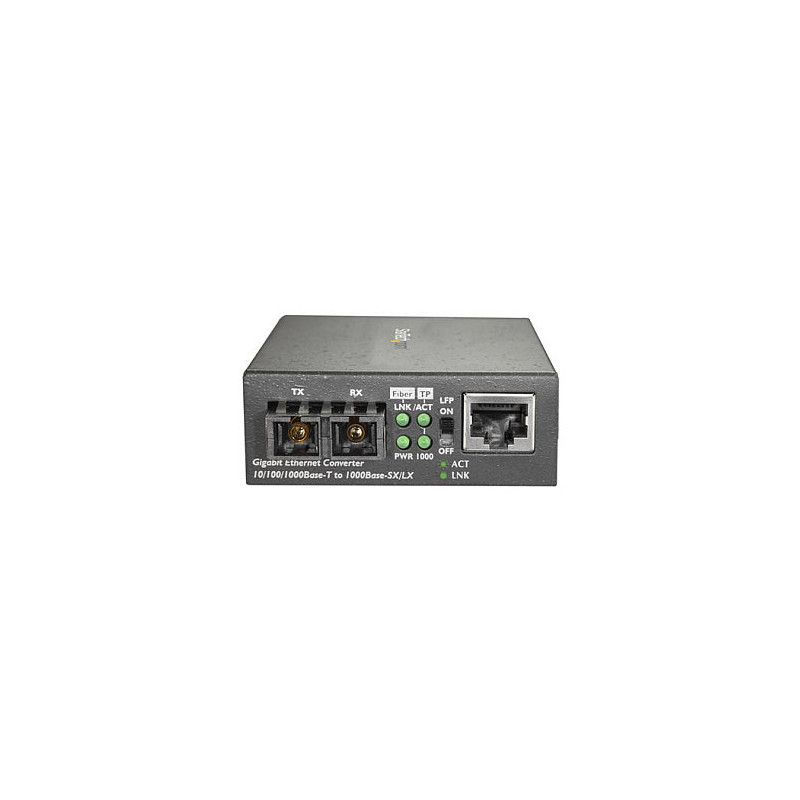

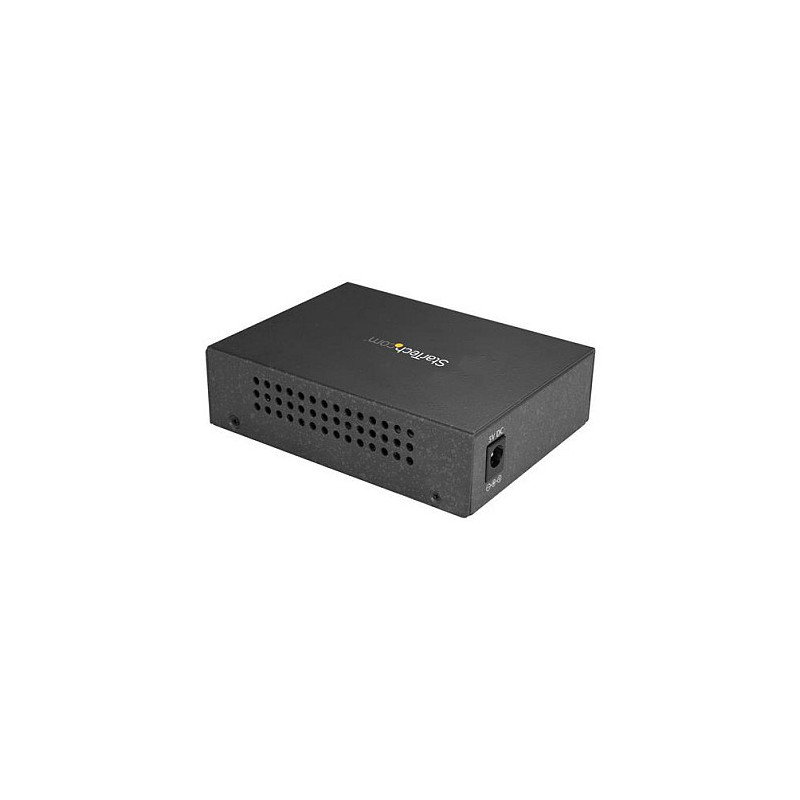

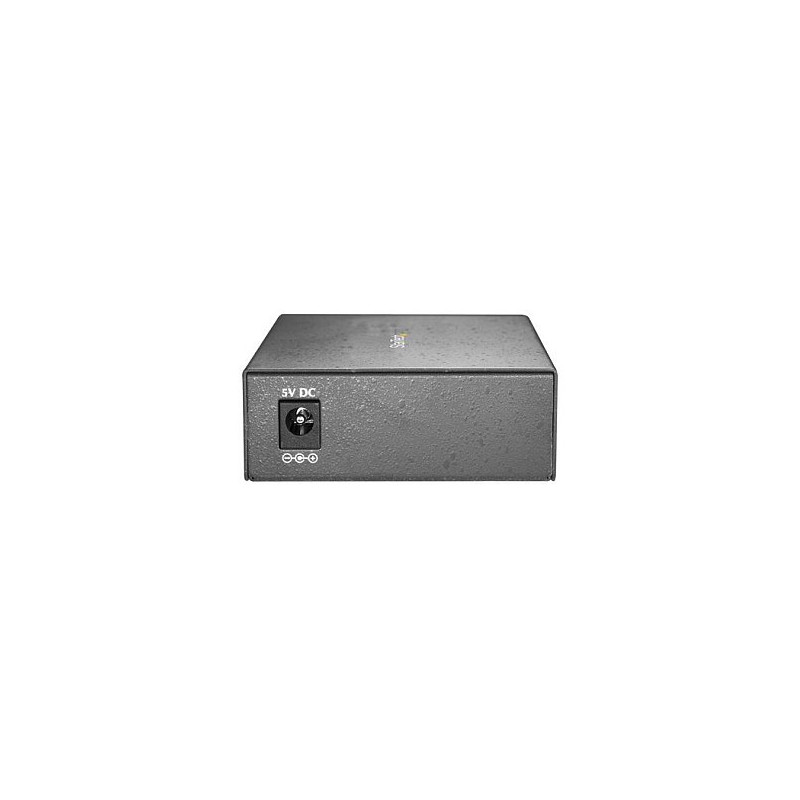

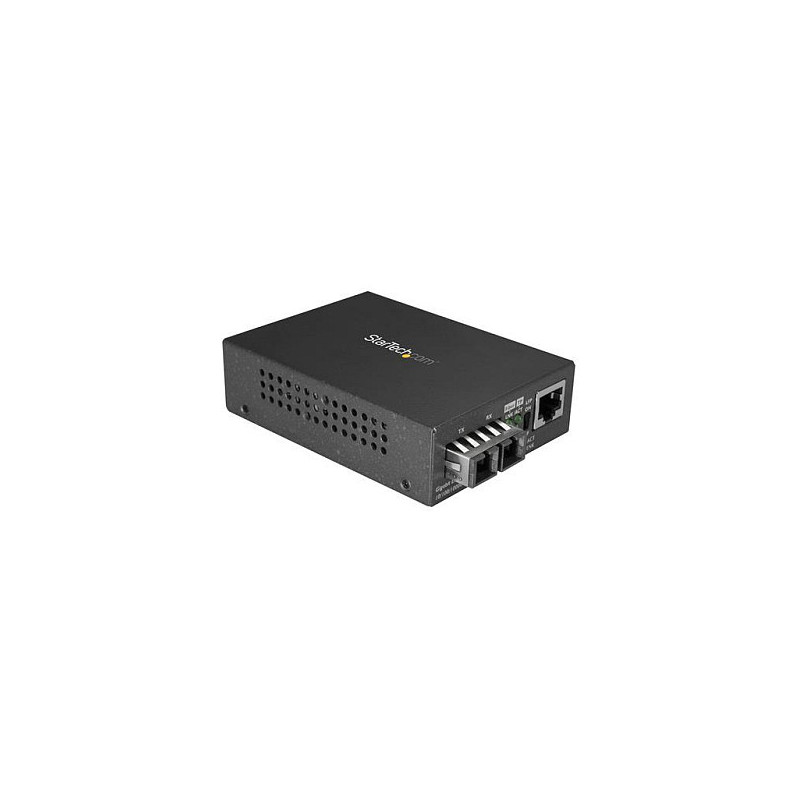

StarTech.com MCMGBSCMM055 network media converter

StarTech.com Multi-Mode (MM) SC Fiber Media Converter for 10/100/1000 Networks, Standalone Gigabit Ethernet to SC Fiber Converter, 850nm, 550m - TAA. Maximum data transfer rate: 1000 Mbit/s, Converter input interface: 100Base-TX, 1000Base-T, Converter output interface: 1000Base-SX. Maximum transfer distance: 550 m, Wavelength: 850 nm, Fiber mode structure: Multi-mode. LED indicators: Activity, Link, Power, Product colour: Black, Housing material: Steel. Fiber optic connector: SC, Connectivity technology: Wired. Input voltage: 100 - 240 V, Input current: 0.5 A, Output voltage: 5 V

Convert and extend a Gigabit Ethernet connection up to 550 m over multimode SC fiber

This fiber media converter extends a Gigabit Ethernet (1000Mbps) network up to 550 m over multimode fiber, on 1000BASE-SX networks.

Extend your GbE network cost-effectively

The fiber media converter offers a cost-effective way to transparently convert copper to fiber, or fiber to copper, for connecting remote sub-networks to larger fiber-optic networks. Providing both SC fiber and RJ45 Ethernet ports, it integrates easily into a wide range of Gigabit Ethernet network infrastructures. The RJ45 port supports triple-speed (10/100/1000 BASE-T) auto-negotiation.

Reliable and scalable network connectivity

Supporting a maximum multimode fiber-optic cable distance of 550 meters (0.34 miles), the media converter delivers a simple and reliable solution for connecting Gigabit Ethernet networks to remote locations over multimode fiber, while ensuring solid network performance. It provides optimum network scalability for connecting two or more Ethernet network nodes, for instance, connecting two buildings on the same campus or facility. The media converter also offers high-speed bandwidth to meet the increasing demands of large-scale workgroups that require expansion of a Gigabit Ethernet network.

Network

Maximum data transfer rate: 1000 Mbit/s
Converter input interface: 100Base-TX, 1000Base-T
Converter output interface: 1000Base-SX
Networking standards: IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Ethernet interface type: Fast Ethernet, Gigabit Ethernet
Ethernet LAN data rates: 10,100,1000 Mbit/s
Feature: Jumbo frames support
Jumbo frames: 9000
Feature: Flow control support
Feature: Auto MDI/MDI-X
Feature: Store-and-forward
Duplex system: Full

Performance

Maximum transfer distance: 550 m
Wavelength: 850 nm
Fiber mode structure: Multi-mode
Mean time between failures (MTBF): 50000 h

Features

LED indicators: Activity, Link, Power
Product colour: Black
Housing material: Steel

Ports & interfaces

Connectivity technology: Wired
Ethernet LAN (RJ-45) ports: 1
Fiber ports quantity: 1
Fiber optic connector: SC

Power

Input voltage: 100 - 240 V
Input current: 0.5 A
Output voltage: 5 V
Output current: 2.6 A
Power consumption (typical): 5 W
Feature: External power adapter
Power plug type: Type N

Weight & dimensions

Width: 97 mm
Depth: 70 mm
Height: 26 mm
Weight: 200 g

Operational conditions

Operating temperature (T-T): 0 - 50 °C
Storage temperature (T-T): -10 - 70 °C
Operating relative humidity (H-H): 5 - 90%

Packaging content

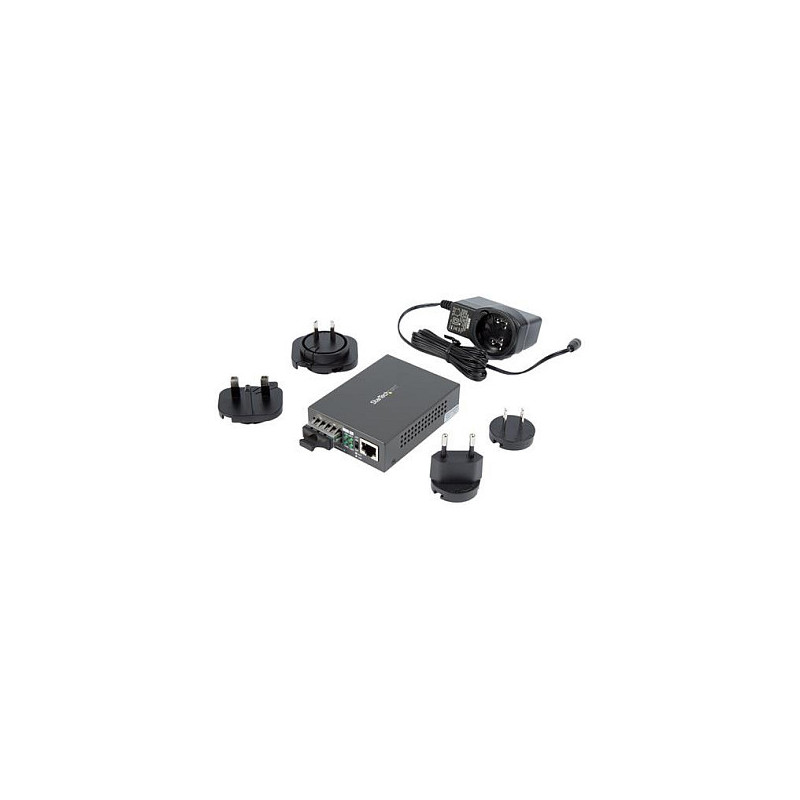

Feature: AC adapter included
Feature: Quick installation guide

Packaging data

Package width: 138 mm
Package depth: 284 mm
Package height: 66 mm
Package weight: 564 g

Certificates

Compliance certificates: RoHS
Certification: CE, FCC, REACH

Logistics data

Harmonized System (HS) code: 85176990
Master (outer) case width: 595 mm
Master (outer) case length: 375 mm
Master (outer) case height: 320 mm
Products per master (outer) case: 20 pc(s)
