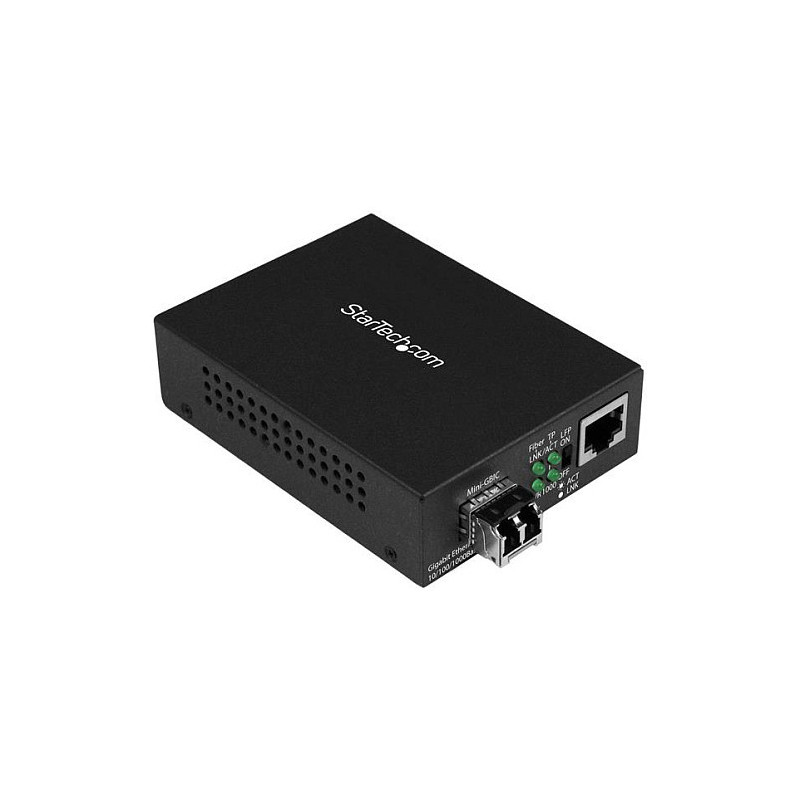

StarTech.com MCM1110MMLC network media converter

StarTech.com Multi-Mode (MM) LC Fiber Media Converter for 10/100/1000 Networks, Standalone Gigabit Ethernet to LC Converter, SFP Transceiver Included, 850nm, 550m - TAA. Maximum data transfer rate: 1000 Mbit/s, Converter input interface: 1000Base-T, 100Base-TX, 10Base-T, Converter output interface: 1000Base-LX, 1000Base-SX. Maximum transfer distance: 550 m, Wavelength: 850 nm, Fiber mode structure: Multi-mode. LED indicators: Activity, Link, Power, Product colour: Black, Housing material: Steel. Fiber optic connector: LC, Connectivity technology: Wired. Input voltage: 100 - 240 V, Input current: 1 A, Output voltage: 5 V

Convert and extend different networks over a Gigabit fiber cable connection up to 550m / 1804ft

This fiber media converter offers an easy, cost-effective way to extend your network over Gigabit fiber. It is equipped with a multimode transceiver which converts a copper RJ45 Ethernet connection to Gigabit fiber to extend your network over longer distances or connect workstations to switches. The converter provides a powerful extended networking solution for campuses, businesses, government facilities, stadiums, or other areas requiring network access.

Cost-effective extension and dependable performance

The Gigabit Fiber Media Converter provides a cost-effective and dependable solution for shorter range network extensions. It connects an Ethernet network to remote devices over a fiber backbone, with a 550m range on the fiber optic interface. The media converter has a durable metal housing, engineered to deliver long-lasting performance.

Versatile connections for broad compatibility

Fully compatible with 10/100/1000Base-T Ethernet networks, the fiber media converter supports auto negotiation to bridge different speed networks and devices to a Gigabit fiber network. It provides versatile connectivity to your existing networks and devices, allowing you to maximize the usage and performance of legacy equipment.

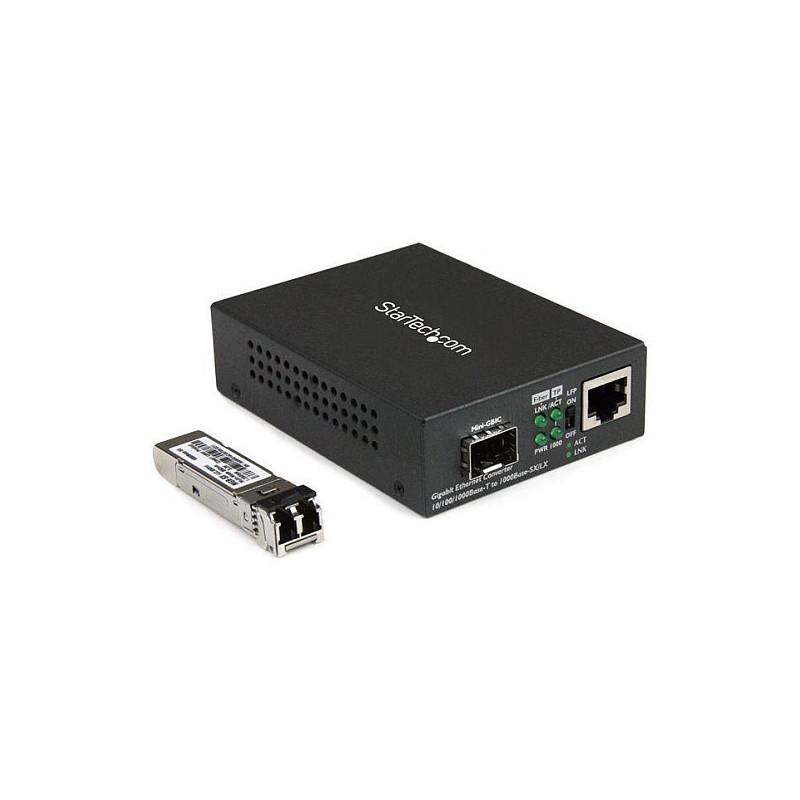

The multimode transceiver is removable, giving you the flexibility to change your transceiver in the future to meet your networking needs.

Easy installation and compact convenience

The unmanaged fiber media converter has a standalone design with simple plug-and-play set-up to ensure fast and easy installation. Compact in size, the converter gives you flexible installation options - including a wall mounting option to save space.

Network

Maximum data transfer rate: 1000 Mbit/s
Converter input interface: 1000Base-T, 100Base-TX, 10Base-T
Converter output interface: 1000Base-LX, 1000Base-SX
Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3z
Ethernet interface type: Gigabit Ethernet
Ethernet LAN data rates: 10,100,1000 Mbit/s
Data transfer rate: 1000 Mbit/s
Feature: Jumbo frames support
Feature: Auto MDI/MDI-X
Duplex system: Full

Performance

Maximum transfer distance: 550 m
Wavelength: 850 nm
Fiber mode structure: Multi-mode
Mean time between failures (MTBF): 50000 h

Features

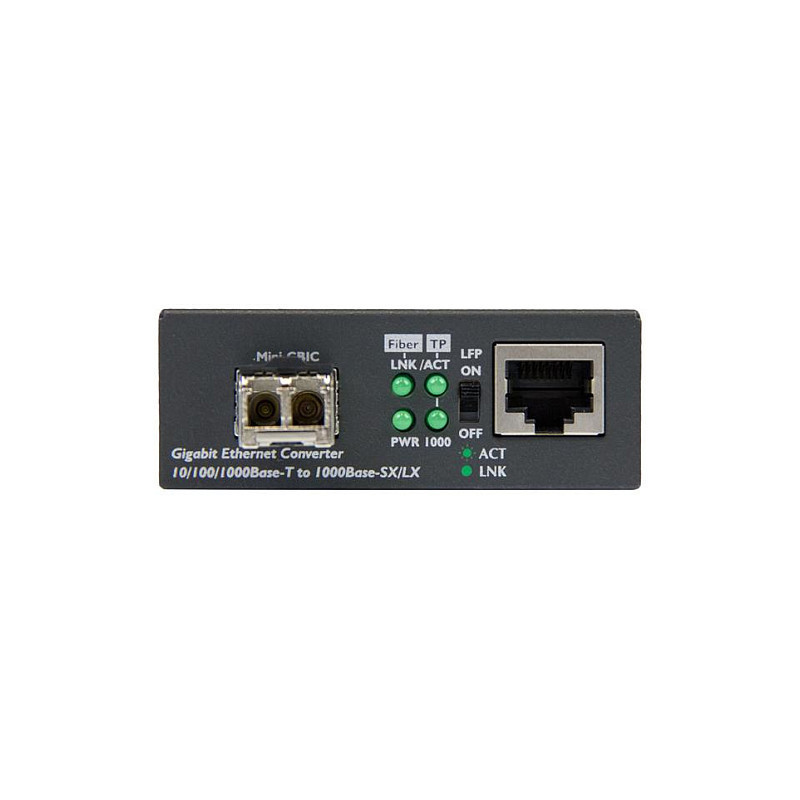

LED indicators: Activity, Link, Power
Product colour: Black
Housing material: Steel

Ports & interfaces

Connectivity technology: Wired
Ethernet LAN (RJ-45) ports: 1
Fiber ports quantity: 1
Fiber optic connector: LC

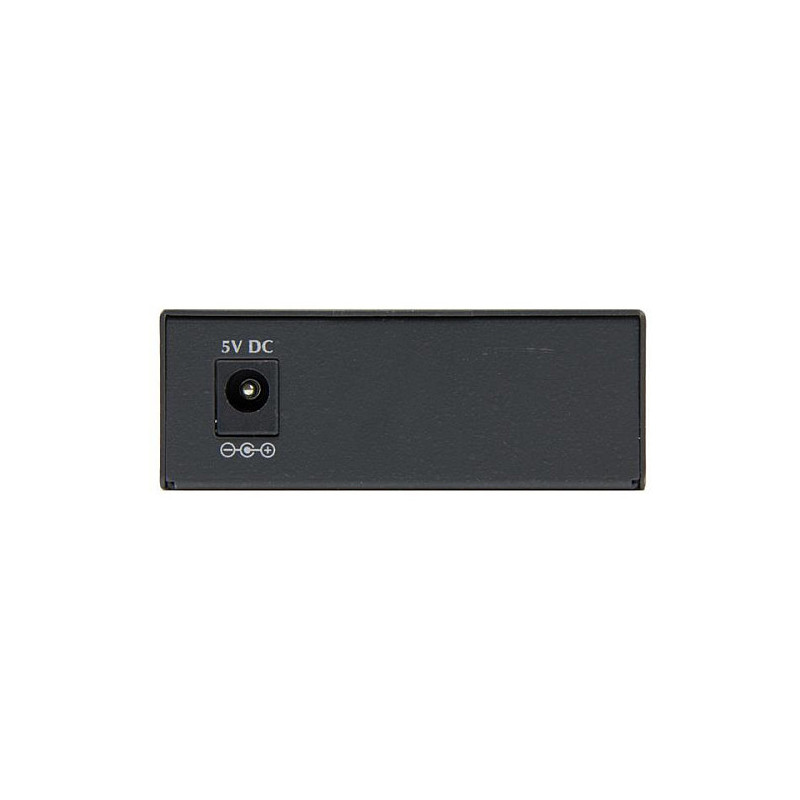

Feature: DC-in jack

Power

Input voltage: 100 - 240 V
Input current: 1 A
Output voltage: 5 V
Output current: 2 A

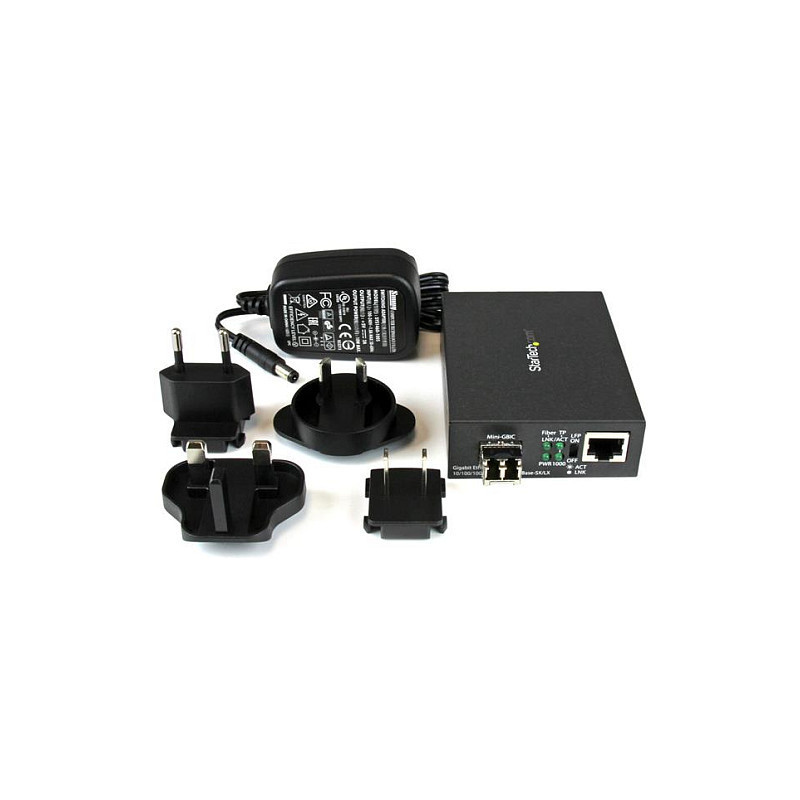

Feature: External power adapter
Power plug type: Type N

Weight & dimensions

Width: 70 mm
Depth: 94 mm
Height: 26 mm
Weight: 201 g

Operational conditions

Operating temperature (T-T): 0 - 50 °C
Storage temperature (T-T): -10 - 70 °C
Operating relative humidity (H-H): 5 - 95%

Packaging content

Feature: Manual

Packaging data

Package width: 286 mm
Package depth: 138 mm
Package height: 69 mm
Package weight: 556 g

Certificates

Compliance certificates: RoHS
Certification: CE, FCC, REACH, TAA

Logistics data

Harmonized System (HS) code: 85176990
Master (outer) case width: 588 mm
Master (outer) case length: 369 mm
Master (outer) case height: 313 mm
Products per master (outer) case: 20 pc(s)
