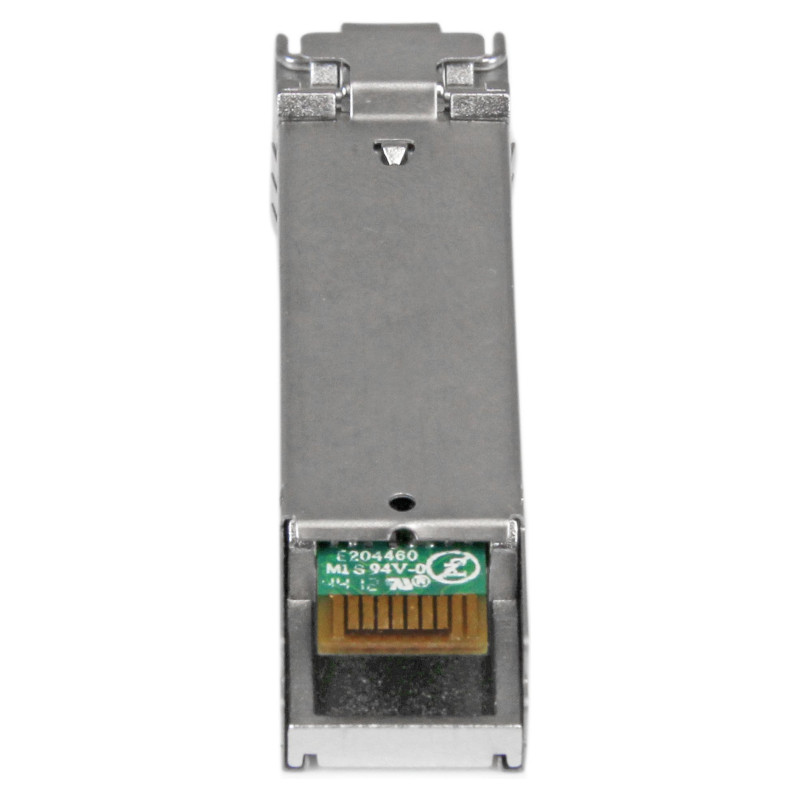

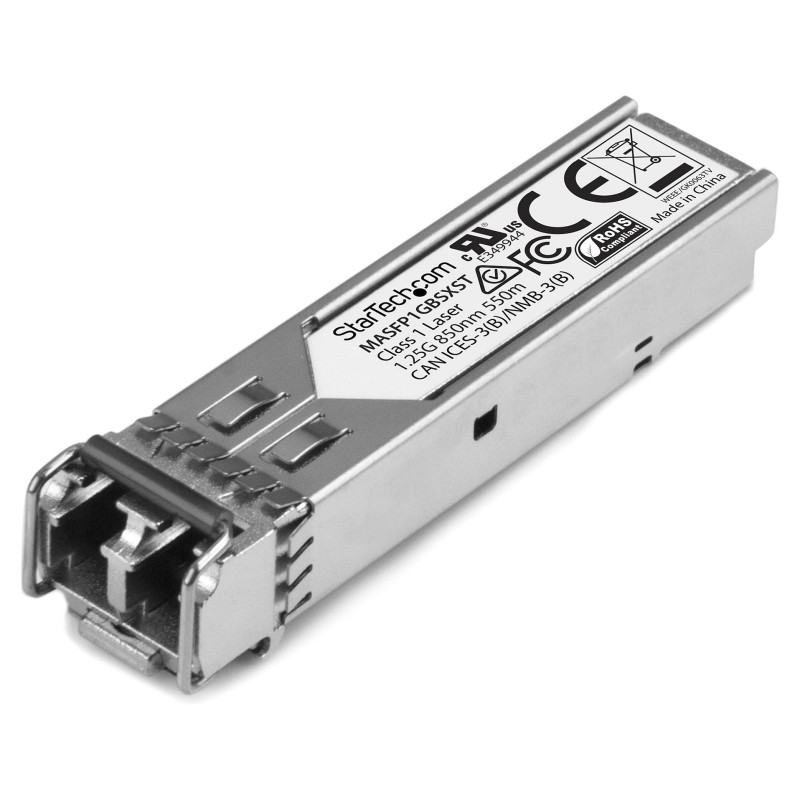

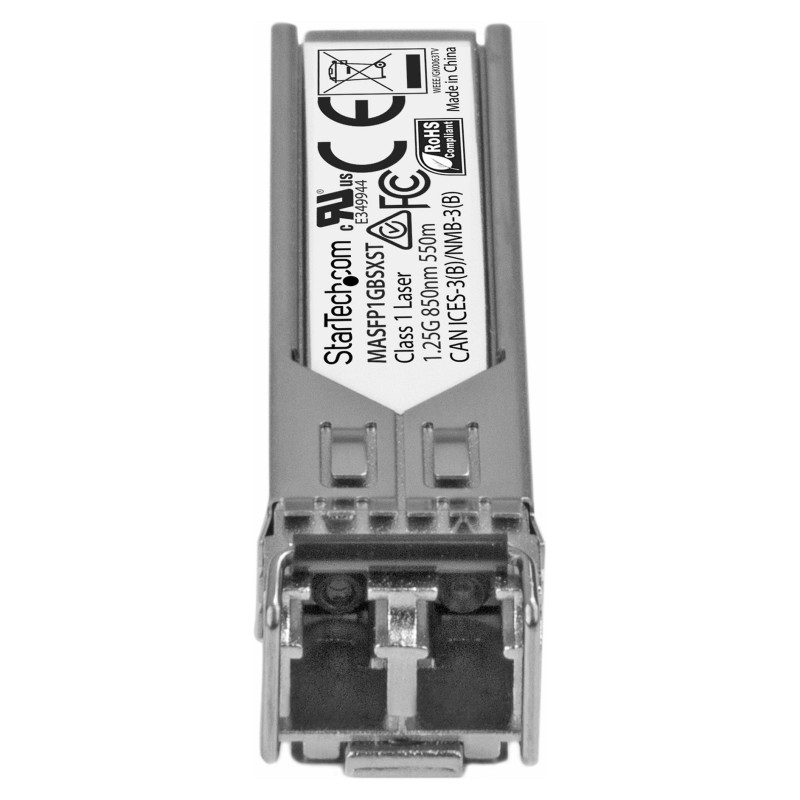

StarTech.com MASFP1GBSXST network transceiver module

StarTech.com Cisco Meraki MA-SFP-1GB-SX Compatible SFP Module - 1000BASE-SX - 1GbE Multimode Fiber MMF Optic Transceiver - 1GE Gigabit Ethernet SFP - LC 550m - 850nm - DDM Cisco Meraki MS225, MX400, MS250. SFP transceiver type: Fiber optic, Maximum data transfer rate: 1250 Mbit/s, Interface type: SFP. Product colour: Silver, Housing material: Aluminium, Mean time between failures (MTBF): 3381761 h. Power consumption (typical): 1 W. Compliance certificates: RoHS, Certification: CE, FCC, UR. Width: 13.7 mm, Depth: 56.6 mm, Height: 12.5 mm

1000 Mbps (1 Gbps) | Multi Mode Fiber | LC | 550 m (1804 ft) | Lifetime Warranty

The MASFP1GBSXST is a Cisco Meraki MA-SFP-1GB-SX compatible fiber transceiver module that has been designed, programmed and tested to work with Cisco Meraki™ brand switches and routers. It delivers dependable 1GbE (1000 Mbps) connectivity over fiber cable, for 1000BASE-SX compliant networks, with a maximum distance of up to 550m (1804 ft).

Technical Specifications:

• Wavelength: 850nm
• Maximum Data Transfer Rate: 1.25 Gbps
• Type: Multi Mode Fiber
• Connection Type: LC Connector
• Maximum Transfer Distance: 550m (1804 ft)
• MTBF: 1,967,709 hours
• Power Consumption: Less than 1.2 Watts
• Digital Diagnostics Monitoring (DDM): Yes

This SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.

StarTech.com SFPs

All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.

Performance

SFP transceiver type: Fiber optic
Maximum data transfer rate: 1250 Mbit/s
Interface type: SFP
Feature: Multi-mode fiber (MMF) supported
Fiber optic connector: LC
SFP transceiver standard: SX
Maximum transfer distance: 550 m
Wavelength: 850 nm
Networking standards: IEEE 802.3z
Duplex system: Full
Feature: Digital Diagnostics Monitoring (DDM)

Features

Product colour: Silver
Housing material: Aluminium
Feature: Hot-swap
Mean time between failures (MTBF): 3381761 h

Power

Power consumption (typical): 1 W

Certificates

Compliance certificates: RoHS
Certification: CE, FCC, UR

Operational conditions

Operating temperature (T-T): 0 - 70 °C
Storage temperature (T-T): -40 - 85 °C
Operating relative humidity (H-H): 5 - 95%

Weight & dimensions

Width: 13.7 mm
Depth: 56.6 mm
Height: 12.5 mm
Weight: 14 g

Packaging content

Quantity per pack: 1 pc(s)

Packaging data

Package width: 92 mm
Package depth: 113 mm
Package height: 33 mm
Package weight: 42 g

Logistics data

Master (outer) case width: 342 mm
Master (outer) case length: 434 mm
Harmonized System (HS) code: 85369010
Master (outer) case height: 340 mm
Products per master (outer) case: 108 pc(s)
Country of origin: China
