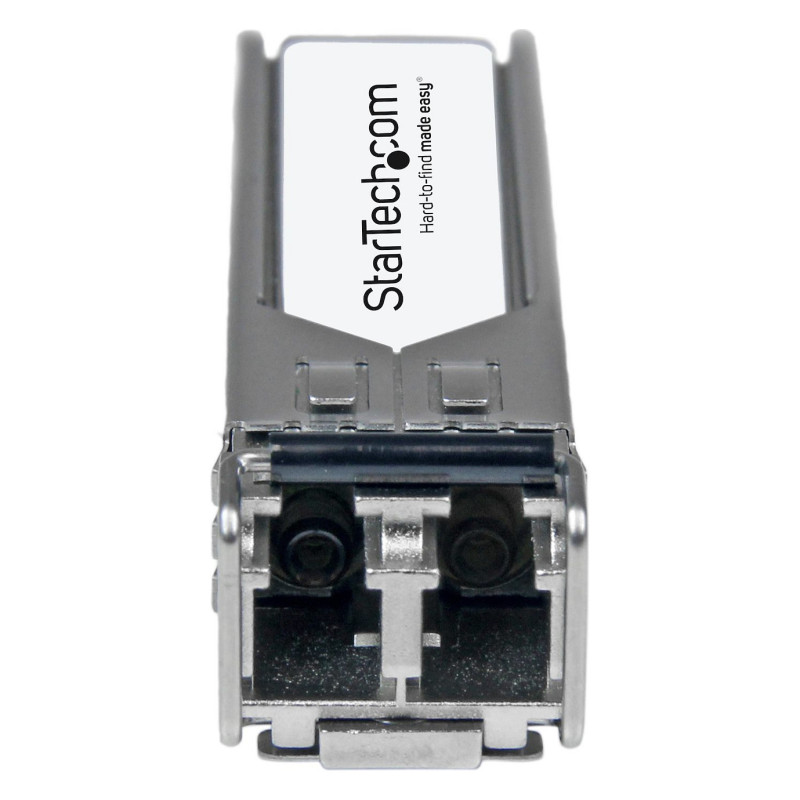

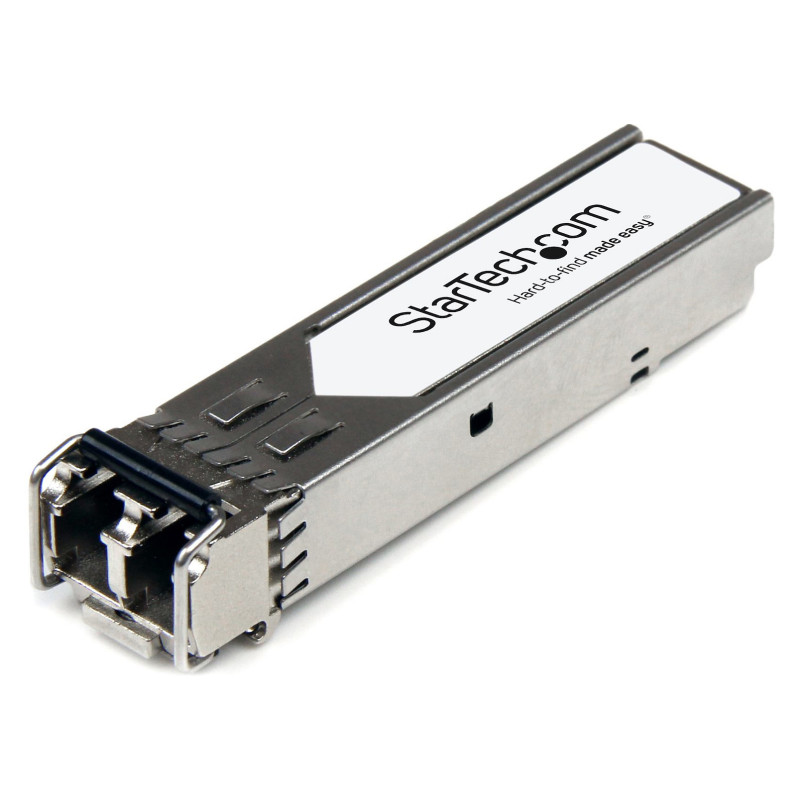

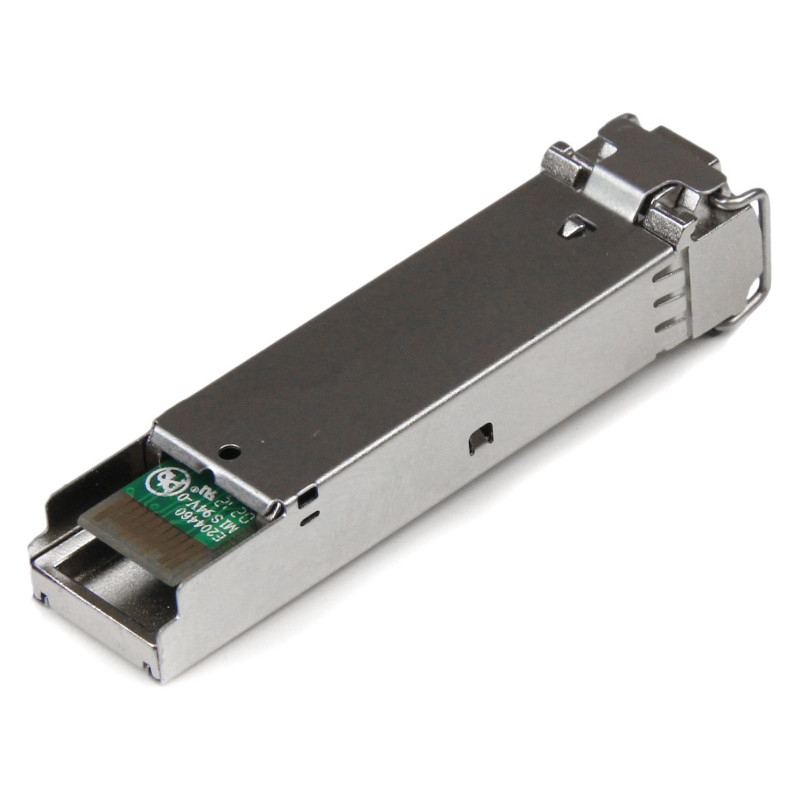

StarTech.com JD092B-ST network transceiver module

StarTech.com HPE JD092B Compatible SFP+ Module - 10GBASE-SR - 10GbE Multi Mode Fiber Optic Transceiver - 10GE Gigabit Ethernet SFP+ - LC 300m - 850nm - DDM HPE 5120, 5500, 5810. SFP transceiver type: Fiber optic, Maximum data transfer rate: 10000 Mbit/s, Interface type: SFP+. Product colour: Silver, Mean time between failures (MTBF): 145858878 h, Brand compatibility: Any brand. Power consumption (typical): 1.3 W. Compliance certificates: CE, RoHS. Width: 58.4 mm, Depth: 14 mm, Height: 13.7 mm

10 Gbps | Multi Mode Fiber | LC | 300 m (984 ft) | Lifetime Warranty

The JD092B-ST is a HPE JD092B compatible fiber transceiver module that has been designed, programmed and tested to work with HPE brand switches and routers. It delivers dependable 10 GbE connectivity over fiber cable, for 10GBASE-LRM compliant networks, with a maximum distance of up to 200 m (656 ft).

Technical Specifications:

• Wavelength: 850nm
• Maximum Data Transfer Rate: 10 Gbps
• Type: Multi Mode Fiber
• Connection Type: LC Connector
• Maximum Transfer Distance: 300 m (984 ft)
• MTBF: 145,858,878 hours
• Power Consumption:
• Digital Diagnostics Monitoring (DDM): Yes

This SFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.

StarTech.com SFPs

All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.

Performance

SFP transceiver type: Fiber optic
Maximum data transfer rate: 10000 Mbit/s
Interface type: SFP+
Feature: Multi-mode fiber (MMF) supported
Fiber optic connector: LC
SFP transceiver standard: SR
Maximum transfer distance: 200 m
Wavelength: 1310 nm
Fiber ethernet cabling technology: 10GBASE
Feature: Digital Diagnostics Monitoring (DDM)

Features

Product colour: Silver
Feature: Hot-swap
Mean time between failures (MTBF): 145858878 h
Brand compatibility: Any brand
Compatible products: HPE: A5830AF; HPE 12504, 5120, 5500, 5810, 5900AF, 5920AF; HP A10500, 6127XLG, 6125XLG; FlexFabric 1.92, 11908, 12902

Power

Power consumption (typical): 1.3 W

Certificates

Compliance certificates: CE, RoHS

Weight & dimensions

Width: 58.4 mm
Depth: 14 mm
Height: 13.7 mm
Weight: 20 g

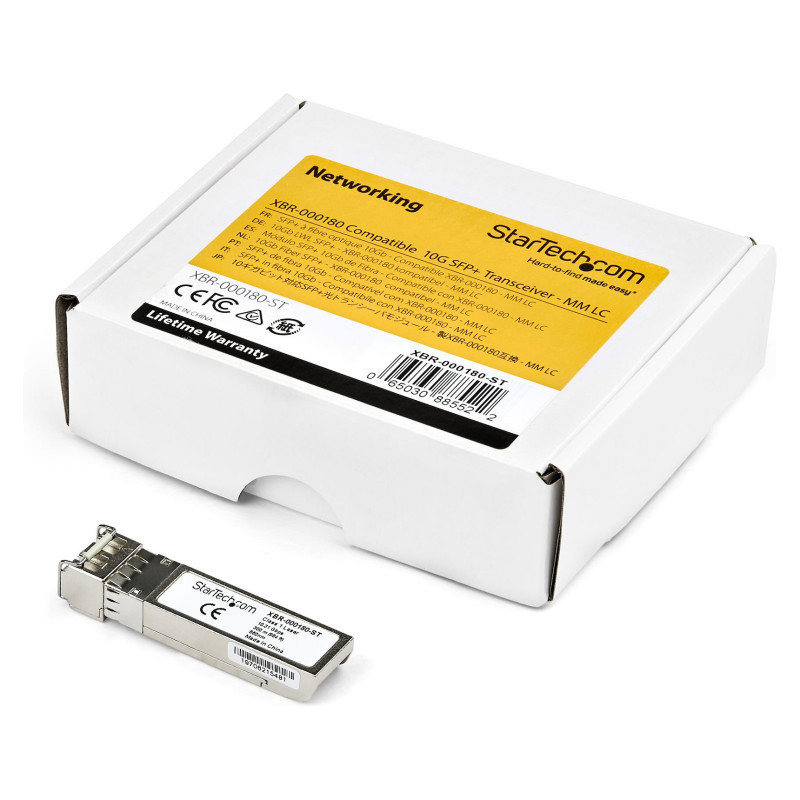

Packaging content

Quantity per pack: 1 pc(s)

Packaging data

Package width: 91 mm
Package depth: 114 mm
Package height: 33 mm
Package weight: 50 g

Logistics data

Master (outer) case width: 91 mm
Master (outer) case length: 115 mm
Harmonized System (HS) code: 85369010
Master (outer) case height: 33 mm
Products per master (outer) case: 1 pc(s)
