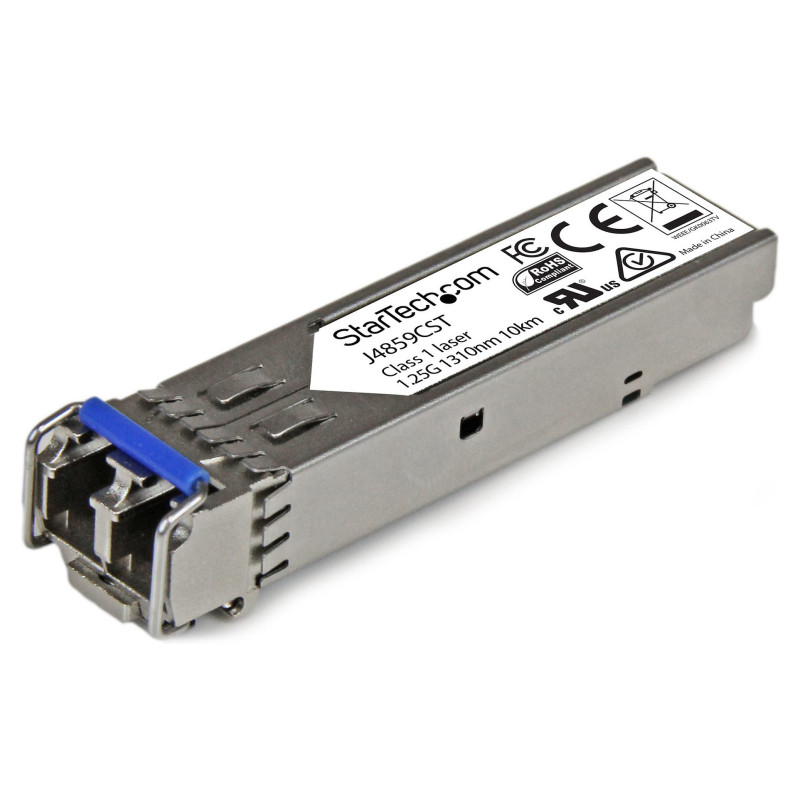

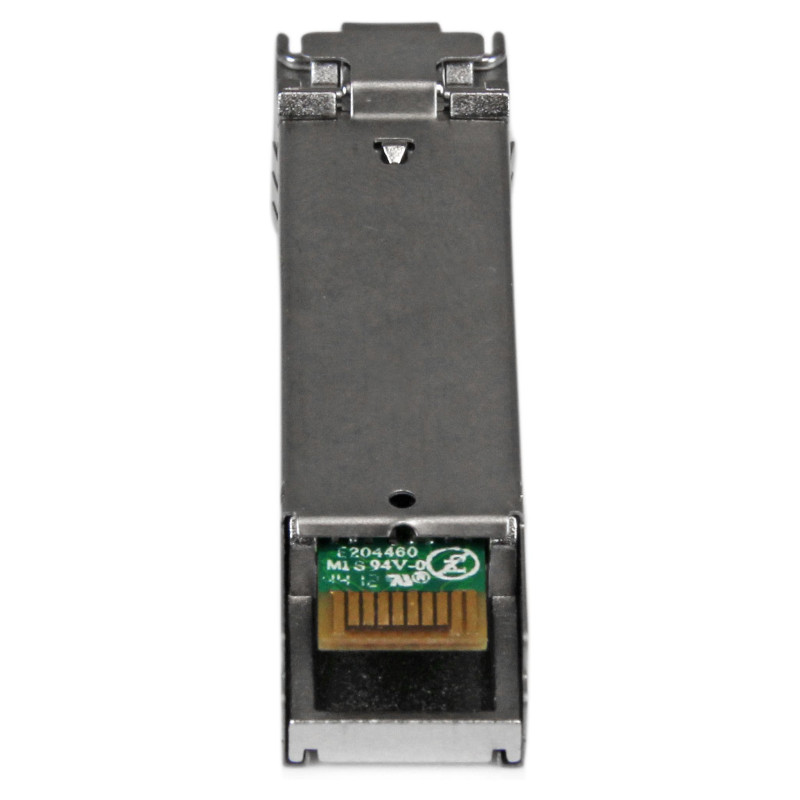

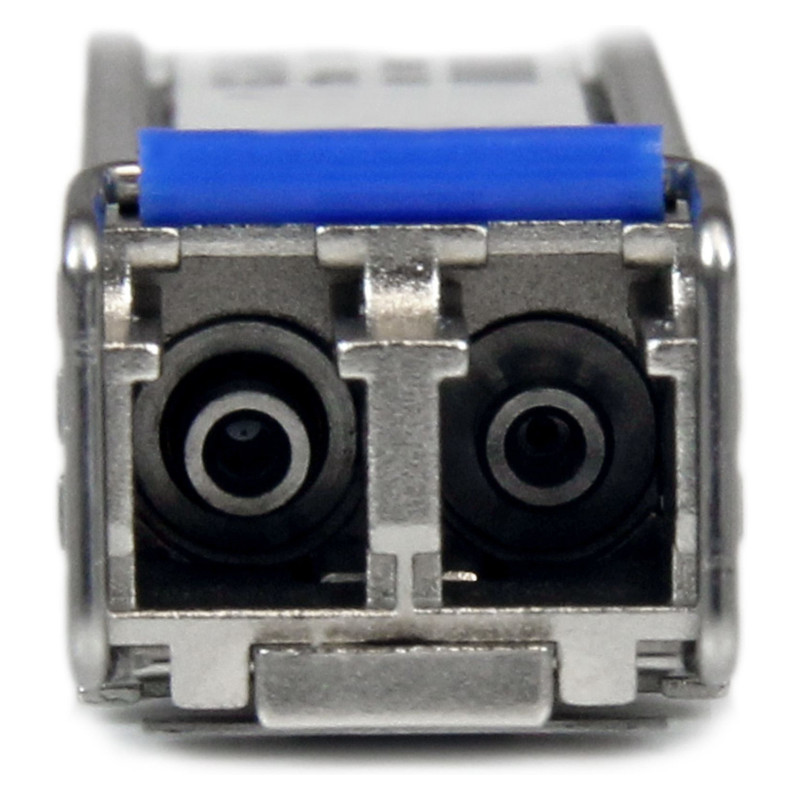

StarTech.com J4859CST network transceiver module

StarTech.com HPE J4859C Compatible SFP Module - 1000BASE-LX - 1GbE Single Mode /Multi Mode Fiber Optic Transceiver - 1GE Gigabit Ethernet SFP - LC 10km - 1310nm - DDM HPE 1400, 1700, 1820. SFP transceiver type: Fiber optic, Maximum data transfer rate: 1250 Mbit/s, Interface type: SFP. Product colour: Silver, Mean time between failures (MTBF): 3092408 h. Power consumption (typical): 1 W. Compliance certificates: RoHS, Certification: FCC, UL, CE. Width: 14 mm, Depth: 57 mm, Height: 13 mm
1000 Mbps (1 Gbps) | Single Multi Mode Fiber | LC | 10 km (6.2 mi) | Lifetime Warranty
The J4859CST is an HPE J4859C compatible fiber transceiver module that has been designed, programmed and tested to work with HPE® brand switches and routers. It delivers dependable 1 GbE connectivity over fiber cable, for 1000BASE-LX compliant networks, with a maximum distance of up to 10 km (6.2 mi).
Technical Specifications:
• Wavelength: 1310 nm
• Maximum Data Transfer Rate: 1.25 Gbps
• Type: Single Mode / Multi Mode Fiber
• Connection Type: LC Connector
• Maximum Transfer Distance: 10 km (6.2 mi) - SM / 1 km (0.6 mi) - MM
• MTBF: 3,092,408 hours
• Power Consumption: Less than 1 Watt
• Digital Diagnostics Monitoring (DDM): Yes
This SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.

Performance

SFP transceiver type: Fiber optic
Maximum data transfer rate: 1250 Mbit/s
Interface type: SFP
Multi-mode fiber (MMF) supported: Yes
Fiber optic connector: LC
Maximum transfer distance: 10000 m
Wavelength: 1310 nm
Networking standards: IEEE 802.3z
Duplex system: Full
Auto MDI/MDI-X: Yes
Digital Diagnostics Monitoring (DDM): Yes

Features

Product colour: Silver
Hot-swap: Yes
Mean time between failures (MTBF): 3092408 h

Power

Power consumption (typical): 1 W

Certificates

Compliance certificates: RoHS
Certification: FCC, UL, CE

Operational conditions

Operating temperature (T-T): 0 - 70 °C
Storage temperature (T-T): -40 - 85 °C
Operating relative humidity (H-H): 5 - 95%

Weight dimensions

Width: 14 mm
Depth: 57 mm
Height: 13 mm
Weight: 16 g

Packaging content

Quantity per pack: 1 pc(s)

Packaging data

Package width: 91 mm
Package depth: 113 mm
Package height: 33 mm
Package weight: 45 g

Logistics data

Master (outer) case width: 340 mm
Master (outer) case length: 426 mm
Harmonized System (HS) code: 85369010
Master (outer) case height: 350 mm
Products per master (outer) case: 108 pc(s)
Country of origin: China
