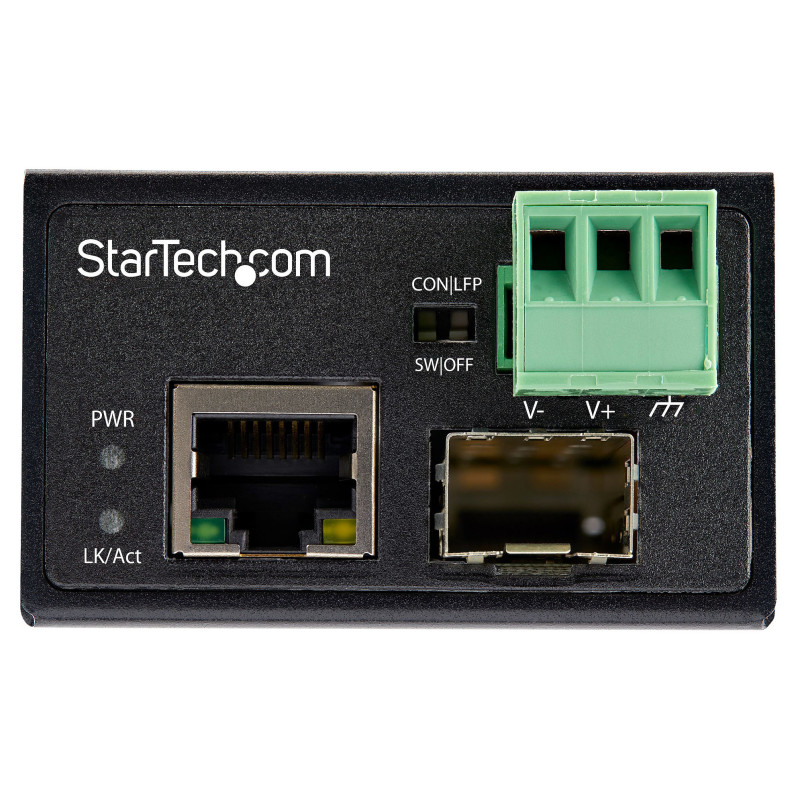

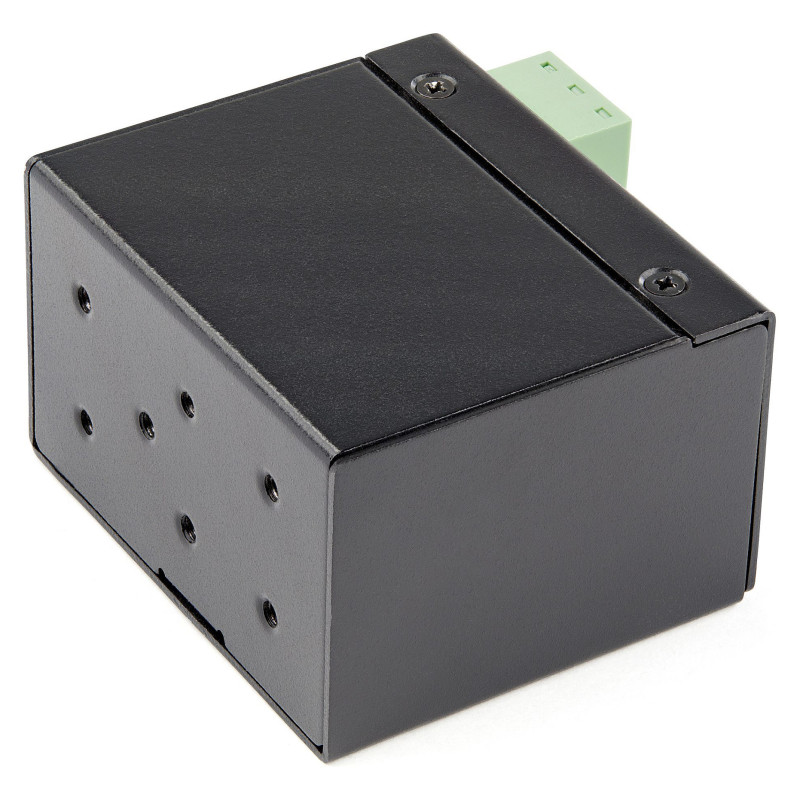

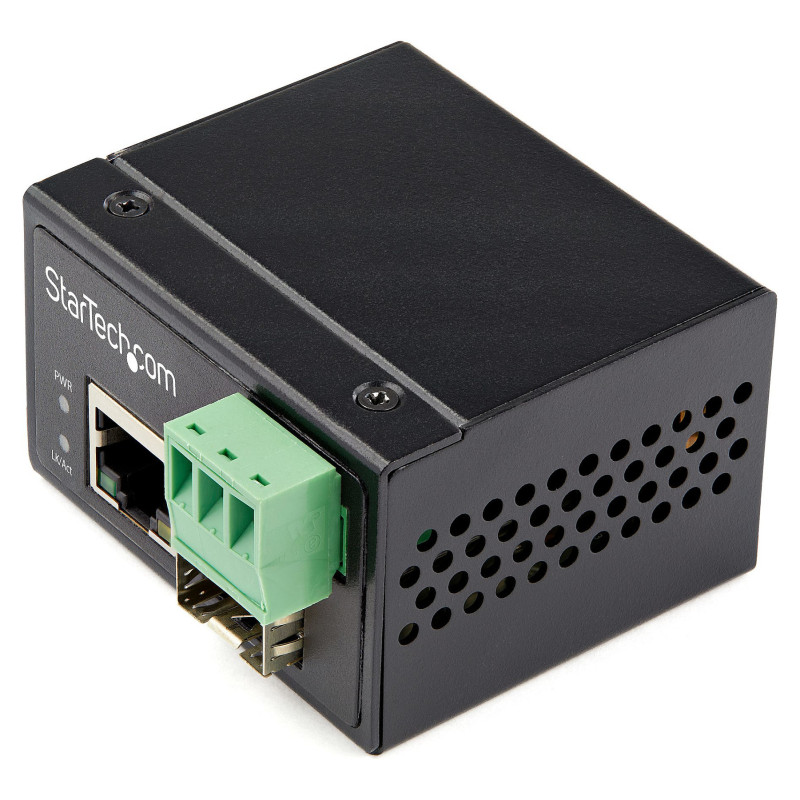

StarTech.com IMC100MSFP network media converter

StarTech.com Industrial Fiber to Ethernet Media Converter - 100Mbps SFP to RJ45/Cat6 - Singlemode/Multimode Optical Fiber to Copper Network - 12-56V DC - IP-30/ -40 to +75C - TAA. Maximum data transfer rate: 100 Mbit/s, Converter input interface: 10Base-T, 100Base-TX, Converter output interface: 100Base-FX. Fiber mode structure: Multi-mode, Single-mode, Mean time between failures (MTBF): 500000 h. Product colour: Black, Housing material: Aluminium, International Protection (IP) code: IP30. Fiber optic connector: SFP, Connectivity technology: Wired. Input voltage: 12 - 56 V, Power consumption (typical): 1.92 W, Power plug type: Type N

10/100 Mbps Media Converter | 100Mbps SFP to RJ45/Cat6 | 12-56V DC | IP-30 Housing

An industrial media converter that converts fiber to copper at a network endpoint.

A Flexible Solution Covering Different Requirements

This media converter features an open SFP slot for any standard SFP to be used for the incoming fiber connection and is easily deployed across applications or fiber cable types. Accepts terminal block power or coaxial power connectors with the barrel plug adapter, allowing the product to be hardwired or powered using an external power supply (not included), which does not require professional installation. It can be powered using 18V-36V AC or 12V -56V DC for a high degree of flexibility including applications like solar, automotive, and rail. Includes hardware for DIN rail or wall mounting.

For Mission-Critical Applications

Designed with IP-30 housing and has an MBTF of > 500;000 hrs (Telcordia/Bellcore) at 50°C and an operating temperature range of include -40 C to 75 C for durability; it's rated to various vibration, shock, and free-fall standards:

• Vibration: EN 60068-2-6
• Shock: EN 60068-2-27
• Free-Fall: EN 60068-2-32

Dual Power Inputs

Accepts terminal block power or coaxial power connectors with the barrel plug adapter, allowing the product to be hardwired or powered using an external power supply (not included), which does not require professional installation.

The IMC100MSFP is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Network

Maximum data transfer rate: 100 Mbit/s
Converter input interface: 10Base-T, 100Base-TX
Converter output interface: 100Base-FX
Networking standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Feature: Jumbo frames support
Jumbo frames: 16000
Duplex system: Full

Performance

Fiber mode structure: Multi-mode, Single-mode
Mean time between failures (MTBF): 500000 h

Features

LED indicators: Yes
Product colour: Black
Housing material: Aluminium
International Protection (IP) code: IP30
Feature: DIN rail mounting

Ports & interfaces

Connectivity technology: Wired
Ethernet LAN (RJ-45) ports: 1
Fiber ports quantity: 1
Fiber optic connector: SFP

Power

Input voltage: 12 - 56 V
Power consumption (typical): 1.92 W
Power plug type: Type N

Weight & dimensions

Width: 36 mm
Depth: 59 mm
Height: 50 mm
Weight: 81.4 g

Operational conditions

Operating temperature (T-T): -40 - 75 °C
Storage temperature (T-T): -40 - 85 °C
Operating relative humidity (H-H): 5 - 95%

Packaging content

Feature: User guide

Packaging data

Package width: 106 mm
Package depth: 161 mm
Package height: 68 mm
Package weight: 242.4 g

Certificates

Compliance certificates: RoHS
Certification: CE, FCC

Logistics data

Harmonized System (HS) code: 85176990
Master (outer) case width: 366 mm
Master (outer) case length: 370 mm
Master (outer) case height: 252 mm
Products per master (outer) case: 20 pc(s)
