StarTech.com ICUSB2328I interface hub

StarTech.com 8 Port USB to DB9 RS232 Serial Adapter Hub - Industrial DIN Rail and Wall Mountable - TAA. Host interface: USB 2.0 Type-B, Hub interfaces: Serial. Product colour: Black, Housing material: Steel, LED indicators: Activity. Input voltage: 5 V, Input current: 0.25 A, Power plug type: Type M. Windows operating systems supported: Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64,..., Mac operating systems supported: Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High..., Server operating systems supported: Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows.... Width: 100 mm, Depth: 180 mm, Height: 43.2 mm

Add 8 DIN Rail-mountable RS232 Serial ports to any system through USB

The ICUSB2328I Industrial 8-Port USB to Serial Hub with DIN Rail Clips converts a single USB port into eight RS232 serial ports, enabling you to connect to, monitor and control your serial devices.

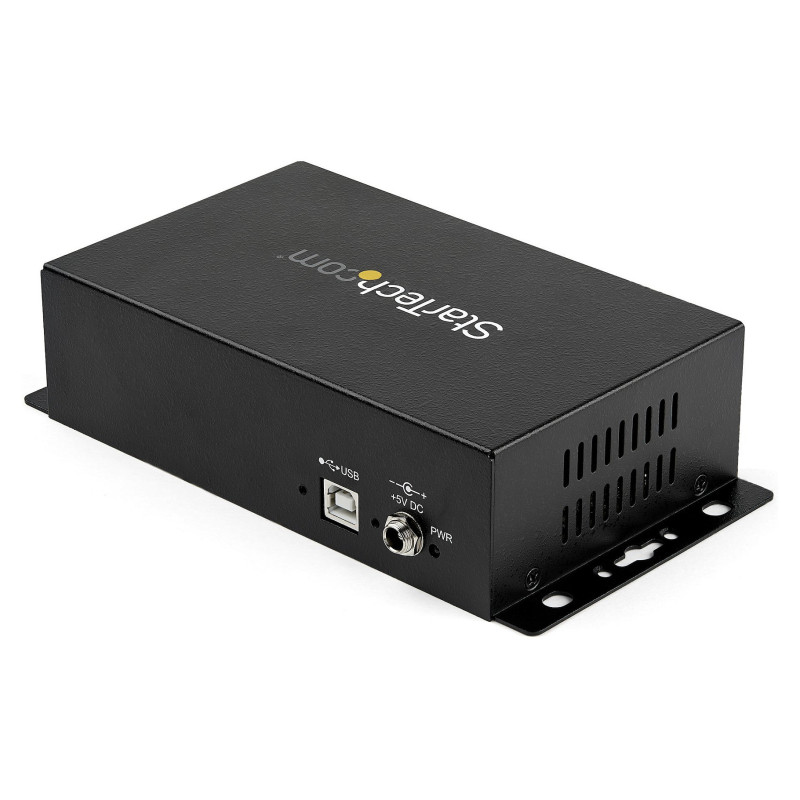

Featuring rugged metal construction, with sturdy wall-mounting brackets and top-hat DIN Rail clips (included), this 8 port USB to RS232 Serial Hub provides versatile mounting options and a robust solution for both harsh industrial environments and simple desktop installations.
This USB powered adapter also retains assigned serial COM port values once connected, allowing the same values to be automatically reassigned to the USB serial hub ports.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.

Ports & interfaces

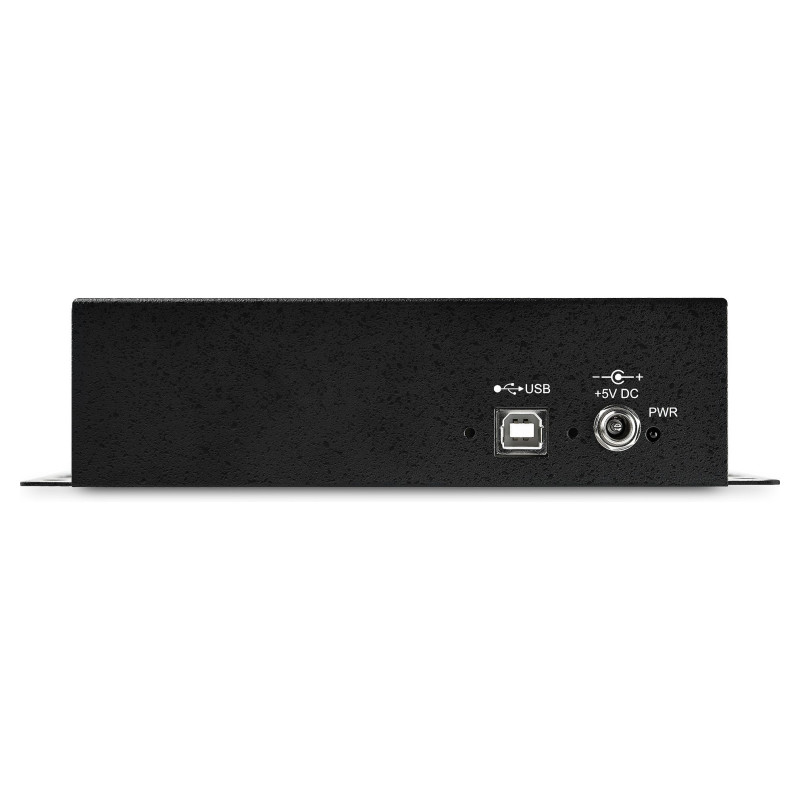

Host interface: USB 2.0 Type-B
Hub interfaces: Serial
Ports quantity: 8

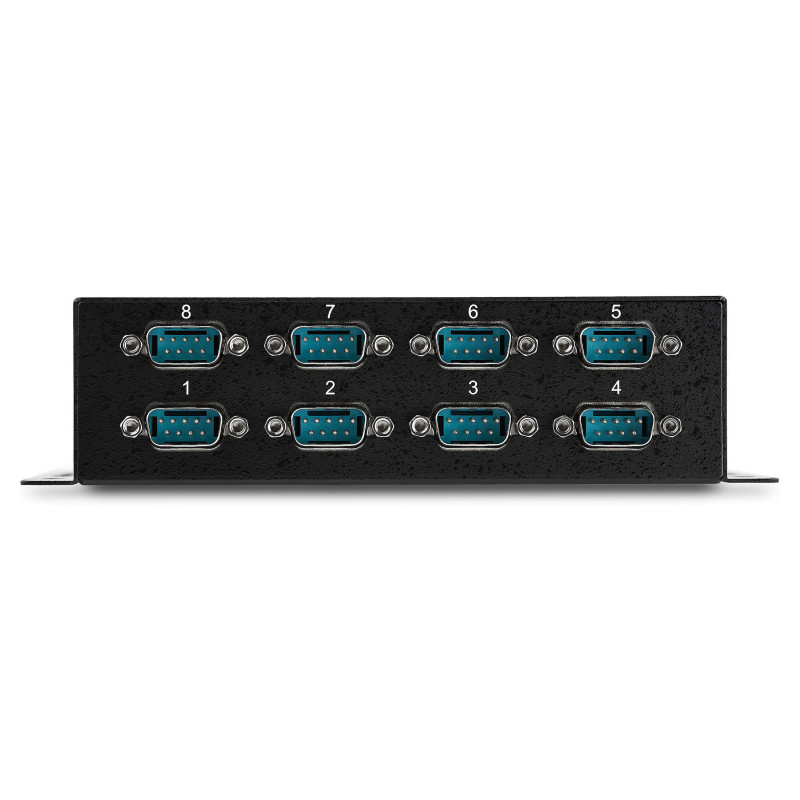

RS-232 ports: 8
Feature: DC-in jack

Features

Product colour: Black
Housing material: Steel
LED indicators: Activity

Power

Input voltage: 5 V
Input current: 0.25 A
Power plug type: Type M
Feature: USB powered

System requirements

Linux operating systems supported: Yes
Server operating systems supported: Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016
Other operating systems supported: Windows XP Embedded

Weight & dimensions

Width: 100 mm
Depth: 180 mm
Height: 43.2 mm
Weight: 544 g

Packaging data

Package width: 243 mm
Package depth: 170 mm
Package height: 62 mm
Package weight: 862 g

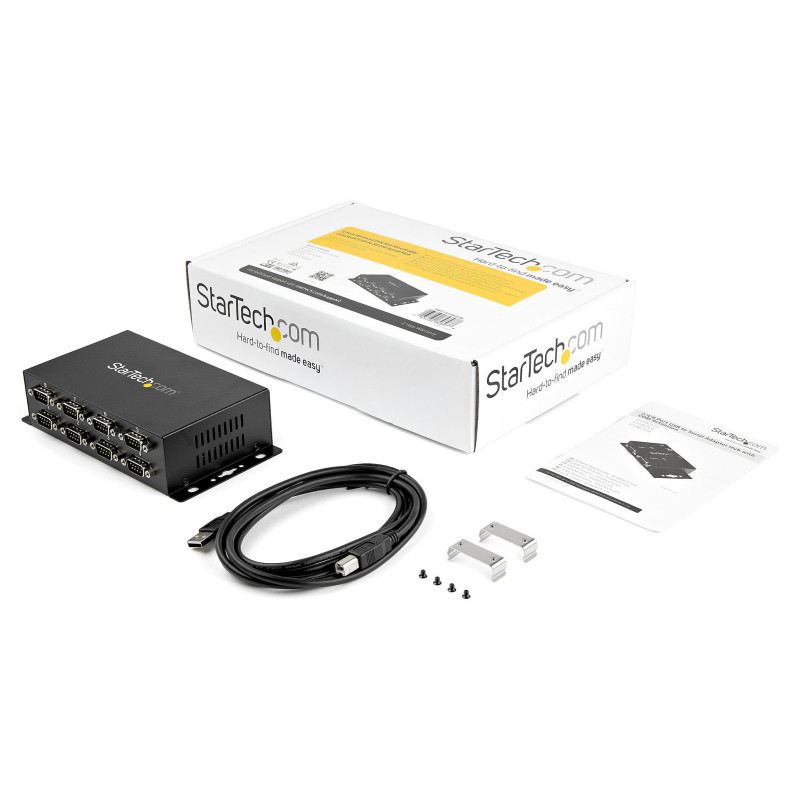

Packaging content

Cables included: USB
Feature: Manual
Feature: DIN rail kit included
Feature: Drivers included

Operational conditions

Operating temperature (T-T): 0 - 55 °C
Storage temperature (T-T): -20 - 85 °C
Operating relative humidity (H-H): 5 - 95%

Performance

Data bits: 7, 8
Stop bits: 1, 2
Parity bit: Even, Mark, No, Odd, Space
FIFO (First In, First Out): 4048 B
Baud rate: 921.6 Kbit/s
Mean time between failures (MTBF): 146300 h

Sustainability

Feature: Sustainability compliance

Logistics data

Master (outer) case width: 425 mm
Master (outer) case length: 421 mm
Master (outer) case height: 290 mm
Products per master (outer) case: 16 pc(s)
Harmonized System (HS) code: 84719000

Technical details

Compliance certificates: CE, RoHS

Other features

Chipset: FTDI - FT232RL
