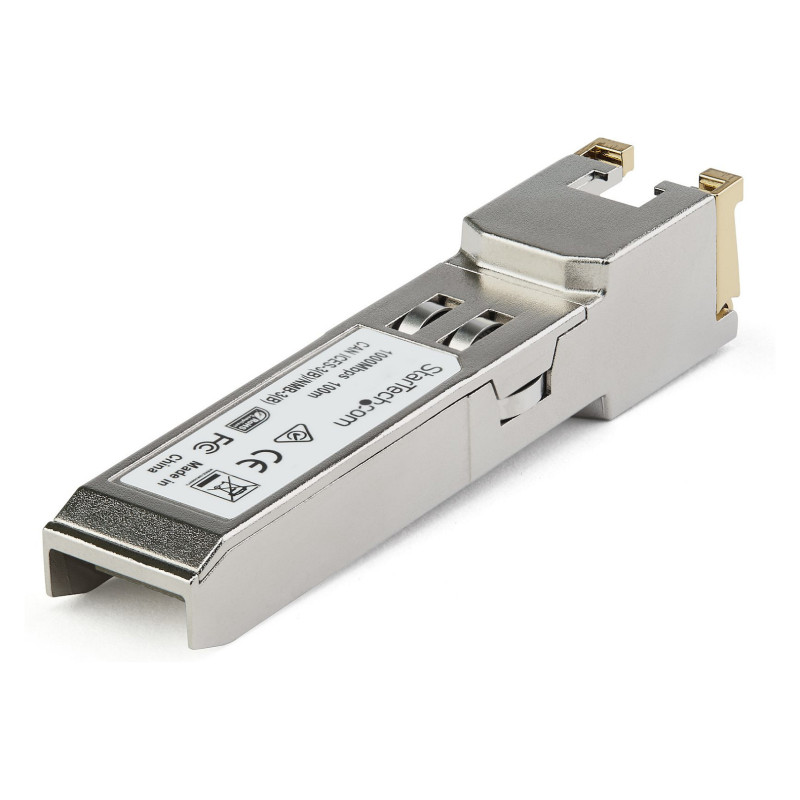

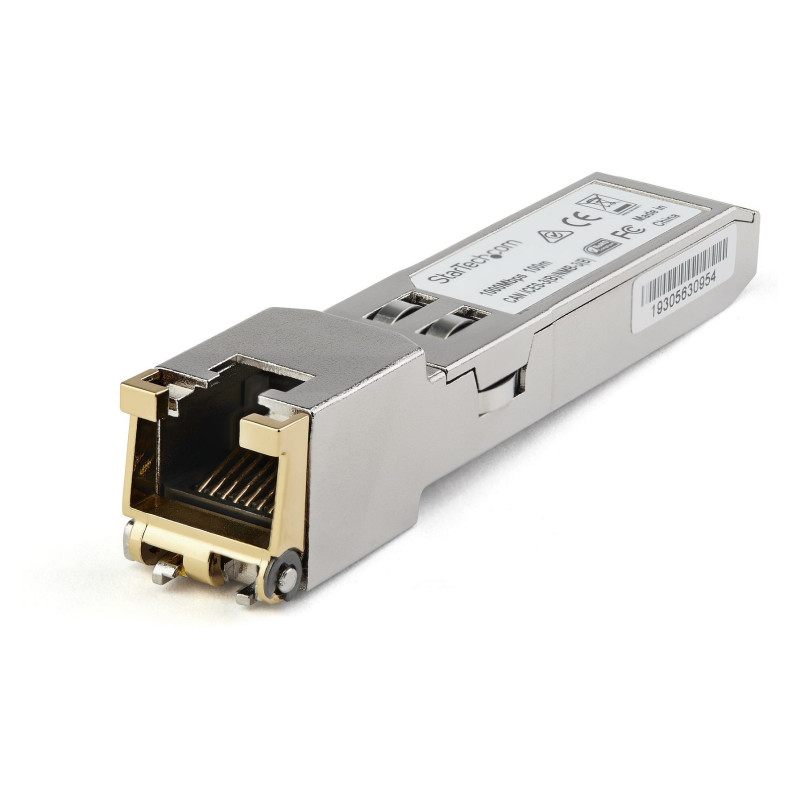

StarTech.com GLCTEST network transceiver module

StarTech.com Cisco GLC-TE Compatible Module - 1000BASE-T Copper Industrial Gigabit Ethernet Transceiver - SFP to RJ45 Cat6/Cat5e 100m Extended Temp - Cisco Firepower, IE 2000, C9500, C2960. SFP transceiver type: Copper, Maximum data transfer rate: 1250 Mbit/s, Interface type: SFP. Product colour: Silver, Mean time between failures (MTBF): 4655371 h, Brand compatibility: Cisco. Power consumption (typical): 1.3 W. Compliance certificates: RoHS, Certification: CE, FCC, REACH. Width: 14 mm, Depth: 65 mm, Height: 12 mm
1000 Mbps (1 Gbps) | Copper | RJ45 | 100 m (328 ft) | Lifetime Warranty
The GLCTEST is a Cisco GLC-TE compatible copper transceiver module that has been designed, programmed and tested to work with Cisco® brand switches and routers for extended temperatures. It delivers dependable 1 GbE connectivity over copper cable, for 1000BASE-T compliant networks, with a maximum distance of up to 100 m (328 ft).
Technical Specifications:
• Maximum Data Transfer Rate: 1000 Mbps
• Type: Copper

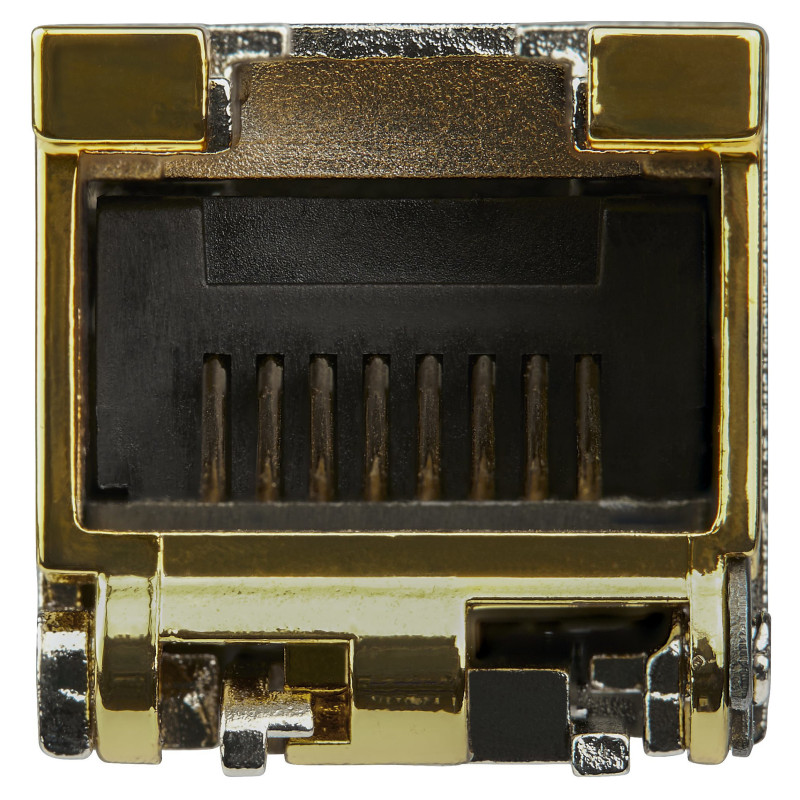

• Connection Type: RJ45 Connector
• Maximum Transfer Distance: 100 m (328 ft)
• MTBF: 4,655,371 hours
• Power Consumption: Less than 1.3 Watts
• Digital Diagnostics Monitoring (DDM): No
This SFP copper module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.

Performance

SFP transceiver type: Copper
Maximum data transfer rate: 1250 Mbit/s
Interface type: SFP
Maximum transfer distance: 100 m
Networking standards: IEEE 802.3
Copper ethernet cabling technology: 1000BASE
Digital Diagnostics Monitoring (DDM): No

Features

Product colour: Silver
Hot-swap: Yes
Mean time between failures (MTBF): 4655371 h
Brand compatibility: Cisco
Compatible products: C1000, C2960S, C3560, C3750, C9400, C9500, N3500, N2000, N5000, N7000, N7700, UCSB, IE2000, Firepower, ISR4000

Power

Power consumption (typical): 1.3 W

Certificates

Compliance certificates: RoHS
Certification: CE, FCC, REACH

Operational conditions

Operating temperature (T-T): -40 - 85 °C
Storage temperature (T-T): -40 - 85 °C
Operating relative humidity (H-H): 30 - 75%

Weight dimensions

Width: 14 mm
Depth: 65 mm
Height: 12 mm
Weight: 72 g

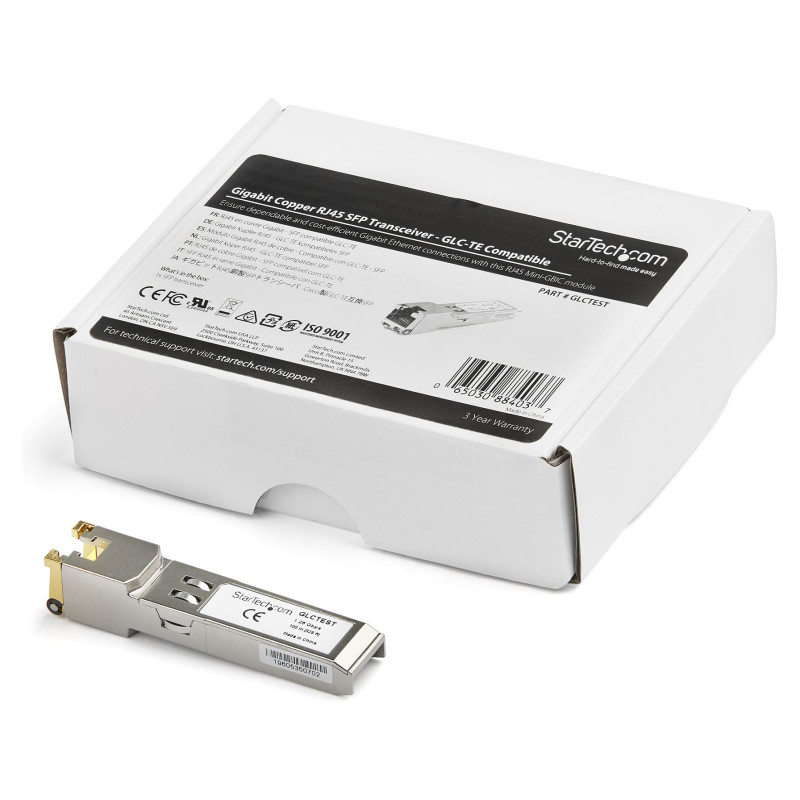

Packaging content

Quantity per pack: 1 pc(s)

Packaging data

Package width: 113 mm
Package depth: 91 mm
Package height: 34 mm
Package weight: 50 g

Logistics data

Master (outer) case width: 430 mm
Master (outer) case length: 345 mm
Harmonized System (HS) code: 85369010
Master (outer) case height: 359 mm
Products per master (outer) case: 120 pc(s)
Country of origin: China
