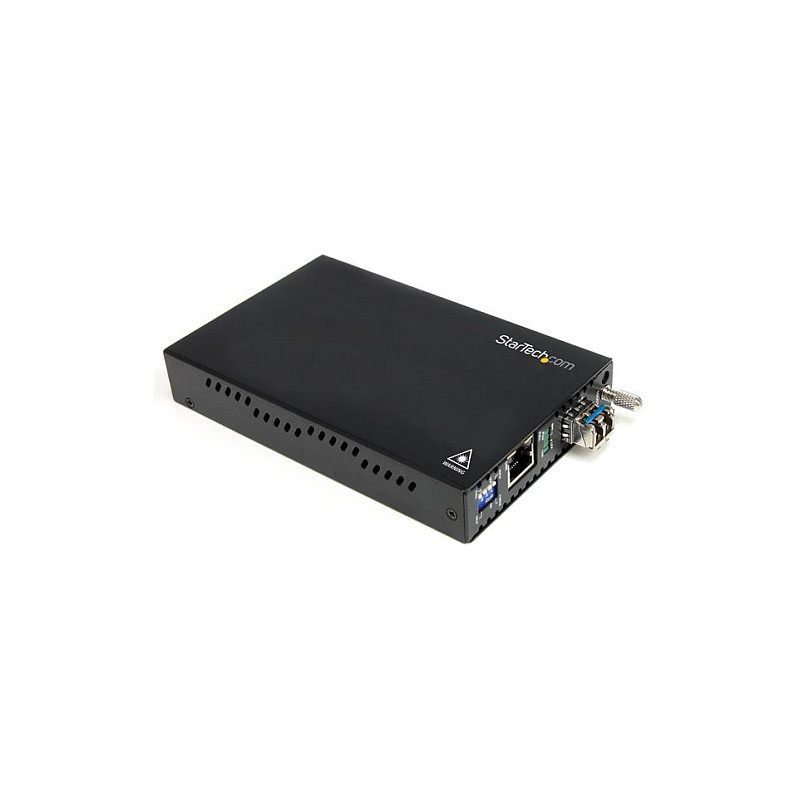

StarTech.com ET91000LC2 network media converter

StarTech.com Fiber Media Converter Gigabit 1000Mbps MM Fibre LC 550m. Maximum data transfer rate: 2000 Mbit/s, Converter input interface: 1000Base-T, Converter output interface: 1000Base-LX, 1000Base-SX. Maximum transfer distance: 550 m, Wavelength: 850 nm, Fiber mode structure: Multi-mode. Product colour: Black. Fiber optic connector: LC, Connectivity technology: Wired. Output voltage: 12 V, Output current: 1 A, Power consumption (typical): 4 W

Convert and extend a Gigabit Ethernet connection up to 550 m / 1804 ft over Multimode LC fiber

The ET91000LC2 1000 Mbps Gigabit Multimode Fiber Media Converter (LC, 550m) lets you extend a Gigabit Ethernet network over multimode fiber, at distances up to 550m (1804 ft).

A cost-effective solution for connecting a Gigabit Ethernet (1000Base-T) network to remote network segments over a (1000Base-LX/SX) fiber backbone, this GbE to MM fiber converter supports full Gigabit speeds for ideal network performance and scalability. Designed to offer a durable and convenient Ethernet-to-fiber solution, the Ethernet to LC Fiber converter features an all-steel chassis, and a simple plug-and-play installation with minimal configuration required.

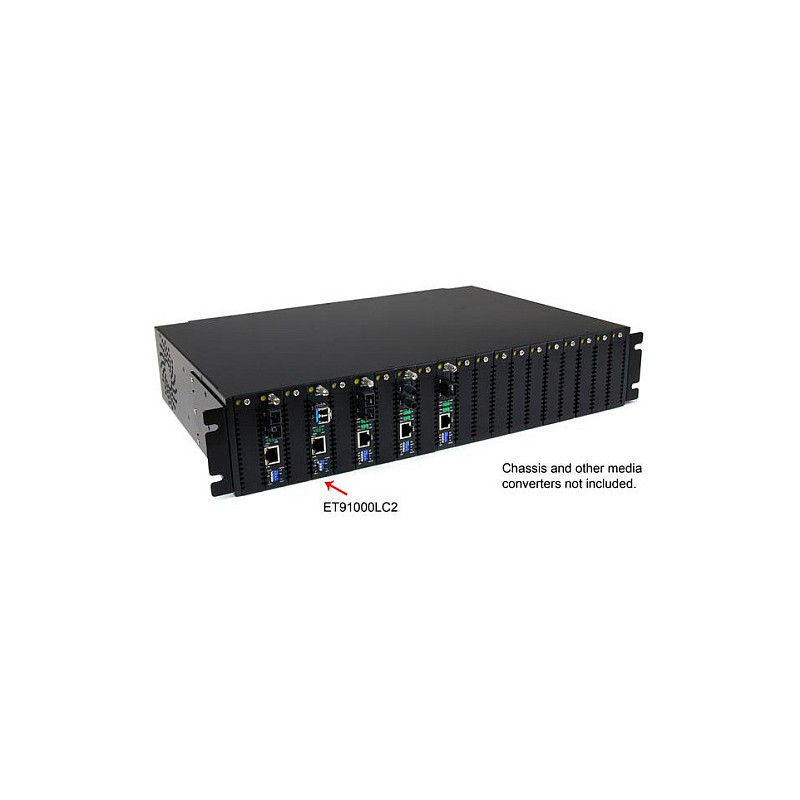

For added versatility, this fiber media converter supports standalone operation, or installation into the 20 Slot, 2U Rackmount Chassis (ETCHS2U), as well as a replaceable SFP slot.

Backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage

- Link loss forwarding, remote status monitoring ensures maximum up-time
- Provides Ethernet to Fiber conversion as a standalone device, or can be installed into the ETCHS2U 20 slot chassis for added versatility
- Rugged steel casing for durability in harsh environments

Network

Maximum data transfer rate: 2000 Mbit/s
Converter input interface: 1000Base-T
Converter output interface: 1000Base-LX, 1000Base-SX
Ethernet interface type: Gigabit Ethernet
Ethernet LAN data rates: 1000 Mbit/s
Feature: Auto MDI/MDI-X
Duplex system: Full, Half

Performance

Maximum transfer distance: 550 m
Wavelength: 850 nm
Fiber mode structure: Multi-mode
Mean time between failures (MTBF): 65000 h

Features

Feature: Plug and Play
Product colour: Black

Ports & interfaces

Connectivity technology: Wired

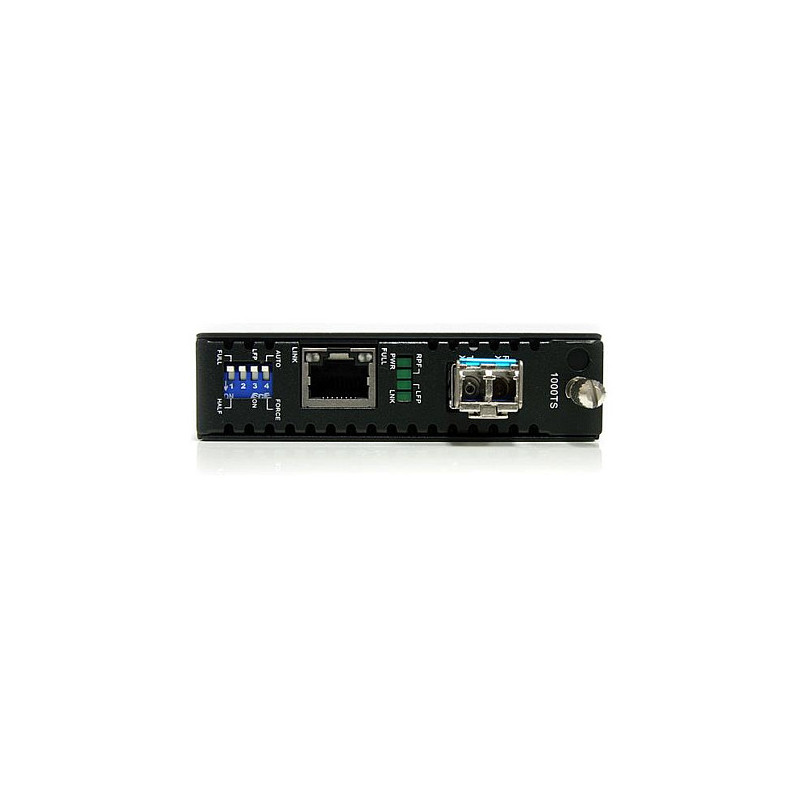

Ethernet LAN (RJ-45) ports: 1
Fiber ports quantity: 1
Fiber optic connector: LC

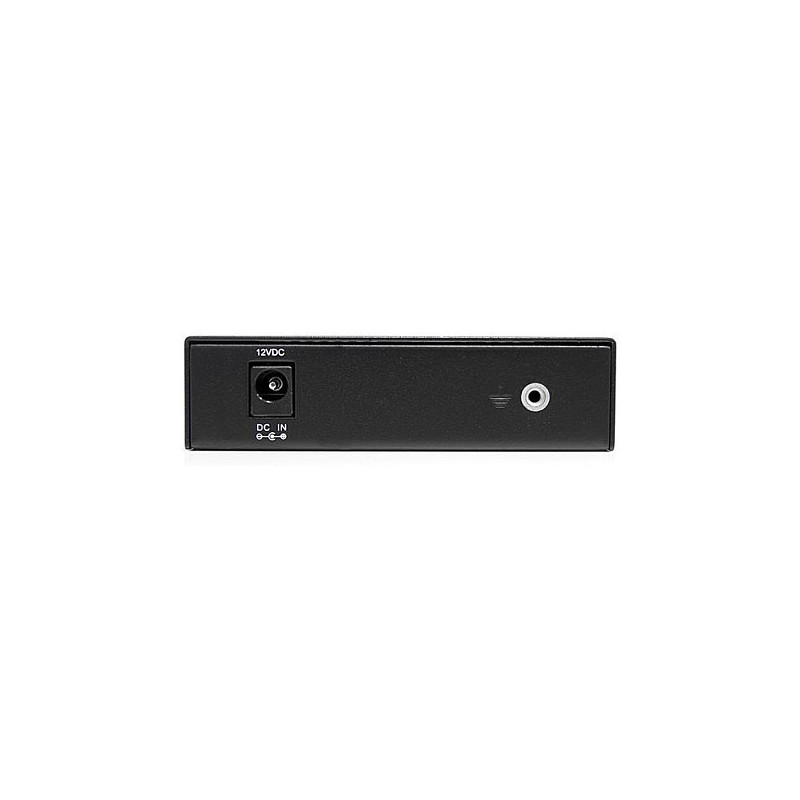

Feature: DC-in jack

Power

Output voltage: 12 V
Output current: 1 A
Power consumption (typical): 4 W
Feature: External power adapter

Weight & dimensions

Weight: 620 g

Operational conditions

Operating temperature (T-T): 0 - 60 °C
Storage temperature (T-T): -10 - 70 °C
Operating relative humidity (H-H): 10 - 90%

Packaging content

Feature: Manual

Packaging data

Package width: 206 mm
Package depth: 138 mm
Package height: 89 mm
Package weight: 774 g

Certificates

Compliance certificates: RoHS
Certification: CE, FCC

Logistics data

Harmonized System (HS) code: 85176990

Other features

Dimensions (WxDxH): 95 x 160 x 20 mm
Feature: Full duplex
