StarTech.com 813874B21ST network transceiver module

StarTech.com HPE 813874-B21 Compatible SFP+ Module - 10GBASE-T - SFP to RJ45 Cat6/Cat5e - 10GE Gigabit Ethernet SFP+ - RJ-45 30m - HPE BladeSystem, c-Class. SFP transceiver type: Copper, Maximum data transfer rate: 10000 Mbit/s, Interface type: SFP+. Product colour: Silver, Housing material: Zinc steel, Mean time between failures (MTBF): 4598430 h. Power consumption (typical): 2.3 W. Compliance certificates: RoHS, Certification: CE, FCC. Width: 13.4 mm, Depth: 69.8 mm, Height: 13.8 mm

10Gbps | Copper | RJ45 | 30 m (98.4 ft) | Lifetime Warranty

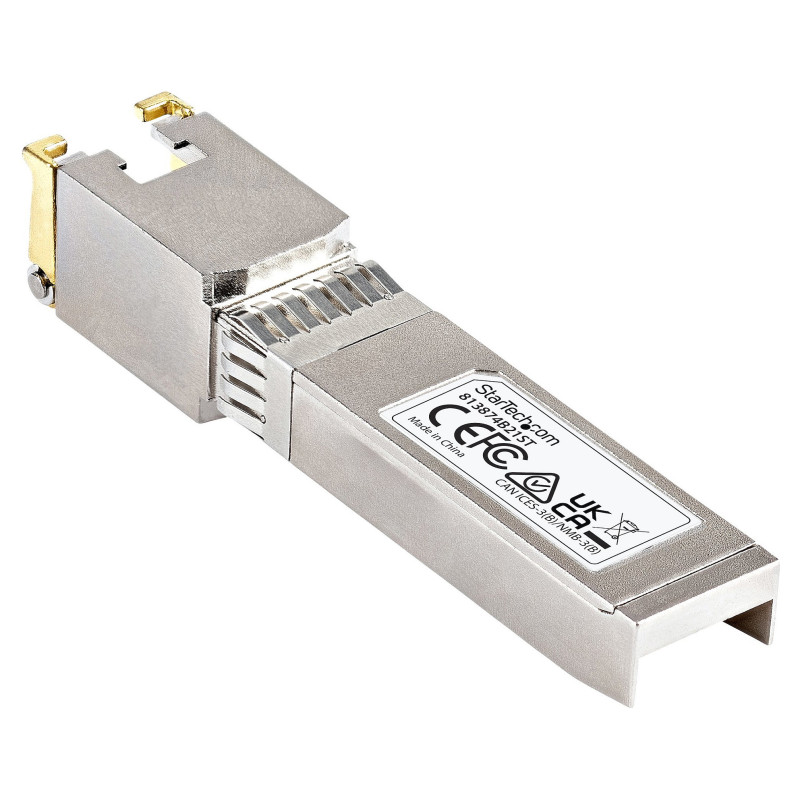

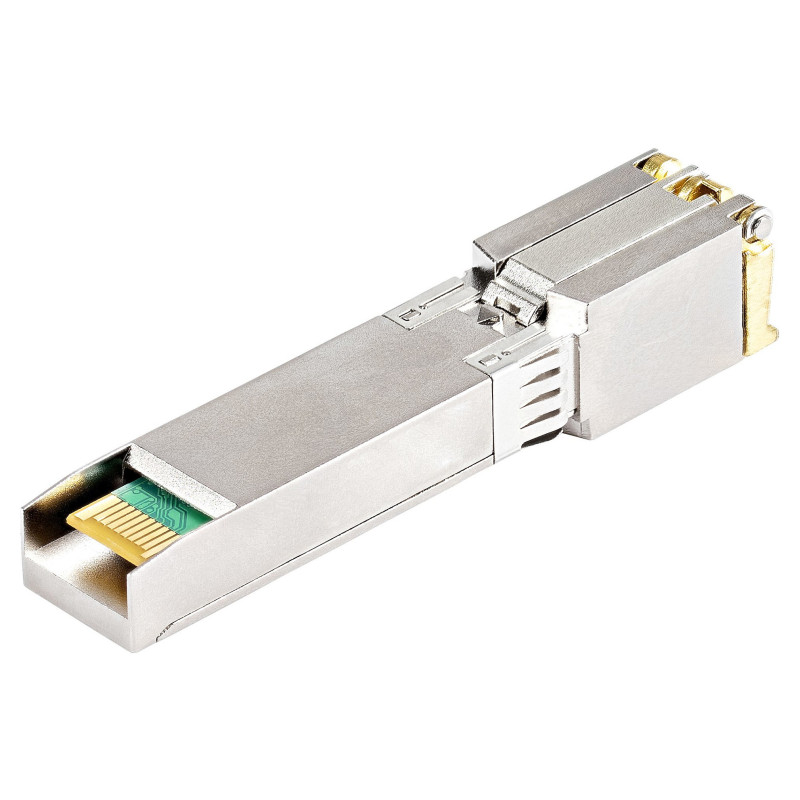

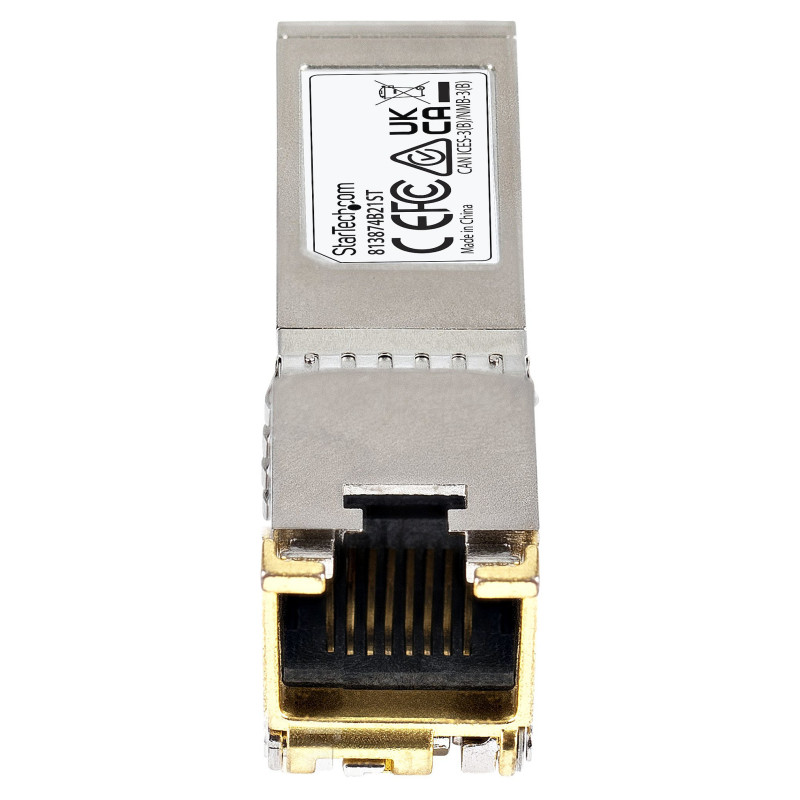

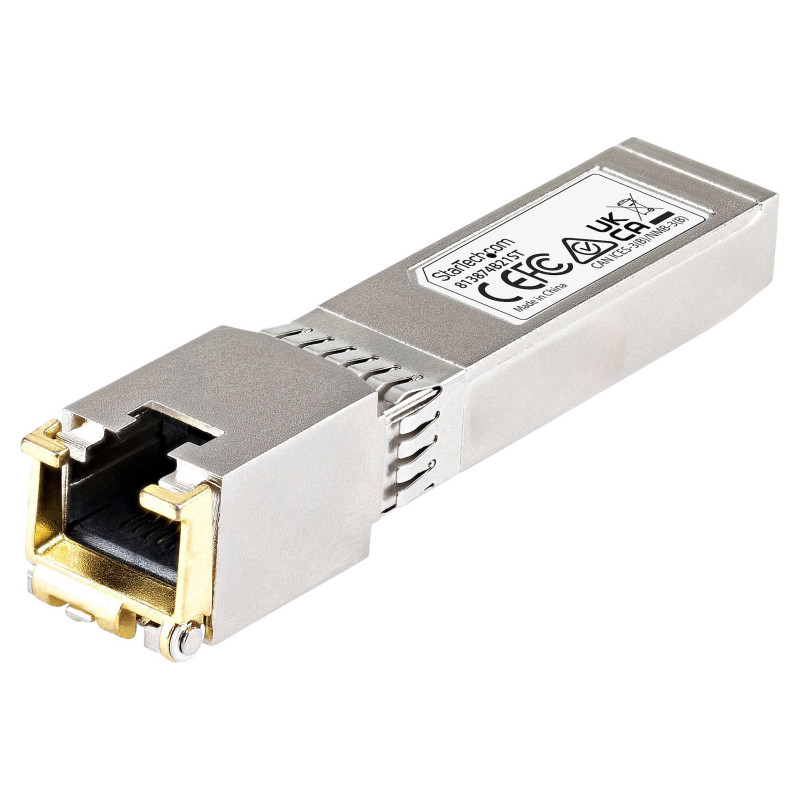

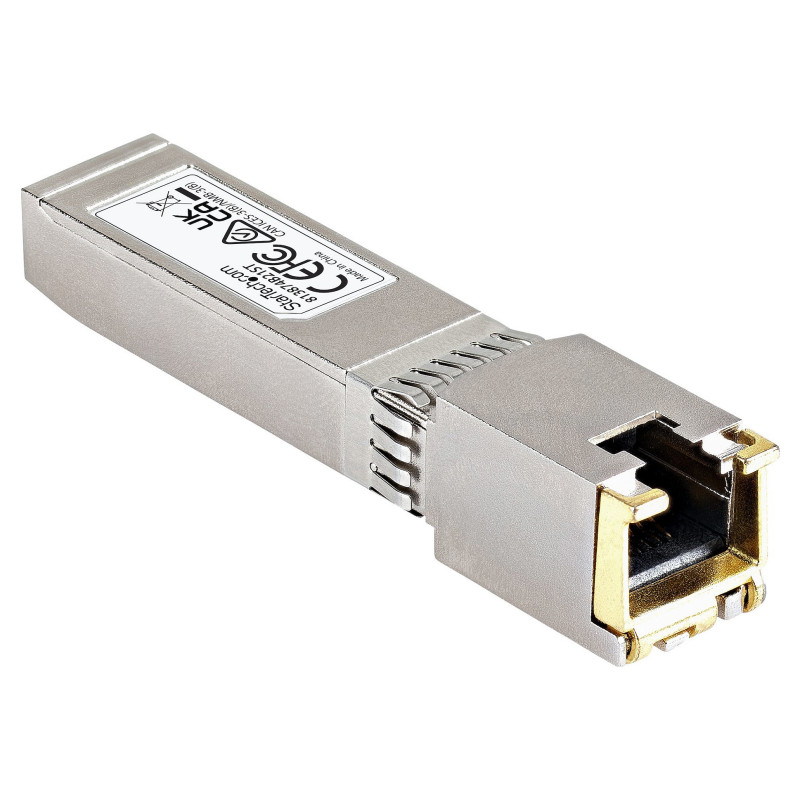

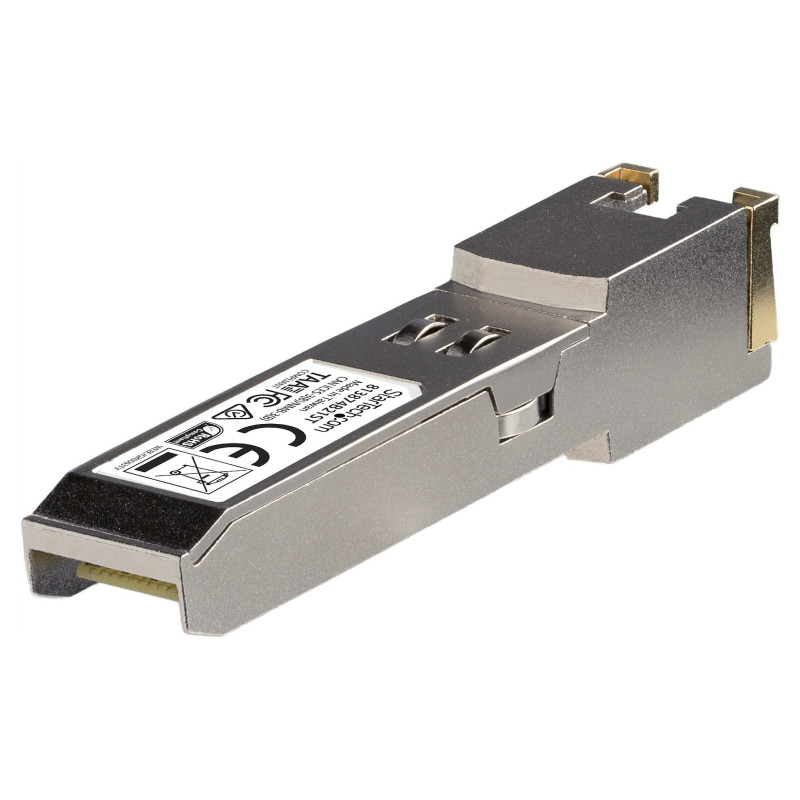

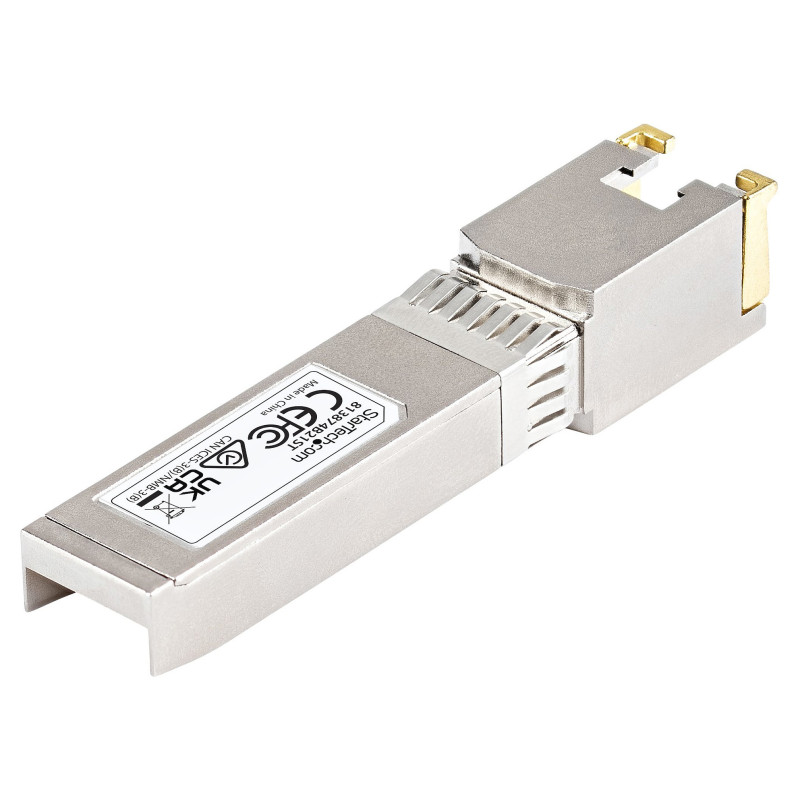

The 813874B21ST is an HPE 813874-B21 compatible copper transceiver module that has been designed, programmed and tested to work with HPE® brand switches and routers. It delivers dependable 10 GbE connectivity over copper cable, for 10GBASE-T compliant networks, with a maximum distance of up to 30 m (98.4 ft).

Technical Specifications:

• Maximum Data Transfer Rate: 10 Gbps
• Type: Copper
• Connection Type: RJ45 Connector
• Maximum Transfer Distance: 30 m (98.4 ft)
• MTBF: 4,598,430 hours
• Digital Diagnostics Monitoring (DDM): No

This SFP+ copper module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.

StarTech.com SFPs

All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.

Performance

SFP transceiver type: Copper
Maximum data transfer rate: 10000 Mbit/s
Interface type: SFP+
Maximum transfer distance: 30 m
Networking standards: IEEE 802.3an
Ethernet LAN (RJ-45) ports: 1
Feature: Auto MDI/MDI-X

Features

Product colour: Silver
Housing material: Zinc steel
Feature: Hot-swap
Mean time between failures (MTBF): 4598430 h
Brand compatibility: HP

Power

Power consumption (typical): 2.3 W

Certificates

Compliance certificates: RoHS
Certification: CE, FCC

Operational conditions

Operating temperature (T-T): 0 - 70 °C
Storage temperature (T-T): -40 - 90 °C
Operating relative humidity (H-H): 0 - 95%

Weight & dimensions

Width: 13.4 mm
Depth: 69.8 mm
Height: 13.8 mm
Weight: 58 g

Packaging content

Quantity per pack: 1 pc(s)

Packaging data

Package width: 120 mm
Package depth: 76 mm
Package height: 34 mm
Package weight: 31 g

Logistics data

Master (outer) case width: 340 mm
Master (outer) case length: 638 mm
Harmonized System (HS) code: 85369010
Master (outer) case height: 290 mm
Products per master (outer) case: 150 pc(s)
Country of origin: China
