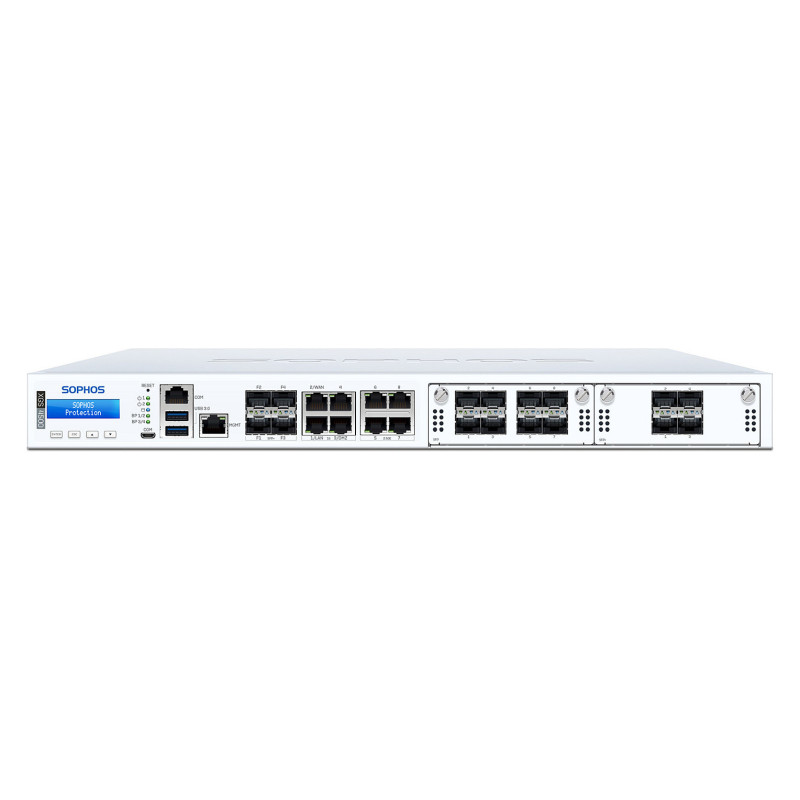

Sophos XGS 4500 hardware firewall

Sophos XGS 4500. Firewall throughput: 80 Gbit/s, Firewall (IMIX) throughput: 37 Gbit/s, VPN throughput: 75.55 Gbit/s. Ethernet LAN data rates: 1000,2500 Mbit/s. Form factor: 1U. AC input voltage: 100-240 V, AC input frequency: 50/60 Hz, Input current: 3.7 - 7.4 A. Certification: CB, CE, UKCA, UL, FCC, ISED, VCCI, KC, RCM, NOM, Anatel, CCC, BSMI, TEC, SDPPI

XGS Series Next-Gen Firewall Appliances
Distributed Edge: 1U Models
Mid-sized and distributed organizations in need of a versatile solution to power and protect their network will be well-served with our 1U models. These rackmount firewalls offer excellent performance, a diverse range of high-speed interfaces built-in, and a choice of add-on connectivity modules. Whether your priority is ensuring maximum uptime for your SD-WAN links, securely connecting your remote users, or protecting the network in a growing organization, you can tailor them to your dynamic environment.

All models are powered by a high-speed CPU plus a dedicated Xstream Flow Processor for hardware acceleration.

Data transmission

Firewall throughput: 80 Gbit/s
Firewall (IMIX) throughput: 37 Gbit/s
VPN throughput: 75.55 Gbit/s
IPS/IDS throughput: 36500 Mbit/s
Threat protection throughput: 8650 Mbit/s
Xstream SSL decryption + Threat protection: 10600 Mbit/s
Firewall latency: 4 µs

Performance

Concurrent connections: 17200

Network

VPN tunnels quantity: 8500

Ports & interfaces

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
Ethernet LAN (RJ-45) ports: 8
Ethernet LAN data rates: 1000,2500 Mbit/s
SFP+ module slots quantity: 4

Design

Feature: Rack mounting
Form factor: 1U

Power

AC input voltage: 100-240 V
AC input frequency: 50/60 Hz
Input current: 3.7 - 7.4 A
Power consumption (max): 268.35 W
Power consumption (idle): 151 W

Certificates

Certification: CB, CE, UKCA, UL, FCC, ISED, VCCI, KC, RCM, NOM, Anatel, CCC, BSMI, TEC, SDPPI

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -20 - 70 °C
Operating relative humidity (H-H): 10 - 90%

Weight & dimensions

Width: 438 mm
Depth: 510 mm
Height: 44 mm
Weight: 9.7 kg

Packaging data

Package weight: 15.9 kg
