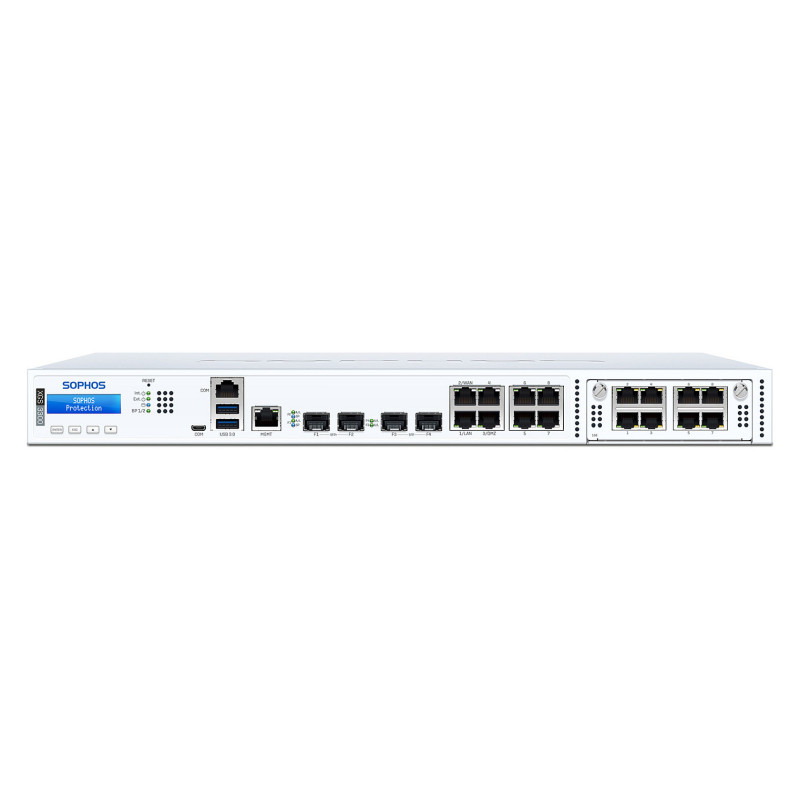

Sophos XGS 3300 hardware firewall

Sophos XGS 3300. Firewall throughput: 58 Gbit/s, Firewall (IMIX) throughput: 27 Gbit/s, IPSec VPN throughput: 31.1 Gbit/s. Form factor: 1U. AC input voltage: 100-240 V, AC input frequency: 50/60 Hz, Input current: 3 - 6 A. Certification: CB, CE, UKCA, UL, FCC, ISED, VCCI, KC, RCM, NOM, Anatel, CCC, BSMI, TEC, SDPPI. Width: 438 mm, Depth: 405 mm, Height: 44 mm
XGS Series Next-Gen Firewall Appliances
Distributed Edge: 1U Models
Mid-sized and distributed organizations in need of a versatile solution to power and protect their network will be well-served with our 1U models. These rackmount firewalls offer excellent performance, a diverse range of high-speed interfaces built-in, and a choice of add-on connectivity modules. Whether your priority is ensuring maximum uptime for your SD-WAN links, securely connecting your remote users, or protecting the network in a growing organization, you can tailor them to your dynamic environment.
All models are powered by a high-speed CPU plus a dedicated Xstream Flow Processor for hardware acceleration.

Data transmission

Firewall throughput: 58 Gbit/s
Firewall (IMIX) throughput: 27 Gbit/s
IPSec VPN throughput: 31.1 Gbit/s
IPS/IDS throughput: 14000 Mbit/s
Threat protection throughput: 3000 Mbit/s
Xstream SSL decryption + Threat protection: 3130 Mbit/s
Firewall latency: 4 µs

Performance

Concurrent connections: 13700000

Network

VPN tunnels quantity: 6500

Ports interfaces

Gigabit (fiber) ports quantity: 8
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
USB 2.0 ports quantity: 1
Micro-USB ports quantity: 1
SFP module slots quantity: 2
SFP+ module slots quantity: 2

Design

Feature: Rack mounting
Form factor: 1U

Power

AC input voltage: 100-240 V
AC input frequency: 50/60 Hz
Input current: 3 - 6 A
Power consumption (max): 182 W
Power consumption (idle): 50 W

Certificates

Certification: CB, CE, UKCA, UL, FCC, ISED, VCCI, KC, RCM, NOM, Anatel, CCC, BSMI, TEC, SDPPI

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -20 - 70 °C
Operating relative humidity (H-H): 10 - 90%

Weight dimensions

Width: 438 mm
Depth: 405 mm
Height: 44 mm
Weight: 4.7 kg

Packaging data

Package weight: 7 kg
