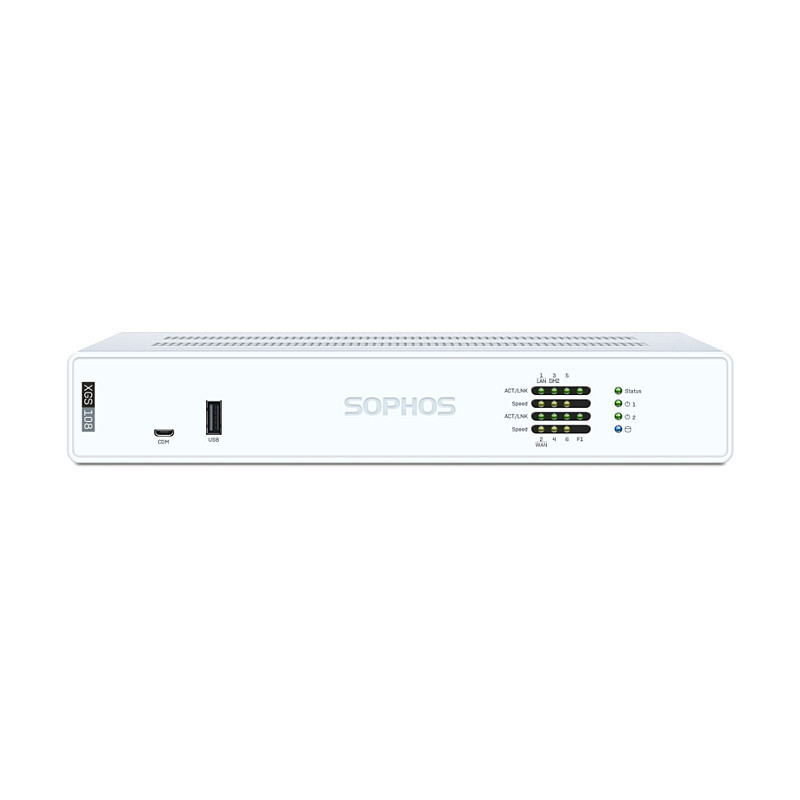

Sophos XGS 108 hardware firewall

Sophos XGS 108. Firewall throughput: 12.5 Gbit/s, Firewall (IMIX) throughput: 8.1 Gbit/s, IPSec VPN throughput: 8.25 Gbit/s. Ethernet LAN data rates: 2500 Mbit/s. AC input voltage: 100-240 V, AC input frequency: 50/60 Hz, Input current: 5 A. Certification: CB, CE, UKCA, UL, FCC, ISED, VCCI, KC, BSMI, RCM, NOM, Anatel, TEC. Width: 260 mm, Depth: 180 mm, Height: 44 mm

Unlock supreme desktop performance, improved energy efficiency, and a wealth of new high-speed connectivity options.

Sophos second-generation XGS Series desktop appliances deliver double the performance of our first-generation models while cutting power consumption in half. All these desktop firewalls include 2.5 GE interfaces, allowing traffic to flow freely and without bottlenecks, from your firewall to your 2.5 GE switch to your Wi-Fi 6 access point.

Customers with noise-sensitive environments such as healthcare, education, and retail will love the whisper-quiet operation of the fanless XGS 88 and XGS 108 models. Using the expansion bay, an optional 5G module adds either redundant cellular connectivity or cost-effective 5G fixed wireless access (FWA).

The XGS 88 to XGS 128 models feature a streamlined, single-CPU architecture that utilizes virtual FastPath technology for traffic acceleration (in combination with Sophos Firewall OS v21 and higher). As our gateway model to the distributed edge, the XGS 138 boasts a dedicated Xstream Flow processor for hardware acceleration and two 10 GE SFP+ interfaces for high-speed fiber connectivity. All models except the XGS 138 are optionally available with built-in Wi-Fi.

Data transmission

Firewall throughput: 12.5 Gbit/s
Firewall (IMIX) throughput: 8.1 Gbit/s
IPSec VPN throughput: 8.25 Gbit/s
IPS/IDS throughput: 2500 Mbit/s
Threat protection throughput: 2500 Mbit/s
Xstream SSL decryption + Threat protection: 800 Mbit/s

Performance

Concurrent connections: 4190000
Feature: MIMO

Network

VPN tunnels quantity: 1000

Ports & interfaces

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
USB 2.0 ports quantity: 1
Ethernet LAN (RJ-45) ports: 6
Ethernet LAN data rates: 2500 Mbit/s

Power

AC input voltage: 100-240 V
AC input frequency: 50/60 Hz
Input current: 5 A
DC input voltage: 12 V
Power consumption (typical): 21.5 W
Power supply: 60 W

Certificates

Certification: CB, CE, UKCA, UL, FCC, ISED, VCCI, KC, BSMI, RCM, NOM, Anatel, TEC

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -20 - 70 °C
Operating relative humidity (H-H): 10 - 90%

Weight & dimensions

Width: 260 mm
Depth: 180 mm
Height: 44 mm
Weight: 1.8 kg

Packaging data

Package weight: 2.4 kg
