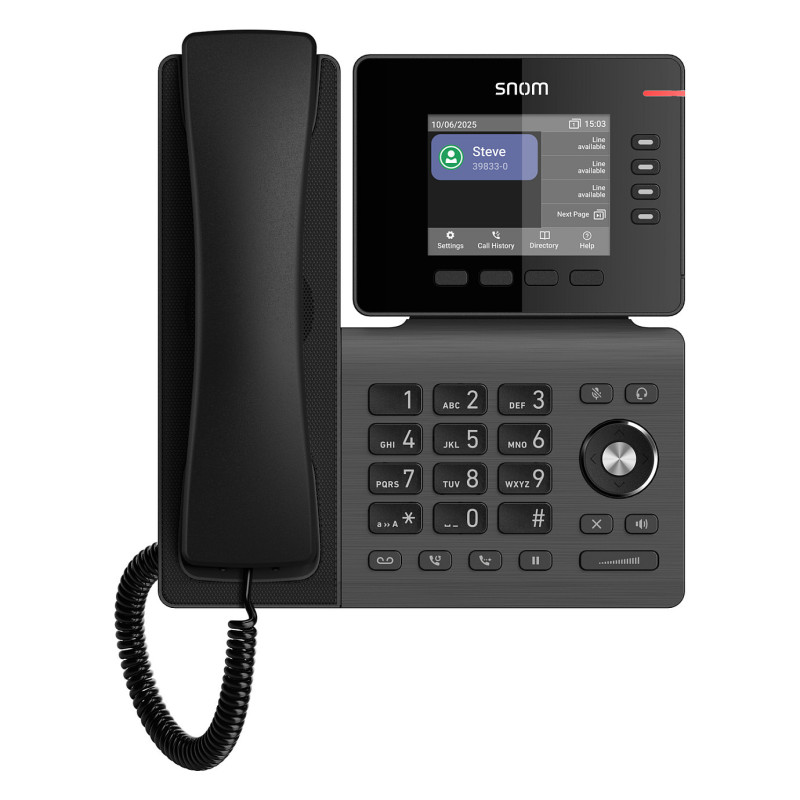

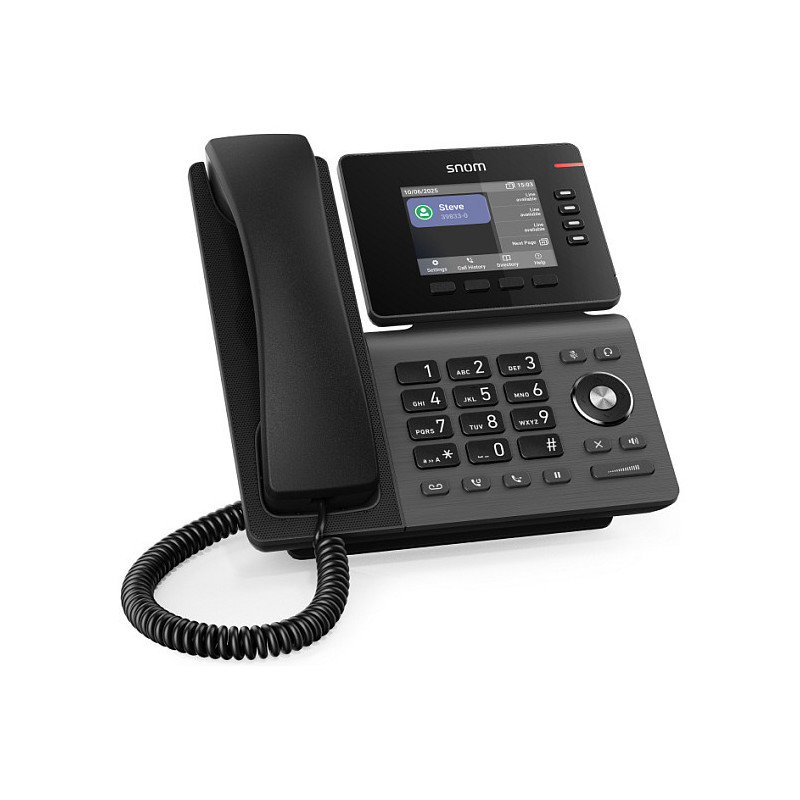

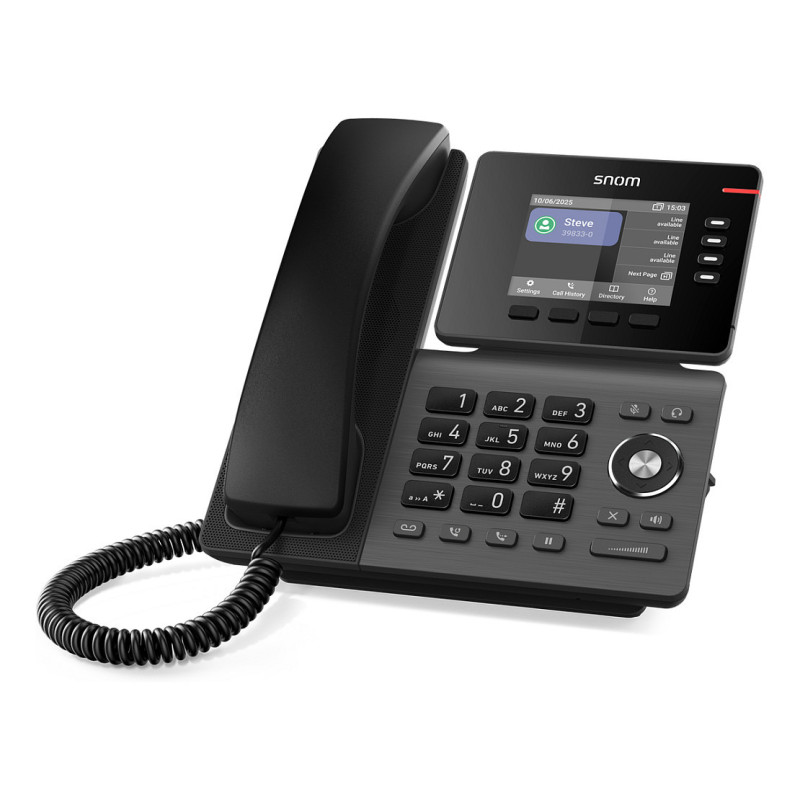

Snom D810W IP phone

Snom D810W. Product type: IP Phone, Product colour: Black. Display: IPS, Display diagonal: 8.53 cm (3.36"). Microphone frequency: 100 - 8000 Hz, Voice codecs: G.711alaw, G.711ulaw, G.722, G.723.1, G.726, G.729ab. Ethernet LAN interface type: Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s, Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac). Headset connectivity: RJ-9

Compact design meets full connectivity for modern workplaces
The Snom D810W is the ideal entry point into professional IP telephony. Thanks to integrated Wi-Fi and a brilliant colour display, the Snom D810W offers a high degree of flexibility and user-friendliness even in its basic configuration. The combination of robust hardware and proven Snom quality makes it the ideal choice for companies that value efficiency and scalability.

Thanks to high-quality security standards, a USB port, a wear-free electronic hook switch and the option of expansion with our expansion modules, the Snom D810W is not only reliable but also very easily scalable.

Whether in the office, home office or at reception, this desk phone combines functionality with future-proofing. Ideal for teams looking for a cost-effective device without compromising on comfort and quality.

Brilliant colour display
Perfect for use in the office or home office thanks to its optimal readability.

Integrated Wi-Fi
Easy integration into any type of infrastructure.

Effortlessly expandable
If you need a little more clarity, the D810W can also be supplemented with our expansion module.

Design

Product type: IP Phone
Product colour: Black

Phone features

Feature: Call waiting
Feature: Speed dialling
Feature: Call hold
Feature: Redialing
Feature: Caller ID
Feature: Call park
Feature: Call pick up

Management features

Keypad number of keys: 35
Number of programmable keys: 4
Number of function keys: 5
Feature: Plug and Play

Display

Display: IPS
Display diagonal: 8.53 cm (3.36")
Feature: Backlight display

Audio

Feature: Speakerphone
Feature: Microphone mute
Microphone frequency: 100 - 8000 Hz
Voice codecs: G.711alaw, G.711ulaw, G.722, G.723.1, G.726, G.729ab
Feature: Adaptive jitter buffers
Feature: Comfort noise generation (CNG)
Feature: Packet loss concealment (PLC)

Network

Feature: Ethernet LAN
Ethernet LAN interface type: Gigabit Ethernet
Ethernet LAN data rates: 10,100,1000 Mbit/s
Feature: Wi-Fi
Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Maximum data transfer rate: 433 Mbit/s
Supported network protocols: IPv4 / IPv6 (dual stack), DHCP, NTP, LDAP, LLDP-MED, HTTP, TFTP, L2TP
Security algorithms: WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
Feature: Syslog
VoIP protocols: SIP, SDP, RTP, RTCP, RTCP-XR, SIP REFER method (RFC 3515), rport (RFC 3581), ENUM, ICE, STUN

Ports & interfaces

Headset connectivity: RJ-9
USB 2.0 ports quantity: 1
RJ-9 ports quantity: 1

Power

Feature: Power over Ethernet (PoE)
AC adapter input voltage: 100 - 240 V
Input frequency: 50/60 Hz
AC adapter output voltage: 5 V
AC adapter output current: 2 A
Power consumption (typical): 10 W

Operational conditions

Operating temperature (T-T): 0 - 35 °C
Operating relative humidity (H-H): 5 - 95%
Storage temperature (T-T): -10 - 45 °C

Weight & dimensions

Width: 200 mm
Depth: 210 mm
Height: 45 mm
Weight: 700 g

Packaging content

Number of handles included: 1 pc(s)
