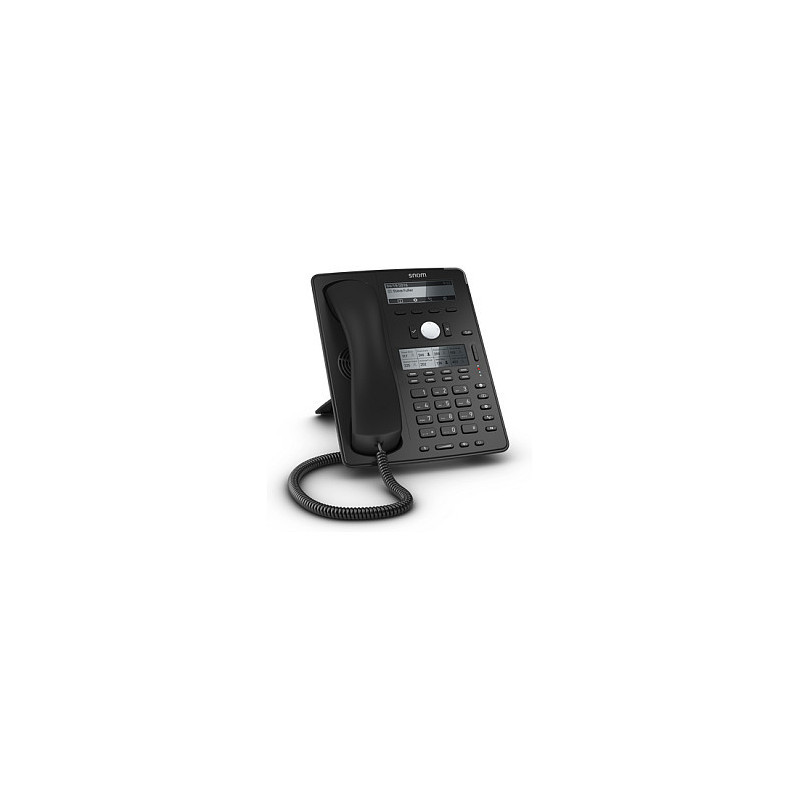

Snom D745 IP phone

Snom D745. Product type: IP Phone, Product colour: Black, Handset type: Wired handset. Dual-Tone Multi-Frequency (DTMF) modes: In-band, Out-of band, SIP info, Password protection type: User. Phonebook capacity: 1000 entries. Volume control: Digital. Display number of colours: Monochrome

Aesthetically appealing and highly practical, the D745 desk phone is a prime solution for those who utilize the telephone in daily work. It is not only easy to use, but also cost effective for large-scale deployment. Its elegant design complements even the most prestigious surroundings, and its high/low angle foot stand allows for maximum user comfort and efficiency. Wideband HD audio ensures crystal clear sound quality, and features such as call management, customizable call lists and address book are provided on a high-resolution graphical display. A second screen supports four virtual pages, each offering eight programmable keys with multicolored LEDs. The D745 includes a high-speed USB port to connect accessories such as headsets or WiFi sticks, and a gigabit Ethernet switch for connecting LAN or VPN clients to provide an additional layer of security.

Design

Product type: IP Phone
Handset type: Wired handset
Product colour: Black
Feature: Keypad illumination
Feature: Device lock
Feature: Wall mountable
Mounting: Desk/Wall

Performance

Dual-Tone Multi-Frequency (DTMF) modes: In-band, Out-of band, SIP info
Password protection type: User

Phone features

Feature: Answering machine
Feature: Call waiting
Feature: Speed dialling
Feature: Call hold
Feature: Call forwarding
Feature: Conference call
Feature: Redialing
Feature: Do not disturb function
Feature: Caller ID
Phonebook capacity: 1000 entries
Feature: Call park
Feature: Call pick up
Feature: Anonymous call
Feature: Call transfer
Feature: Message-waiting indicator (MWI)
Feature: SIP registrar server

Management features

Volume control: Digital
Number of programmable keys: 8
Feature: Display contacts list status
Feature: Firmware upgradeable

Display

Display number of colours: Monochrome

Audio

Feature: Speakerphone
Feature: Microphone mute
Voice codecs: GSM 6.10, G.711, G.722, G.726, G.729ab
Feature: Voice activity detection
Feature: Comfort noise generation (CNG)

Network

Feature: Ethernet LAN
Feature: DHCP client
Security algorithms: 802.1x RADIUS, HTTPS, SIPS, SRTP, SSL/TLS
Networking standards: IEEE 802.1Q, IEEE 802.1x, IEEE 802.3af

Ports & interfaces

USB 2.0 ports quantity: 1
Ethernet LAN (RJ-45) ports: 1
Feature: DC-in jack

Certificates

Safety: IEC 60950, CB
Certification: E Mark, FCC Class B

Power

Feature: Power over Ethernet (PoE)

Operational conditions

Operating temperature (T-T): 0 - 35 °C
Operating relative humidity (H-H): 5 - 95%
Storage temperature (T-T): -10 - 45 °C

Weight & dimensions

Width: 220 mm
Depth: 185 mm
Height: 185 mm
Weight: 940 g

Packaging content

Feature: Base station
Feature: Ethernet cable
Feature: Quick start guide
Number of handles included: 1 pc(s)
Cables included: LAN (RJ-45)

Logistics data

Harmonized System (HS) code: 85171800
