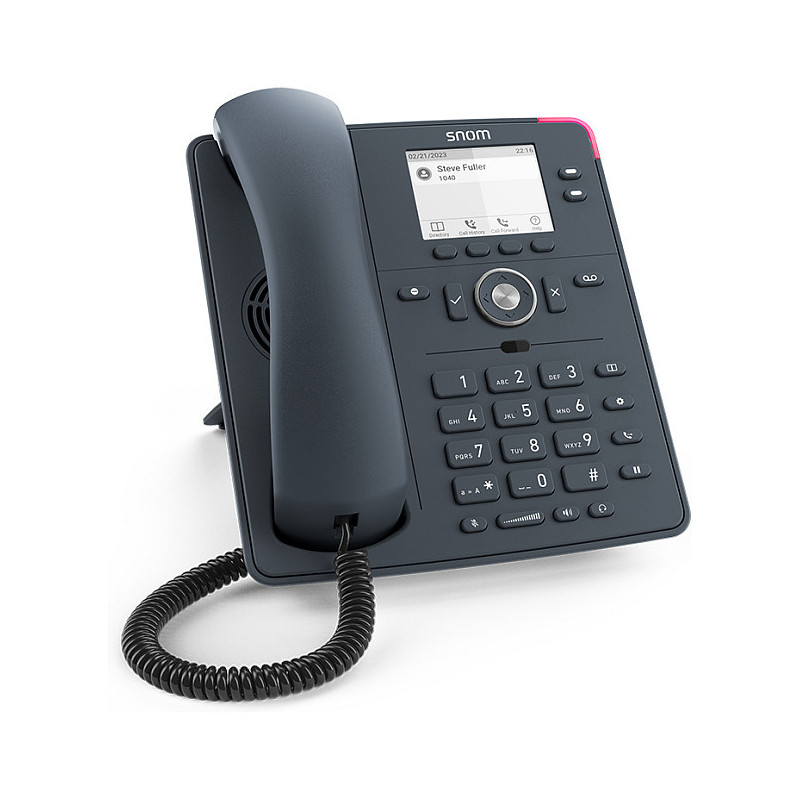

Snom D140 IP phone

Snom D140. Product type: IP Phone, Product colour: Grey, Handset type: Wired handset. Operating system installed: Linux. Lines quantity: 2 lines. Display: TFT, Display diagonal: 7.11 cm (2.8"), Display resolution: 320 x 240 pixels. Voice codecs: G.711alaw, G.711ulaw, G.722, G.726, G.729, GSM 6.10
The Snom D140 is suitable for all work environments in which cost-effective but high-quality communication is required. The device, equipped with slate grey housing, offers all the important telephony functions. Two freely programmable SmartLabel keys, six dedicated and four context-sensitive function keys are available for simple and intuitive operation. The D140 is ideal for large installations, e.g. in public administrations.
360° notification indicator
The Indicator lamp shows from any point in the room if you have missed a call, for example.
2,8" TFT LCD - Grayscale Display
The Snom D140 is equipped with a high resolution 2.8" TFT LCD - grayscale display, which ensures an optimal display at any time.
4 context sensitive function keys + 2 freely programmable SmartLabel keys

Design

Product type: IP Phone
Handset type: Wired handset
Product colour: Grey
Device lock: Yes
Wall mountable: Yes
Mounting: Desk/Wall

Performance

Operating system installed: Linux

Phone features

Lines quantity: 2 lines
Answering machine: Yes
Call waiting: Yes
Speed dialling: Yes
Intercom: Yes
Call hold: Yes
Redialing: Yes

Management features

Keypad number of keys: 36
Number of function keys: 6

Display

Display: TFT
Display diagonal: 7.11 cm (2.8")
Display resolution: 320 x 240 pixels
Touchscreen: No

Audio

Microphone mute: Yes
Voice codecs: G.711alaw, G.711ulaw, G.722, G.726, G.729, GSM 6.10
Voice activity detection: Yes
Comfort noise generation (CNG): Yes

Network

Ethernet LAN: Yes
Wi-Fi: No
Supported network protocols: IPv4 / IPv6 (dual stack), DHCP, NTP, LDAP, LLDP-MED, HTTP, TFTP, L2TP
Security algorithms: HTTPS, SIPS, SRTP, TLS
VoIP protocols: SIP (RFC 3261), SDP (RFC 3261), RTP (RFC 8866), RTCP (RFC 3550), RTCP-XR, SIP REFER method (RFC 3515), rport (RFC 3581), ENUM, ICE, STUN (RFC 5389)
Networking standards: IEEE 802.3af, IEEE 802.3az

Ports interfaces

Headset connectivity: RJ-9
Ethernet LAN (RJ-45) ports: 2
RJ-9 ports quantity: 2

Power

Power over Ethernet (PoE): Yes
AC adapter input voltage: 100 - 240 V
Input frequency: 50 - 60 Hz
AC adapter output voltage: 5 V
AC adapter output current: 2 A
Power consumption (typical): 10 W

Operational conditions

Operating temperature (T-T): 0 - 35 °C
Operating relative humidity (H-H): 5 - 95%
Storage temperature (T-T): -10 - 45 °C

Weight dimensions

Width: 185 mm
Depth: 205 mm
Height: 40 mm
Weight: 710 g
Height (min): 4 cm
Height (max): 22 cm

Packaging content

Ethernet cable: Yes
Number of handles included: 1 pc(s)
Stand included: Yes
