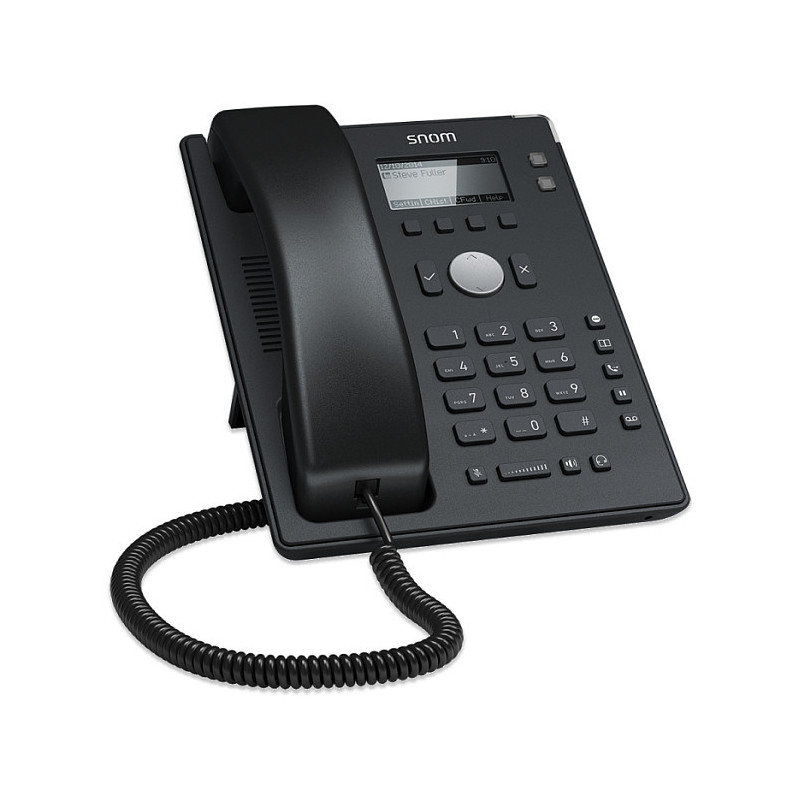

Snom D120 IP phone

Snom D120. Product type: IP Phone, Product colour: Black, Handset type: Wired handset. Dual-Tone Multi-Frequency (DTMF) modes: In-band, Out-of band, SIP info. Lines quantity: 2 lines, Phonebook capacity: 250 entries, Dialing: Pulse. Volume control: Digital. Display resolution: 132 x 64 pixels

With the D120, Snom completes its phone series with a real entry-level device. Designed for large installations, such as those that can be found in the hotel- or healthcare industry, its straightforward design and exceptional audio quality meet all the requirements of an entry-level phone.The D120 is a no-frills phone without a large display, special function keys or features such as call holding for more than one call etc. and has been designed purely with stability and ease-of-use in mind.

Nevertheless, the Snom D120 does feature a backlit display which is a unique within the price segment. The D120 is hearing aid compatible (HAC), is equipped with its own specially adapted firmware, has very low power consumption requirements, can be used via PoE (Power over Ethernet) and is compatible with Snom's redirection services. Combined with an unbeatable price, it is the leader in its class.

Design

Product type: IP Phone
Handset type: Wired handset
Product colour: Black
Feature: Device lock
Feature: Wall mountable
Mounting: Desk/Wall

Performance

Dual-Tone Multi-Frequency (DTMF) modes: In-band, Out-of band, SIP info

Phone features

Lines quantity: 2 lines
Feature: Answering machine
Feature: Call waiting
Feature: Speed dialling
Feature: Call forwarding
Feature: Conference call
Feature: Redialing
Feature: Do not disturb function
Feature: Caller ID
Phonebook capacity: 250 entries
Feature: Call park
Feature: Call pick up
Feature: Anonymous call rejection
Dialing: Pulse
Feature: Call transfer
Feature: Call history

Management features

Volume control: Digital
Keypad number of keys: 32
Number of function keys: 9
Feature: Plug and Play

Display

Display resolution: 132 x 64 pixels
Feature: Backlight display

Audio

Feature: Speakerphone
Feature: Microphone mute
Voice codecs: G.711a, G.722, G.726, G.729, GSM 6.10
Feature: Voice activity detection
Number of melodies: 10
Feature: Comfort noise generation (CNG)

Network

Feature: Ethernet LAN
Ethernet LAN interface type: Fast Ethernet
Ethernet LAN data rates: 10,100 Mbit/s
Supported network protocols: DHCP, HTTP, NTP, LDAP, TFTP, HTTPS
Security algorithms: 802.1x RADIUS, HTTPS, SHA-2, SIPS, SSL/TLS
Networking standards: IEEE 802.1x, IEEE 802.3af

Ports & interfaces

Ethernet LAN (RJ-45) ports: 2
Feature: Internet connection required
WAN connection type: RJ-45

Certificates

Safety: IEC 60950
Certification: CE

Power

Feature: Power over Ethernet (PoE)
AC adapter output voltage: 5 V

Operational conditions

Operating temperature (T-T): 0 - 35 °C
Operating relative humidity (H-H): -10 - 45%
Storage relative humidity (H-H): 5 - 95%

Weight & dimensions

Width: 205 mm
Depth: 161 mm
Height: 32 mm

Packaging content

Feature: Ethernet cable
Feature: Quick start guide
Number of handles included: 1 pc(s)
Cables included: LAN (RJ-45)

Logistics data

Harmonized System (HS) code: 85171800
